Pulse Transformers

Pulse Transformers are magnetic components used to transfer pulse signals, provide galvanic isolation and support reliable signal coupling in electronic circuits. They are widely used in switching power supplies, gate drive circuits, communication equipment, industrial control systems, data transmission, instrumentation, automotive electronics and embedded applications.

This category includes signal pulse transformers, gate drive transformers, isolation pulse transformers, LAN pulse transformers, trigger transformers and related high-frequency magnetic components. These products are commonly selected based on turns ratio, isolation voltage, pulse width, frequency range, impedance, package style, mounting type and application requirements.

TomatoElec supplies original Pulse Transformers from recognized manufacturers such as Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification
HM2102NLT XFMR CMC MODULE AECQ BATT MNGT Pulse Electronics	2,976	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	150µH	-	1:1	Surface Mount	0.583" L x 0.460" W (14.81mm x 11.68mm)	0.197" (5.00mm)	-40°C ~ 125°C	-	-
HM1188NL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	898	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.235" (5.97mm)	-40°C ~ 105°C	-	-
HX6096NLT PULSE XFMR 1CT:1CT TX/RX Pulse Electronics	4,952	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.715" L x 0.480" W (18.16mm x 12.20mm)	0.260" (6.60mm)	-40°C ~ 85°C	-	-
HM1188NLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	8,088	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.235" (5.97mm)	-40°C ~ 105°C	-	-
SM91519L-E BMS TRANSFORMER/CMC,6PIN,SGL,6.4 Bourns Inc.	173	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-
HX6098NLT PULSE XFMR 1 CT:1CT TX/RX 120UH Pulse Electronics	622	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	120µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.715" L x 0.480" W (18.16mm x 12.20mm)	0.260" (6.60mm)	-40°C ~ 85°C	-	-

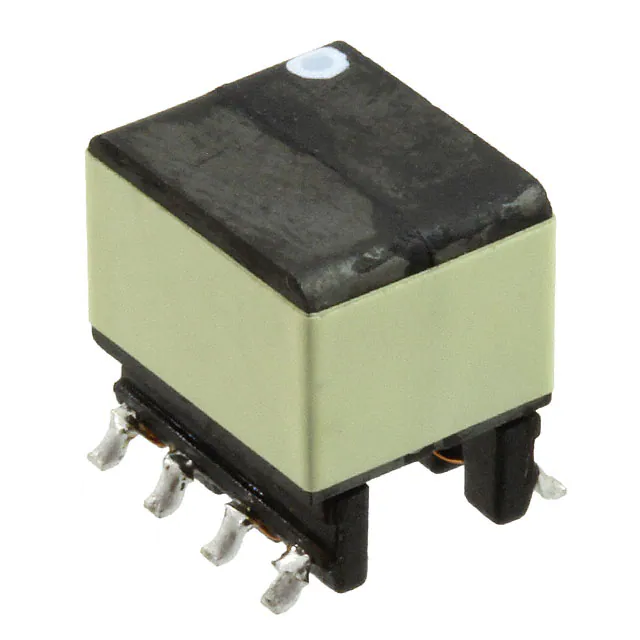

760301302 XFRMR GATE DRIVE SMD Würth Elektronik	909	-	RFQ	Datasheet	WE-GDT	Tape & Reel (TR)	Active	Gate Drive	750µH	102VµS	1:1	Surface Mount	0.413" L x 0.413" W (10.50mm x 10.50mm)	0.433" (11.00mm)	-40°C ~ 125°C	-	-
760301301 XFRMR GATE DRIVE SMD Würth Elektronik	780	-	RFQ	Datasheet	WE-GDT	Tape & Reel (TR)	Active	Gate Drive	750µH	102VµS	1:1:1	Surface Mount	0.413" L x 0.413" W (10.50mm x 10.50mm)	0.433" (11.00mm)	-40°C ~ 125°C	-	-
HX6098FNLT PULSE XFMR 1 CT:1CT TX/RX 120UH Pulse Electronics	434	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	120µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.715" L x 0.595" W (18.16mm x 15.11mm)	0.260" (6.60mm)	-40°C ~ 85°C	-	-

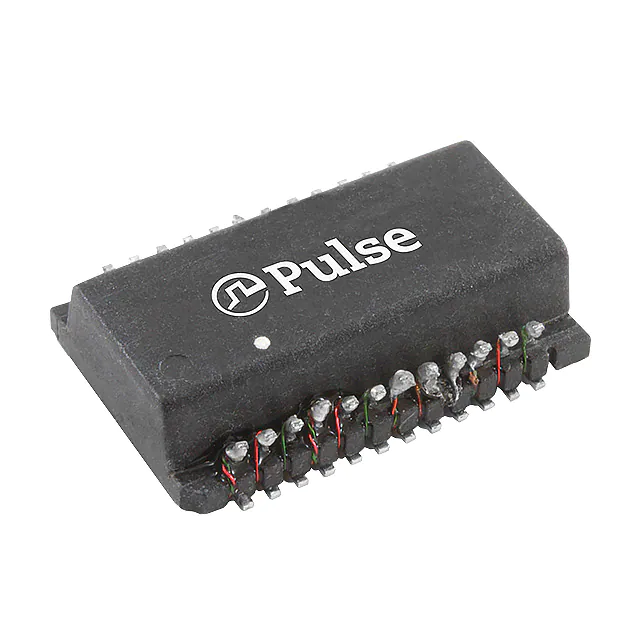

HX5084FNL PULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics	3,927	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.600" L x 0.385" W (15.24mm x 9.78mm)	0.163" (4.14mm)	-40°C ~ 85°C	-	-
HX5084NLT PULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics	1,505	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.600" L x 0.385" W (15.24mm x 9.78mm)	0.163" (4.14mm)	-40°C ~ 85°C	-	-
HX5084NL MODULE 4CH EXTEMP GIGABIT 24SOIC Pulse Electronics	323	-	RFQ	Datasheet	-	Tube	Active	-	330µH	-	-	Surface Mount	0.600" L x 0.300" W (15.24mm x 7.62mm)	0.163" (4.14mm)	-40°C ~ 85°C	-	-
H6096FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	3,022	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.715" L x 0.595" W (18.16mm x 15.11mm)	0.260" (6.60mm)	0°C ~ 70°C	-	-

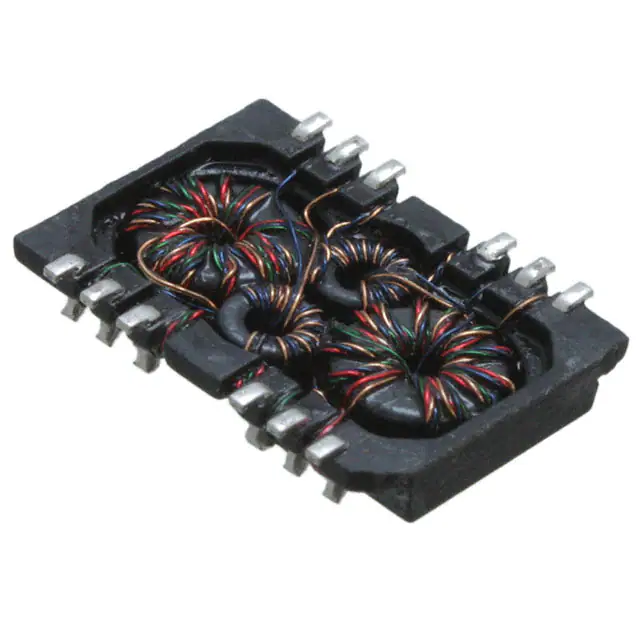

HX0068ANL MODULE XFMR 1:1 100D SIN SMD Pulse Electronics	2,065	-	RFQ	Datasheet	-	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	0.500" L x 0.347" W (12.70mm x 8.81mm)	0.082" (2.08mm)	-40°C ~ 85°C	-	-
HX2019FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	242	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.358" W (12.70mm x 9.09mm)	0.236" (5.99mm)	-40°C ~ 85°C	-	-
HX5084FNLT MOD MAGNETIC 1PORT 1000BASE-T Pulse Electronics	2,562	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	-	-	-	Surface Mount	0.600" L x 0.385" W (15.24mm x 9.78mm)	0.163" (4.14mm)	-40°C ~ 85°C	-	-
HX0068ANLT MODULE XFMR 1:1 100D SIN SMD Pulse Electronics	4,942	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	0.500" L x 0.347" W (12.70mm x 8.81mm)	0.082" (2.08mm)	-40°C ~ 85°C	-	-

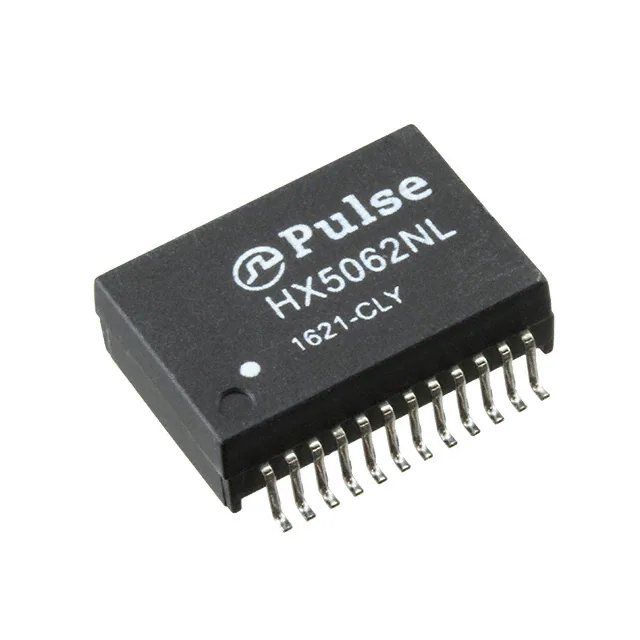

HX5062NLT PULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics	1,590	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.689" L x 0.480" W (17.50mm x 12.20mm)	0.225" (5.72mm)	-40°C ~ 85°C	-	-
H2019NL MODULE XFRMR VOIP SGL LAN 16SOIC Pulse Electronics	4,403	-	RFQ	Datasheet	-	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.240" (6.10mm)	0°C ~ 70°C	-	-

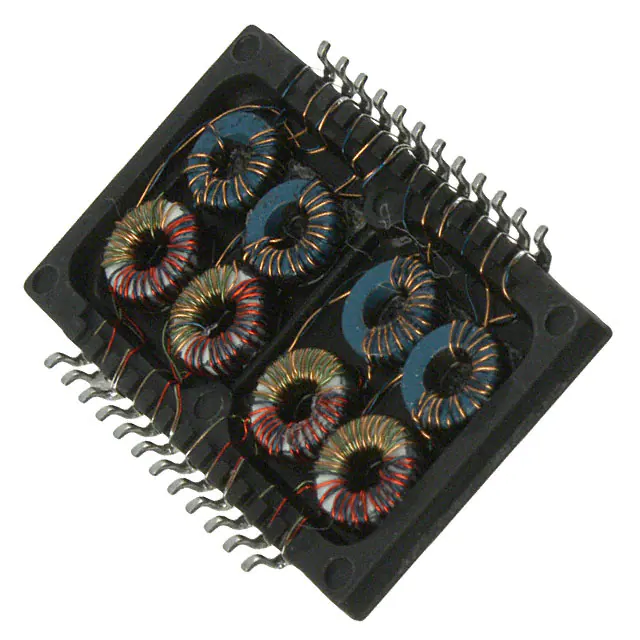

S558-5999-AZ-F MODULE XFRMR GIGABIT MINIPCI SMD Bel Fuse Inc.	561	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.880" L x 0.540" W (22.35mm x 13.72mm)	0.084" (2.13mm)	0°C ~ 70°C	-	-

Total 5221 Record«Prev 1 2 3 4 5 678 9 10...262 Next»
