Pulse Transformers

Pulse Transformers are magnetic components used to transfer pulse signals, provide galvanic isolation and support reliable signal coupling in electronic circuits. They are widely used in switching power supplies, gate drive circuits, communication equipment, industrial control systems, data transmission, instrumentation, automotive electronics and embedded applications.

This category includes signal pulse transformers, gate drive transformers, isolation pulse transformers, LAN pulse transformers, trigger transformers and related high-frequency magnetic components. These products are commonly selected based on turns ratio, isolation voltage, pulse width, frequency range, impedance, package style, mounting type and application requirements.

TomatoElec supplies original Pulse Transformers from recognized manufacturers such as Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification
7490120110 10/100 BASE-T SMD TRANSFORMER 1 Würth Elektronik	2,892	-	RFQ	Datasheet	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100 Base-T	120µH	-	1:1	Surface Mount	0.500" L x 0.365" W (12.70mm x 9.27mm)	0.228" (5.80mm)	-40°C ~ 85°C	-	-
S558-5500-JD XFRMR LAN 2.5G 60W POE SMD Bel Fuse Inc.	1,111	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 2.5G Base-T, Power over Ethernet (PoE)	180µH	-	1CT:1CT	Surface Mount	0.690" L x 0.600" W (17.53mm x 15.24mm)	0.225" (5.71mm)	0°C ~ 70°C	-	-

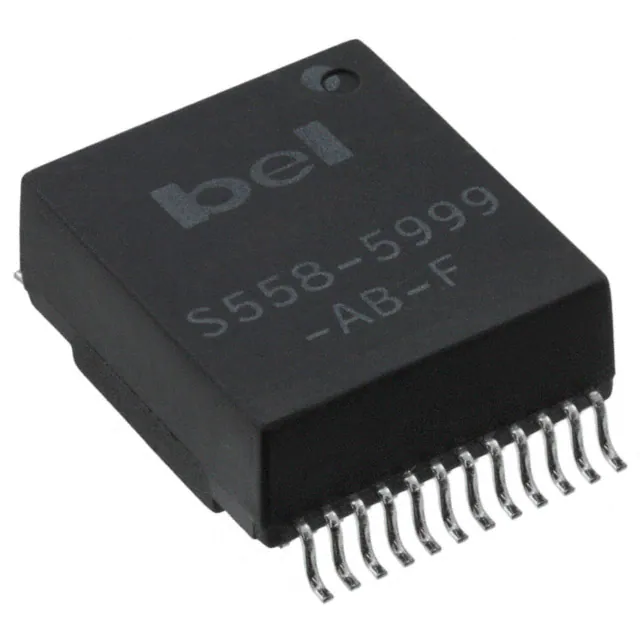

S558-5999-AB-F XFRMR MOD LAN GIGABIT EXTEMP 24P Bel Fuse Inc.	265	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.522" L x 0.600" W (13.26mm x 15.24mm)	0.250" (6.35mm)	-40°C ~ 85°C	-	-
ILR-11-0001 ILR1 PULSE TRANSFORMER THT 1A SCHURTER Inc.	2,172	-	RFQ	Datasheet	ILR	Bulk	Active	SCR and Triac Trigger (Encapsulated)	2.5mH	300VµS	1:1	Through Hole	0.689" L x 0.728" W (17.50mm x 18.50mm)	0.453" (11.50mm)	-25°C ~ 70°C	-	-

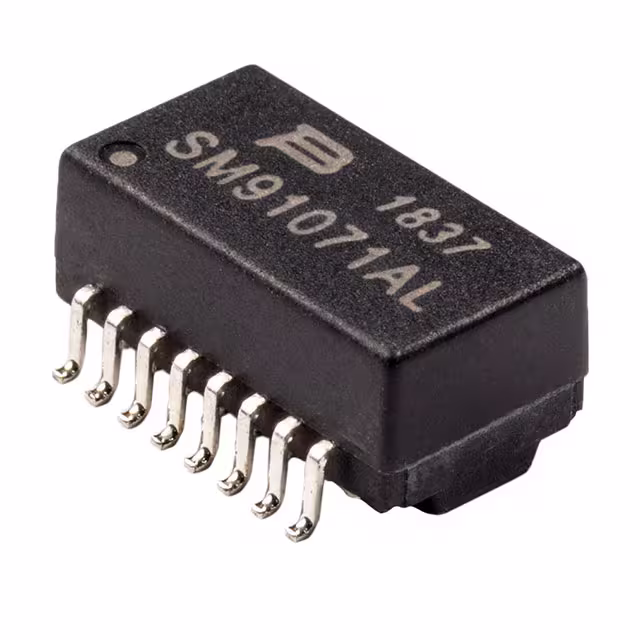

SM91071AL-E XFRMR PULSE 10 BASE-T Bourns Inc.	5,193	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.504" L x 0.272" W (12.80mm x 6.90mm)	0.222" (5.65mm)	-40°C ~ 125°C	-	-
HX2326NLT MODULE 10/100B-T POE SMD Pulse Electronics	2,586	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-
1002C TRANSFORMER PULSE 1:1:1 200VUS Murata Power Solutions Inc.	608	-	RFQ	Datasheet	1000	Bulk	Active	-	3mH	200VµS	1:1:1	Through Hole	0.593" L x 0.593" W (15.06mm x 15.06mm)	0.640" (16.25mm)	0°C ~ 70°C	-	-

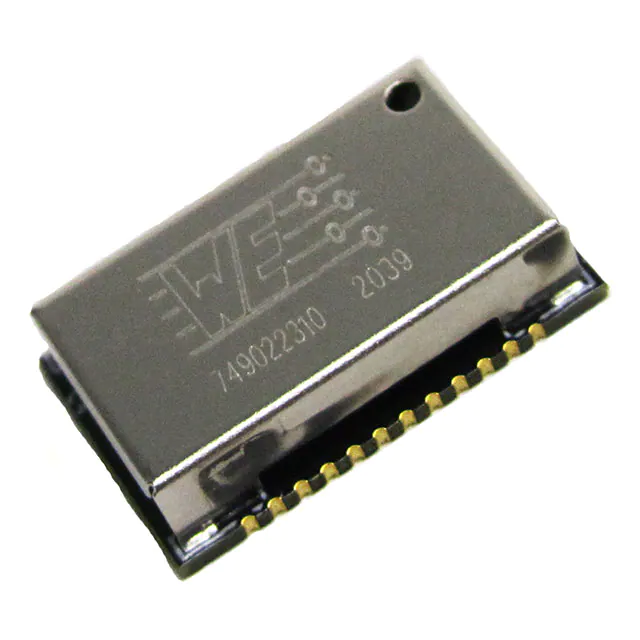

749022310 WE-LAN AQ 10/100/1000 BASE-T SMT Würth Elektronik	114	-	RFQ	Datasheet	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	150µH	-	1:1	Surface Mount	0.650" L x 0.406" W (16.50mm x 10.30mm)	0.161" (4.10mm)	-40°C ~ 85°C	-	-
HM2101NLT XFMR CMC MODULE AECQ BATT MNGT Pulse Electronics	3,668	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	150µH, 450µH	-	1:1	Surface Mount	0.300" L x 0.265" W (7.62mm x 6.73mm)	0.225" (5.72mm)	-40°C ~ 125°C	-	-
HXB5007HLT MOD SIN 1GP 1:1 EXT. HF SMD Pulse Electronics	265	-	RFQ	Datasheet	HXB	Tape & Reel (TR)	Active	LAN 1G Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT	Surface Mount	0.594" L x 0.394" W (15.10mm x 10.00mm)	0.157" (4.00mm)	-40°C ~ 85°C	-	-
HX1198NLT XFRMR MAGNETIC 1PORT 1:1 10/100 Pulse Electronics	6,935	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-

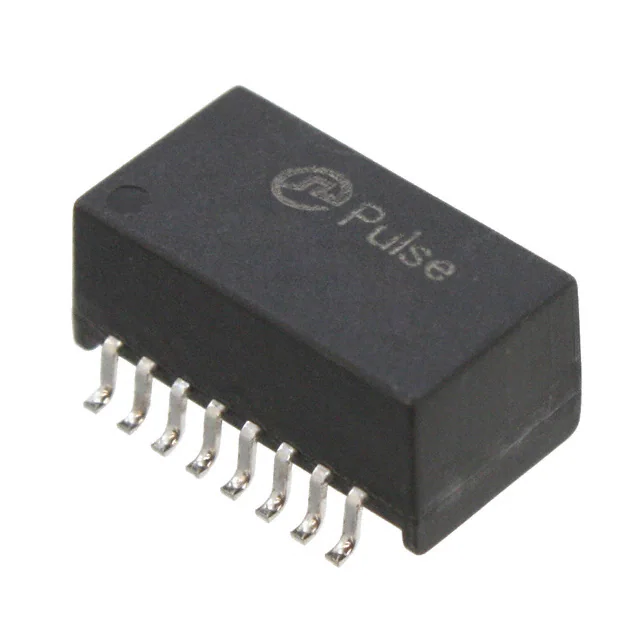

H2019NLT XFRMR MAGNT MOD 1PORT POE 10/100 Pulse Electronics	1,388	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.240" (6.10mm)	0°C ~ 70°C	-	-
PT61022XEL PULSE XFMR 1CT:1CT 350UH Bourns Inc.	2,153	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	0.534" L x 0.600" W (13.56mm x 15.24mm)	0.228" (5.79mm)	-40°C ~ 85°C	-	-
HX2326FNLT PULSE XFMR 1CT:1CT TX/RX Pulse Electronics	2,699	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	120µH, 350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.358" W (12.70mm x 9.09mm)	0.236" (5.99mm)	-40°C ~ 85°C	-	-
HX2019NLT XFRMR MAGNT MOD 1PORT POE 10/100 Pulse Electronics	1,599	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-
B78416A2232A003 SMT TRANSFORMER FOR ULTRASONIC S EPCOS - TDK Electronics	2,130	-	RFQ	Datasheet	B7416A	Tape & Reel (TR)	Active	-	3mH	-	-	Surface Mount	0.260" L x 0.260" W (6.60mm x 6.60mm)	0.280" (7.10mm)	-	-	-
HM2103NLT XFMR CMC MODULE AECQ BATT MNGT Pulse Electronics	3,269	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	150µH, 450µH	-	1:1	Surface Mount	0.300" L x 0.265" W (7.62mm x 6.73mm)	0.225" (5.72mm)	-40°C ~ 125°C	-	-
HX1198NL MODULE XFRMR SGL ETHR LAN 16SOIC Pulse Electronics	686	-	RFQ	Datasheet	-	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-
HX1098NL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	1,106	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.158" (4.01mm)	-40°C ~ 85°C	-	-

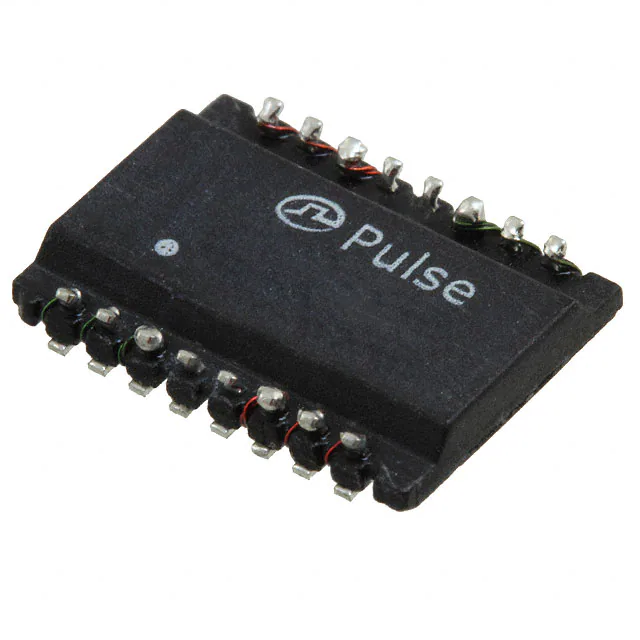

H0013FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	1,854	-	RFQ	Datasheet	-	Tube	Active	-	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.488" L x 0.365" W (12.40mm x 9.27mm)	0.073" (1.85mm)	0°C ~ 70°C	-	-

Total 5221 Record«Prev 1 2 345 6 7...262 Next»
