Pulse Transformers

Pulse Transformers are magnetic components used to transfer pulse signals, provide galvanic isolation and support reliable signal coupling in electronic circuits. They are widely used in switching power supplies, gate drive circuits, communication equipment, industrial control systems, data transmission, instrumentation, automotive electronics and embedded applications.

This category includes signal pulse transformers, gate drive transformers, isolation pulse transformers, LAN pulse transformers, trigger transformers and related high-frequency magnetic components. These products are commonly selected based on turns ratio, isolation voltage, pulse width, frequency range, impedance, package style, mounting type and application requirements.

TomatoElec supplies original Pulse Transformers from recognized manufacturers such as Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification
H5062NLT XFRMR MODULE GIGABIT 1PORT 1:1 Pulse Electronics	600	-	RFQ	Datasheet	Star Magnetics™	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.690" L x 0.480" W (17.53mm x 12.20mm)	0.227" (5.76mm)	0°C ~ 70°C	-	-
S37211 PULSE XFMR 1:1 225UH Newava Technology Inc.	13,079	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	225µH	-	1:1	Surface Mount	0.400" L x 0.440" W (10.16mm x 11.18mm)	0.305" (7.75mm)	-	-	-
749022011 TRANSFORMER LAN 10/100/1000 POE Würth Elektronik	1,545	-	RFQ	Datasheet	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1:1	Surface Mount	0.720" L x 0.480" W (18.30mm x 12.20mm)	0.250" (6.35mm)	-40°C ~ 85°C	-	-

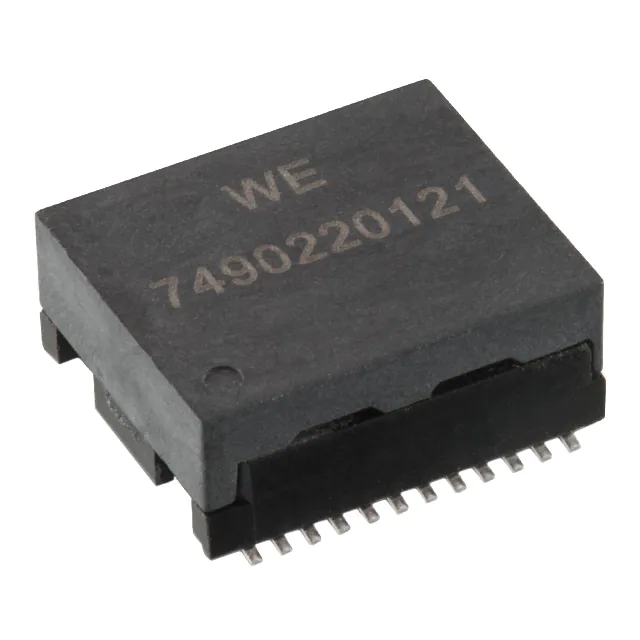

7490220121 PULSE XFMR 1CT:1CT TX 1CT:1CT RX Würth Elektronik	829	-	RFQ	Datasheet	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.720" L x 0.579" W (18.29mm x 14.70mm)	0.283" (7.20mm)	-40°C ~ 85°C	-	-

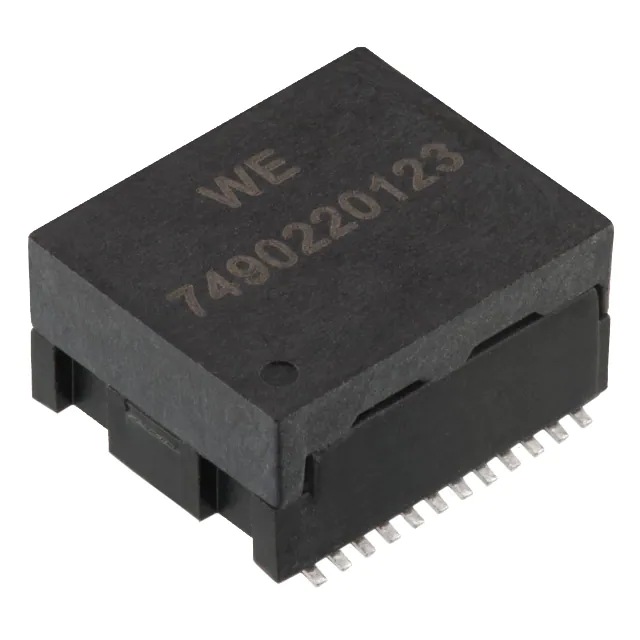

7490220123 PULSE XFMR 1CT:1CT TX 1CT:1CT RX Würth Elektronik	633	-	RFQ	Datasheet	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	180µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.720" L x 0.579" W (18.29mm x 14.70mm)	0.346" (8.80mm)	-40°C ~ 85°C	-	-
HX1188FNL MODULE XFRMR SGL ETHR LAN 16SOIC Pulse Electronics	9,453	-	RFQ	Datasheet	-	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500" L x 0.358" W (12.70mm x 9.09mm)	0.241" (6.12mm)	-40°C ~ 85°C	-	-
749020100A WE-LAN 10/100/1000 BASE-T SMD Würth Elektronik	758	-	RFQ	Datasheet	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.500" L x 0.339" W (12.70mm x 8.60mm)	0.128" (3.25mm)	-40°C ~ 105°C	-	-
S558-5999-AT-F XFRMR MOD LAN GIGABIT EXTEMP 24P Bel Fuse Inc.	275	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN	350µH	-	1CT:1 Transmitter, 1CT:1CT Receiver	Surface Mount	0.690" L x 0.480" W (17.53mm x 12.20mm)	0.230" (5.84mm)	-40°C ~ 85°C	-	-
S558-5999-P3-F MODULE XFRMR LAN GIGABIT 24P SMD Bel Fuse Inc.	1,520	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.690" L x 0.480" W (17.53mm x 12.20mm)	0.230" (5.84mm)	0°C ~ 70°C	-	-
749020011A TRANSFORMER LAN 10/100/1000 SMD Würth Elektronik	1,327	-	RFQ	Datasheet	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.689" L x 0.559" W (17.50mm x 14.20mm)	0.256" (6.50mm)	-40°C ~ 85°C	-	-
749020010A TRANSFORMER LAN 10/100/1000 SMD Würth Elektronik	414	-	RFQ	Datasheet	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.689" L x 0.559" W (17.50mm x 14.20mm)	0.236" (6.00mm)	-40°C ~ 85°C	-	-

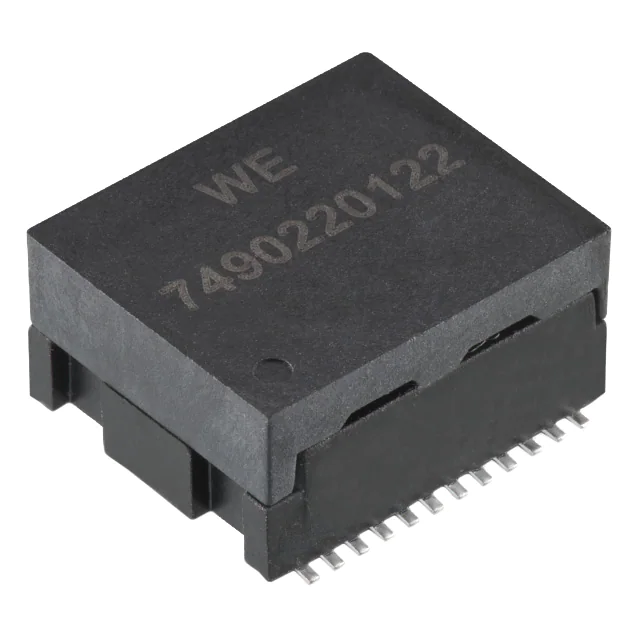

7490220122 PULSE XFMR 1CT:1CT TX 1CT:1CT RX Würth Elektronik	147	-	RFQ	Datasheet	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.720" L x 0.579" W (18.29mm x 14.70mm)	0.346" (8.80mm)	-40°C ~ 85°C	-	-
749020310 WE-LAN AQ 10/100/1000 BASE-T SMD Würth Elektronik	668	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.690" L x 0.575" W (17.53mm x 14.60mm)	0.177" (4.50mm)	-40°C ~ 105°C	-	-
T60403F5046X007 GATE DRIVE TRANSFORMER SMD 1:1:1 VACUUMSCHMELZE	3,515	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Gate Drive	1.4mH	85VµS	1:1:1	Through Hole	0.791" L x 0.591" W (20.10mm x 15.00mm)	0.413" (10.50mm)	-40°C ~ 100°C	-	-
HM0068ANLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	22,168	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.347" W (12.70mm x 8.81mm)	0.082" (2.08mm)	-40°C ~ 105°C	-	-
HM2100NLT XFMR CMC MODULE AECQ BATT MNGT Pulse Electronics	1,511	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	150µH, 450µH	-	1:1	Surface Mount	0.579" L x 0.459" W (14.70mm x 11.65mm)	0.136" (3.45mm)	-40°C ~ 125°C	-	-
T60403F5046X100 GATE DRIVE TRANSFORMER SMD 1:1.2 VACUUMSCHMELZE	3,308	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Gate Drive	1.4mH	80VµS	1:1.2:1.2	Through Hole	0.791" L x 0.630" W (20.10mm x 16.00mm)	0.472" (12.00mm)	-40°C ~ 85°C	-	-
H0013NLT MODULE MAGNETIC LAN 1:1 10/100 Pulse Electronics	1,190	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.078" (1.98mm)	0°C ~ 70°C	-	-
TM1102NL LAN XFMR 10/100 BASE-T SINGLE Taoglas Limited	2,588	-	RFQ	Datasheet	Exos	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.506" L x 0.272" W (12.85mm x 6.90mm)	0.226" (5.75mm)	0°C ~ 70°C	-	-
HX2019NL MODULE MAGNETICS POE SINGLE VOIP Pulse Electronics	607	-	RFQ	Datasheet	-	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-

Total 5221 Record«Prev 1 2 3 4 567 8 9...262 Next»
