Pulse Transformers

Pulse Transformers are magnetic components used to transfer pulse signals, provide galvanic isolation and support reliable signal coupling in electronic circuits. They are widely used in switching power supplies, gate drive circuits, communication equipment, industrial control systems, data transmission, instrumentation, automotive electronics and embedded applications.

This category includes signal pulse transformers, gate drive transformers, isolation pulse transformers, LAN pulse transformers, trigger transformers and related high-frequency magnetic components. These products are commonly selected based on turns ratio, isolation voltage, pulse width, frequency range, impedance, package style, mounting type and application requirements.

TomatoElec supplies original Pulse Transformers from recognized manufacturers such as Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification
HX5004NLT TRANSFORMER MODULE GIGABIT 1PORT Pulse Electronics	2,321	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.690" L x 0.480" W (17.53mm x 12.20mm)	0.227" (5.76mm)	-40°C ~ 85°C	-	-
MUJ-103A-500 INTERFACE MODULE 1:1:2:2 SMD Amgis, LLC	3,692	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	25mH	-	1:1:2:2	Surface Mount	0.504" L x 0.346" W (12.80mm x 8.80mm)	0.246" (6.25mm)	-40°C ~ 85°C	-	-
HX5019FNLT PULSE XFMR 1CT:1 TX 1CT:1 RX Pulse Electronics	1,394	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1 Transmitter, 1CT:1 Receiver	Surface Mount	0.780" L x 0.750" W (19.81mm x 19.05mm)	0.100" (2.54mm)	-40°C ~ 85°C	-	-

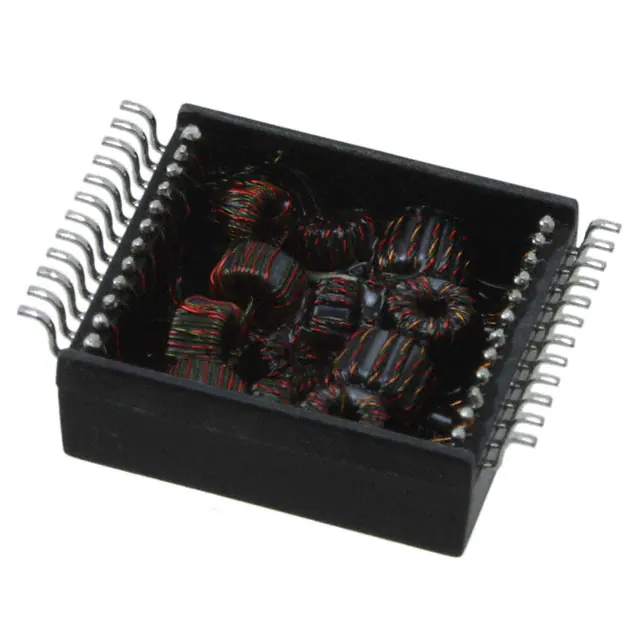

H5008NLT MODULE GIGABIT LAN 24SOIC 1PORT Pulse Electronics	598	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.743" L x 0.538" W (18.87mm x 13.67mm)	0.231" (5.87mm)	0°C ~ 70°C	-	-
7490240142 WE-LAN 10/100/1000 BASE-T SMT TR Würth Elektronik	260	-	RFQ	Datasheet	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.719" L x 0.600" W (18.25mm x 15.24mm)	-	-40°C ~ 85°C	-	-
749014012 TRANSFORMER WE-LAN MED 10/100BT Würth Elektronik	1,370	-	RFQ	Datasheet	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.967" L x 0.669" W (24.55mm x 17.00mm)	0.427" (10.85mm)	0°C ~ 70°C	-	-
HX5004NL MODULE SINGLE GIGABIT LAN 24SOIC Pulse Electronics	3,227	-	RFQ	Datasheet	-	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.690" L x 0.480" W (17.53mm x 12.20mm)	0.227" (5.76mm)	-40°C ~ 85°C	-	-
H5008NL MODULE GIGABIT LAN 24SOIC 1PORT Pulse Electronics	753	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.743" L x 0.538" W (18.87mm x 13.67mm)	0.231" (5.87mm)	0°C ~ 70°C	-	-
HX4110NLT MDL SIN 2.5GD 1:1 SMT TR Pulse Electronics	768	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	General Purpose	120µH	-	1:1	Surface Mount	0.650" L x 0.360" W (16.51mm x 9.14mm)	0.082" (2.08mm)	-40°C ~ 85°C	-	-
HX4110NL TRANSF MOD 2.55G 4CH 60W POE Pulse Electronics	539	-	RFQ	Datasheet	-	Tube	Active	General Purpose	120µH	-	1CT:1CT	Surface Mount	0.650" L x 0.360" W (16.51mm x 9.14mm)	0.082" (2.08mm)	-	-	-
749050017 TRANSFORMER LAN Würth Elektronik	848	-	RFQ	Datasheet	WE-LAN	Tape & Reel (TR)	Active	LAN	120µH	-	1:1	Surface Mount	0.550" L x 0.532" W (13.97mm x 13.50mm)	0.260" (6.60mm)	-40°C ~ 85°C	-	-

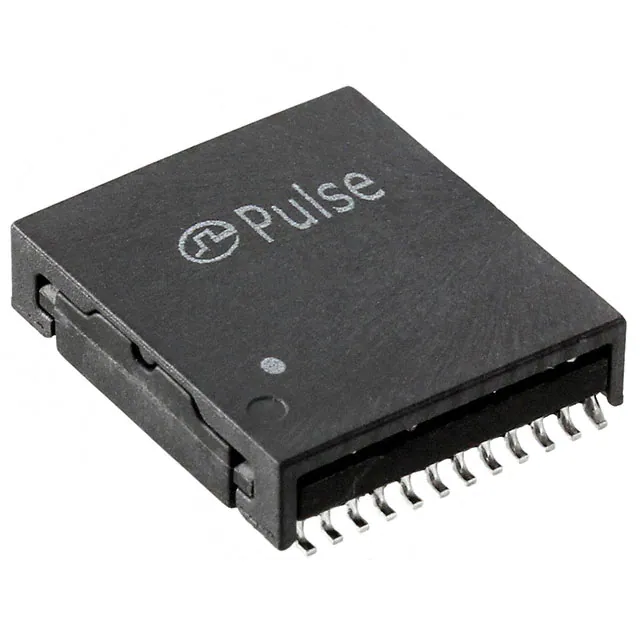

H1174FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	1,899	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	-	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.515" L x 0.574" W (13.08mm x 14.57mm)	0.145" (3.69mm)	0°C ~ 70°C	-	-
HM5004ENL XFMR MDL 1000BASE-T SMT AEC-Q200 Pulse Electronics	535	-	RFQ	Datasheet	-	Tube	Active	LAN 1000 Base-T	350µH	-	-	Surface Mount	0.695" L x 0.480" W (17.65mm x 12.20mm)	0.225" (5.72mm)	-40°C ~ 105°C	-	-
HM5004ENLT MDL SIN 1GD 1:1 SMT TR Pulse Electronics	1,200	-	RFQ	Datasheet	HX5004NL	Tape & Reel (TR)	Active	LAN 1000 Base-T	350µH	-	1:1	Surface Mount	0.695" L x 0.480" W (17.65mm x 12.20mm)	0.225" (5.72mm)	-40°C ~ 105°C	-	-
H1164NL MODULE XFRMR ETHERNET LAN 40SOIC Pulse Electronics	1,283	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100 Base-T	-	-	-	Surface Mount	1.125" L x 0.480" W (28.58mm x 12.19mm)	0.230" (5.84mm)	0°C ~ 70°C	-	-

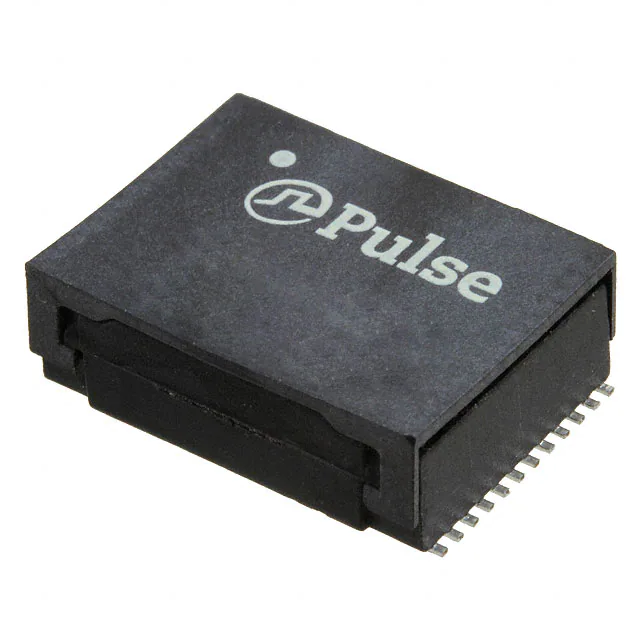

HX5008FNL PULSE XFMR 1CT:1 TX 1CT:1 RX Pulse Electronics	2,837	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100/1000 Base-T	325µH	-	1CT:1 Transmitter, 1CT:1 Receiver	Surface Mount	0.518" L x 0.703" W (13.16mm x 17.86mm)	0.241" (6.12mm)	-40°C ~ 85°C	-	-

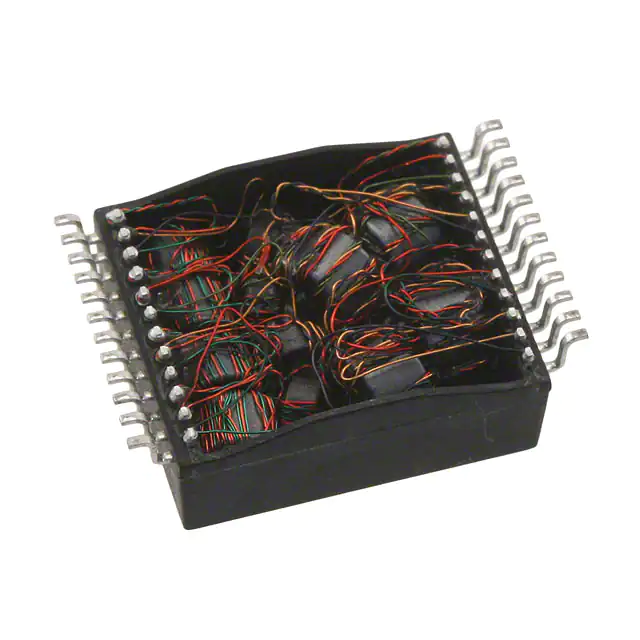

HX5008NL MODULE SINGLE GIGABIT LAN 24SOIC Pulse Electronics	2,146	-	RFQ	Datasheet	-	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	0.518" L x 0.595" W (13.16mm x 15.11mm)	0.251" (6.37mm)	-40°C ~ 85°C	-	-
H1164NLT XFRMR MODUL AUTO MDI/MDIX 10/100 Pulse Electronics	2,007	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	-	-	-	Surface Mount	1.125" L x 0.480" W (28.58mm x 12.19mm)	0.230" (5.84mm)	0°C ~ 70°C	-	-
HX5200NL XFRMR MODL 2PORT POE GIGABIT Pulse Electronics	1,709	-	RFQ	Datasheet	-	Tray	Active	Isolation and Data Interface (Encapsulated)	-	-	-	Surface Mount	0.580" L x 0.680" W (14.73mm x 17.27mm)	0.430" (10.92mm)	-40°C ~ 85°C	-	-
HX5200NLT XFRMR MODULE DUAL1GP 1:1 . BGA Pulse Electronics	300	-	RFQ	Datasheet	HX5200NLT	Tape & Reel (TR)	Active	LAN 1G Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT	Surface Mount	0.580" L x 0.680" W (14.73mm x 17.27mm)	0.440" (11.18mm)	-40°C ~ 85°C	-	-
