Pulse Transformers

Pulse Transformers are magnetic components used to transfer pulse signals, provide galvanic isolation and support reliable signal coupling in electronic circuits. They are widely used in switching power supplies, gate drive circuits, communication equipment, industrial control systems, data transmission, instrumentation, automotive electronics and embedded applications.

This category includes signal pulse transformers, gate drive transformers, isolation pulse transformers, LAN pulse transformers, trigger transformers and related high-frequency magnetic components. These products are commonly selected based on turns ratio, isolation voltage, pulse width, frequency range, impedance, package style, mounting type and application requirements.

TomatoElec supplies original Pulse Transformers from recognized manufacturers such as Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification
T60403D4097X055 GATE DRIVE TRANSFORMER PTH 1:1:1 VACUUMSCHMELZE	7,543	-	RFQ	Datasheet	-	Box	Active	-	6.5mH	200VµS	1:1:1	Through Hole	0.654" L x 0.583" W (16.60mm x 14.80mm)	0.532" (13.50mm)	-40°C ~ 85°C	-	-
HCTSM80101AAL-E XFMR 3.3-5V/3.3-15V,350MA PK TR Bourns Inc.	1,733	-	RFQ	Datasheet	HCT	Tape & Reel (TR)	Active	-	250µH	11.0VµS	1:1	Surface Mount	0.484" L x 0.425" W (12.30mm x 10.80mm)	0.256" (6.50mm)	-40°C ~ 125°C	Automotive	AEC-Q200
7490140117C XFMR LAN 10/100 BASE-T 1:1 350UH Würth Elektronik	520	-	RFQ	Datasheet	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.500" L x 0.346" W (12.70mm x 8.80mm)	0.224" (5.70mm)	-40°C ~ 105°C	-	-
749020023A XFRMR LAN 1000 BASE-T 1:1 350UH Würth Elektronik	325	-	RFQ	Datasheet	WE-LAN	Tape & Reel (TR)	Active	LAN 1000 Base-T	350µH	-	1:1	Surface Mount	0.594" L x 0.280" W (15.10mm x 7.10mm)	0.167" (4.25mm)	-40°C ~ 85°C	-	-

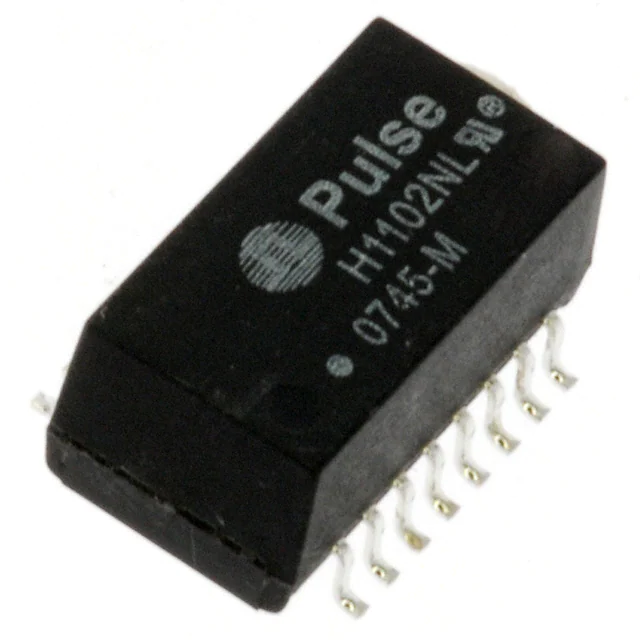

H1102NL MODULE XFRMR SGL ETHR LAN 16SOIC Pulse Electronics	8,676	-	RFQ	Datasheet	-	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.245" (6.22mm)	0°C ~ 70°C	-	-
HM2113ZNLT XFMR CMC MODULE AECQ BATT MNGT Pulse Electronics	1,937	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	150µH, 450µH	-	1:1	Surface Mount	0.354" L x 0.478" W (9.00mm x 12.15mm)	0.136" (3.45mm)	-40°C ~ 125°C	-	-
H1102FNLT PULSE XFMR LAN 350UH SMD Pulse Electronics	9,076	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10G Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.358" W (12.70mm x 9.09mm)	0.236" (5.99mm)	0°C ~ 70°C	-	-

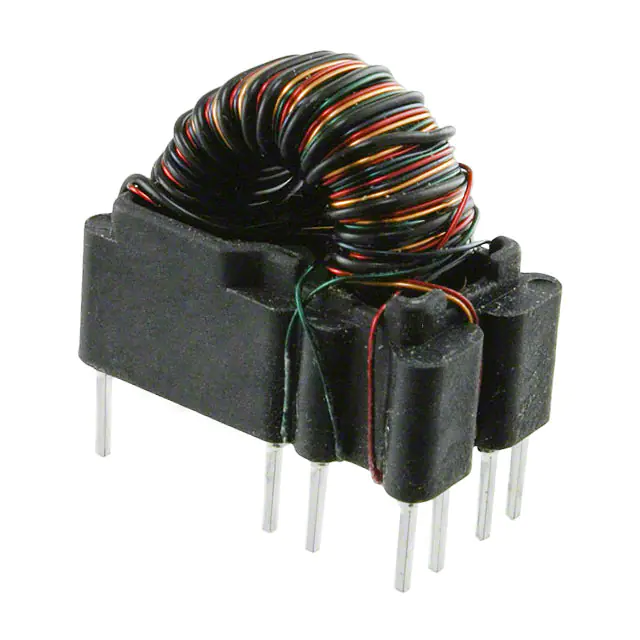

P0585NL PULSE XFMR 1:1:1 450UH Pulse Electronics	800	-	RFQ	Datasheet	-	Tube	Active	-	450µH	95VµS	1:1:1:1:1	Through Hole	0.810" L x 0.480" W (20.57mm x 12.19mm)	0.750" (19.05mm)	-40°C ~ 125°C	-	-
H1102FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	730	-	RFQ	Datasheet	-	Bulk	Active	LAN 10G Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.358" W (12.70mm x 9.09mm)	0.236" (5.99mm)	0°C ~ 70°C	-	-
H2019FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	2,193	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10G Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.358" W (12.70mm x 9.09mm)	0.236" (5.99mm)	0°C ~ 70°C	-	-
AGST5009B MDL SMD 2.5G SINGLE PORT N/A Pulse Electronics	2,943	-	RFQ	Datasheet	AGST5009xx	Tape & Reel (TR)	Active	LAN 2.5G Base-T	180µH	-	-	Surface Mount	0.594" L x 0.280" W (15.10mm x 7.10mm)	0.157" (4.00mm)	0°C ~ 70°C	-	-
HX2019FNLT PULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics	1,389	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.358" W (12.70mm x 9.09mm)	0.236" (5.99mm)	-40°C ~ 85°C	-	-
T1094NLT XFRMR 1CT:1CT/1CT:2CT 1.2/1.2MH Pulse Electronics	111	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:1CT, 1CT:2CT	Surface Mount	0.505" L x 0.280" W (12.83mm x 7.11mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-
HX1294NL MODULE XFRMR LAN 10/100 SMD Pulse Electronics	5,703	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100 Base-T	325µH	-	1CT:1CT	Surface Mount	0.538" L x 0.599" W (13.67mm x 15.21mm)	0.241" (6.12mm)	-40°C ~ 85°C	-	-
PA1736NLT PULSE XFMR 20.5UH Pulse Electronics	278	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	20.5µH	-	-	Surface Mount	0.860" L x 1.150" W (21.84mm x 29.21mm)	0.450" (11.43mm)	-40°C ~ 125°C	-	-

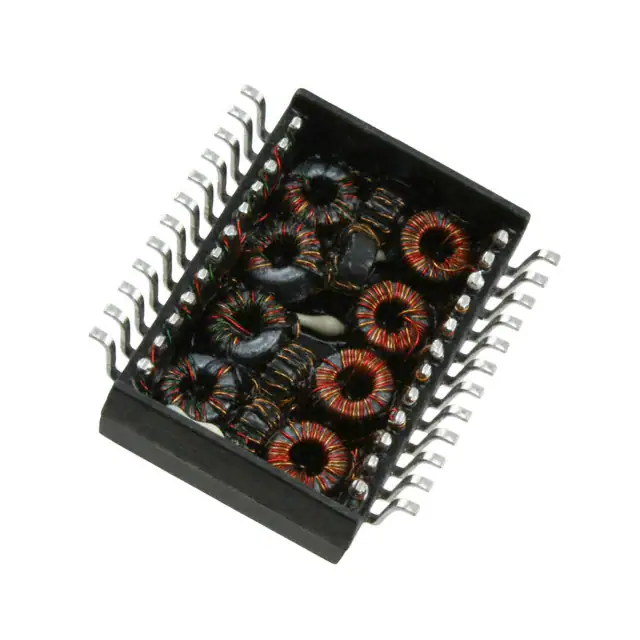

H6062NLT XFRMR MODUL GIGABT 1PORT POE 1:1 Pulse Electronics	927	-	RFQ	Datasheet	Star Magnetics™	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.690" L x 0.480" W (17.53mm x 12.20mm)	0.227" (5.76mm)	0°C ~ 70°C	-	-
H5084FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	84,975	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.600" L x 0.385" W (15.24mm x 9.78mm)	0.163" (4.14mm)	0°C ~ 70°C	-	-
HX1098NLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	6,159	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.158" (4.01mm)	-40°C ~ 85°C	-	-
H5084NLT MODULE MAGNETIC 1PORT 1000BASE-T Pulse Electronics	376	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	0.600" L x 0.300" W (15.24mm x 7.62mm)	0.163" (4.14mm)	0°C ~ 70°C	-	-
HX1188NL MODULE XFRMR SGL ETHR LAN 16SOIC Pulse Electronics	2,490	-	RFQ	Datasheet	-	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-

Total 5221 Record«Prev 1 2 3 456 7 8...262 Next»
