Pulse Transformers

Pulse Transformers are magnetic components used to transfer pulse signals, provide galvanic isolation and support reliable signal coupling in electronic circuits. They are widely used in switching power supplies, gate drive circuits, communication equipment, industrial control systems, data transmission, instrumentation, automotive electronics and embedded applications.

This category includes signal pulse transformers, gate drive transformers, isolation pulse transformers, LAN pulse transformers, trigger transformers and related high-frequency magnetic components. These products are commonly selected based on turns ratio, isolation voltage, pulse width, frequency range, impedance, package style, mounting type and application requirements.

TomatoElec supplies original Pulse Transformers from recognized manufacturers such as Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification
HX1224CNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	541	-	RFQ	Datasheet	µCom	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.537" L x 0.570" W (13.64mm x 14.48mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-

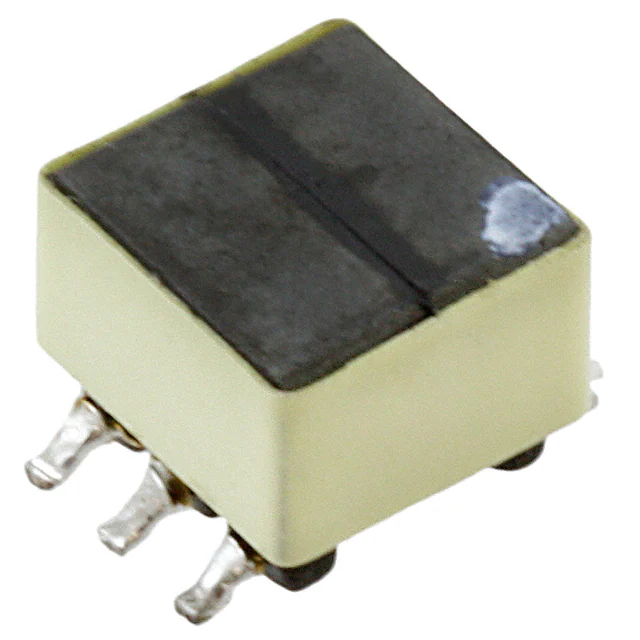

760301106 XFRMR GATE DRIVE 1:1 SMD Würth Elektronik	2,744	-	RFQ	Datasheet	WE-GDT	Tape & Reel (TR)	Active	Gate Drive	370µH	-	1:1	Surface Mount	0.276" L x 0.335" W (7.00mm x 8.50mm)	0.236" (6.00mm)	-40°C ~ 125°C	-	-
HX5008NLT TRANSFORMER MODULE GIGABIT 1PORT Pulse Electronics	8,165	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	0.518" L x 0.595" W (13.16mm x 15.11mm)	0.251" (6.37mm)	-40°C ~ 85°C	-	-

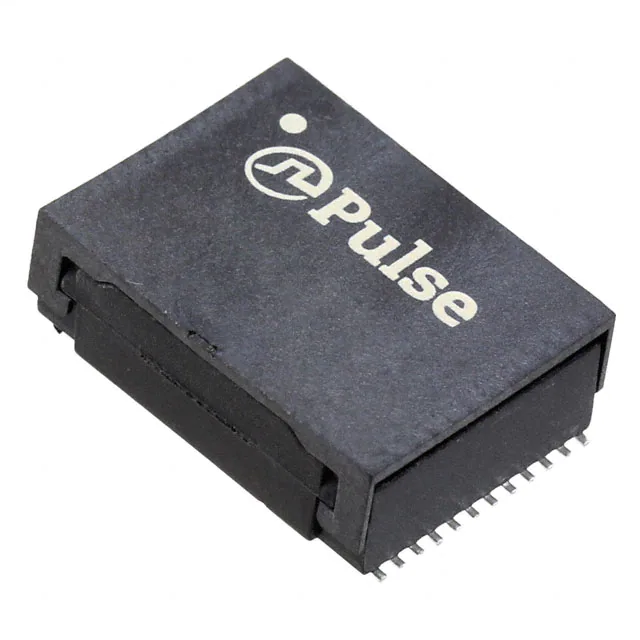

HX5008FNLT PULSE XFMR 1CT:1 TX 1CT:1 RX Pulse Electronics	1,993	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	325µH	-	1CT:1 Transmitter, 1CT:1 Receiver	Surface Mount	0.518" L x 0.703" W (13.16mm x 17.86mm)	0.241" (6.12mm)	-40°C ~ 85°C	-	-
H5004NLT TRANSFORMER MODULE GIGABIT 1PORT Pulse Electronics	1,151	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	0.690" L x 0.480" W (17.53mm x 12.20mm)	0.227" (5.76mm)	0°C ~ 70°C	-	-

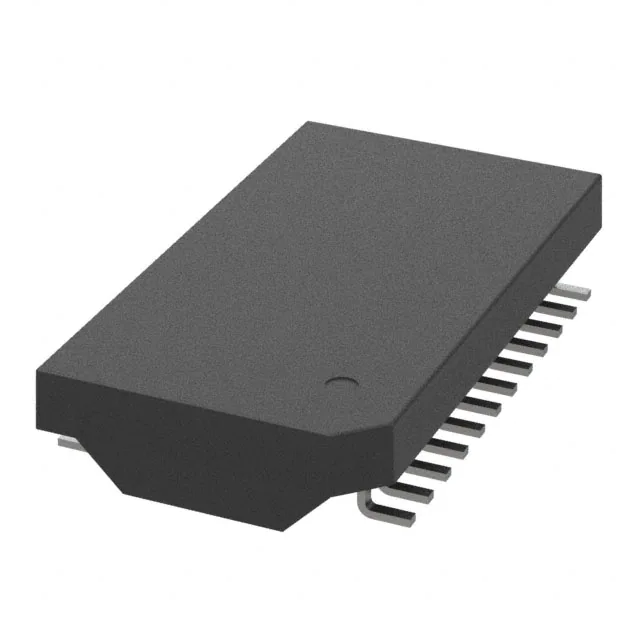

HX5149NLT PULSE XFMR 1 CT:1CT TX/RX 360UH Pulse Electronics	2,929	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	360µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.700" L x 0.390" W (17.78mm x 9.91mm)	0.126" (3.20mm)	-40°C ~ 85°C	-	-
749020112B TRANSFORMER LAN 10/100/1000 SMD Würth Elektronik	2,012	-	RFQ	Datasheet	WE-LAN	Tape & Reel (TR)	Active	LAN	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.703" L x 0.364" W (17.85mm x 9.25mm)	0.094" (2.39mm)	-40°C ~ 105°C	-	-
HX5062NL PULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics	1,084	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.689" L x 0.480" W (17.50mm x 12.20mm)	0.225" (5.72mm)	-40°C ~ 85°C	-	-
HX6062NLT PULSE XFMR 1CT:1CT TX/RX Pulse Electronics	13,147	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	325µH, 350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.689" L x 0.480" W (17.50mm x 12.20mm)	0.225" (5.72mm)	-40°C ~ 85°C	-	-
H5007NLT TRANSFORMER MODULE GIGABIT 1PORT Pulse Electronics	2,781	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	0.690" L x 0.480" W (17.53mm x 12.20mm)	0.227" (5.76mm)	0°C ~ 70°C	-	-
HM0068BNLT MDL SIN 100D 1:1 SMT TR Pulse Electronics	2,743	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 100 Base-T	-	-	1:1CT, 1:1CT	Surface Mount	-	-	-40°C ~ 105°C	-	-
HM0068ANL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	303	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.347" W (12.70mm x 8.81mm)	0.082" (2.08mm)	-40°C ~ 105°C	-	-
HX1148NLT XFRMR MODULE 1PORT 1:1 10/100 Pulse Electronics	1,013	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1 Transmitter, 1CT:1CT Receiver	Surface Mount	1.000" L x 0.390" W (25.40mm x 9.91mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-
H5008FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	1,786	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.743" L x 0.538" W (18.87mm x 13.67mm)	0.231" (5.87mm)	0°C ~ 70°C	-	-
HCTSM150102HL-E TRANSF HIGH VOLTAGE ISOLATION Bourns Inc.	626	-	RFQ	Datasheet	HCT	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	80µH	25VµS	-	Surface Mount	0.839" L x 0.591" W (21.30mm x 15.00mm)	0.380" (9.65mm)	-40°C ~ 125°C	-	-

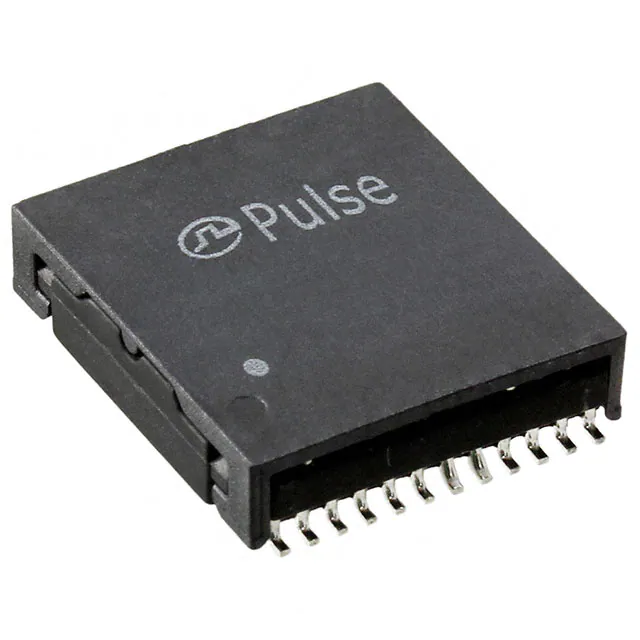

H1270FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	1,073	-	RFQ	Datasheet	-	Tube	Active	LAN 10G Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.515" L x 0.574" W (13.08mm x 14.58mm)	0.145" (3.68mm)	0°C ~ 70°C	-	-
PE-63387NL PULSE XFMR 1:1:1 1.5MH Pulse Electronics	662	-	RFQ	Datasheet	-	Tray	Active	-	1.5mH	320VµS	1:1:1	Through Hole	1.090" L x 0.750" W (27.69mm x 19.05mm)	1.200" (30.48mm)	0°C ~ 70°C	-	-
H5120NLT MODULE MAGNETIC 1PORT 1000BASE-T Pulse Electronics	1,513	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	0.650" L x 0.365" W (16.51mm x 9.27mm)	0.082" (2.08mm)	0°C ~ 70°C	-	-
H5120NL MODULE XFORMR SNGL GIGABIT SMD Pulse Electronics	962	-	RFQ	Datasheet	-	Tube	Active	-	-	-	1CT:1CT	Surface Mount	0.650" L x 0.365" W (16.51mm x 9.27mm)	0.082" (2.08mm)	0°C ~ 70°C	-	-
H5077NLT MODULE MINI-MAG 1PORT 1000BASE-T Pulse Electronics	332	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	0.550" L x 0.495" W (13.97mm x 12.57mm)	0.190" (4.82mm)	0°C ~ 70°C	-	-

Total 5221 Record«Prev 1... 4 5 6 789 10 11...262 Next»
