Pulse Transformers

Pulse Transformers are magnetic components used to transfer pulse signals, provide galvanic isolation and support reliable signal coupling in electronic circuits. They are widely used in switching power supplies, gate drive circuits, communication equipment, industrial control systems, data transmission, instrumentation, automotive electronics and embedded applications.

This category includes signal pulse transformers, gate drive transformers, isolation pulse transformers, LAN pulse transformers, trigger transformers and related high-frequency magnetic components. These products are commonly selected based on turns ratio, isolation voltage, pulse width, frequency range, impedance, package style, mounting type and application requirements.

TomatoElec supplies original Pulse Transformers from recognized manufacturers such as Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification

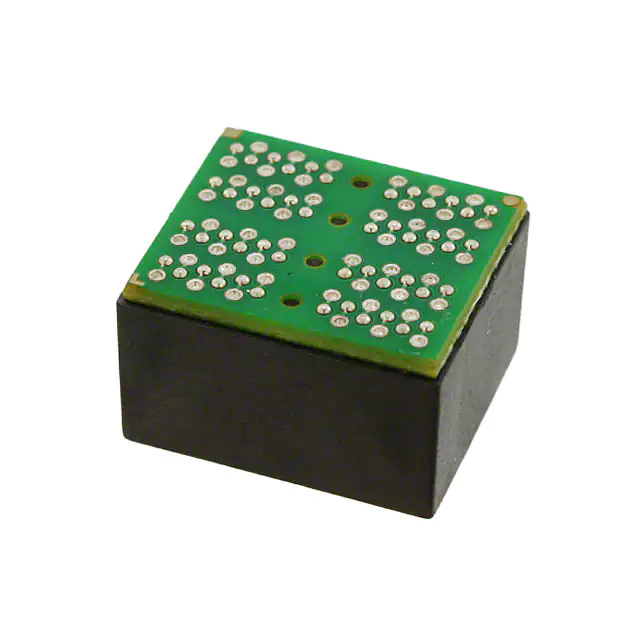

HX5201NL XFRMR MODL 2PORT POE GIGABIT Pulse Electronics	2,586	-	RFQ	Datasheet	-	Tray	Active	Isolation and Data Interface (Encapsulated)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.580" L x 0.680" W (14.73mm x 17.27mm)	0.430" (10.92mm)	-40°C ~ 85°C	-	-
HX1234NLT XFRMR MODUL AUTO MDI/MDIX 10/100 Pulse Electronics	1,218	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	1.125" L x 0.480" W (28.58mm x 12.19mm)	0.290" (7.36mm)	-40°C ~ 85°C	-	-
HX1234NL MODULE XFRMR ETHERNET LAN 40SOIC Pulse Electronics	763	-	RFQ	Datasheet	-	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	1.125" L x 0.480" W (28.58mm x 12.19mm)	0.290" (7.36mm)	-40°C ~ 85°C	-	-
HX5224CNL PULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics	428	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.728" L x 0.604" W (18.50mm x 15.34mm)	0.385" (9.77mm)	-40°C ~ 85°C	-	-
HM7142NL XFMR MDL 10GBASE-T SMT AEC-Q200 Pulse Electronics	3,703	-	RFQ	Datasheet	-	Tube	Active	LAN 10G Base-T	150µH	-	-	Surface Mount	0.540" L x 0.480" W (13.72mm x 12.20mm)	0.225" (5.72mm)	-40°C ~ 125°C	-	-
HM7142NLT XFRMR LAN MODULE Pulse Electronics	1,037	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	-	-	-	Surface Mount	-	-	-	-	-
749052050 TRANSFORMER LAN Würth Elektronik	223	-	RFQ	Datasheet	WE-LAN	Tape & Reel (TR)	Active	LAN	180µH	-	1:1	Surface Mount	0.720" L x 0.579" W (18.29mm x 14.70mm)	0.346" (8.80mm)	0°C ~ 70°C	-	-

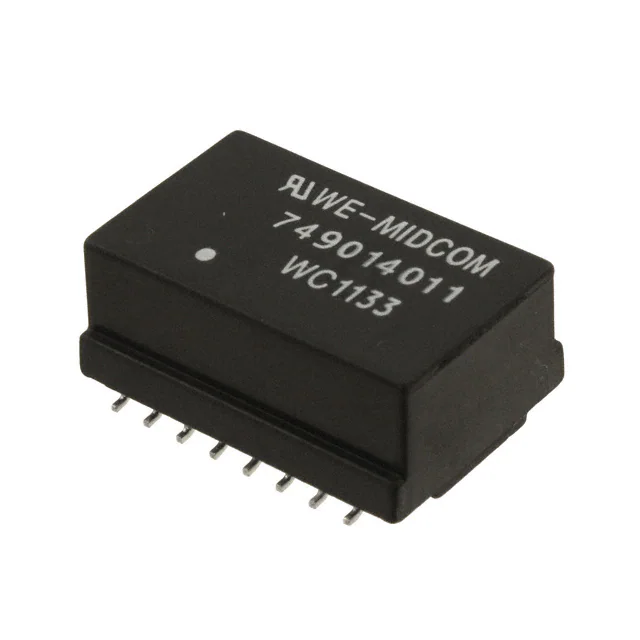

7490140112 TRANSFORMER WE-LAN MED 10/100BT Würth Elektronik	1,330	-	RFQ	Datasheet	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.967" L x 0.669" W (24.55mm x 17.00mm)	0.427" (10.85mm)	-40°C ~ 85°C	-	-

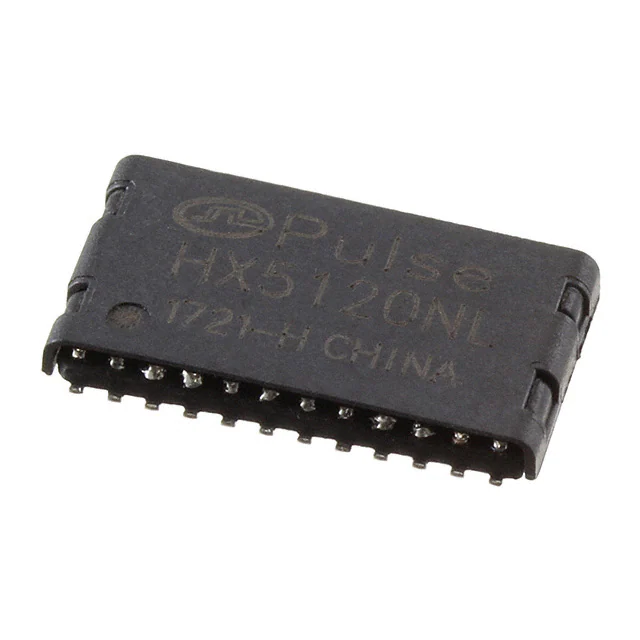

HX5120NLT PULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics	2,061	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.650" L x 0.360" W (16.51mm x 9.14mm)	0.082" (2.08mm)	-40°C ~ 85°C	-	-
749020022A XFRMR LAN 1000 BASE-T 1:1 350UH Würth Elektronik	814	-	RFQ	Datasheet	WE-LAN	Tape & Reel (TR)	Active	LAN 1000 Base-T	350µH	-	1:1	Surface Mount	1.091" L x 0.295" W (27.70mm x 7.50mm)	0.335" (8.50mm)	-40°C ~ 85°C	-	-
HX6101NLT PULSE XFMR 1CT:1CT TX/RX Pulse Electronics	437	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	120µH, 350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.095" L x 0.480" W (27.81mm x 12.19mm)	0.285" (7.24mm)	-40°C ~ 85°C	-	-
HX6101NL PULSE XFMR 1CT:1CT TX/RX Pulse Electronics	205	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100/1000 Base-T	120µH, 350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.095" L x 0.480" W (27.81mm x 12.19mm)	0.285" (7.24mm)	-40°C ~ 85°C	-	-
100B-1003XT XFMR MODULE 100BT SMG COM NPB iNRCORE, LLC	2,051	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.500" L x 0.265" W (12.70mm x 6.73mm)	0.245" (6.22mm)	-55°C ~ 125°C	-	-

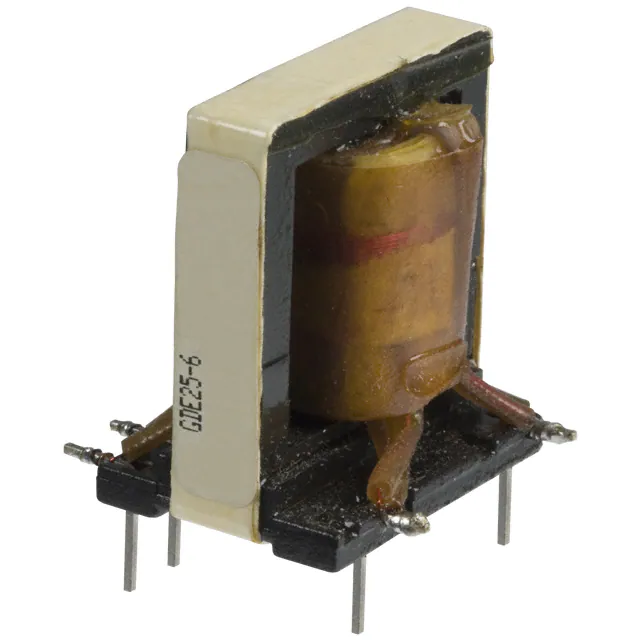

GDE25-2 TRANSF .650 OHM DUAL GATE DRIVE Triad Magnetics	279	-	RFQ	Datasheet	GDE25	Bulk	Active	Gate Drive	680µH	540VµS	1:1:1	Through Hole	1.100" L x 1.040" W (27.94mm x 26.42mm)	1.200" (30.48mm)	-40°C ~ 80°C	-	-
HX6101FNL PULSE XFMR 1CT:1CT TX/RX Pulse Electronics	566	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100/1000 Base-T	120µH, 350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.095" L x 0.590" W (27.81mm x 14.99mm)	0.285" (7.24mm)	-40°C ~ 85°C	-	-
HX5020NL MODULE DUAL GIGABIT ETHENET 50P Pulse Electronics	996	-	RFQ	Datasheet	-	Tube	Active	LAN 1000 Base-T	-	-	1CT:1CT	Surface Mount	1.100" L x 0.297" W (27.94mm x 7.54mm)	0.341" (8.66mm)	-40°C ~ 85°C	-	-
HX5020NLT TRANSFORMER MODULE GIGABIT 2PORT Pulse Electronics	664	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	1.100" L x 0.297" W (27.94mm x 7.54mm)	0.341" (8.66mm)	-40°C ~ 85°C	-	-
H5020NLT TRANSFORMER MODULE GIGABIT 2PORT Pulse Electronics	480	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	1.100" L x 0.297" W (27.94mm x 7.54mm)	0.341" (8.66mm)	0°C ~ 70°C	-	-
HX5120NL PULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics	1,273	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.650" L x 0.360" W (16.51mm x 9.14mm)	0.082" (2.08mm)	-40°C ~ 85°C	-	-
GU4929RM LF MDL 1G DIP 4 PORT POE 90W Pulse Electronics	556	-	RFQ	Datasheet	-	Tube	Active	LAN 1000 Base-T	350µH	-	1:1CT Transmitter, 1:1CT Receiver	Through Hole	1.319" L x 1.142" W (33.50mm x 29.00mm)	0.661" (16.80mm)	-40°C ~ 85°C	-	-

Total 5221 Record«Prev 1... 6 7 8 91011 12 13...262 Next»
