Pulse Transformers

Pulse Transformers are magnetic components used to transfer pulse signals, provide galvanic isolation and support reliable signal coupling in electronic circuits. They are widely used in switching power supplies, gate drive circuits, communication equipment, industrial control systems, data transmission, instrumentation, automotive electronics and embedded applications.

This category includes signal pulse transformers, gate drive transformers, isolation pulse transformers, LAN pulse transformers, trigger transformers and related high-frequency magnetic components. These products are commonly selected based on turns ratio, isolation voltage, pulse width, frequency range, impedance, package style, mounting type and application requirements.

TomatoElec supplies original Pulse Transformers from recognized manufacturers such as Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification
SM13126PEL 10/100 BASE TX LAN POE +85 C, IE Bourns Inc.	4,572	-	RFQ	Datasheet	SM	Tape & Reel (TR)	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	350µH	-	1:1	Surface Mount	0.504" L x 0.272" W (12.80mm x 6.90mm)	0.222" (5.65mm)	-40°C ~ 85°C	Automotive	AEC-Q200

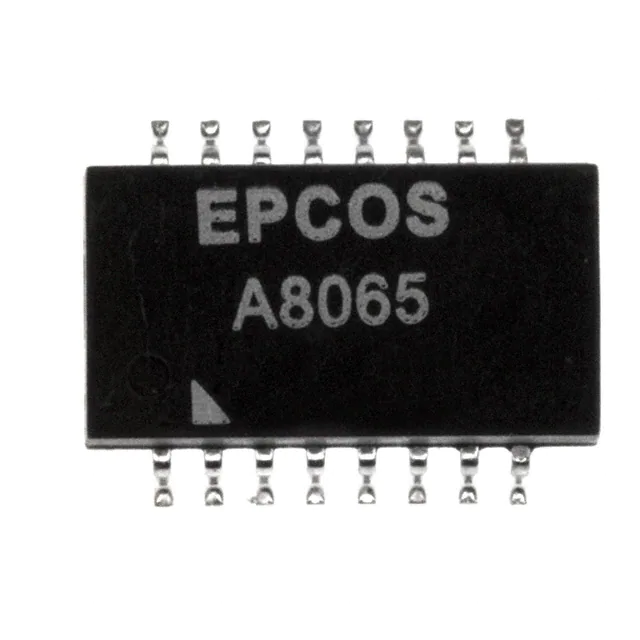

B78476A8065A003 PULSE XFMR 1CT:1CT 350UH EPCOS - TDK Electronics	53,346	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.220" (5.60mm)	-40°C ~ 85°C	-	-
PA2001NLT PULSE XFMR 1:1 403UH Pulse Electronics	1,671	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	403µH	12VµS	1:1	Surface Mount	0.340" L x 0.265" W (8.64mm x 6.73mm)	0.098" (2.49mm)	-40°C ~ 130°C	-	-
S558-5500-25-F MODULE XFRMR LAN 10/100 POE SMD Bel Fuse Inc.	1,700	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	350µH	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.485" L x 0.285" W (12.32mm x 7.24mm)	0.225" (5.72mm)	0°C ~ 70°C	-	-
S558-5999-U7-F MODULE XFRMR LAN 10/100B-TX SMD Bel Fuse Inc.	25,037	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.485" L x 0.285" W (12.32mm x 7.24mm)	0.225" (5.72mm)	-40°C ~ 85°C	-	-
S558-5999-T5-F MODULE XFRMR LAN 10/100B-TX SMD Bel Fuse Inc.	21,533	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.485" L x 0.285" W (12.32mm x 7.24mm)	0.225" (5.72mm)	-40°C ~ 85°C	-	-
S558-5999-T7-F MODULE XFRMR LAN 10/100B-TX SMD Bel Fuse Inc.	3,361	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.485" L x 0.285" W (12.32mm x 7.24mm)	0.225" (5.72mm)	-40°C ~ 85°C	-	-
PH9384.034NLT XFMR GATE-DR 3T:4CT SMT NPB Pulse Electronics	1,065	-	RFQ	Datasheet	PH9384	Tape & Reel (TR)	Active	-	-	-	-	Surface Mount	0.492" L x 0.362" W (12.50mm x 9.20mm)	0.299" (7.60mm)	-	-	-
PE-68386NLT PULSE XFMR 1:1 785UH Pulse Electronics	2,036	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	785µH	9.7VµS	1:1	Surface Mount	0.340" L x 0.265" W (8.64mm x 6.73mm)	0.098" (2.49mm)	-40°C ~ 130°C	-	-
ALANL100X1-DE12DT XFRMR LAN 1CT:1CT 350UH Abracon LLC	2,390	-	RFQ	Datasheet	ALANL100X1-D	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.085" (2.16mm)	-40°C ~ 85°C	-	-

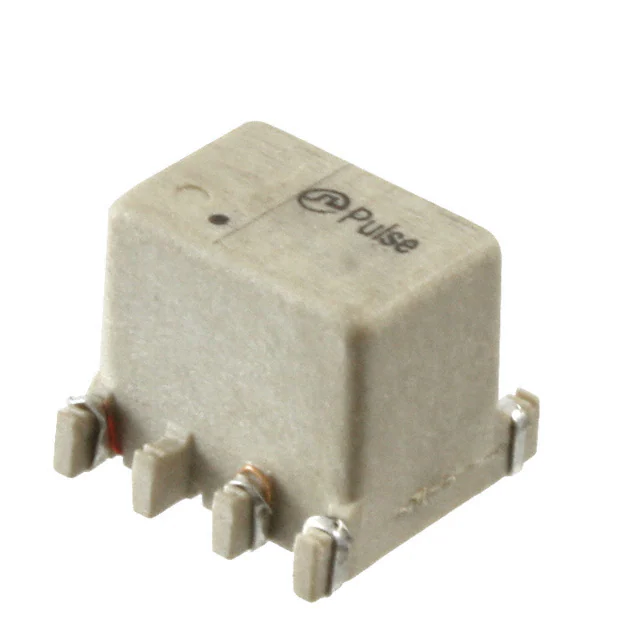

PA2002NLT PULSE XFMR 1:1:1 1.8MH Pulse Electronics	5,897	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	1.8mH	60VµS	1:1:1	Surface Mount	0.355" L x 0.340" W (9.02mm x 8.64mm)	0.300" (7.62mm)	-40°C ~ 130°C	-	-
PE-68386NL PULSE XFMR 1:1 785UH Pulse Electronics	1,415	-	RFQ	Datasheet	-	Tube	Active	-	785µH	9.7VµS	1:1	Surface Mount	0.340" L x 0.265" W (8.64mm x 6.73mm)	0.098" (2.49mm)	-40°C ~ 130°C	-	-

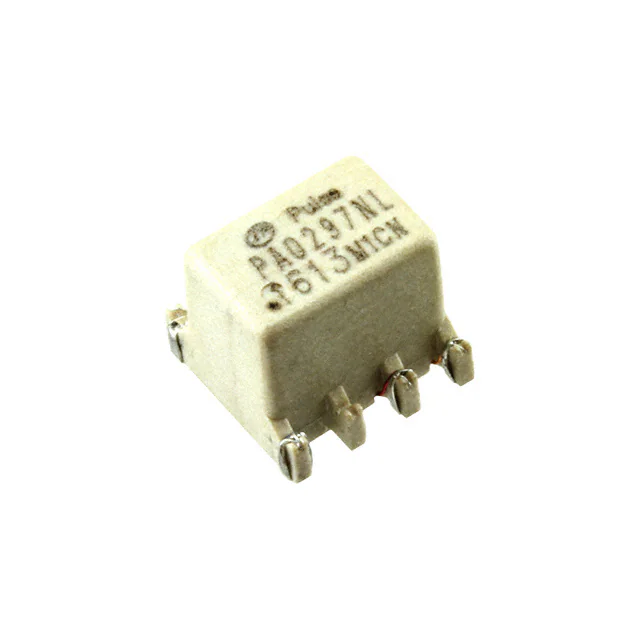

PA0297NLT PULSE XFMR 2:1:1 1200UH Pulse Electronics	680	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	1.2mH	27.2VµS	2:1:1	Surface Mount	0.355" L x 0.340" W (9.02mm x 8.64mm)	0.300" (7.62mm)	-40°C ~ 130°C	-	-
SM51589PEL PULSE XFMR 1CT:1CT 350UH Bourns Inc.	7,643	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	0.691" L x 0.480" W (17.55mm x 12.20mm)	0.236" (6.00mm)	-40°C ~ 85°C	-	-
IL-11-0002 IL1 PULSE TRANSFORMER THT 0.25A SCHURTER Inc.	321	-	RFQ	Datasheet	IL	Bulk	Active	Isolation and Data Interface (Encapsulated)	2.5mH	-	1:1	Through Hole	0.689" L x 0.728" W (17.50mm x 18.50mm)	0.453" (11.50mm)	-25°C ~ 70°C	-	-
SM51625EL XFRMR LAN POE+ 1.2A 24SMD Bourns Inc.	1,214	-	RFQ	Datasheet	SM	Tape & Reel (TR)	Active	LAN	10µH	-	1:1	Surface Mount	0.691" L x 0.480" W (17.55mm x 12.20mm)	0.246" (6.25mm)	-40°C ~ 85°C	-	-
IL-10-0001 IL5 PULSE TRANSFORMER THT 0.1A SCHURTER Inc.	4,182	-	RFQ	Datasheet	IL	Bulk	Active	SCR and Triac Trigger (Encapsulated)	2.5mH	250VµS	1:1:1	Through Hole	0.689" L x 0.728" W (17.50mm x 18.50mm)	0.453" (11.50mm)	-25°C ~ 70°C	-	-
749013011A TRANS WE-LAN 10/100 POE SMD Würth Elektronik	817	-	RFQ	Datasheet	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	350µH	-	1:1	Surface Mount	0.500" L x 0.346" W (12.70mm x 8.80mm)	0.250" (6.35mm)	-40°C ~ 105°C	-	-
749020111A WE-LAN 10/100/1000 BASE-T SMT TR Würth Elektronik	4,729	-	RFQ	Datasheet	WE-LAN	Tape & Reel (TR)	Active	LAN 1000 Base-T	350µH	-	1:1	-	0.650" L x 0.354" W (16.50mm x 9.00mm)	0.093" (2.35mm)	0°C ~ 70°C	-	-
7490100111A TRANSFORMER LAN 10/100 SMD Würth Elektronik	3,206	-	RFQ	Datasheet	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.500" L x 0.346" W (12.70mm x 8.80mm)	0.250" (6.35mm)	-40°C ~ 105°C	-	-

Total 5221 Record«Prev 123 4 5...262 Next»
