Pulse Transformers

Pulse Transformers are magnetic components used to transfer pulse signals, provide galvanic isolation and support reliable signal coupling in electronic circuits. They are widely used in switching power supplies, gate drive circuits, communication equipment, industrial control systems, data transmission, instrumentation, automotive electronics and embedded applications.

This category includes signal pulse transformers, gate drive transformers, isolation pulse transformers, LAN pulse transformers, trigger transformers and related high-frequency magnetic components. These products are commonly selected based on turns ratio, isolation voltage, pulse width, frequency range, impedance, package style, mounting type and application requirements.

TomatoElec supplies original Pulse Transformers from recognized manufacturers such as Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification

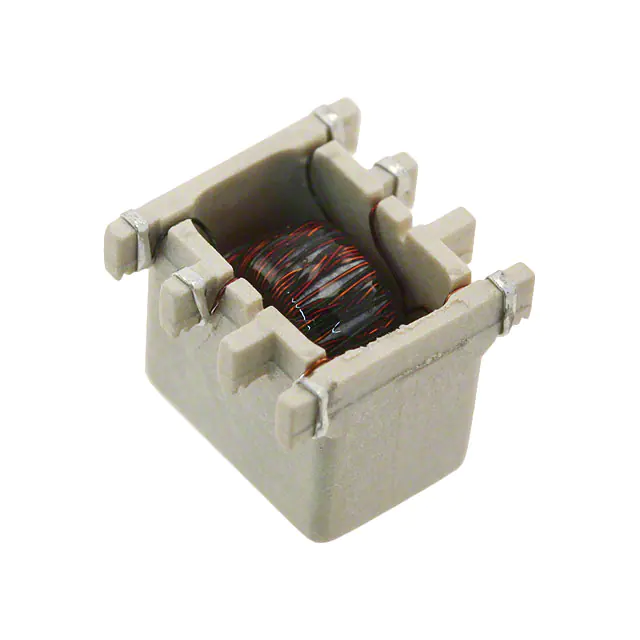

P0544NLT PULSE XFMR 1:1:1 3.3MH Pulse Electronics	2,472	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	3.3mH	45.1VµS	1:1:1	Surface Mount	0.355" L x 0.340" W (9.02mm x 8.64mm)	0.300" (7.62mm)	-40°C ~ 130°C	-	-
PA0184NLT PULSE XFMR 1:1 1.2MH Pulse Electronics	2,942	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	1.2mH	27.2VµS	1:1	Surface Mount	0.355" L x 0.340" W (9.02mm x 8.64mm)	0.300" (7.62mm)	-40°C ~ 130°C	-	-
S558-5999-M8-F MODULE XFRMR LAN GIGABIT 24P SMD Bel Fuse Inc.	3,799	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.690" L x 0.480" W (17.53mm x 12.20mm)	0.230" (5.84mm)	0°C ~ 70°C	-	-

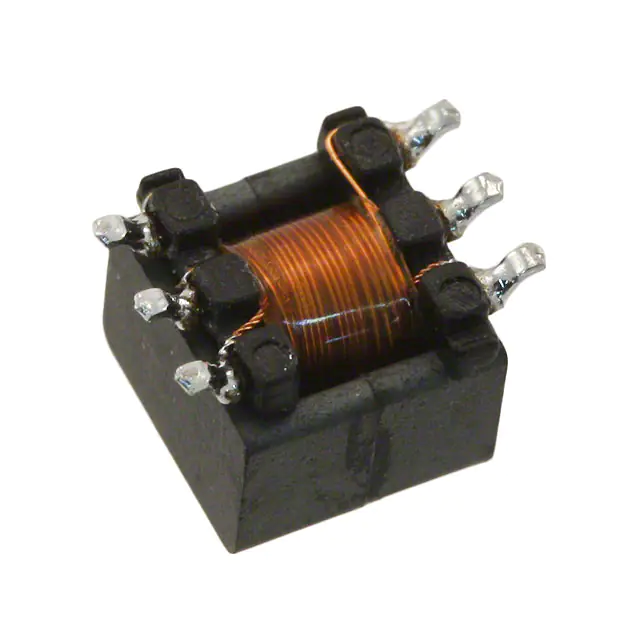

B82804A0354A110 PULSE XFMR 1:1 350UH EPCOS - TDK Electronics	11,597	-	RFQ	Datasheet	EP5	Tape & Reel (TR)	Active	Gate Drive	350µH	25.8VµS	1:1	Surface Mount	0.264" L x 0.240" W (6.70mm x 6.10mm)	0.213" (5.40mm)	-40°C ~ 125°C	-	-
B82804A0264A210 PULSE XFMR 1:1:1 264UH EPCOS - TDK Electronics	11,258	-	RFQ	Datasheet	EP5	Tape & Reel (TR)	Active	Gate Drive	264µH	22.4VµS	1:1:1	Surface Mount	0.264" L x 0.240" W (6.70mm x 6.10mm)	0.213" (5.40mm)	-40°C ~ 125°C	-	-
PA1284NLT XFRMR 12V 7W 155UH POE EP10 SMD Pulse Electronics	406	-	RFQ	Datasheet	EP10	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	155µH	-	1:0.682:0.682	Surface Mount	0.515" L x 0.600" W (13.08mm x 15.24mm)	0.451" (11.45mm)	-40°C ~ 125°C	-	-
HX1188NLT XFRMR MAGNETIC 1PORT 1:1 10/100 Pulse Electronics	3,634	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-
1001C TRANSFORMER PULSE 1:1 200VUS Murata Power Solutions Inc.	6,566	-	RFQ	Datasheet	1000	Tube	Active	-	3mH	200VµS	1:1	Through Hole	0.593" L x 0.593" W (15.06mm x 15.06mm)	0.640" (16.25mm)	0°C ~ 70°C	-	-
HX1188FNLT XFRMR MAGNETIC 1PORT 1:1 10/100 Pulse Electronics	11,595	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500" L x 0.358" W (12.70mm x 9.09mm)	0.241" (6.12mm)	-40°C ~ 85°C	-	-
SM91502ALE BMS XFORMER 1-CH 1000V AECQ +125 Bourns Inc.	7,777	-	RFQ	Datasheet	SM	Tape & Reel (TR)	Active	-	150µH	-	1CT:1CT	Surface Mount	0.300" L x 0.265" W (7.62mm x 6.73mm)	0.225" (5.72mm)	-40°C ~ 125°C	Automotive	AEC-Q200
PH9185.011NL TRANSFORMER 750UH 1:1 SMD Pulse Electronics	4,759	-	RFQ	Datasheet	PH9185	Tray	Active	-	-	-	-	Surface Mount	0.394" L x 0.394" W (10.00mm x 10.00mm)	0.492" (12.50mm)	-	-	-
PH9185.012NLT TRANSFORMER 450UH 1:2 SMD Pulse Electronics	3,227	-	RFQ	Datasheet	PH9185	Tape & Reel (TR)	Active	-	-	-	-	Surface Mount	0.394" L x 0.394" W (10.00mm x 10.00mm)	0.492" (12.50mm)	-	-	-

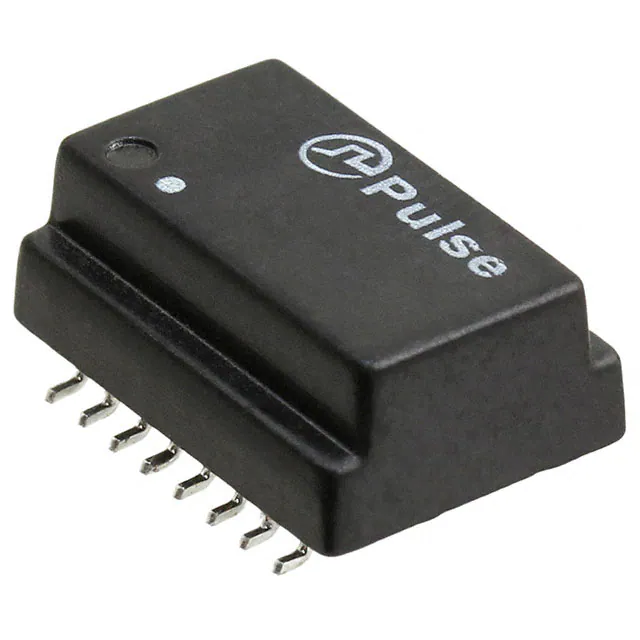

HX1198FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	3,211	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.358" W (12.70mm x 9.09mm)	0.236" (5.99mm)	-40°C ~ 85°C	-	-
PH9185.034NLT TRANSFORMER 750UH 3:4 SMD Pulse Electronics	1,344	-	RFQ	Datasheet	PH9185	Tape & Reel (TR)	Active	-	-	-	-	Surface Mount	0.394" L x 0.394" W (10.00mm x 10.00mm)	0.492" (12.50mm)	-	-	-
PH9185.013NLT TRANSFORMER 200UH 1:3 SMD Pulse Electronics	910	-	RFQ	Datasheet	PH9185	Tape & Reel (TR)	Active	-	-	-	-	Surface Mount	0.394" L x 0.394" W (10.00mm x 10.00mm)	0.492" (12.50mm)	-	-	-
76253/35ENC XFRMR 3.3V IN/5V OUT MAX253 EN Murata Power Solutions Inc.	2,012	-	RFQ	Datasheet	-	Tube	Active	Isolation and Data Interface (Encapsulated)	200µH	-	1:2.24	Through Hole	0.591" L x 0.591" W (15.00mm x 15.00mm)	0.502" (12.75mm)	-40°C ~ 85°C	-	-
76253/55ENC XFRMR 5V IN/OUT MAX253 EN Murata Power Solutions Inc.	129	-	RFQ	Datasheet	-	Tube	Active	Isolation and Data Interface (Encapsulated)	250µH	-	1:1.33	Through Hole	0.591" L x 0.591" W (15.00mm x 15.00mm)	0.502" (12.75mm)	-40°C ~ 85°C	-	-

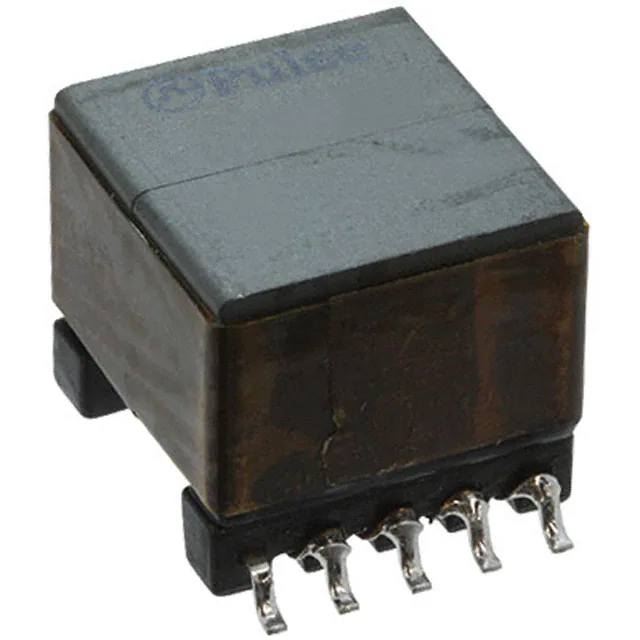

PA1137NLT XFRMR 5V 13.5W 127UH POE EP13 Pulse Electronics	903	-	RFQ	Datasheet	EP13	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	127µH	-	1:0.125:0.208	Surface Mount	0.551" L x 0.695" W (14.00mm x 17.65mm)	0.500" (12.70mm)	-40°C ~ 125°C	-	-

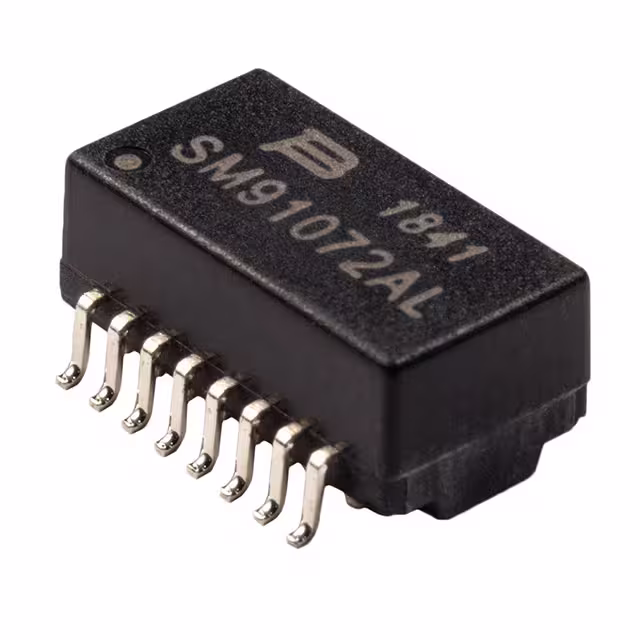

SM91072AL-E XFMR LAN 10/100 BASE-T 1:1 350UH Bourns Inc.	5,010	-	RFQ	Datasheet	SM	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.504" L x 0.272" W (12.80mm x 6.90mm)	0.222" (5.65mm)	-40°C ~ 125°C	Automotive	AEC-Q200
HX1260FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	2,580	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.358" W (12.70mm x 9.09mm)	0.236" (5.99mm)	-40°C ~ 85°C	-	-

Total 5221 Record«Prev 1 234 5 6...262 Next»
