Audio Transformers

Audio Transformers are magnetic components used for signal isolation, impedance matching, noise reduction and audio signal coupling in electronic circuits. They are widely used in professional audio equipment, amplifiers, mixers, communication devices, broadcasting systems, audio interfaces, instrumentation, consumer electronics and embedded audio applications.

This category includes audio isolation transformers, line matching transformers, microphone transformers, speaker transformers, impedance matching transformers, signal transformers and related magnetic components for audio systems. These products are commonly selected based on impedance ratio, frequency response, isolation voltage, signal level, distortion performance, mounting type, package style and application requirements.

TomatoElec supplies original Audio Transformers from recognized manufacturers such as Hammond Manufacturing, Triad Magnetics, Bourns, Pulse Electronics, Würth Elektronik, Murata, TDK, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Turns Ratio - Primary:Secondary	Impedance - Primary (Ohms)	Impedance - Secondary (Ohms)	DC Resistance (DCR) - Primary	DC Resistance (DCR) - Secondary	Transformer Type	Frequency Range	Frequency Response	Voltage - Isolation	Insertion Loss	Return Loss	Power Level	Operating Temperature	Approval Agency	Mounting Type	Size / Dimension	Height - Seated (Max)	Termination Style
107B AUDIO XFMR 150CT / 12 TH Hammond Manufacturing	90	-	RFQ	Datasheet	107	Bulk	Active	3.53:1	150CT	12	22Ohm	1.85Ohm	Miniature Epoxy Potted	300Hz ~ 50kHz	±1.5dB	100VRMS	-	-	150mW	-	-	Through Hole	0.630" L x 0.586" W (16.00mm x 14.88mm)	0.630" (16.00mm)	PC Pin
109E AUDIO XFMR 600CT / 3.2CT TH Hammond Manufacturing	9	-	RFQ	Datasheet	109	Bulk	Active	6.88:1	600CT	3.2CT	40Ohm	270mOhm	Miniature Epoxy Potted	300Hz ~ 50kHz	±1.5dB	100VRMS	-	-	2W	-	-	Through Hole	1.315" L x 0.930" W (33.40mm x 23.62mm)	0.920" (23.37mm)	PC Pin

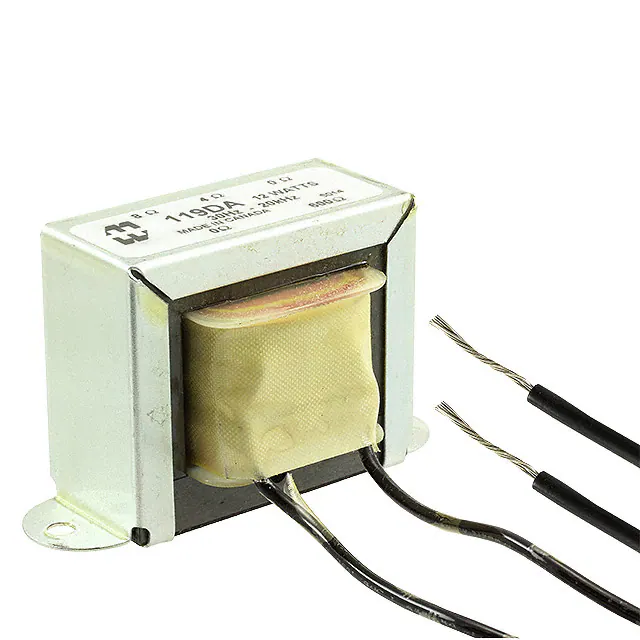

119DA AUDIO XFMR 600 / 4, 8 CHAS MNT Hammond Manufacturing	16	-	RFQ	Datasheet	119	Bulk	Active	-	600	4, 8	-	-	Tube Driver and Speaker Matching	30Hz ~ 20kHz	±1dB	-	-	-	12W	-	-	Chassis Mount	3.280" L x 2.350" W (83.31mm x 59.69mm)	2.000" (50.80mm)	Wire Leads

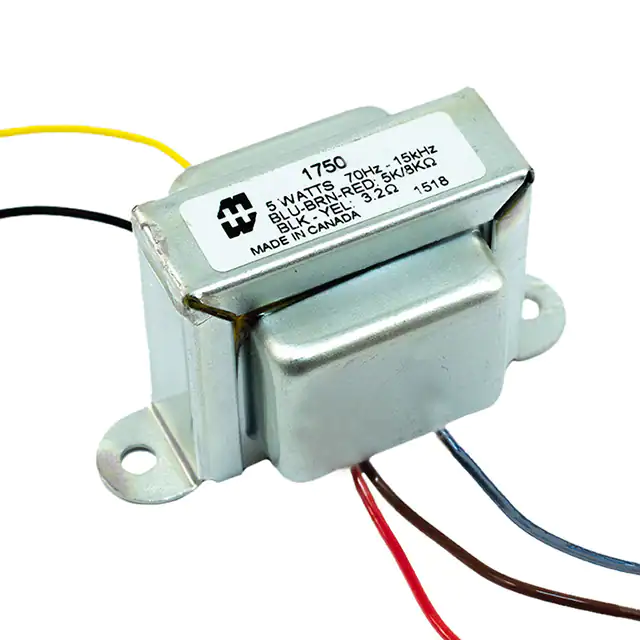

1750C AUDIO XFMR 5K, 8K / 3.2 CHAS MNT Hammond Manufacturing	12	-	RFQ	Datasheet	1750	Box	Active	49.16:1	5k, 8k	3.2	314.2Ohm	295mOhm	Single Ended Audiophile, Ultra-Linear - Tube Output	70Hz ~ 15kHz	±1dB	-	-	-	5W	-	-	Chassis Mount	2.813" L x 1.560" W (71.45mm x 39.62mm)	1.746" (44.35mm)	Wire Leads

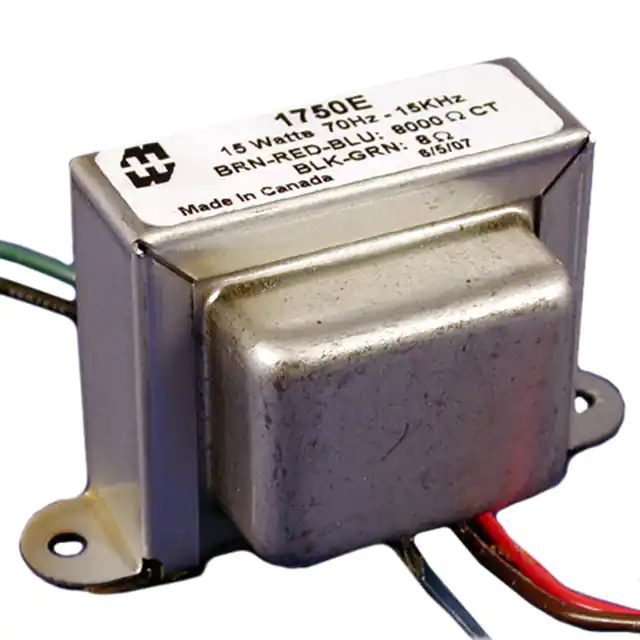

1750E AUDIO XFMR 8KCT / 8 CHAS MNT Hammond Manufacturing	10	-	RFQ	Datasheet	1750	Box	Active	32.61:1	8kCT	8	150Ohm, 300Ohm	450mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	70Hz ~ 15kHz	±1dB	-	-	-	15W	-	-	Chassis Mount	3.250" L x 2.085" W (82.55mm x 52.96mm)	2.058" (52.27mm)	Wire Leads
1760C XFMR 5K, 8K / 3.2, 8, 16 CHAS MT Hammond Manufacturing	10	-	RFQ	Datasheet	1760	Box	Active	44.61:1	5k, 8k	3.2, 8, 16	284.2Ohm	292mOhm	Single Ended Audiophile, Ultra-Linear - Tube Output	70Hz ~ 15kHz	±1dB	-	-	-	5W	-	-	Chassis Mount	2.813" L x 1.560" W (71.45mm x 39.62mm)	1.746" (44.35mm)	Wire Leads
1140-LN-B AUDIO XFMR 10K / 10K CHAS MNT Hammond Manufacturing	5	-	RFQ	Datasheet	1140	Bulk	Active	1:1	10k	10k	-	-	Impedance Matching	20Hz ~ 20kHz	±0.35dB	-	-	-	-	-	-	Chassis Mount	-	-	Screw Terminal

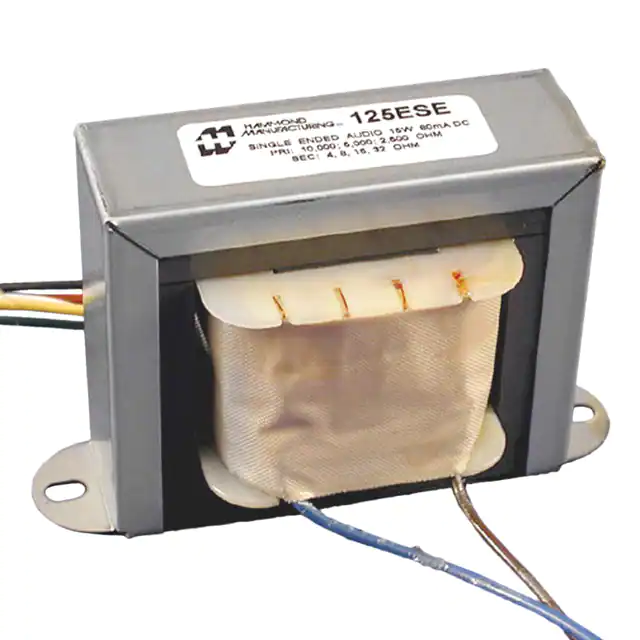

125ESE XFMR 2.5K-10K / 4-32 CHAS MNT Hammond Manufacturing	2	-	RFQ	Datasheet	125SE	Bulk	Active	-	2.5k ~ 10k	4 ~ 32	100.5Ohm	590mOhm	General Purpose	100Hz ~ 15kHz	±1dB	1500V @ 1 Second	-	-	15W	-	-	Chassis Mount	4.500" L x 2.360" W (114.30mm x 59.94mm)	2.940" (74.68mm)	Wire Leads
1608 XFMR 8KCT / 4, 8, 16 CHAS MNT Hammond Manufacturing	3	-	RFQ	-	1600	Bulk	Active	-	8kCT	4, 8, 16	-	-	Push-Pull Audiophile, Ultra-Linear - Tube Output	30Hz ~ 30kHz	±1dB	-	±1dB	-	10W	-	-	Chassis Mount	2.750" L x 2.500" W (69.85mm x 63.50mm)	3.060" (77.72mm)	Wire Leads
1760L XFMR 4.2KCT / 4, 8, 16 CHAS MNT Hammond Manufacturing	2	-	RFQ	Datasheet	1760	Box	Active	31.16:1	4.2kCT	4, 8, 16	46.48Ohm, 51.04Ohm	252mOhm, 480mOhm, 714mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	70Hz ~ 15kHz	±1dB	-	-	-	60W	-	-	Chassis Mount	4.050" L x 3.150" W (102.87mm x 80.01mm)	3.193" (81.10mm)	Wire Leads
1750N XFMR 3.2KCT / 4, 8, 16 CHAS MNT Hammond Manufacturing	3	-	RFQ	Datasheet	1750	Box	Active	14.30:1	3.2kCT	4, 8, 16	41.74Ohm, 3.14Ohm	170mOhm, 240mOhm, 360mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	70Hz ~ 15kHz	±1dB	-	-	-	50W	-	-	Chassis Mount	3.125" L x 3.350" W (79.38mm x 85.09mm)	3.800" (96.52mm)	Wire Leads
126B AUDIO XFMR 5K / 5K CHAS MNT Hammond Manufacturing	2	-	RFQ	Datasheet	126	Box	Active	-	5k	5k	178Ohm	178Ohm	Single Ended Audiophile, Ultra-Linear - Tube Output	20Hz ~ 20kHz	±1dB	400VDC	-	-	4W	-	-	Chassis Mount	3.120" L x 2.500" W (79.25mm x 63.50mm)	3.120" (79.25mm)	Wire Leads
1760W XFMR 2KCT / 4, 8, 16 CHAS MNT Hammond Manufacturing	7	-	RFQ	Datasheet	1760	Box	Active	22.35:1	2kCT	4, 8, 16	11.4Ohm	100mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	70Hz ~ 15kHz	±1dB	-	-	-	100W	-	-	Chassis Mount	4.050" L x 3.465" W (102.87mm x 88.01mm)	3.563" (90.50mm)	Wire Leads
1750W AUDIO XFMR 2KCT / 4 CHAS MNT Hammond Manufacturing	2	-	RFQ	Datasheet	1750	Box	Active	22.35:1	2kCT	4	11.4Ohm	100mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	70Hz ~ 15kHz	±1dB	-	-	-	100W	-	-	Chassis Mount	4.063" L x 3.450" W (103.20mm x 87.63mm)	3.563" (90.50mm)	Wire Leads
1750X XFMR 2KCT / 2, 4, 8, 16 CHAS MNT Hammond Manufacturing	2	-	RFQ	Datasheet	1750	Box	Active	10.14:1	2kCT	2, 4, 8, 16	5.03Ohm, 12.3Ohm, 7.16Ohm	20mOhm, 30mOhm, 50mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	50Hz ~ 12kHz	±1dB	-	-	-	100W	-	-	Chassis Mount	3.786" L x 4.049" W (96.16mm x 102.84mm)	3.238" (85.25mm)	Solder Lug
1650H XFMR 6.6KCT / 4, 8, 16 CHAS MNT Hammond Manufacturing	2	-	RFQ	-	1600	Bulk	Active	-	6.6kCT	4, 8, 16	-	-	Push-Pull Audiophile, Ultra-Linear - Tube Output	30Hz ~ 30kHz	±1dB	-	±1dB	-	40W	-	-	Chassis Mount	4.000" L x 3.130" W (101.60mm x 79.50mm)	3.810" (96.77mm)	Wire Leads
A-11J XFMR 600, 250/50 / 60K CHAS MNT Triad Magnetics	20	-	RFQ	Datasheet	J	Bulk	Active	1:10	600, 250/50	60k	50Ohm	5kOhm	Impedance Matching	30Hz ~ 15kHz	±3dB	-	-	-	10mW	-	-	Chassis Mount	-	-	Wire Leads
1650HA XFMR 6.6KCT / 4, 8, 16 CHAS MNT Hammond Manufacturing	2	-	RFQ	Datasheet	A	Box	Active	-	6.6kCT	4, 8, 16	63.69Ohm, 71.33Ohm	74mOhm, 223mOhm, 258mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	30Hz ~ 30kHz	±1dB	2000V @ 1 Second	-	-	40W	-	-	Chassis Mount	4.000" L x 3.130" W (101.60mm x 79.50mm)	3.810" (96.77mm)	Wire Leads
1645A XFMR 5KCT / 4, 8, 16, 70V CHAS Hammond Manufacturing	2	-	RFQ	Datasheet	A	Box	Active	-	5kCT	4, 8, 16, 70V	72.11Ohm, 79.35Ohm	276mOhm, 391mOhm, 464mOhm, 9.304Ohm	Push-Pull Audiophile, Ultra-Linear - Tube Output	30Hz ~ 30kHz	±1dB	2000V @ 1 Second	-	-	30W	-	-	Chassis Mount	3.750" L x 2.500" W (95.25mm x 63.50mm)	3.060" (77.72mm)	Wire Leads
1627SEA XFMR 2.5K / 4, 8, 16 CHAS MNT Hammond Manufacturing	4	-	RFQ	Datasheet	1600	Box	Active	-	2.5k	4, 8, 16	30Ohm, 47.44Ohm	402mOhm, 502mOhm, 700mOhm	Single Ended Audiophile, Ultra-Linear - Tube Output	20Hz ~ 20kHz	±1dB	2828VDC @ 1 Second	±1dB	-	30W	-	-	Chassis Mount	4.500" L x 3.750" W (114.30mm x 95.25mm)	4.560" (115.82mm)	Wire Leads

Total 938 Record«Prev 1 2 3 4 5 678 9 10...47 Next»
