Audio Transformers

Audio Transformers are magnetic components used for signal isolation, impedance matching, noise reduction and audio signal coupling in electronic circuits. They are widely used in professional audio equipment, amplifiers, mixers, communication devices, broadcasting systems, audio interfaces, instrumentation, consumer electronics and embedded audio applications.

This category includes audio isolation transformers, line matching transformers, microphone transformers, speaker transformers, impedance matching transformers, signal transformers and related magnetic components for audio systems. These products are commonly selected based on impedance ratio, frequency response, isolation voltage, signal level, distortion performance, mounting type, package style and application requirements.

TomatoElec supplies original Audio Transformers from recognized manufacturers such as Hammond Manufacturing, Triad Magnetics, Bourns, Pulse Electronics, Würth Elektronik, Murata, TDK, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Turns Ratio - Primary:Secondary	Impedance - Primary (Ohms)	Impedance - Secondary (Ohms)	DC Resistance (DCR) - Primary	DC Resistance (DCR) - Secondary	Transformer Type	Frequency Range	Frequency Response	Voltage - Isolation	Insertion Loss	Return Loss	Power Level	Operating Temperature	Approval Agency	Mounting Type	Size / Dimension	Height - Seated (Max)	Termination Style
148Q AUDIO XFMR 10K / 2K 500/500 TH Hammond Manufacturing	6	-	RFQ	Datasheet	148	Bulk	Active	-	10k	2k, 500/500	1.7kOhm	238Ohm	Economical Open Type	200Hz ~ 15kHz	±1dB	-	0.5dB	-	75mW	-	-	Through Hole	0.820" L x 0.680" W (20.83mm x 17.27mm)	0.690" (17.53mm)	PC Pin
141H AUDIO XFMR 600CT / 600CT TH Hammond Manufacturing	16	-	RFQ	Datasheet	141	Bulk	Active	-	600CT	600CT	32Ohm	45Ohm	Low Profile, Open Type	200Hz ~ 50kHz	±2dB	250V	-	-	150mW	-	-	Through Hole	0.780" L x 0.660" W (19.81mm x 16.76mm)	0.460" (11.68mm)	PC Pin
108E AUDIO XFMR 600CT / 3.2 TH Hammond Manufacturing	64	-	RFQ	Datasheet	108	Bulk	Active	13.71:1	600CT	3.2	54Ohm	400mOhm	Miniature Epoxy Potted	300Hz ~ 50kHz	±1.75dB	100VRMS	-	-	500mW	-	-	Through Hole	1.030" L x 0.770" W (26.16mm x 19.56mm)	0.770" (19.56mm)	PC Pin
107X AUDIO XFMR 100KCT / 1KCT TH Hammond Manufacturing	90	-	RFQ	Datasheet	107	Bulk	Active	10:1	100kCT	1kCT	3.66kOhm	75Ohm	Miniature Epoxy Potted	300Hz ~ 50kHz	±1.5dB	500Vrms	-	-	150mW	-	-	Through Hole	0.630" L x 0.586" W (16.00mm x 14.88mm)	0.630" (16.00mm)	PC Pin
109H AUDIO XFMR 600CT / 600CT TH Hammond Manufacturing	14	-	RFQ	Datasheet	109	Bulk	Active	1:1	600CT	600CT	40.38Ohm	52.32Ohm	Miniature Epoxy Potted	300Hz ~ 50kHz	±1.5dB	100VRMS	-	-	2W	-	-	Through Hole	1.315" L x 0.930" W (33.40mm x 23.62mm)	0.920" (23.37mm)	PC Pin
109G AUDIO XFMR 600CT / 250CT TH Hammond Manufacturing	23	-	RFQ	Datasheet	109	Bulk	Active	1.55:1	600CT	250CT	40Ohm	24Ohm	Miniature Epoxy Potted	300Hz ~ 50kHz	±1.5dB	100VRMS	-	-	2W	-	-	Through Hole	1.315" L x 0.930" W (33.40mm x 23.62mm)	0.920" (23.37mm)	PC Pin
109R AUDIO XFMR 10KCT / 1.5KCT TH Hammond Manufacturing	7	-	RFQ	Datasheet	109	Bulk	Active	5.16:1	10kCT	1.5kCT	384Ohm	58Ohm	Miniature Epoxy Potted	300Hz ~ 50kHz	±1.5dB	100VRMS	-	-	2W	-	-	Through Hole	1.315" L x 0.930" W (33.40mm x 23.62mm)	0.920" (23.37mm)	PC Pin
109L AUDIO XFMR 10KCT / 3.2CT TH Hammond Manufacturing	31	-	RFQ	Datasheet	109	Bulk	Active	55.3:1	10kCT	3.2CT	300Ohm	200mOhm	Miniature Epoxy Potted	300Hz ~ 50kHz	±1.5dB	100VRMS	-	-	2W	-	-	Through Hole	1.315" L x 0.930" W (33.40mm x 23.62mm)	0.920" (23.37mm)	PC Pin
117F32 AUDIO XFMR 8 / 70V CHAS MNT Hammond Manufacturing	14	-	RFQ	Datasheet	117	Bulk	Active	-	8	70V	-	-	Sound Distribution	100Hz ~ 9kHz	1dB	-	2dB	-	32W	-	-	Chassis Mount	4.030" L x 2.250" W (102.36mm x 57.15mm)	2.630" (66.80mm)	Solder Lug

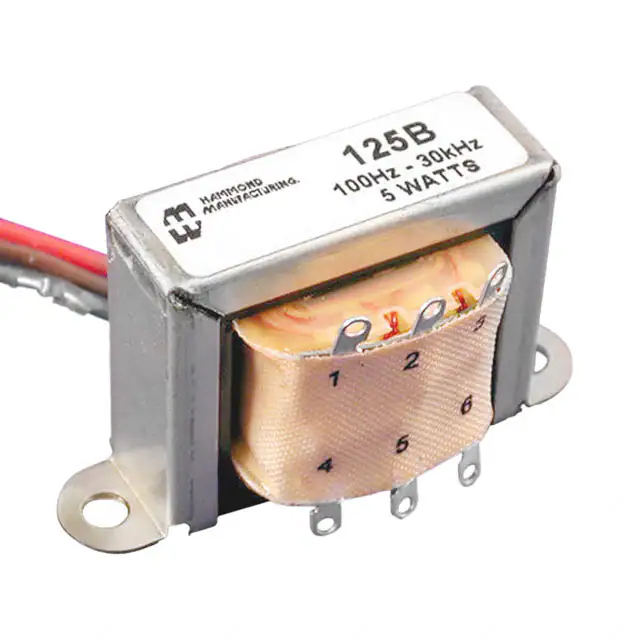

125B XFMR 1.2K-25K / 1.5-15 CHAS MNT Hammond Manufacturing	2	-	RFQ	Datasheet	125	Bulk	Active	-	1.2k ~ 25k	1.5 ~ 15	-	-	General Purpose	150Hz ~ 15kHz	±1dB	-	-	-	5W	-	-	Chassis Mount	2.380" L x 1.380" W (60.45mm x 35.05mm)	1.380" (35.05mm)	Wire Leads
1760E XFMR 8.5KCT / 4, 8, 16 CHAS MNT Hammond Manufacturing	3	-	RFQ	Datasheet	1760	Box	Active	32.61:1	8.5kCT	4, 8, 16	150Ohm	300Ohm, 450mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	70Hz ~ 15kHz	±1dB	-	-	-	15W	-	-	Chassis Mount	3.250" L x 2.085" W (82.55mm x 52.96mm)	2.058" (52.27mm)	Wire Leads
290WX AUDIO XFMR CHAS MNT Hammond Manufacturing	3	-	RFQ	Datasheet	290	Bulk	Active	-	-	-	22.5Ohm	240mOhm, 185.4Ohm	-	-	-	120/240VAC	-	-	-	-	-	Chassis Mount	3.250" L x 2.360" W (82.55mm x 59.94mm)	2.058" (52.27mm)	Wire Leads

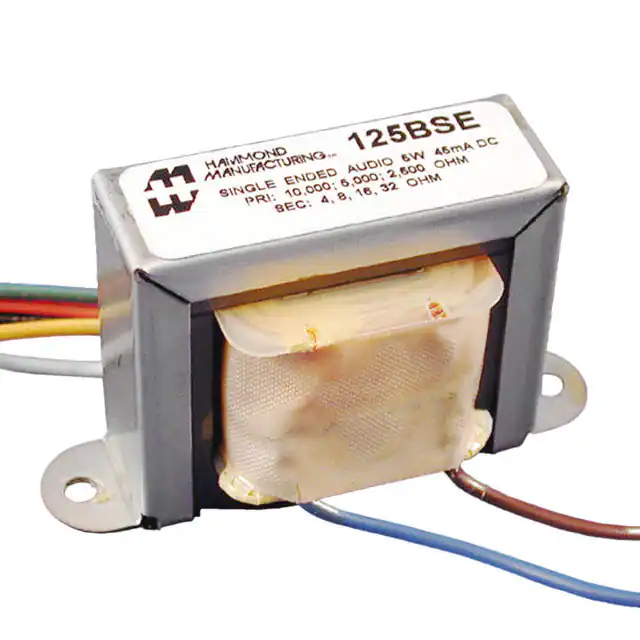

125BSE XFMR 2.5K-10K / 4-32 CHAS MNT Hammond Manufacturing	2	-	RFQ	Datasheet	125SE	Bulk	Active	-	2.5k ~ 10k	4 ~ 32	-	-	General Purpose	100Hz ~ 15kHz	±1dB	-	-	-	5W	-	-	Chassis Mount	3.250" L x 1.630" W (82.55mm x 41.40mm)	2.000" (50.80mm)	Wire Leads

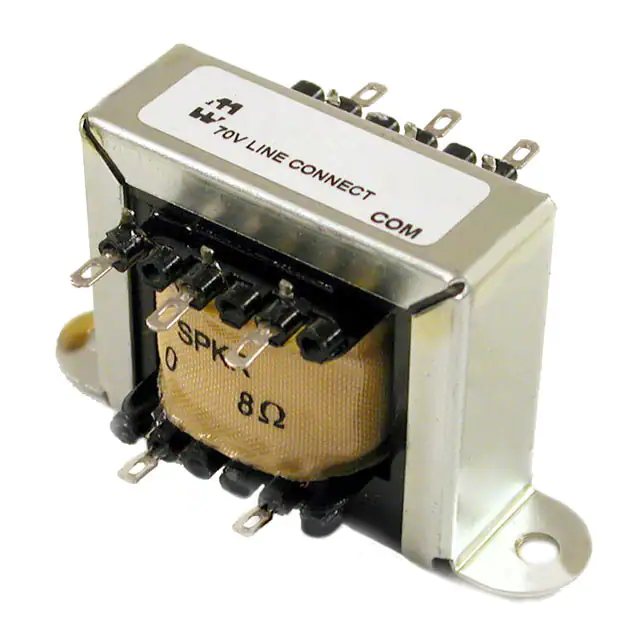

119Y60 XFMR 16, 8 / 70V 25V CHAS MNT Hammond Manufacturing	2	-	RFQ	Datasheet	119	Bulk	Active	-	16, 8	70V, 25V	-	-	Sound Distribution	50Hz ~ 10kHz	-	25V, 70V	-	-	60W	-	-	Chassis Mount	3.250" L x 2.500" W (82.55mm x 63.50mm)	3.060" (77.72mm)	Wire Leads
560L XFMR 600 150/150 / 20K 5K/5K TH Hammond Manufacturing	3	-	RFQ	Datasheet	560	Bulk	Active	-	600, 150/150	20k, 5k/5k	-	-	Broadcast Quality	30Hz ~ 30kHz	±1dB	-	1dB Max	-	-	-	-	Through Hole	1.330" L x 1.640" W (33.78mm x 41.66mm)	0.850" (21.59mm)	PC Pin
560Q XFMR 40K 10K/10K / 40K 10K/10K Hammond Manufacturing	2	-	RFQ	Datasheet	560	Bulk	Active	-	40k, 10k/10k	40k, 10k/10k	-	-	Broadcast Quality	30Hz ~ 15kHz	±1dB	-	1dB Max	-	-	-	-	Through Hole	1.330" L x 1.640" W (33.78mm x 41.66mm)	0.850" (21.59mm)	PC Pin

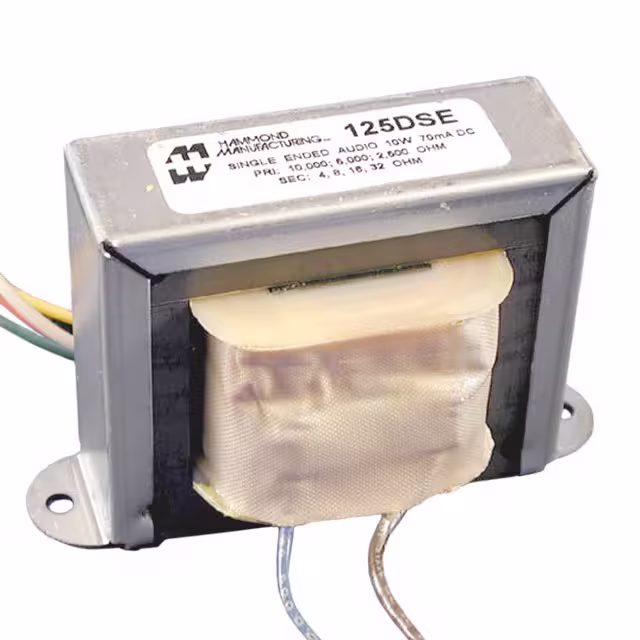

125DSE XFMR 2.5K-10K / 4-32 CHAS MNT Hammond Manufacturing	2	-	RFQ	Datasheet	125SE	Bulk	Active	-	2.5k ~ 10k	4 ~ 32	115Ohm	590mOhm	General Purpose	100Hz ~ 15kHz	±1dB	1500V @ 1 Second	-	-	10W	-	-	Chassis Mount	4.000" L x 2.100" W (101.60mm x 53.34mm)	2.630" (66.80mm)	Wire Leads
560N XFMR 600 150/150 / 40K 10K/10K Hammond Manufacturing	3	-	RFQ	Datasheet	560	Bulk	Active	-	600, 150/150	40k, 10k/10k	-	-	Broadcast Quality	30Hz ~ 30kHz	±1dB	-	1dB Max	-	-	-	-	Through Hole	1.330" L x 1.640" W (33.78mm x 41.66mm)	0.850" (21.59mm)	PC Pin
140QEX AUDIO XFMR 600CT / 600CT CHAS MT Hammond Manufacturing	4	-	RFQ	Datasheet	140EX	Bulk	Active	1:1	600CT	600CT	72.4Ohm	72.4Ohm	-	20Hz ~ 20kHz	±1dB	500Vrms	1.1dB Typ	20dB Typ	10dB	-	-	Chassis Mount	1.250" Dia (31.75mm)	1.000" (25.40mm)	Screw Terminal
1609 XFMR 10KCT / 4, 8, 16 CHAS MNT Hammond Manufacturing	3	-	RFQ	Datasheet	1600	Bulk	Active	-	10kCT	4, 8, 16	-	-	Push-Pull Audiophile, Ultra-Linear - Tube Output	30Hz ~ 30kHz	±1dB	-	±1dB	-	10W	-	-	Chassis Mount	2.750" L x 2.500" W (69.85mm x 63.50mm)	3.060" (77.72mm)	Wire Leads

Total 938 Record«Prev 1... 5 6 7 8910 11 12...47 Next»
