Audio Transformers

Audio Transformers are magnetic components used for signal isolation, impedance matching, noise reduction and audio signal coupling in electronic circuits. They are widely used in professional audio equipment, amplifiers, mixers, communication devices, broadcasting systems, audio interfaces, instrumentation, consumer electronics and embedded audio applications.

This category includes audio isolation transformers, line matching transformers, microphone transformers, speaker transformers, impedance matching transformers, signal transformers and related magnetic components for audio systems. These products are commonly selected based on impedance ratio, frequency response, isolation voltage, signal level, distortion performance, mounting type, package style and application requirements.

TomatoElec supplies original Audio Transformers from recognized manufacturers such as Hammond Manufacturing, Triad Magnetics, Bourns, Pulse Electronics, Würth Elektronik, Murata, TDK, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Turns Ratio - Primary:Secondary	Impedance - Primary (Ohms)	Impedance - Secondary (Ohms)	DC Resistance (DCR) - Primary	DC Resistance (DCR) - Secondary	Transformer Type	Frequency Range	Frequency Response	Voltage - Isolation	Insertion Loss	Return Loss	Power Level	Operating Temperature	Approval Agency	Mounting Type	Size / Dimension	Height - Seated (Max)	Termination Style
TTC-5020 AUDIO XFMR 600 / 301 TH Tamura	23	-	RFQ	Datasheet	TTC	Bulk	Active	1:1	600	301	152Ohm	152Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±1dB ~ ±4dB	1875VRMS @ 1 Second	3.75dB Max @ 1kHz	-	-20dB ~ 4dB	-	CSA-C22.2 No. 950-95, UL1950	Through Hole	0.886" L x 0.909" W (22.50mm x 23.10mm)	0.543" (13.80mm)	PC Pin

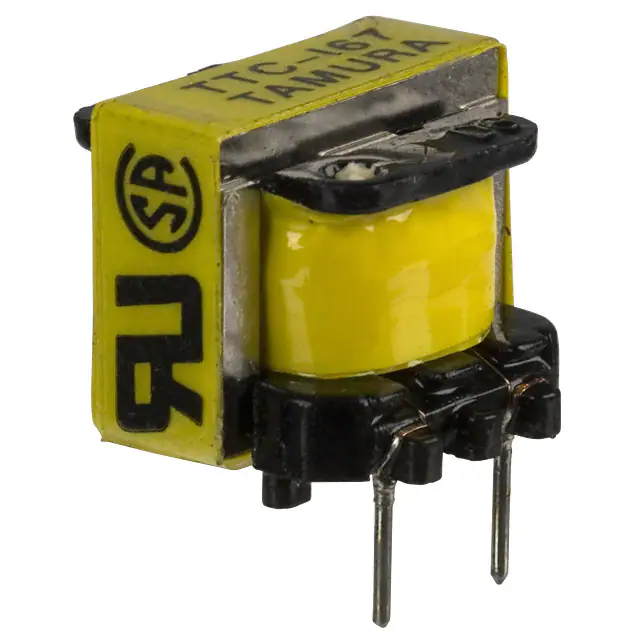

TTC-167 AUDIO XFMR 10K / 10K TH Tamura	0	-	RFQ	Datasheet	TTC	Bulk	Active	1:1	10k	10k	330Ohm	420Ohm	Data/Voice Coupling	300Hz ~ 4kHz	±1dB	1000VRMS @ 1 Minute	1.7dB Max @ 1kHz	-	-	-	CSA-C22.2 No. 66-M1988, UL1863	Through Hole	0.610" L x 0.689" W (15.50mm x 17.50mm)	0.551" (14.00mm)	PC Pin

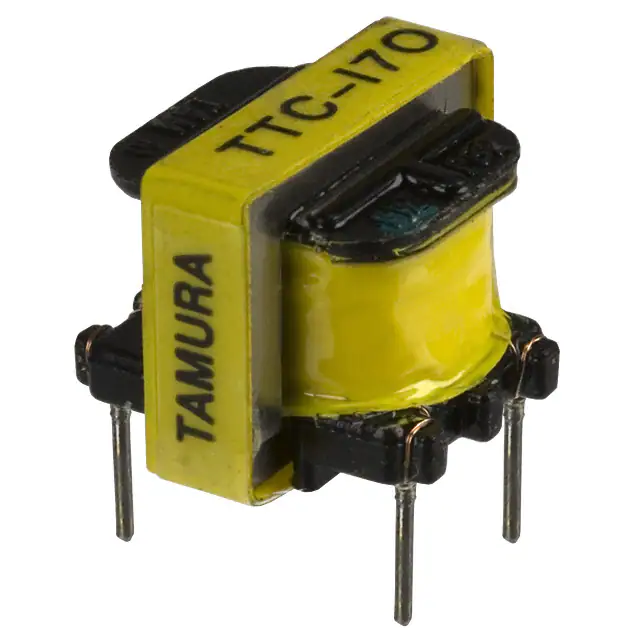

TTC-170 AUDIO XFMR 600 / 600 TH Tamura	0	-	RFQ	Datasheet	TTC	Tube	Active	1:1	600	600	47Ohm	61Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±0.5dB	1500VRMS @ 1 Minute	1.5dB Max @ 1kHz	-	-	0°C ~ 70°C	CSA-C22.2 No. 66-M1988, UL1459	Through Hole	0.528" L x 0.512" W (13.40mm x 13.00mm)	0.421" (10.70mm)	PC Pin
107D AUDIO XFMR 150CT / 150CT TH Hammond Manufacturing	1	-	RFQ	Datasheet	107	Bulk	Active	1:1	150CT	150CT	22Ohm	27Ohm	Miniature Epoxy Potted	300Hz ~ 50kHz	±1.5dB	100VRMS	-	-	150mW	-	-	Through Hole	0.630" L x 0.586" W (16.00mm x 14.88mm)	0.630" (16.00mm)	PC Pin

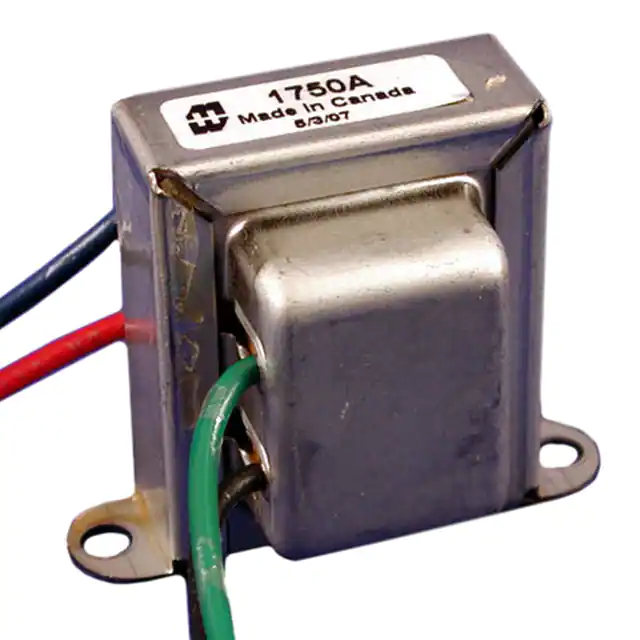

1750A AUDIO XFMR 22.8K / 8 CHAS MNT Hammond Manufacturing	5	-	RFQ	Datasheet	1750	Box	Active	53.11:1	22.8k	8	1.065kOhm	1.02Ohm	Single Ended Audiophile, Ultra-Linear - Tube Output	70Hz ~ 15kHz	±1dB	-	-	-	3.5W	-	-	Chassis Mount	2.000" L x 1.440" W (50.80mm x 36.58mm)	1.773" (45.03mm)	Wire Leads
124A AUDIO XFMR 10K / 90KCT CHAS MNT Hammond Manufacturing	5	-	RFQ	Datasheet	124	Bulk	Active	1:3	10k	90kCT	405Ohm	1.525kOhm	Tube Driver and Speaker Matching	150Hz ~ 15kHz	±1dB	500Vrms	-	-	5W	-	-	Chassis Mount	2.380" L x 1.350" W (60.45mm x 34.29mm)	1.430" (36.32mm)	Wire Leads
1760H XFMR 6.6KCT / 4, 8, 16 CHAS MNT Hammond Manufacturing	0	-	RFQ	Datasheet	1760	Box	Active	40.62:1, 28.72:1, 20.31:1	6.6kCT	4, 8, 16	347.8Ohm	686mOhm, 803mOhm, 1.157Ohm	Push-Pull Audiophile, Ultra-Linear - Tube Output	70Hz ~ 15kHz	±1dB	-	-	-	20W	-	-	Chassis Mount	3.710" L x 2.400" W (94.23mm x 60.96mm)	2.371" (60.22mm)	Wire Leads

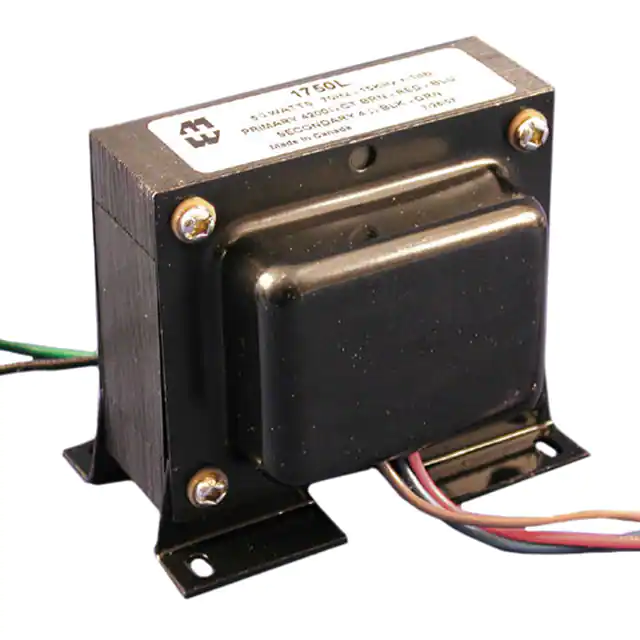

1750L AUDIO XFMR 4.2KCT / 4 CHAS MNT Hammond Manufacturing	1	-	RFQ	Datasheet	1750	Box	Active	31.16:1	4.2kCT	4	46.48Ohm, 51.04Ohm	170mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	70Hz ~ 15kHz	±1dB	-	-	-	60W	-	-	Chassis Mount	4.050" L x 3.050" W (102.87mm x 77.47mm)	3.523" (89.48mm)	Wire Leads
1650F XFMR 7.6KCT / 4, 8, 16 CHAS MNT Hammond Manufacturing	1	-	RFQ	-	1600	Bulk	Active	-	7.6kCT	4, 8, 16	210Ohm	220mOhm, 270mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	30Hz ~ 30kHz	±1dB	2000V @ 1 Second	±1dB	-	25W	-	-	Chassis Mount	3.500" L x 2.500" W (88.90mm x 63.50mm)	3.060" (77.72mm)	Wire Leads
1629SEA XFMR 6.5K / 4, 8, 16 CHAS MNT Hammond Manufacturing	1	-	RFQ	Datasheet	1600	Box	Active	-	6.5k	4, 8, 16	-	-	Single Ended Audiophile, Ultra-Linear - Tube Output	20Hz ~ 20kHz	±1dB	2000Vrms	±1dB	-	30W	-	-	Chassis Mount	4.500" L x 3.750" W (114.30mm x 95.25mm)	4.560" (115.82mm)	Wire Leads
1630SEA XFMR 3.5K / 4, 8, 16 CHAS MNT Hammond Manufacturing	1	-	RFQ	Datasheet	1600	Box	Active	-	3.5k	4, 8, 16	110.1Ohm	634mOhm	Single Ended Audiophile, Ultra-Linear - Tube Output	20Hz ~ 20kHz	±1dB	2828VDC @ 1 Second	±1dB	-	30W	-	-	Chassis Mount	4.980" L x 3.750" W (126.49mm x 95.25mm)	4.650" (118.11mm)	Wire Leads

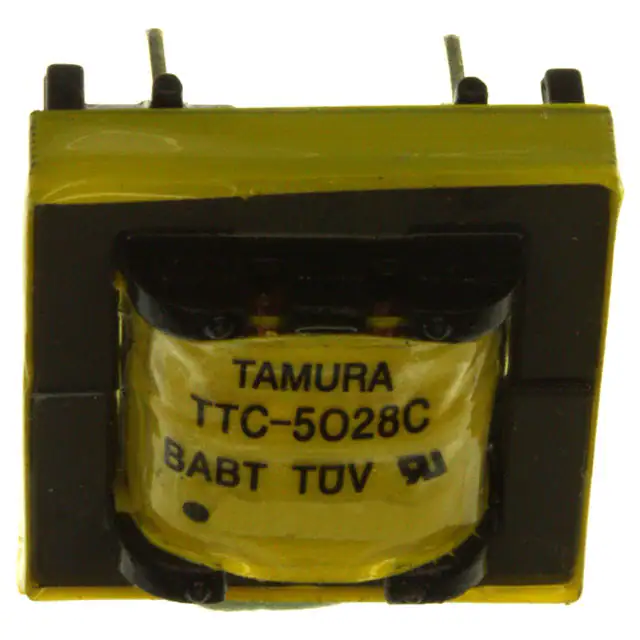

TTC-5028 AUDIO XFMR 600 / 470 TH Tamura	0	-	RFQ	Datasheet	TTC	Bulk	Active	1:1	600	470	92Ohm	120Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±1dB ~ ±4dB	1875VRMS @ 1 Second	2.5dB Max @ 1kHz	-	-40dB ~ 4dB	-	CSA-C22.2 No. 950-95, UL1950	Through Hole	0.886" L x 0.909" W (22.50mm x 23.10mm)	0.583" (14.80mm)	PC Pin

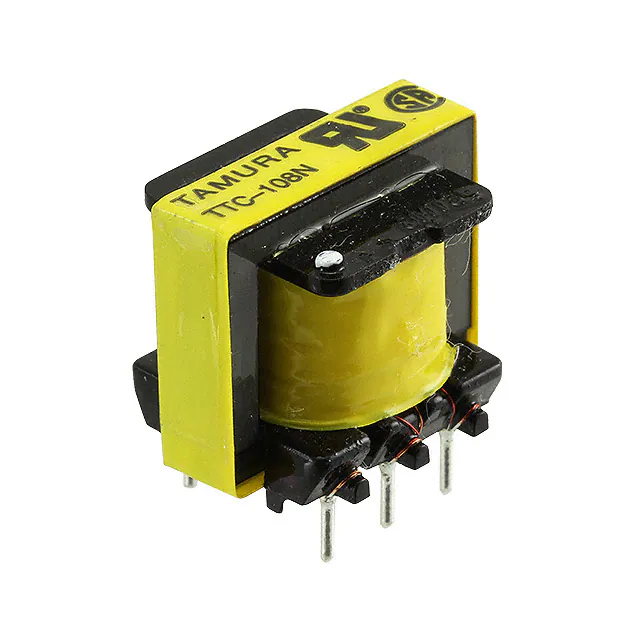

TTC-108N AUDIO XFMR 600CT / 600CT TH Tamura	0	-	RFQ	Datasheet	TTC	Bulk	Active	1:1	600CT	600CT	44Ohm	56Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±0.5dB	1500VRMS @ 1 Minute	1.4dB Max @ 1kHz	-	-45dB ~ 7dB	-	CSA-C22.2 No. 66-M1988, UL1459	Through Hole	0.815" L x 0.650" W (20.70mm x 16.50mm)	0.736" (18.70mm)	PC Pin

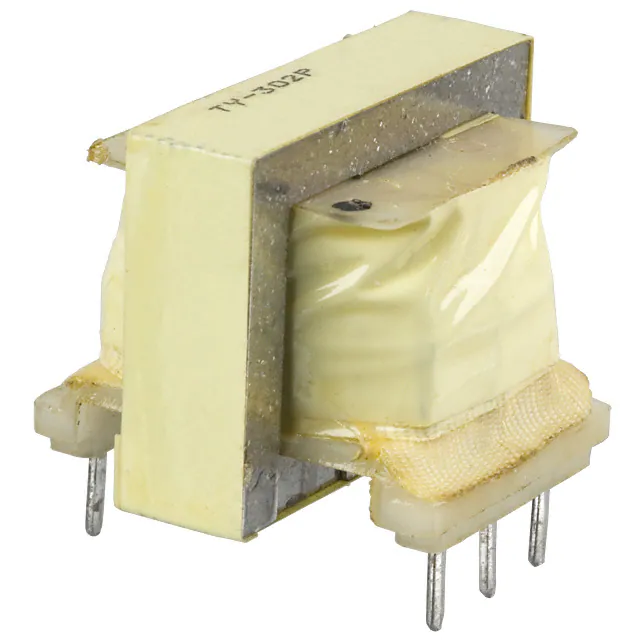

TY-302P AUDIO XFMR 600 / 600/600 TH Triad Magnetics	15	-	RFQ	Datasheet	TY	Bulk	Active	1:1.47	600	600/600	34Ohm	24Ohm, 24Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	-	1500VAC	0.65dB Typ	32dB Typ	-45dB ~ 7dB	-20°C ~ 85°C	-	Through Hole	1.040" L x 0.960" W (26.42mm x 24.38mm)	0.870" (22.10mm)	PC Pin
T1104 AUDIO XFMR 600 / 600 TH Tamura	0	-	RFQ	Datasheet	-	Tray	Active	-	600	600	46Ohm	63Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±0.5dB	1500VRMS @ 1 Minute	1dB Typ @ 1kHz	26dB Min	-45dB ~ 7dB	-	CSA-C22.2 No. 950-M89, UL1459, UL1950	Through Hole	0.780" L x 0.654" W (19.80mm x 16.60mm)	0.469" (11.90mm)	PC Pin
145H AUDIO XFMR 2K / 500CT CHAS MNT Hammond Manufacturing	1	-	RFQ	Datasheet	145	Bulk	Active	-	2k	500CT	148Ohm	17Ohm	Economical Open Type	150Hz ~ 15kHz	±1dB	-	-	-	135mW	-	-	Chassis Mount	1.630" L x 0.880" W (41.40mm x 22.35mm)	0.810" (20.57mm)	Wire Leads
146J AUDIO XFMR 1KCT / 3.2 CHAS MNT Hammond Manufacturing	1	-	RFQ	Datasheet	146	Bulk	Active	-	1kCT	3.2	56Ohm	300mOhm	Economical Open Type	150Hz ~ 15kHz	±1dB	-	-	-	700mW	-	-	Chassis Mount	1.630" L x 0.880" W (41.40mm x 22.35mm)	0.810" (20.57mm)	Wire Leads
117K4 AUDIO XFMR 8 / 25V CHAS MNT Hammond Manufacturing	2	-	RFQ	Datasheet	117	Bulk	Active	-	8	25V	-	-	Sound Distribution	100Hz ~ 9kHz	1dB	-	2dB	-	4W	-	-	Chassis Mount	2.810" L x 1.500" W (71.37mm x 38.10mm)	1.690" (42.93mm)	Solder Lug
107J AUDIO XFMR 1KCT / 600CT TH Hammond Manufacturing	0	-	RFQ	Datasheet	107	Bulk	Active	1.29:1	1kCT	600CT	92Ohm	70Ohm	Miniature Epoxy Potted	300Hz ~ 50kHz	±1.5dB	100VRMS	-	-	150mW	-	-	Through Hole	0.630" L x 0.586" W (16.00mm x 14.88mm)	0.630" (16.00mm)	PC Pin
149Q AUDIO XFMR 200CT / 3.2 TH Hammond Manufacturing	0	-	RFQ	Datasheet	149	Bulk	Active	-	200CT	3.2	19Ohm	400mOhm	Economical Open Type	200Hz ~ 15kHz	±1dB	-	0.5dB	-	1000mW	-	-	Through Hole	1.060" L x 0.820" W (26.92mm x 20.83mm)	0.820" (20.83mm)	PC Pin
