Audio Transformers

Audio Transformers are magnetic components used for signal isolation, impedance matching, noise reduction and audio signal coupling in electronic circuits. They are widely used in professional audio equipment, amplifiers, mixers, communication devices, broadcasting systems, audio interfaces, instrumentation, consumer electronics and embedded audio applications.

This category includes audio isolation transformers, line matching transformers, microphone transformers, speaker transformers, impedance matching transformers, signal transformers and related magnetic components for audio systems. These products are commonly selected based on impedance ratio, frequency response, isolation voltage, signal level, distortion performance, mounting type, package style and application requirements.

TomatoElec supplies original Audio Transformers from recognized manufacturers such as Hammond Manufacturing, Triad Magnetics, Bourns, Pulse Electronics, Würth Elektronik, Murata, TDK, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Turns Ratio - Primary:Secondary	Impedance - Primary (Ohms)	Impedance - Secondary (Ohms)	DC Resistance (DCR) - Primary	DC Resistance (DCR) - Secondary	Transformer Type	Frequency Range	Frequency Response	Voltage - Isolation	Insertion Loss	Return Loss	Power Level	Operating Temperature	Approval Agency	Mounting Type	Size / Dimension	Height - Seated (Max)	Termination Style
1628SEA AUDIO XFMR 5K / 4, 8, 16 CHAS MT Hammond Manufacturing	3	-	RFQ	Datasheet	1600	Box	Active	-	5k	4, 8, 16	-	-	Single Ended Audiophile, Ultra-Linear - Tube Output	20Hz ~ 20kHz	±1dB	2000Vrms	±1dB	-	30W	-	-	Chassis Mount	4.500" L x 3.750" W (114.30mm x 95.25mm)	4.560" (115.82mm)	Wire Leads
1642SE AUDIO XFMR 5K / 4, 8, 16 CHAS MT Hammond Manufacturing	2	-	RFQ	Datasheet	1600	Bulk	Active	-	5k	4, 8, 16	-	-	Single Ended Audiophile	20Hz ~ 20kHz	±1dB	3500Vrms	±1dB	-	75W	-	-	Chassis Mount	7.500" L x 4.380" W (190.50mm x 111.25mm)	5.250" (133.35mm)	Wire Leads

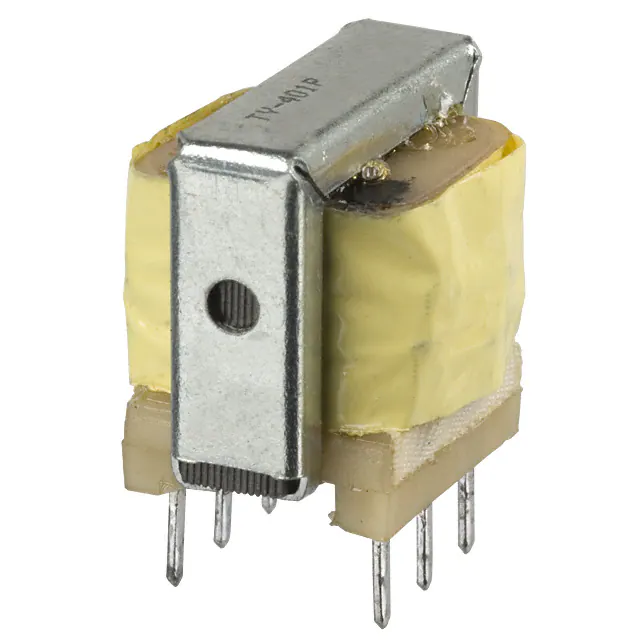

TY-401P AUDIO XFMR 600CT / 600CT TH Triad Magnetics	29	-	RFQ	Datasheet	TY	Bulk	Active	1:1.07	600CT	600CT	76.53Ohm	108Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±0.5dB	1500VAC	1.75dB Typ	15dB Typ	-45dB ~ 7dB	-20°C ~ 85°C	-	Through Hole	0.820" L x 0.715" W (20.83mm x 18.16mm)	0.750" (19.05mm)	PC Pin
MET-42-T AUDIO XFMR 150 / 12 TH Triad Magnetics	22	-	RFQ	Datasheet	MET	Bulk	Active	3.54:1	150	12	20Ohm	2.5Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin
MET-11 AUDIO XFMR 10KCT / 2KCT TH Tamura	56	-	RFQ	Datasheet	MET	Tube	Active	2.23:1	10kCT	2kCT	1kOhm	300Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	500VRMS @ 30 Seconds	-	-	40mW	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-51 AUDIO XFMR 900CT / 600 TH Triad Magnetics	81	-	RFQ	Datasheet	Red-Spec	Bulk	Active	1.22:1	900CT	600	104Ohm	96Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
TR 10.16 XFMR 1.6K / 4, 8, 16 CHAS MNT Visaton GmbH & Co. KG	26	-	RFQ	Datasheet	-	Bulk	Active	-	1.6k	4, 8, 16	-	-	-	50Hz ~ 19kHz	-3dB	-	-	-	10W	-	-	Chassis Mount	1.969" L x 1.575" W (50.00mm x 40.00mm)	1.693" (43.00mm)	Screw Terminal
SP-22 AUDIO XFMR 10K / 2K 500/500 TH Triad Magnetics	18	-	RFQ	Datasheet	Red-Spec	Bulk	Active	4.48:1:1	10k	2k, 500/500	1.05kOhm	146/168Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
TR 84 AUDIO XFMR CHAS MNT Visaton GmbH & Co. KG	22	-	RFQ	Datasheet	-	Bulk	Active	-	-	-	-	-	-	20Hz ~ 20kHz	-3dB	-	-	-	-	-	-	Chassis Mount	1.654" L x 1.496" W (42.00mm x 38.00mm)	2.047" (52.00mm)	Screw Terminal
144I AUDIO XFMR 600CT / 150CT CHAS MT Hammond Manufacturing	15	-	RFQ	Datasheet	144	Bulk	Active	-	600CT	150CT	45Ohm	8.2Ohm	Economical Open Type	150Hz ~ 15kHz	±1dB	-	-	-	150mW	-	-	Chassis Mount	1.000" L x 0.690" W (25.40mm x 17.53mm)	0.690" (17.53mm)	Wire Leads
107G AUDIO XFMR 600CT / 250CT TH Hammond Manufacturing	10	-	RFQ	Datasheet	107	Bulk	Active	1.52:1	600CT	250CT	60Ohm	40Ohm	Miniature Epoxy Potted	300Hz ~ 50kHz	±1.5dB	100VRMS	-	-	150mW	-	-	Through Hole	0.630" L x 0.586" W (16.00mm x 14.88mm)	0.630" (16.00mm)	PC Pin
144S AUDIO XFMR 20K / 8 CHAS MNT Hammond Manufacturing	8	-	RFQ	Datasheet	144	Bulk	Active	-	20k	8	1.24kOhm	900mOhm	Economical Open Type	150Hz ~ 15kHz	±1dB	-	-	-	50mW	-	-	Chassis Mount	1.000" L x 0.690" W (25.40mm x 17.53mm)	0.690" (17.53mm)	Wire Leads
144P AUDIO XFMR 10K / 3.2 CHAS MNT Hammond Manufacturing	7	-	RFQ	Datasheet	144	Bulk	Active	-	10k	3.2	575Ohm	500mOhm	Economical Open Type	150Hz ~ 15kHz	±1dB	-	-	-	50mW	-	-	Chassis Mount	1.000" L x 0.690" W (25.40mm x 17.53mm)	0.690" (17.53mm)	Wire Leads
101P AUDIO XFMR 300CT / 50CT TH Hammond Manufacturing	56	-	RFQ	Datasheet	101	Bulk	Active	-	300CT	50CT	20.4Ohm	4.8Ohm	Miniature Epoxy Potted	200Hz ~ 100kHz	±0.5dB	-	-	-	100mW	-	-	Through Hole	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.480" (12.19mm)	PC Pin
107T AUDIO XFMR 10KCT / 10KCT TH Hammond Manufacturing	17	-	RFQ	Datasheet	107	Bulk	Active	1:1	10kCT	10kCT	690Ohm	680Ohm	Miniature Epoxy Potted	300Hz ~ 50kHz	±1.5dB	100VRMS	-	-	150mW	-	-	Through Hole	0.630" L x 0.586" W (16.00mm x 14.88mm)	0.630" (16.00mm)	PC Pin
146B AUDIO XFMR 48CT / 3.2 CHAS MNT Hammond Manufacturing	15	-	RFQ	Datasheet	146	Bulk	Active	-	48CT	3.2	2.4Ohm	300mOhm	Economical Open Type	150Hz ~ 15kHz	±1dB	-	-	-	700mW	-	-	Chassis Mount	1.630" L x 0.880" W (41.40mm x 22.35mm)	0.810" (20.57mm)	Wire Leads
146F AUDIO XFMR 250CT / 3.2 CHAS MNT Hammond Manufacturing	12	-	RFQ	Datasheet	146	Bulk	Active	-	250CT	3.2	11Ohm	300mOhm	Economical Open Type	150Hz ~ 15kHz	±1dB	-	-	-	700mW	-	-	Chassis Mount	1.630" L x 0.880" W (41.40mm x 22.35mm)	0.810" (20.57mm)	Wire Leads
146G AUDIO XFMR 250CT / 8 CHAS MNT Hammond Manufacturing	9	-	RFQ	Datasheet	146	Bulk	Active	-	250CT	8	11Ohm	700mOhm	Economical Open Type	150Hz ~ 15kHz	±1dB	-	-	-	700mW	-	-	Chassis Mount	1.630" L x 0.880" W (41.40mm x 22.35mm)	0.810" (20.57mm)	Wire Leads
145G AUDIO XFMR 2K / 200CT CHAS MNT Hammond Manufacturing	6	-	RFQ	Datasheet	145	Bulk	Active	-	2k	200CT	140Ohm	9Ohm	Economical Open Type	150Hz ~ 15kHz	±1dB	-	-	-	135mW	-	-	Chassis Mount	1.630" L x 0.880" W (41.40mm x 22.35mm)	0.810" (20.57mm)	Wire Leads
144D AUDIO XFMR 300CT / 3.2 CHAS MNT Hammond Manufacturing	6	-	RFQ	Datasheet	144	Bulk	Active	-	300CT	3.2	15Ohm	330mOhm	Economical Open Type	150Hz ~ 15kHz	±1dB	-	-	-	150mW	-	-	Chassis Mount	1.000" L x 0.690" W (25.40mm x 17.53mm)	0.690" (17.53mm)	Wire Leads

Total 938 Record«Prev 1... 4 5 6 789 10 11...47 Next»
