Audio Transformers

Audio Transformers are magnetic components used for signal isolation, impedance matching, noise reduction and audio signal coupling in electronic circuits. They are widely used in professional audio equipment, amplifiers, mixers, communication devices, broadcasting systems, audio interfaces, instrumentation, consumer electronics and embedded audio applications.

This category includes audio isolation transformers, line matching transformers, microphone transformers, speaker transformers, impedance matching transformers, signal transformers and related magnetic components for audio systems. These products are commonly selected based on impedance ratio, frequency response, isolation voltage, signal level, distortion performance, mounting type, package style and application requirements.

TomatoElec supplies original Audio Transformers from recognized manufacturers such as Hammond Manufacturing, Triad Magnetics, Bourns, Pulse Electronics, Würth Elektronik, Murata, TDK, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Turns Ratio - Primary:Secondary	Impedance - Primary (Ohms)	Impedance - Secondary (Ohms)	DC Resistance (DCR) - Primary	DC Resistance (DCR) - Secondary	Transformer Type	Frequency Range	Frequency Response	Voltage - Isolation	Insertion Loss	Return Loss	Power Level	Operating Temperature	Approval Agency	Mounting Type	Size / Dimension	Height - Seated (Max)	Termination Style
PAM-OT-45-17R Fender Tweed Bassman Output Tran Pacific Transformer	50	-	RFQ	Datasheet	-	Tape & Box (TB)	Active	-	4.7kCT	2	-	-	General Purpose	-	-	-	-	-	45W	-	-	Chassis Mount	4.030" L x 3.437" W (102.36mm x 87.30mm)	3.500" (88.90mm)	Wire Leads
PAM-OT-45-11R Fender Bassman Output Transforme Pacific Transformer	50	-	RFQ	Datasheet	-	Tape & Box (TB)	Active	-	4.6kCT	4	-	-	General Purpose	-	-	-	-	-	45W	-	-	Chassis Mount	4.030" L x 3.200" W (102.36mm x 81.28mm)	3.500" (88.90mm)	Wire Leads
PAM-OT-70-25R Fender Bassman 70W Output Transf Pacific Transformer	50	-	RFQ	Datasheet	-	Tape & Box (TB)	Active	-	5kCT	2, 4	-	-	General Purpose	-	-	-	-	-	-	-	-	Chassis Mount	4.030" L x 3.500" W (102.36mm x 88.90mm)	3.500" (88.90mm)	Wire Leads
PAM-OT-45-30R Marshall JTM45 Output Transforme Pacific Transformer	50	-	RFQ	Datasheet	-	Tape & Box (TB)	Active	-	10.4kCT	8, 10	-	-	General Purpose	-	-	-	-	-	45W	-	-	Chassis Mount	3.810" L x 3.750" W (96.77mm x 95.25mm)	3.750" (95.25mm)	Wire Leads
PAM-OT-50-35R Marshall 50 Watt Plexi Output Tr Pacific Transformer	50	-	RFQ	Datasheet	-	Tape & Box (TB)	Active	-	3.6kCT	4, 8, 16	-	-	General Purpose	-	-	-	-	-	50W	-	-	Chassis Mount	3.870" L x 3.130" W (98.30mm x 79.50mm)	3.570" (90.68mm)	Wire Leads
PAM-OT-100-24R Fender Dual Showman Reverb Outpu Pacific Transformer	50	-	RFQ	Datasheet	-	Tape & Box (TB)	Active	-	2.2kCT	4	-	-	General Purpose	-	-	-	-	-	100W	-	-	Chassis Mount	4.030" L x 3.440" W (102.36mm x 87.38mm)	3.500" (88.90mm)	Wire Leads
PAM-OT-30-51R Vox Albion AC30 Output Transform Pacific Transformer	50	-	RFQ	Datasheet	-	Tape & Box (TB)	Active	-	4.8kCT	8, 16	-	-	General Purpose	-	-	-	-	-	30W	-	-	Chassis Mount	3.310" L x 3.130" W (84.07mm x 79.50mm)	3.750" (95.25mm)	Wire Leads
NTM1 NTM1 Fiber Optic Connectors Neutrik	100	-	RFQ	-	*	Retail Package	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PAM-OT-30-53R Vox Wooden AC30 Output Transform Pacific Transformer	50	-	RFQ	Datasheet	-	Tape & Box (TB)	Active	-	4.8kCT	8, 16	-	-	General Purpose	-	-	-	-	-	30W	-	-	Chassis Mount	3.380" L x 3.130" W (85.85mm x 79.50mm)	3.750" (95.25mm)	Wire Leads
NTM4 NTM4 Fiber Optic Connectors Neutrik	100	-	RFQ	-	*	Retail Package	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PAM-OT-30-54R Trainwreck 30 Watt Output Transf Pacific Transformer	50	-	RFQ	Datasheet	-	Tape & Box (TB)	Active	-	7.5kCT	4, 8, 16	-	-	General Purpose	-	-	-	-	-	30W	-	-	Chassis Mount	3.750" L x 3.130" W (95.25mm x 79.50mm)	3.750" (95.25mm)	Wire Leads
PAM-OT-135-20R Fender 135 Watt Silverface Twin Pacific Transformer	50	-	RFQ	Datasheet	-	Tape & Box (TB)	Active	-	2.5kCT	4CT	-	-	General Purpose	-	-	-	-	-	135W	-	-	Chassis Mount	4.060" L x 3.750" W (103.12mm x 95.25mm)	3.500" (88.90mm)	Wire Leads
PAM-OT-50-50R Vox AC50 Output Transformer Pacific Transformer	50	-	RFQ	Datasheet	-	Tape & Box (TB)	Active	-	3.9kCT	8, 16	-	-	General Purpose	-	-	-	-	-	50W	-	-	Chassis Mount	4.500" L x 3.130" W (114.30mm x 79.50mm)	3.750" (95.25mm)	Wire Leads
NTL1 NTL1 Fiber Optic Connectors Neutrik	200	-	RFQ	-	*	Retail Package	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PAM-OT-100-32R Marshall 100 Watt Plexi Super Le Pacific Transformer	50	-	RFQ	Datasheet	-	Tape & Box (TB)	Active	-	2kCT	4, 8, 16	-	-	General Purpose	-	-	-	-	-	100W	-	-	Chassis Mount	4.060" L x 3.750" W (103.12mm x 95.25mm)	4.530" (115.06mm)	Wire Leads
PAM-OT-200-92R Hiwatt DR201 Output Transformer Pacific Transformer	50	-	RFQ	Datasheet	-	Tape & Box (TB)	Active	-	2.4kCT	4, 8, 16	-	-	General Purpose	-	-	-	-	-	200W	-	-	Chassis Mount	4.620" L x 4.380" W (117.35mm x 111.25mm)	5.250" (133.35mm)	Wire Leads
104S AUDIO XFMR 600CT / 150CT TH Hammond Manufacturing	52	-	RFQ	Datasheet	104	Bulk	Active	-	600CT	150CT	47Ohm	10.6Ohm	Miniature Epoxy Potted	200Hz	-1dB	200V	1dB	-	500mW	-	-	Through Hole	0.860" L x 0.710" W (21.84mm x 18.03mm)	0.750" (19.05mm)	PC Pin

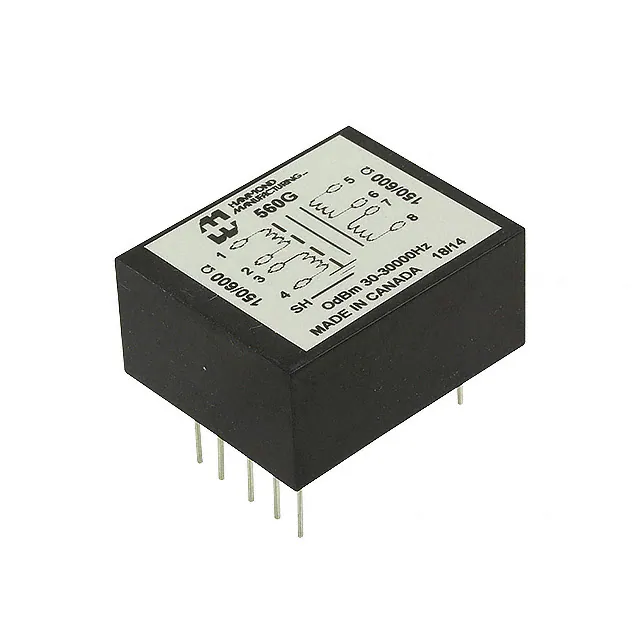

560G XFMR 600 150/150 / 600 150/150 Hammond Manufacturing	22	-	RFQ	Datasheet	560	Bulk	Active	-	600, 150/150	600, 150/150	-	-	Broadcast Quality	30Hz ~ 30kHz	±1dB	-	1dB Max	-	-	-	-	Through Hole	1.330" L x 1.640" W (33.78mm x 41.66mm)	0.850" (21.59mm)	PC Pin
SP-21 AUDIO XFMR 10KCT / 2KCT TH Triad Magnetics	53	-	RFQ	Datasheet	Red-Spec	Bulk	Active	2.24:1	10kCT	2kCT	1.05kOhm	330Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-13 XFMR 25KCT 20KCT / 1KCT 800CT TH Triad Magnetics	86	-	RFQ	Datasheet	Red-Spec	Bulk	Active	5:1	25kCT, 20kCT	1kCT, 800CT	1.7kOhm	115Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	40mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin

Total 938 Record«Prev 1 2 3 4 567 8 9...47 Next»
