Audio Transformers

Audio Transformers are magnetic components used for signal isolation, impedance matching, noise reduction and audio signal coupling in electronic circuits. They are widely used in professional audio equipment, amplifiers, mixers, communication devices, broadcasting systems, audio interfaces, instrumentation, consumer electronics and embedded audio applications.

This category includes audio isolation transformers, line matching transformers, microphone transformers, speaker transformers, impedance matching transformers, signal transformers and related magnetic components for audio systems. These products are commonly selected based on impedance ratio, frequency response, isolation voltage, signal level, distortion performance, mounting type, package style and application requirements.

TomatoElec supplies original Audio Transformers from recognized manufacturers such as Hammond Manufacturing, Triad Magnetics, Bourns, Pulse Electronics, Würth Elektronik, Murata, TDK, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Turns Ratio - Primary:Secondary	Impedance - Primary (Ohms)	Impedance - Secondary (Ohms)	DC Resistance (DCR) - Primary	DC Resistance (DCR) - Secondary	Transformer Type	Frequency Range	Frequency Response	Voltage - Isolation	Insertion Loss	Return Loss	Power Level	Operating Temperature	Approval Agency	Mounting Type	Size / Dimension	Height - Seated (Max)	Termination Style
MET-59-T AUDIO XFMR 600 / 150/150 TH Triad Magnetics	271	-	RFQ	Datasheet	MET	Bulk	Active	2:1:1	600	150/150	70Ohm	95Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin
MET-17 AUDIO XFMR 10KCT / 500CT TH Tamura	366	-	RFQ	Datasheet	MET	Tube	Active	4.47:1	10kCT	500CT	1kOhm	80Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	500VRMS @ 30 Seconds	-	-	40mW	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-4 AUDIO XFMR 200KCT / 1KCT TH Triad Magnetics	103	-	RFQ	Datasheet	Red-Spec	Bulk	Active	14.1:1	200kCT	1kCT	5.3kOhm	100Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	10mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-29 AUDIO XFMR 10KCT / 500CT TH Triad Magnetics	113	-	RFQ	Datasheet	Red-Spec	Bulk	Active	4.47:1	10kCT	500CT	1.05kOhm	80Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
149T AUDIO XFMR 600CT / 600CT TH Hammond Manufacturing	278	-	RFQ	Datasheet	149	Bulk	Active	-	600CT	600CT	53Ohm	70Ohm	Economical Open Type	200Hz ~ 15kHz	±1dB	-	0.5dB	-	1000mW	-	-	Through Hole	1.060" L x 0.820" W (26.92mm x 20.83mm)	0.820" (20.83mm)	PC Pin
MET-50 AUDIO XFMR 10K / 125 TH Tamura	1,369	-	RFQ	Datasheet	MET	Tray	Active	8.62:1	10k	125	1.1kOhm	28Ohm	Data/Voice Coupling	300Hz ~ 20kHz	±3dB	500VRMS @ 30 Seconds	-	-	10mW Max @ 300Hz	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin

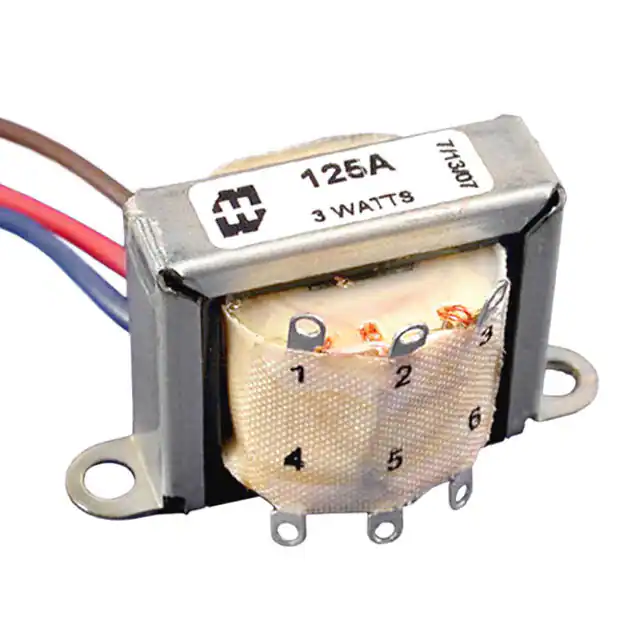

125A XFMR 1.2K-25K / 1.5-15 CHAS MNT Hammond Manufacturing	412	-	RFQ	Datasheet	125	Bulk	Active	-	1.2k ~ 25k	1.5 ~ 15	-	-	General Purpose	150Hz ~ 15kHz	±1dB	-	-	-	3W	-	-	Chassis Mount	2.060" L x 1.250" W (52.32mm x 31.75mm)	1.190" (30.23mm)	Wire Leads
#458PT-1566=P3 AUDIO XFMR SMD Murata Electronics	137	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Surface Mount	0.272" L x 0.150" W (6.90mm x 3.80mm)	0.173" (4.40mm)	Gull Wing

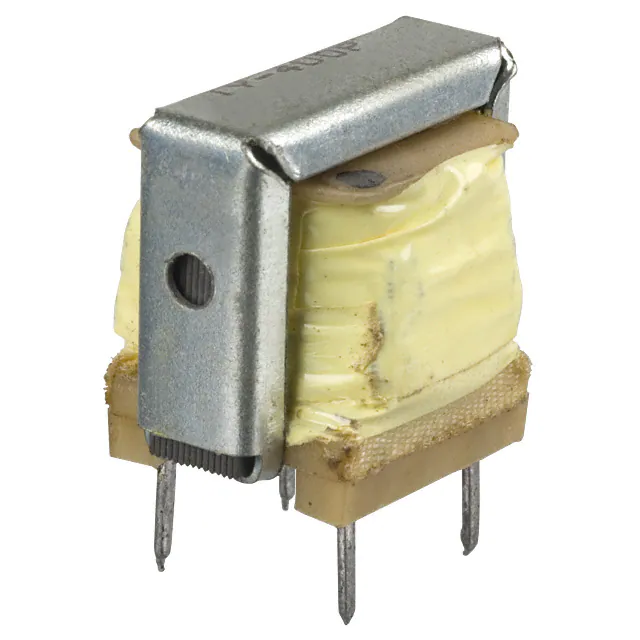

TY-400P AUDIO XFMR 600 / 600 TH Triad Magnetics	6,393	-	RFQ	Datasheet	TY	Bulk	Active	1:1.07	600	600	76.5Ohm	108Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±0.5dB	1500VAC	1.75dB Typ	15dB Typ	-45dB ~ 7dB	-20°C ~ 85°C	-	Through Hole	0.820" L x 0.715" W (20.83mm x 18.16mm)	0.750" (19.05mm)	PC Pin

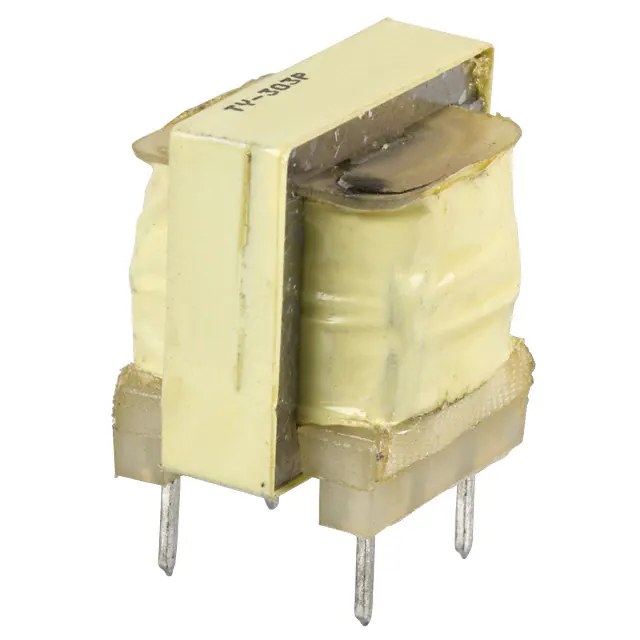

TY-303P AUDIO XFMR 4K / 600 TH Triad Magnetics	430	-	RFQ	Datasheet	TY	Bulk	Active	2.43:1	4k	600	260Ohm	52Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±0.5dB	1500VAC	1dB Typ	26dB Typ	-45dB ~ 7dB	-20°C ~ 85°C	-	Through Hole	0.812" L x 0.715" W (20.62mm x 18.16mm)	0.740" (18.80mm)	PC Pin
TY-300P AUDIO XFMR 600 / 600/600 TH Triad Magnetics	170	-	RFQ	Datasheet	TY	Bulk	Active	1:2.48	600	600/600	172Ohm	66Ohm, 66Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	-	1500VAC	0.8dB Typ	30dB Typ	-45dB ~ 7dB	-20°C ~ 85°C	-	Through Hole	0.812" L x 0.700" W (20.62mm x 17.78mm)	0.740" (18.80mm)	PC Pin
MET-28-T AUDIO XFMR 1K / 50 TH Triad Magnetics	107	-	RFQ	Datasheet	MET	Bulk	Active	4.47:1	1k	50	110Ohm	8Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin
MET-59 AUDIO XFMR 600 / 600 150/150 TH Tamura	817	-	RFQ	Datasheet	MET	Tube	Active	2:1:1	600	600, 150/150	70Ohm	95Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 30 Seconds	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin
MET-28 AUDIO XFMR 1K / 50 TH Tamura	334	-	RFQ	Datasheet	MET	Tube	Active	4.47:1	1k	50	110Ohm	8Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	500VRMS @ 30 Seconds	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin
MET-01-T AUDIO XFMR 200KCT / 1KCT TH Triad Magnetics	164	-	RFQ	Datasheet	MET	Bulk	Active	14.1:1	200kCT	1kCT	5.3kOhm	120Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	500VRMS @ 1 Second	-	-	10mW	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin
MET-01 AUDIO XFMR 200KCT / 1KCT TH Tamura	1,343	-	RFQ	Datasheet	MET	Tube	Active	14.1:1	200kCT	1kCT	5.3kOhm	120Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	500VRMS @ 30 Seconds	-	-	10mW Max @ 300Hz	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-52 AUDIO XFMR 1.5KCT / 600 TH Triad Magnetics	805	-	RFQ	Datasheet	Red-Spec	Bulk	Active	1.58:1	1.5kCT	600	168Ohm	92Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-49 AUDIO XFMR 300CT / 600 TH Triad Magnetics	459	-	RFQ	Datasheet	Red-Spec	Bulk	Active	1:1.42	300CT	600	41Ohm	98Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-68 XFMR 10K / 10K 2.5K/2.5K TH Triad Magnetics	201	-	RFQ	Datasheet	Red-Spec	Bulk	Active	2.1:1	10k	10k, 2.5k/2.5k	1kOhm	565/650Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
MET-50-T AUDIO XFMR 10K / 125 TH Triad Magnetics	121	-	RFQ	Datasheet	MET	Bulk	Active	8.62:1	10k	125	1.1kOhm	28Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	10mW	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin

Total 938 Record«Prev 1 234 5 6...47 Next»
