Audio Transformers

Audio Transformers are magnetic components used for signal isolation, impedance matching, noise reduction and audio signal coupling in electronic circuits. They are widely used in professional audio equipment, amplifiers, mixers, communication devices, broadcasting systems, audio interfaces, instrumentation, consumer electronics and embedded audio applications.

This category includes audio isolation transformers, line matching transformers, microphone transformers, speaker transformers, impedance matching transformers, signal transformers and related magnetic components for audio systems. These products are commonly selected based on impedance ratio, frequency response, isolation voltage, signal level, distortion performance, mounting type, package style and application requirements.

TomatoElec supplies original Audio Transformers from recognized manufacturers such as Hammond Manufacturing, Triad Magnetics, Bourns, Pulse Electronics, Würth Elektronik, Murata, TDK, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Turns Ratio - Primary:Secondary	Impedance - Primary (Ohms)	Impedance - Secondary (Ohms)	DC Resistance (DCR) - Primary	DC Resistance (DCR) - Secondary	Transformer Type	Frequency Range	Frequency Response	Voltage - Isolation	Insertion Loss	Return Loss	Power Level	Operating Temperature	Approval Agency	Mounting Type	Size / Dimension	Height - Seated (Max)	Termination Style
MET-42 AUDIO XFMR 150 / 12 TH Tamura	469	-	RFQ	Datasheet	MET	Tube	Active	3.54:1	150	12	20Ohm	2.5Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	500VRMS @ 30 Seconds	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-48 AUDIO XFMR 7.5KCT / 12 TH Triad Magnetics	6,821	-	RFQ	Datasheet	Red-Spec	Bulk	Active	25:1	7.5kCT	12	796Ohm	2.9Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-33 AUDIO XFMR 1K / 50 TH Triad Magnetics	2,779	-	RFQ	Datasheet	Red-Spec	Bulk	Active	4.4:1	1k	50	145Ohm	8Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-66 AUDIO XFMR 10KCT / 10KCT TH Triad Magnetics	1,196	-	RFQ	Datasheet	Red-Spec	Bulk	Active	1:1	10kCT	10kCT	1kOhm	1.3kOhm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-67 AUDIO XFMR 600CT / 600CT TH Triad Magnetics	5,798	-	RFQ	Datasheet	Red-Spec	Bulk	Active	1:1	600CT	600CT	72Ohm	92Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-69 AUDIO XFMR 600 / 600 150/150 TH Triad Magnetics	1,675	-	RFQ	Datasheet	Red-Spec	Bulk	Active	2:1:1	600	600, 150/150	72Ohm	40Ohm, 45Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-70 AUDIO XFMR 600 / 600 TH Triad Magnetics	1,267	-	RFQ	Datasheet	Red-Spec	Bulk	Active	1:1	600	600	72Ohm	92Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-50 AUDIO XFMR 500CT / 600 TH Triad Magnetics	574	-	RFQ	Datasheet	Red-Spec	Bulk	Active	1:1.1	500CT	600	67Ohm	98Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-5 AUDIO XFMR 50KCT / 1KCT TH Triad Magnetics	168	-	RFQ	Datasheet	Red-Spec	Bulk	Active	7.1:1	50kCT	1kCT	3.8kOhm	75Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	25mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
101F AUDIO XFMR 600CT / 600CT TH Hammond Manufacturing	287	-	RFQ	Datasheet	101	Bulk	Active	1:1	600CT	600CT	44Ohm	52Ohm	Miniature Epoxy Potted	200Hz ~ 100kHz	±0.5dB	100VRMS	-	-	100mW	-40°C ~ 85°C	-	Through Hole	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.480" (12.19mm)	PC Pin

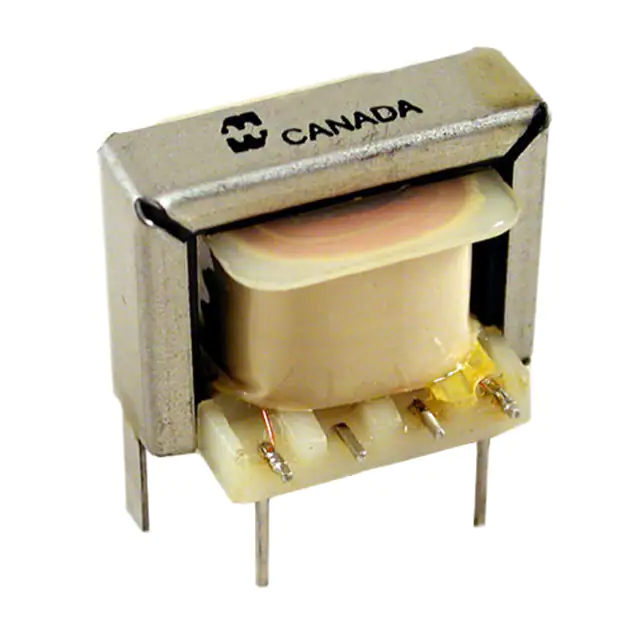

149U AUDIO XFMR 600 150/150 / 8 TH Hammond Manufacturing	101	-	RFQ	Datasheet	149	Bulk	Active	-	600, 150/150	8	53Ohm	95Ohm	Economical Open Type	200Hz ~ 15kHz	±1dB	-	0.5dB	-	1000mW	-	-	Through Hole	1.060" L x 0.820" W (26.92mm x 20.83mm)	0.820" (20.83mm)	PC Pin
TTC-5036 AUDIO XFMR 600 / 287 SMD Tamura	1,598	-	RFQ	Datasheet	TTC	Tape & Reel (TR)	Active	1:1	600	287	175Ohm	175Ohm	Data/Voice Coupling	200Hz ~ 4kHz	±0.2dB	1875VRMS @ 1 Second	4dB Max @ 2kHz	14dB Min @ 200Hz ~ 4kHz	-	-20°C ~ 85°C	UL60950, EN60950	Surface Mount	0.378" L x 0.492" W (9.60mm x 12.50mm)	0.299" (7.60mm)	Flat Lead
ESMIT-4180/C AUDIO XFMR SMD Sumida America Components Inc.	13,363	-	RFQ	Datasheet	ESMIT	Tape & Reel (TR)	Active	-	-	-	250mOhm	250mOhm	-	-	-	3750Vrms	-	-	-	-40°C ~ 125°C	-	Surface Mount	0.280" L x 0.205" W (7.10mm x 5.20mm)	0.138" (3.50mm)	Gull Wing
TY-311P AUDIO XFMR 600 / 600 TH Triad Magnetics	3,861	-	RFQ	Datasheet	TY	Bulk	Active	1:1.05	600	600	38Ohm	53Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±0.5dB	1500VAC	1dB Typ	26dB Typ	-45dB ~ 7dB	-20°C ~ 85°C	-	Through Hole	0.812" L x 0.715" W (20.62mm x 18.16mm)	0.740" (18.80mm)	PC Pin
TY-144P AUDIO XFMR 15KCT / 15KCT TH Triad Magnetics	269	-	RFQ	Datasheet	TY	Bulk	Active	1:1	15kCT	15kCT	1.18kOhm	1.6kOhm	Data/Voice Coupling	200Hz ~ 15kHz	±2dB	1500V	1.5dB	26dB	100mW	-20°C ~ 85°C	-	Through Hole	0.812" L x 0.700" W (20.62mm x 17.78mm)	0.740" (18.80mm)	PC Pin
TTC-105 AUDIO XFMR 600 / 600 TH Tamura	143	-	RFQ	Datasheet	TTC	Bulk	Active	1:1	600	600	71Ohm	117Ohm	Data/Voice Coupling	660Hz ~ 3.5kHz	-1dB ~ 0.7dB	1500VRMS @ 1 Minute	3dB Max @ 660Hz ~ 800Hz, 2.5dB Max @ 800Hz @ 3.5kHz	-	-45dB ~ 10dB	-	CSA-C22.2 No. 66-M1988, UL1459	Through Hole	0.839" L x 0.630" W (21.30mm x 16.00mm)	0.748" (19.00mm)	PC Pin
MET-39-T AUDIO XFMR 500 / 50 TH Triad Magnetics	707	-	RFQ	Datasheet	MET	Bulk	Active	3.16:1	500	50	55Ohm	8Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin
TY-146P XFMR 600 150/150 / 600 150/150 Triad Magnetics	2,675	-	RFQ	Datasheet	TY	Bulk	Active	1:1	600, 150/150	600, 150/150	17Ohm, 19Ohm	14.5Ohm, 22Ohm	Data/Voice Coupling	200Hz ~ 15kHz	±2dB	1500V	1.5dB	26dB	1W	-20°C ~ 85°C	-	Through Hole	1.375" L x 1.187" W (34.93mm x 30.15mm)	1.187" (30.15mm)	PC Pin
MET-23-T AUDIO XFMR 1.6KCT / 3.2 TH Triad Magnetics	265	-	RFQ	Datasheet	MET	Bulk	Active	22.4:1	1.6kCT	3.2	230Ohm	1Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	65mW	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin
MET-35-T AUDIO XFMR 600CT / 8 TH Triad Magnetics	175	-	RFQ	Datasheet	MET	Bulk	Active	8.66:1	600CT	8	60Ohm	1.5Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin

Total 938 Record«Prev 123 4 5...47 Next»
