Switching Converter, SMPS Transformers

Switching Converter and SMPS Transformers are magnetic components used in switching power supplies to transfer energy, provide isolation and support voltage conversion. They are widely used in AC-DC power supplies, DC-DC converters, adapters, chargers, industrial power modules, LED drivers, communication equipment, consumer electronics and embedded systems.

This category includes flyback transformers, forward converter transformers, push-pull transformers, isolated DC-DC converter transformers, high-frequency SMPS transformers and related magnetic components. These products are commonly selected based on input voltage, output voltage, power rating, switching frequency, insulation rating, core material, mounting type, package style and application requirements.

TomatoElec supplies original Switching Converter and SMPS Transformers from recognized manufacturers such as Würth Elektronik, Pulse Electronics, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, Eaton and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Type	Applications	Intended Chipset	Chipset Manufacturer	Voltage - Primary	Voltage - Auxiliary	Voltage - Isolation	Inductance @ Frequency	Frequency	Operating Temperature	Grade	Qualification	Mounting Type	Size / Dimension	Height - Seated (Max)	Footprint	Style
750813134 XFMR FLYBACK AC/DC CONV 600UH TH Würth Elektronik	172	-	RFQ	Datasheet	WE-FB, MID-OLLT	Tray	Active	For AC/DC Converters	Flyback Converters	LT3799	Linear Technology	90 ~ 265V	18V @ 10mA	4500Vrms	600µH @ 10kHz	100kHz	-40°C ~ 125°C	-	-	Through Hole	0.709" L x 0.650" W (18.00mm x 16.50mm)	0.714" (18.14mm)	0.709" L x 0.650" W (18.00mm x 16.50mm)	-
750311625 XFMR FLYBACK DC/DC CONV 9UH SMD Würth Elektronik	363	-	RFQ	Datasheet	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	10 ~ 40V	8V @ 20mA	1500Vrms	9µH @ 10kHz	100kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.505" (12.83mm)	0.530" L x 0.699" W (13.46mm x 17.75mm)	-
750311608 XFMR FLYBACK DC/DC CONV 12UH SMD Würth Elektronik	247	-	RFQ	Datasheet	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	30 ~ 75V	-	1500Vrms	12µH @ 10kHz	-	-40°C ~ 125°C	-	-	Surface Mount	-	0.455" (11.56mm)	0.910" L x 1.150" W (23.11mm x 29.08mm)	-
VP1-0076-R XFMR 4.9UH SMD Eaton - Electronics Division	342	-	RFQ	Datasheet	VERSA-PAC®	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.508" L x 0.512" W (12.90mm x 13.00mm)	0.244" (6.20mm)	-	-
750811645 XFMR FLYBACK DC/DC CONV 470UH TH Würth Elektronik	226	-	RFQ	Datasheet	MID-OLEFD	Tray	Active	For DC/DC Converters	Flyback Converters	-	-	120 ~ 375V	20V	4500Vrms	470µH @ 10kHz	68 ~ 100kHz	-40°C ~ 125°C	-	-	Through Hole	-	0.551" (14.00mm)	-	-
VGT12EEM-200S1A4 XFMR FLYBACK AC/DC CONV 10UH SMD TDK Corporation	561	-	RFQ	Datasheet	VGT	Tape & Reel (TR)	Active	For AC/DC Converters	Flyback Converters	-	-	-	-	2600Vrms	10µH @ 100kHz	-	-40°C ~ 130°C	-	-	Surface Mount	0.535" L x 0.425" W (13.60mm x 10.80mm)	0.394" (10.00mm)	0.583" L x 0.535" W (14.80mm x 13.60mm)	Wirewound
VP2-0216-R XFMR 10.6UH SMD Eaton - Electronics Division	1,167	-	RFQ	Datasheet	VERSA-PAC®	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.642" L x 0.661" W (16.30mm x 16.80mm)	0.307" (7.80mm)	-	-

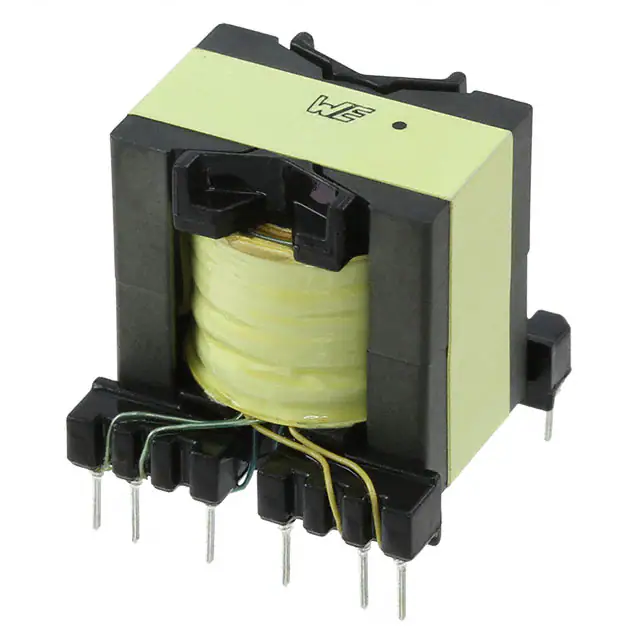

750315038 XFMR ISOL BUCK DC/DC 36.5UH TH Würth Elektronik	608	-	RFQ	Datasheet	MID-IBTI	Tray	Active	For DC/DC Converters	Isolated Buck Converters	-	Texas Instruments	7 ~ 26V	-	3600Vrms	36.5µH @ 10kHz	250 ~ 600kHz	-40°C ~ 125°C	-	-	Through Hole	0.920" L x 0.940" W (23.36mm x 23.88mm)	0.955" (24.26mm)	0.920" L x 0.940" W (23.36mm x 23.88mm)	-
750311591 XFMR FLYBACK DC/DC CONV 8UH SMD Würth Elektronik	2,023	-	RFQ	Datasheet	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	20 ~ 48V	10V	1500Vrms	8µH @ 150kHz	150kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.544" (13.82mm)	1.064" L x 1.272" W (27.03mm x 32.31mm)	-
750311771 XFMR FLYBACK DC/DC CONV 500UH SM Würth Elektronik	226	-	RFQ	Datasheet	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	100 ~ 400V	15V @ 20mA	2500Vrms	500µH @ 10kHz, 14µH @ 10kHz, 400µH @ 10kHz	60 ~ 400kHz	-	-	-	Surface Mount	-	0.544" (13.82mm)	1.064" L x 1.272" W (27.03mm x 32.31mm)	-
750311599 XFMR FLYBACK DC/DC CONV 8UH SMD Würth Elektronik	225	-	RFQ	Datasheet	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	20 ~ 48V	-	1500Vrms	8µH @ 10kHz	-	-40°C ~ 125°C	-	-	Surface Mount	-	0.455" (11.56mm)	0.910" L x 1.150" W (23.11mm x 29.08mm)	-
VP2-0116-R XFMR 5.7UF SMD Eaton - Electronics Division	222	-	RFQ	Datasheet	VERSA-PAC®	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.642" L x 0.661" W (16.30mm x 16.80mm)	0.307" (7.80mm)	-	-
749196501 XFMR FLEXIBLE CONFIG DC/DC SMD Würth Elektronik	262	-	RFQ	Datasheet	WE-FLEX	Tape & Reel (TR)	Active	Configurable (For DC/DC)	Flexible	-	-	-	-	500VDC	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.827" L x 0.827" W (21.00mm x 21.00mm)	0.425" (10.80mm)	0.827" L x 1.169" W (21.00mm x 29.70mm)	-

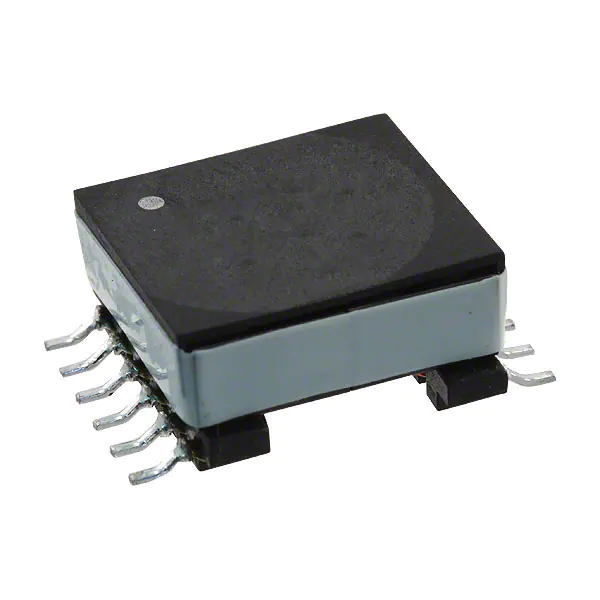

VP3-0138-R XFMR 11.2UH SMD Eaton - Electronics Division	181	-	RFQ	Datasheet	VERSA-PAC®	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.673" L x 0.878" W (17.10mm x 22.30mm)	0.331" (8.40mm)	-	-
750310617 XFMR FLYBACK DC/DC CONV 4.5UH SM Würth Elektronik	152	-	RFQ	Datasheet	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	9 ~ 36V	12V @ 20mA	1500Vrms	4.5µH @ 100kHz	200kHz	-	-	-	Surface Mount	-	0.455" (11.56mm)	0.910" L x 1.150" W (23.11mm x 29.08mm)	-
VP4-0075TR-R XFMR 6.1UH SMD Eaton - Electronics Division	149	-	RFQ	Datasheet	VERSA-PAC®	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.709" L x 0.969" W (18.00mm x 24.60mm)	0.394" (10.00mm)	-	-
VPH5-0155TR-R XFMR 22.3UH SMD Eaton - Electronics Division	217	-	RFQ	Datasheet	VERSA-PAC®	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.827" L x 1.122" W (21.00mm x 28.50mm)	0.425" (10.80mm)	-	-
VPH4-0075-R XFMR 12.7UH SMD Eaton - Electronics Division	213	-	RFQ	Datasheet	VERSA-PAC®	Bulk	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.709" L x 0.969" W (18.00mm x 24.60mm)	0.394" (10.00mm)	-	-
VP5-0083TR-R XFMR 5.3UH SMD Eaton - Electronics Division	149	-	RFQ	Datasheet	VERSA-PAC®	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.827" L x 1.122" W (21.00mm x 28.50mm)	0.425" (10.80mm)	-	-
750319021 XFMR POE DC/DC CONV 22UH SMD Würth Elektronik	893	-	RFQ	Datasheet	MID-POE	Tape & Reel (TR)	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	-	33 ~ 57V	12V	1500Vrms	22µH @ 10kHz	250kHz	-40°C ~ 125°C	-	-	Surface Mount	1.102" L x 1.064" W (28.00mm x 27.03mm)	0.550" (13.97mm)	1.278" L x 1.064" W (32.45mm x 27.03mm)	-

Total 1831 Record«Prev 1 2 3 4 5 678 9 10...92 Next»
