Switching Converter, SMPS Transformers

Switching Converter and SMPS Transformers are magnetic components used in switching power supplies to transfer energy, provide isolation and support voltage conversion. They are widely used in AC-DC power supplies, DC-DC converters, adapters, chargers, industrial power modules, LED drivers, communication equipment, consumer electronics and embedded systems.

This category includes flyback transformers, forward converter transformers, push-pull transformers, isolated DC-DC converter transformers, high-frequency SMPS transformers and related magnetic components. These products are commonly selected based on input voltage, output voltage, power rating, switching frequency, insulation rating, core material, mounting type, package style and application requirements.

TomatoElec supplies original Switching Converter and SMPS Transformers from recognized manufacturers such as Würth Elektronik, Pulse Electronics, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, Eaton and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Type	Applications	Intended Chipset	Chipset Manufacturer	Voltage - Primary	Voltage - Auxiliary	Voltage - Isolation	Inductance @ Frequency	Frequency	Operating Temperature	Grade	Qualification	Mounting Type	Size / Dimension	Height - Seated (Max)	Footprint	Style
750316886 XFMR FWD P-P DC/DC CONV 200UH SM Würth Elektronik	1,407	-	RFQ	Datasheet	MID-PPTI	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	Texas Instruments	5V	-	2500Vrms	200µH @ 10kHz	420kHz	-40°C ~ 125°C	-	-	Surface Mount	0.450" L x 0.327" W (11.43mm x 8.30mm)	0.165" (4.20mm)	0.581" L x 0.327" W (14.75mm x 8.30mm)	-

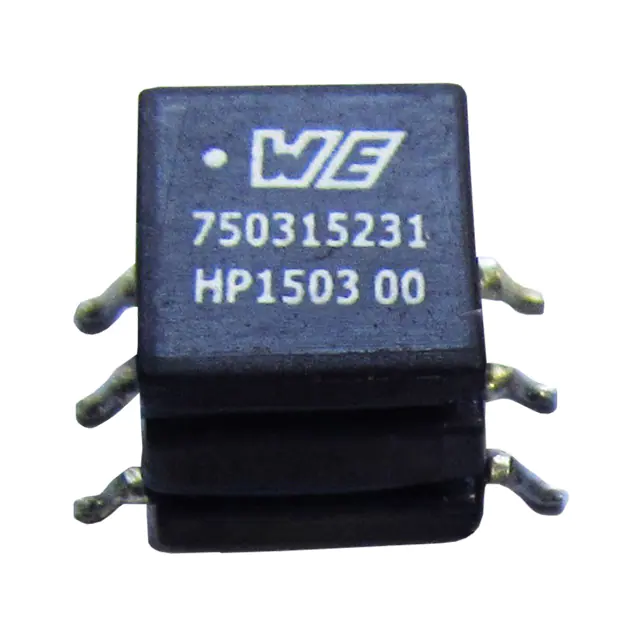

750315231 XFMR FWD P-P SMD Würth Elektronik	760	-	RFQ	Datasheet	MID-PPMAX	Tape & Reel (TR)	Active	-	Forward, Push-Pull Converters	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.360" L x 0.315" W (9.14mm x 8.00mm)	0.300" (7.62mm)	-	-
750315230 XFMR FWD P-P SMD Würth Elektronik	488	-	RFQ	Datasheet	MID-PPMAX	Tape & Reel (TR)	Active	-	Forward, Push-Pull Converters	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.360" L x 0.315" W (9.14mm x 8.00mm)	0.300" (7.62mm)	-	-
PA5099.006NLT XFMR FLYBACK DC/DC CONV SMD Pulse Electronics	975	-	RFQ	Datasheet	PA5099.XXXNLT	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	9 ~ 57V	-	2250VDC	-	200kHz	-40°C ~ 125°C	-	-	Surface Mount	0.535" L x 0.433" W (13.60mm x 11.00mm)	0.610" (15.50mm)	0.535" L x 0.433" W (13.60mm x 11.00mm)	Wirewound
PA5099.005NLT XFMR FLYBACK DC/DC CONV SMD Pulse Electronics	264	-	RFQ	Datasheet	PA5099.XXXNLT	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	9 ~ 57V	-	2250VDC	-	200kHz	-40°C ~ 125°C	-	-	Surface Mount	0.535" L x 0.433" W (13.60mm x 11.00mm)	0.610" (15.50mm)	0.535" L x 0.433" W (13.60mm x 11.00mm)	Wirewound
PA3855.004NLT XFMR FLYBACK DC/DC CONV 21UH SMD Pulse Electronics	247	-	RFQ	Datasheet	EP13Plus	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	9 ~ 57V	10V @ 50mA	2250VDC	-	200kHz	-40°C ~ 130°C	-	-	Surface Mount	0.571" L x 0.526" W (14.50mm x 13.36mm)	0.551" (14.00mm)	0.571" L x 0.695" W (14.50mm x 17.65mm)	-
PA3856.005NL XFMR FWD P-P DC/DC CONV SMD Pulse Electronics	302	-	RFQ	Datasheet	-	Tray	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	9 ~ 57V	10V @ 50mA	2250VDC	-	200kHz	-40°C ~ 130°C	-	-	Surface Mount	0.571" L x 0.695" W (14.50mm x 17.65mm)	0.551" (14.00mm)	0.571" L x 0.695" W (14.50mm x 17.65mm)	-
PA3856.003NLT XFMR FWD P-P DC/DC CONV SMD Pulse Electronics	672	-	RFQ	Datasheet	EP13Plus	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	33 ~ 57V	10V @ 50mA	2250VDC	-	200kHz	-40°C ~ 130°C	-	-	Surface Mount	0.571" L x 0.526" W (14.50mm x 13.36mm)	0.551" (14.00mm)	0.571" L x 0.695" W (14.50mm x 17.65mm)	-
PA3856.006NL XFMR FWD P-P DC/DC CONV SMD Pulse Electronics	174	-	RFQ	Datasheet	-	Tray	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	9 ~ 57V	10V @ 50mA	2250VDC	-	200kHz	-40°C ~ 130°C	-	-	Surface Mount	0.571" L x 0.695" W (14.50mm x 17.65mm)	0.551" (14.00mm)	0.571" L x 0.695" W (14.50mm x 17.65mm)	-
CEER117-AX05-13-048 XFMR FLYBACK DC/DC CONV 59UH SMD Sumida America Components Inc.	1,076	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	ACPL-32JT, BM60051FV, BM60052AFV, BM60054AFV, BM60055FV, BM60056FV	Broadcom, ROHM	12V	-	2500Vrms	59µH @ 100kHz, 240µH @ 100kHz	120kHz	-40°C ~ 125°C	-	-	Surface Mount	0.449" L x 0.390" W (11.40mm x 9.90mm)	0.331" (8.40mm)	0.508" L x 0.449" W (12.90mm x 11.40mm)	-
PH9496NLT XFMR FLYBACK DC/DC CONV SMD Pulse Electronics	875	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	ACPL-32JT, ACPL-302J	-	8 ~ 18V	-	2500Vrms	-	80kHz	-40°C ~ 125°C	-	-	Surface Mount	0.413" L x 0.406" W (10.50mm x 10.30mm)	0.492" (12.50mm)	-	-

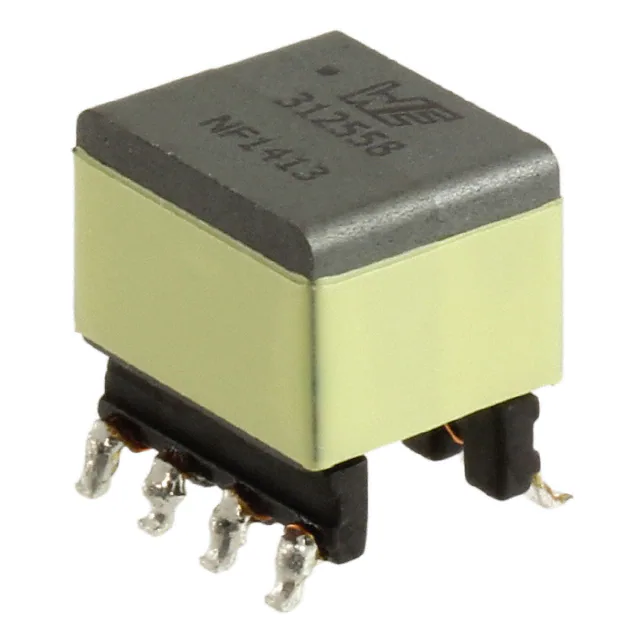

750312558 XFMR FLYBACK DC/DC CONV 300UH SM Würth Elektronik	1,749	-	RFQ	Datasheet	WE-FB, MID-FLYLT	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT8300	Linear Technology	36 ~ 72V	-	1500Vrms	300µH @ 10kHz	70kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.420" (10.69mm)	0.385" L x 0.360" W (9.78mm x 9.14mm)	-
750313442 XFMR FLYBACK DC/DC CONV 12UH SMD Würth Elektronik	159	-	RFQ	Datasheet	WE-FB, MID-FLYLT	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT8302	Linear Technology	8 ~ 32V	-	1500Vrms	12µH @ 10kHz	-	-	-	-	Surface Mount	-	0.450" (11.43mm)	0.525" L x 0.600" W (13.34mm x 15.24mm)	-
750313460 XFMR FLYBACK DC/DC CONV 12UH SMD Würth Elektronik	120	-	RFQ	Datasheet	WE-FB, MID-FLYLT	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT8302	Linear Technology	4 ~ 8V	-	1500Vrms	12µH @ 10kHz	-	-	-	-	Surface Mount	-	0.455" (11.56mm)	0.525" L x 0.600" W (13.34mm x 15.24mm)	-
750315837 XFMR FLYBACK DC/DC CONV 40UH SMD Würth Elektronik	458	-	RFQ	Datasheet	WE-FB, MID-FLYLT	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT8304	Linear Technology	36 ~ 75V	-	1500Vrms	40µH @ 10kHz	50 ~ 200kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.500" (12.70mm)	0.530" L x 0.699" W (13.46mm x 17.75mm)	-
750312366 XFMR FLYBACK DC/DC CONV 400UH SM Würth Elektronik	2,667	-	RFQ	Datasheet	WE-UNIT, MID-FLYLT	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT8300	Linear Technology	18 ~ 75V	-	1500Vrms	400µH @ 10kHz	100kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.340" (8.64mm)	0.400" L x 0.526" W (10.16mm x 13.36mm)	-
750312365 XFMR FLYBACK DC/DC CONV 300UH SM Würth Elektronik	1,488	-	RFQ	Datasheet	WE-PoE, MID-FLYLT	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT8300	Linear Technology	30 ~ 72V	-	1500Vrms	300µH @ 10kHz	100kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.342" (8.69mm)	0.400" L x 0.526" W (10.16mm x 13.36mm)	-
750312557 XFMR FLYBACK DC/DC CONV 300UH SM Würth Elektronik	166	-	RFQ	Datasheet	WE-FB, MID-FLYLT	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT8300	Linear Technology	36 ~ 72V	-	1500Vrms	300µH @ 10kHz	70kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.342" (8.69mm)	0.400" L x 0.526" W (10.16mm x 13.36mm)	-
750315229 XFMR FWD P-P SMD Würth Elektronik	885	-	RFQ	Datasheet	MID-PPMAX	Tape & Reel (TR)	Active	-	Forward, Push-Pull Converters	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.360" L x 0.315" W (9.14mm x 8.00mm)	0.300" (7.62mm)	-	-
POE025-PD13120S XFMR POE DC/DC CONV 80UH SMD Bourns Inc.	5,098	-	RFQ	Datasheet	POE-PD	Tape & Reel (TR)	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	-	36 ~ 57V	14.5V	1500Vrms	80µH @ 100kHz	220kHz	-40°C ~ 105°C	-	-	Surface Mount	0.638" L x 0.551" W (16.20mm x 14.00mm)	0.571" (14.50mm)	-	-

Total 1831 Record«Prev 1... 5 6 7 8910 11 12...92 Next»
