Switching Converter, SMPS Transformers

Switching Converter and SMPS Transformers are magnetic components used in switching power supplies to transfer energy, provide isolation and support voltage conversion. They are widely used in AC-DC power supplies, DC-DC converters, adapters, chargers, industrial power modules, LED drivers, communication equipment, consumer electronics and embedded systems.

This category includes flyback transformers, forward converter transformers, push-pull transformers, isolated DC-DC converter transformers, high-frequency SMPS transformers and related magnetic components. These products are commonly selected based on input voltage, output voltage, power rating, switching frequency, insulation rating, core material, mounting type, package style and application requirements.

TomatoElec supplies original Switching Converter and SMPS Transformers from recognized manufacturers such as Würth Elektronik, Pulse Electronics, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, Eaton and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Type	Applications	Intended Chipset	Chipset Manufacturer	Voltage - Primary	Voltage - Auxiliary	Voltage - Isolation	Inductance @ Frequency	Frequency	Operating Temperature	Grade	Qualification	Mounting Type	Size / Dimension	Height - Seated (Max)	Footprint	Style
760390012 XFMR FWD P-P DC/DC CONV 475UH SM Würth Elektronik	30,816	-	RFQ	Datasheet	WE-PP, MID-PPTI	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	SN6501	Texas Instruments	-	-	3125Vrms	475µH @ 10kHz	10kHz	-40°C ~ 125°C	-	-	Surface Mount	0.265" L x 0.281" W (6.73mm x 7.14mm)	0.170" (4.32mm)	0.265" L x 0.395" W (6.73mm x 10.05mm)	-
760390013 XFMR FWD P-P DC/DC CONV 475UH SM Würth Elektronik	22,460	-	RFQ	Datasheet	WE-PP, MID-PPTI	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	SN6501	Texas Instruments	-	-	3125Vrms	475µH @ 10kHz	10kHz	-40°C ~ 125°C	-	-	Surface Mount	0.265" L x 0.281" W (6.73mm x 7.14mm)	0.170" (4.32mm)	0.265" L x 0.395" W (6.73mm x 10.05mm)	-
760390015 XFMR FWD P-P DC/DC CONV 475UH SM Würth Elektronik	20,737	-	RFQ	Datasheet	WE-PP, MID-PPTI	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	SN6501	Texas Instruments	-	-	3125Vrms	475µH @ 10kHz	10kHz	-40°C ~ 125°C	-	-	Surface Mount	0.265" L x 0.281" W (6.73mm x 7.14mm)	0.170" (4.32mm)	0.265" L x 0.395" W (6.73mm x 10.05mm)	-
760390011 XFMR FWD P-P DC/DC CONV 1MH SMD Würth Elektronik	10,730	1+：$1.870000 10+：$1.691000 25+：$1.624400 50+：$1.575400 100+：$1.527600 250+：$1.466120 500+：$1.420980	Add To Cart	Datasheet	WE-PP, MID-PPTI	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	SN6501	Texas Instruments	-	-	1500Vrms	1mH @ 10kHz	10kHz	-40°C ~ 125°C	-	-	Surface Mount	0.265" L x 0.281" W (6.73mm x 7.14mm)	0.170" (4.32mm)	0.265" L x 0.395" W (6.73mm x 10.05mm)	-
760390014 XFMR FWD P-P DC/DC CONV 475UH SM Würth Elektronik	5,710	-	RFQ	Datasheet	WE-PP, MID-PPTI	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	SN6501	Texas Instruments	-	-	3125Vrms	475µH @ 10kHz	10kHz	-40°C ~ 125°C	-	-	Surface Mount	0.265" L x 0.281" W (6.73mm x 7.14mm)	0.170" (4.32mm)	0.265" L x 0.395" W (6.73mm x 10.05mm)	-
750315228 XFMR FWD P-P SMD Würth Elektronik	1,187	-	RFQ	Datasheet	MID-PPMAX	Tape & Reel (TR)	Active	-	Forward, Push-Pull Converters	-	-	3.3V	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	-	0.165" (4.19mm)	-	-
750316769 XFMR FWD P-P DC/DC CONV 60UH SMD Würth Elektronik	4,347	-	RFQ	Datasheet	MID-PPTI	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	Texas Instruments	5V	-	2500Vrms	60µH @ 10kHz	400kHz	-40°C ~ 125°C	-	-	Surface Mount	0.281" L x 0.265" W (7.14mm x 6.73mm)	0.165" (4.19mm)	0.412" L x 0.265" W (10.46mm x 6.73mm)	-
750316819 XFMR FWD P-P DC/DC CONV 86UH SMD Würth Elektronik	1,032	1+：$3.820000 10+：$3.531000 50+：$3.236000 100+：$2.943000	Add To Cart	Datasheet	MID-PPTI	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	Texas Instruments	5V	-	2500Vrms	86µH @ 10kHz	400kHz	-40°C ~ 125°C	-	-	Surface Mount	0.364" L x 0.327" W (9.25mm x 8.30mm)	0.161" (4.10mm)	0.496" L x 0.327" W (12.60mm x 8.30mm)	-
750316818 XFMR FWD P-P DC/DC CONV 86UH SMD Würth Elektronik	931	-	RFQ	Datasheet	MID-PPTI	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	Texas Instruments	5V	-	2500Vrms	86µH @ 100kHz	400kHz	-40°C ~ 125°C	-	-	Surface Mount	0.364" L x 0.327" W (9.25mm x 8.30mm)	0.161" (4.10mm)	0.496" L x 0.327" W (12.60mm x 8.30mm)	-
750316770 XFMR FWD P-P DC/DC CONV 350UH SM Würth Elektronik	414	-	RFQ	Datasheet	MID-PPTI	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	Texas Instruments	5V	-	2500Vrms	350µH @ 100kHz	400kHz	-40°C ~ 125°C	-	-	Surface Mount	0.281" L x 0.265" W (7.14mm x 6.73mm)	0.165" (4.19mm)	0.401" L x 0.265" W (10.20mm x 6.73mm)	-
P1597NLT XFMR ISOL DC/DC CONV SMD Pulse Electronics	458	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	For DC/DC Converters	Isolation	LTC1535	Linear Technology	-	-	2000Vrms	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.453" L x 0.339" W (11.50mm x 8.60mm)	0.354" (9.00mm)	0.453" L x 0.512" W (11.50mm x 13.00mm)	-
PA2369NL XFMR SWITCH MODE 5A Pulse Electronics	1,968	-	RFQ	Datasheet	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	0.551" L x 0.516" W (14.00mm x 13.11mm)	0.485" (12.32mm)	0.551" L x 0.695" W (14.00mm x 17.65mm)	-
PA3855.006NLT XFMR FLYBACK DC/DC CONV SMD Pulse Electronics	2,474	1+：$3.350000 10+：$3.034000 25+：$2.912400 50+：$2.823400	Add To Cart	Datasheet	EP13Plus	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	9 ~ 57V	10V @ 50mA	2250VDC	-	200kHz	-40°C ~ 130°C	-	-	Surface Mount	0.571" L x 0.526" W (14.50mm x 13.36mm)	0.551" (14.00mm)	0.571" L x 0.695" W (14.50mm x 17.65mm)	-
750316028 XFMR FWD P-P DC/DC CONV 72UH SMD Würth Elektronik	2,632	-	RFQ	Datasheet	WE-PP, MID-PPTI	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	Texas Instruments	3.3V	-	3125Vrms	72µH @ 100kHz	400kHz	-40°C ~ 125°C	-	-	Surface Mount	0.327" L x 0.364" W (8.30mm x 9.25mm)	0.161" (4.10mm)	-	-
750316029 XFMR FWD P-P DC/DC CONV 72UH SMD Würth Elektronik	164	-	RFQ	Datasheet	WE-PP, MID-PPTI	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	Texas Instruments	3.3V	-	3125Vrms	72µH @ 100kHz	400kHz	-40°C ~ 125°C	-	-	Surface Mount	0.327" L x 0.364" W (8.30mm x 9.25mm)	0.161" (4.10mm)	-	-

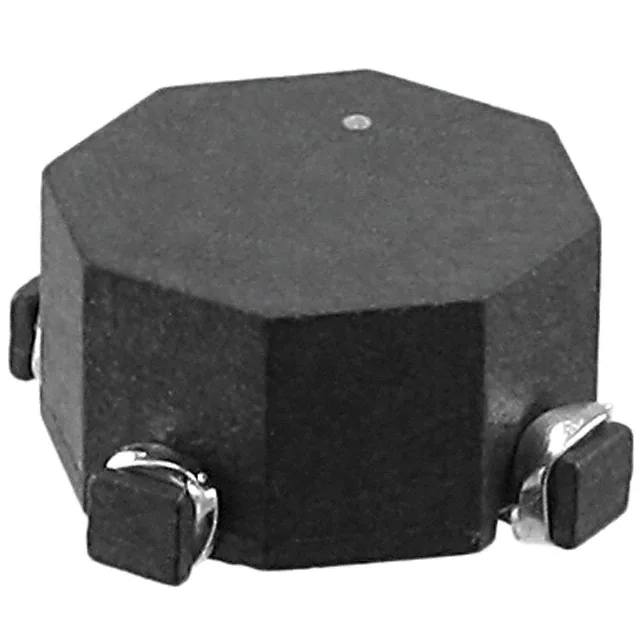

PA0367ANLT XFMR FLYBACK DC/DC CONV SMD Pulse Electronics	338	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3420	Linear Technology	-	-	500Vrms	-	-	-40°C ~ 130°C	-	-	Surface Mount	0.360" L x 0.360" W (9.14mm x 9.14mm)	0.215" (5.45mm)	0.460" L x 0.460" W (11.68mm x 11.68mm)	-
750313445 XFMR FLYBACK DC/DC CONV 9UH SMD Würth Elektronik	1,069	1+：$3.550000 10+：$3.209000 25+：$3.080400 50+：$2.986200 100+：$2.894200	Add To Cart	Datasheet	WE-FB, MID-FLYLT	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT8302	Linear Technology	8 ~ 32V	-	1500Vrms	9µH @ 10kHz	-	-	-	-	Surface Mount	-	0.450" (11.43mm)	0.525" L x 0.600" W (13.34mm x 15.24mm)	-

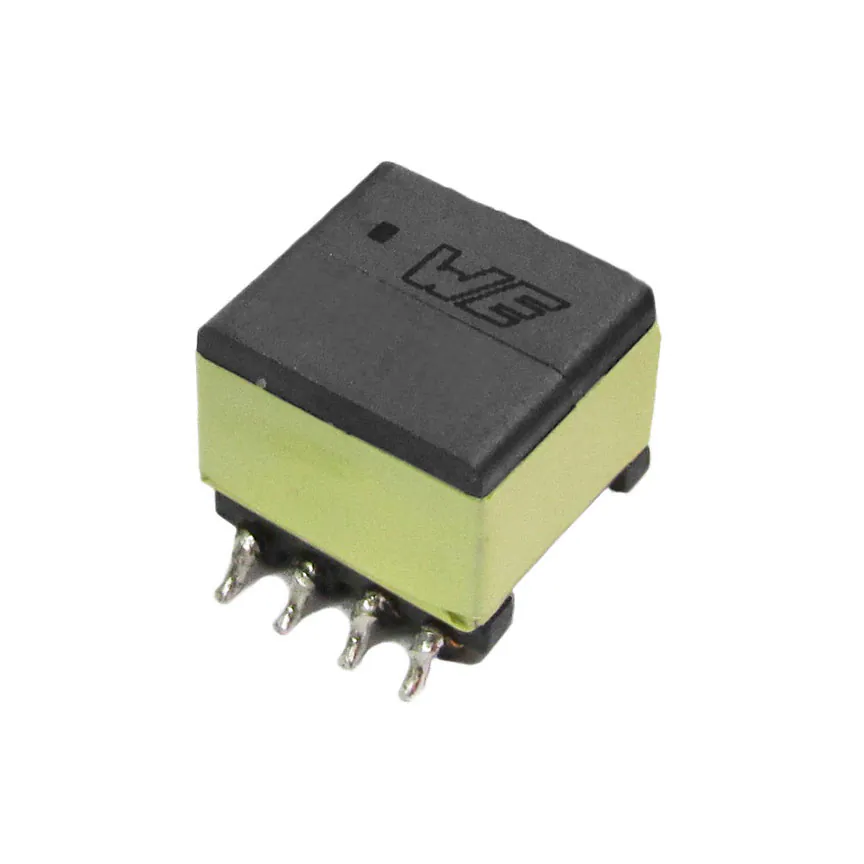

750313443 XFMR FLYBACK DC/DC CONV 9UH SMD Würth Elektronik	6,304	-	RFQ	Datasheet	WE-FB, MID-FLYLT	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT8302	Linear Technology	8 ~ 32V	-	1500Vrms	9µH @ 10kHz	-	-	-	-	Surface Mount	-	0.450" (11.43mm)	0.525" L x 0.600" W (13.34mm x 15.24mm)	-
PH0416NLT XFMR FLYBACK DC/DC CONV SMD Pulse Electronics	3,834	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	ACPL-32JT, ACPL-302J	-	8 ~ 18V	-	5000Vrms	-	75kHz	-40°C ~ 125°C	-	-	Surface Mount	0.394" L x 0.394" W (10.00mm x 10.00mm)	0.502" (12.75mm)	0.394" L x 0.394" W (10.00mm x 10.00mm)	-
750315126 XFMR FLYBACK DC/DC CONV 40UH SMD Würth Elektronik	121	-	RFQ	Datasheet	WE-FB, MID-FLYLT	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT8304	Linear Technology	36 ~ 72V	-	1500Vrms	40µH @ 10kHz	150 ~ 300kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.500" (12.70mm)	0.530" L x 0.699" W (13.46mm x 17.75mm)	-

Total 1831 Record«Prev12 3 4...92 Next»
