Switching Converter, SMPS Transformers

Switching Converter and SMPS Transformers are magnetic components used in switching power supplies to transfer energy, provide isolation and support voltage conversion. They are widely used in AC-DC power supplies, DC-DC converters, adapters, chargers, industrial power modules, LED drivers, communication equipment, consumer electronics and embedded systems.

This category includes flyback transformers, forward converter transformers, push-pull transformers, isolated DC-DC converter transformers, high-frequency SMPS transformers and related magnetic components. These products are commonly selected based on input voltage, output voltage, power rating, switching frequency, insulation rating, core material, mounting type, package style and application requirements.

TomatoElec supplies original Switching Converter and SMPS Transformers from recognized manufacturers such as Würth Elektronik, Pulse Electronics, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, Eaton and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Type	Applications	Intended Chipset	Chipset Manufacturer	Voltage - Primary	Voltage - Auxiliary	Voltage - Isolation	Inductance @ Frequency	Frequency	Operating Temperature	Grade	Qualification	Mounting Type	Size / Dimension	Height - Seated (Max)	Footprint	Style
750311675 XFMR FLYBACK DC/DC CONV 25UH SMD Würth Elektronik	681	-	RFQ	Datasheet	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	9 ~ 30V	5V @ 20mA	1500Vrms	25µH @ 10kHz	-	-	-	-	Surface Mount	-	0.455" (11.56mm)	0.525" L x 0.600" W (13.34mm x 15.24mm)	-
VPH1-0076-R XFMR 10.9UH SMD Eaton - Electronics Division	2,400	-	RFQ	Datasheet	VERSA-PAC®	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.508" L x 0.512" W (12.90mm x 13.00mm)	0.244" (6.20mm)	-	-
VPH1-1400-R XFMR 201.6UH SMD Eaton - Electronics Division	750	-	RFQ	Datasheet	VERSA-PAC®	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.508" L x 0.512" W (12.90mm x 13.00mm)	0.244" (6.20mm)	-	-

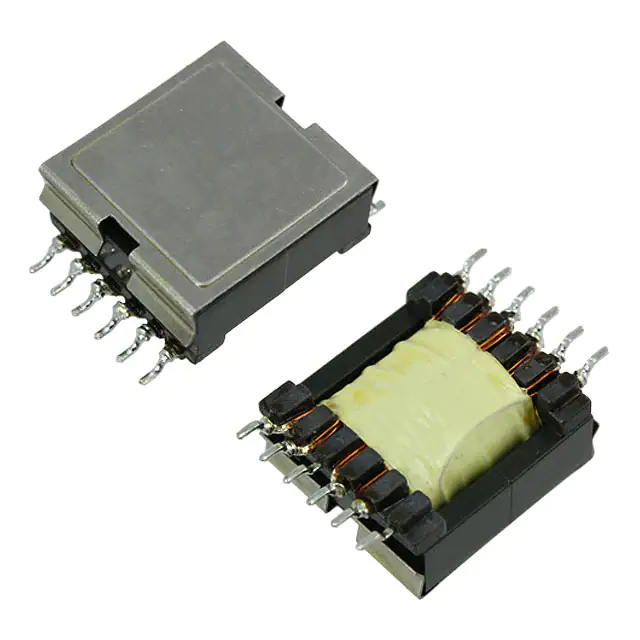

750311607 XFMR FLYBACK DC/DC CONV 14UH SMD Würth Elektronik	1,062	-	RFQ	Datasheet	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	30 ~ 75V	-	1500Vrms	14µH @ 150kHz	-	-40°C ~ 125°C	-	-	Surface Mount	-	0.455" (11.56mm)	0.910" L x 1.150" W (23.11mm x 29.08mm)	-
750311797 XFMR FLYBACK DC/DC CONV 14UH SMD Würth Elektronik	2,079	-	RFQ	Datasheet	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	18 ~ 100V	12V	4000Vrms	14µH @ 150kHz	-	-40°C ~ 125°C	-	-	Surface Mount	-	0.455" (11.56mm)	0.910" L x 1.150" W (23.11mm x 29.08mm)	-
750311783 XFMR FLYBACK DC/DC CONV 20UH SMD Würth Elektronik	1,100	-	RFQ	Datasheet	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	19 ~ 70V	12V @ 10mA	1500Vrms	20µH @ 150kHz	-	-40°C ~ 125°C	-	-	Surface Mount	-	0.544" (13.82mm)	1.064" L x 1.272" W (27.03mm x 32.31mm)	-
VP2-0083-R XFMR 4.1UH SMD Eaton - Electronics Division	535	-	RFQ	Datasheet	VERSA-PAC®	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.642" L x 0.661" W (16.30mm x 16.80mm)	0.307" (7.80mm)	-	-
VP2-0066-R XFMR 3.2UH SMD Eaton - Electronics Division	590	-	RFQ	Datasheet	VERSA-PAC®	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.642" L x 0.661" W (16.30mm x 16.80mm)	0.307" (7.80mm)	-	-
VP2-1600-R XFMR 78.4UH SMD Eaton - Electronics Division	300	-	RFQ	Datasheet	VERSA-PAC®	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.642" L x 0.661" W (16.30mm x 16.80mm)	0.307" (7.80mm)	-	-
750313710 XFMR FWD P-P DC/DC CONV 475UH SM Würth Elektronik	1,094	-	RFQ	Datasheet	WE-PPTI	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	5V	-	2500V	475µH @ 10kHz	250 ~ 620kHz	-40°C ~ 125°C	-	-	Surface Mount	0.281" L x 0.265" W (7.14mm x 6.73mm)	0.165" (4.19mm)	-	Toroidal

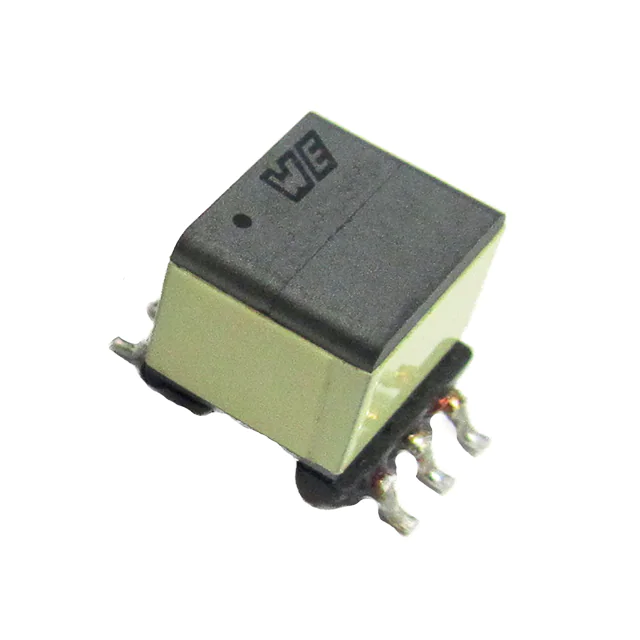

750315829 XFMR FLYBACK DC/DC CONV 150UH SM Würth Elektronik	493	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	Linear Technology	36 ~ 72V	-	1875Vrms	150µH @ 10kHz	50 ~ 200kHz	-40°C ~ 125°C	-	-	Surface Mount	-	-	-	-

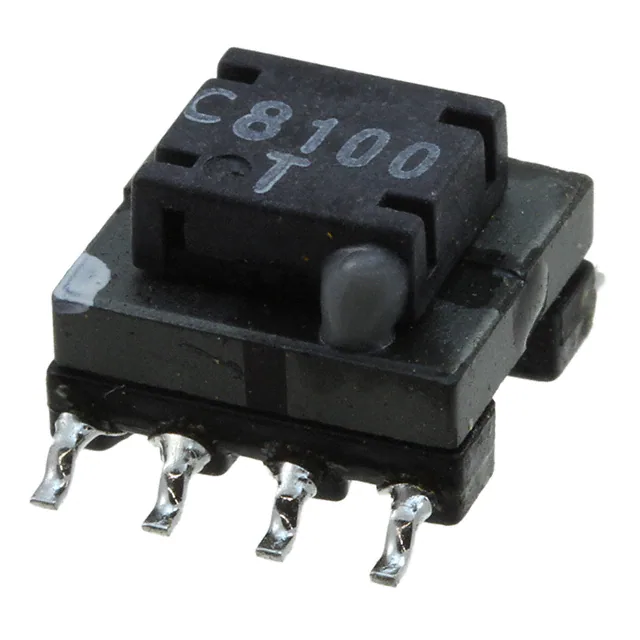

C8100 XFMR FLYBACK 3.38UH SMD Sumida America Components Inc.	4,313	-	RFQ	Datasheet	CEEH	Tape & Reel (TR)	Active	-	Flyback Converters	-	-	-	-	-	3.38µH @ 100kHz	-	-40°C ~ 85°C	-	-	Surface Mount	0.386" L x 0.343" W (9.80mm x 8.70mm)	0.270" (6.85mm)	0.386" L x 0.480" W (9.80mm x 12.20mm)	-
750315827 XFMR FLYBACK DC/DC CONV 150UH SM Würth Elektronik	1,220	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	Linear Technology	36 ~ 72V	-	1875Vrms	150µH @ 10kHz	50 ~ 200kHz	-40°C ~ 125°C	-	-	Surface Mount	-	-	-	-
750315826 XFMR FLYBACK DC/DC CONV 150UH SM Würth Elektronik	751	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	Linear Technology	36 ~ 72V	-	1875Vrms	150µH @ 10kHz	50 ~ 200kHz	-40°C ~ 125°C	-	-	Surface Mount	-	-	-	-
750315227 XFMR FWD P-P SMD Würth Elektronik	7,783	-	RFQ	Datasheet	MID-PPMAX	Tape & Reel (TR)	Active	-	Forward, Push-Pull Converters	-	-	3.3V	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	-	0.165" (4.19mm)	-	-
750317829 XFMR FWD P-P DC/DC CONV 480UH SM Würth Elektronik	2,639	-	RFQ	Datasheet	MID-PPTI	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	Texas Instruments	12V	-	2500Vrms	480µH @ 10kHz	300 ~ 620kHz	-40°C ~ 125°C	-	-	Surface Mount	0.281" L x 0.265" W (7.14mm x 6.73mm)	0.165" (4.19mm)	0.402" L x 0.265" W (10.20mm x 6.73mm)	-
750317830 XFMR FWD P-P DC/DC CONV 480UH SM Würth Elektronik	653	-	RFQ	Datasheet	MID-PPTI	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	Texas Instruments	12V	-	2500Vrms	480µH @ 10kHz	300 ~ 620kHz	-40°C ~ 125°C	-	-	Surface Mount	0.281" L x 0.265" W (7.14mm x 6.73mm)	0.165" (4.19mm)	0.402" L x 0.265" W (10.20mm x 6.73mm)	-

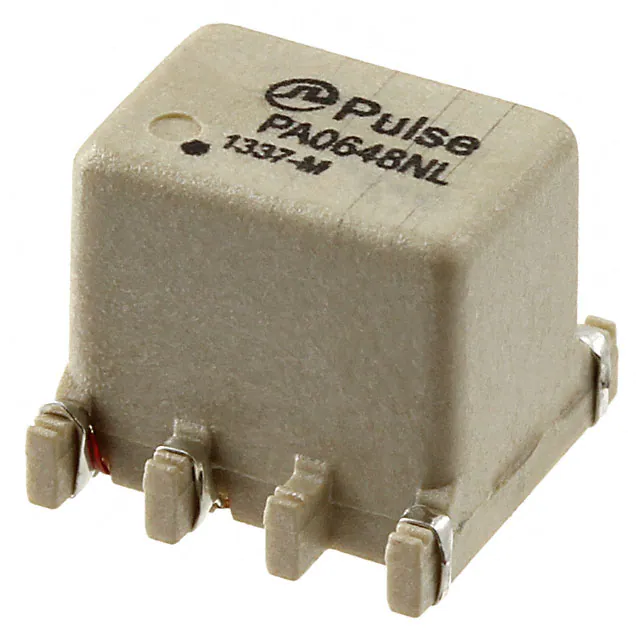

PA0648NL XFMR SMD Pulse Electronics	1,225	-	RFQ	Datasheet	-	Tube	Active	-	-	-	-	-	-	-	-	-	-	-	-	Surface Mount	0.355" L x 0.340" W (9.02mm x 8.64mm)	0.300" (7.62mm)	-	-
PA3964.002NL XFMR PUSH PULL 7W Pulse Electronics	1,565	-	RFQ	Datasheet	-	Tray	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	0.614" L x 0.591" W (15.60mm x 15.00mm)	0.291" (7.40mm)	0.614" L x 0.650" W (15.60mm x 16.50mm)	-
P1597NL XFMR ISOL DC/DC CONV SMD Pulse Electronics	843	-	RFQ	Datasheet	-	Tray	Active	For DC/DC Converters	Isolation	LTC1535	Linear Technology	-	-	2000Vrms	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.453" L x 0.339" W (11.50mm x 8.60mm)	0.354" (9.00mm)	0.453" L x 0.512" W (11.50mm x 13.00mm)	-

Total 1831 Record«Prev 1 234 5 6...92 Next»
