Switching Converter, SMPS Transformers

Switching Converter and SMPS Transformers are magnetic components used in switching power supplies to transfer energy, provide isolation and support voltage conversion. They are widely used in AC-DC power supplies, DC-DC converters, adapters, chargers, industrial power modules, LED drivers, communication equipment, consumer electronics and embedded systems.

This category includes flyback transformers, forward converter transformers, push-pull transformers, isolated DC-DC converter transformers, high-frequency SMPS transformers and related magnetic components. These products are commonly selected based on input voltage, output voltage, power rating, switching frequency, insulation rating, core material, mounting type, package style and application requirements.

TomatoElec supplies original Switching Converter and SMPS Transformers from recognized manufacturers such as Würth Elektronik, Pulse Electronics, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, Eaton and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Type	Applications	Intended Chipset	Chipset Manufacturer	Voltage - Primary	Voltage - Auxiliary	Voltage - Isolation	Inductance @ Frequency	Frequency	Operating Temperature	Grade	Qualification	Mounting Type	Size / Dimension	Height - Seated (Max)	Footprint	Style
SIT1217I XFMR FLEX DC/DC CONV 170UH SMD Power Integrations	80	-	RFQ	Datasheet	SIT12xxI	Tape & Reel (TR)	Obsolete	For DC/DC Converters	Flexible	SCALE-iDriver™ Ics	-	-	-	-	170µH @ 100kHz	-	-40°C ~ 105°C	-	-	Surface Mount	1.030" L x 0.925" W (26.15mm x 23.50mm)	0.650" (16.50mm)	1.043" L x 0.925" W (26.50mm x 23.50mm)	Thick Film
PFC212138A-471K DIP PFC CHOKE 470UH54.50M26.30A ITG Electronics, Inc.	6	-	RFQ	Datasheet	PFC212138A	Tray	Active	-	-	-	-	-	-	-	470µH @ 10kHz	-	-55°C ~ 130°C	-	-	Through Hole	2.106" L x 2.106" W (53.50mm x 53.50mm)	1.378" (35.00mm)	-	Toroidal
PFC212138A-102K XFMR 1000UH TH ITG Electronics, Inc.	6	-	RFQ	Datasheet	PFC212138A	Tray	Active	-	-	-	-	-	-	-	1000µH @ 10kHz	-	-55°C ~ 130°C	-	-	Through Hole	2.106" L x 2.106" W (53.50mm x 53.50mm)	1.378" (35.00mm)	-	Toroidal
PNK-62001 XFMR 1.67MH TH Premier Magnetics	70	-	RFQ	Datasheet	-	Tape & Box (TB)	Active	-	-	LINK-CV	Power Integrations	90 ~ 265V	-	3000V	1.67mH @ 100kHz	-	-	-	-	Through Hole	0.748" L x 0.669" W (19.00mm x 17.00mm)	0.748" (19.00mm)	-	-
POL-INN043 XFMR FLYBACK AC/DC CONV 2.017MH Premier Magnetics	95	-	RFQ	Datasheet	-	Tape & Box (TB)	Active	For AC/DC Converters	Flyback Converters	-	-	-	-	3000V	2.017mH @ 100kHz	-	-	-	-	-	-	-	-	-
POL-INN028 XFMR FLYBACK AC/DC CONV 910UH TH Premier Magnetics	75	-	RFQ	Datasheet	-	Tape & Box (TB)	Active	For AC/DC Converters	Flyback Converters	-	-	-	-	3000V	910µH @ 10kHz	-	-	-	-	Through Hole	1.142" L x 1.102" W (29.00mm x 28.00mm)	0.630" (16.00mm)	-	-
PFC212138A-101K XFMR 105UH TH ITG Electronics, Inc.	6	-	RFQ	Datasheet	PFC212138A	Tray	Active	-	-	-	-	-	-	-	105µH @ 10kHz	-	-55°C ~ 130°C	-	-	Through Hole	2.106" L x 2.106" W (53.50mm x 53.50mm)	1.378" (35.00mm)	-	Toroidal
PFC212138A-351K XFMR 350UH TH ITG Electronics, Inc.	6	-	RFQ	Datasheet	PFC212138A	Tray	Active	-	-	-	-	-	-	-	350µH @ 10kHz	-	-55°C ~ 130°C	-	-	Through Hole	2.106" L x 2.106" W (53.50mm x 53.50mm)	1.378" (35.00mm)	-	Toroidal
PFC212138A-501K XFMR 500UH TH ITG Electronics, Inc.	6	-	RFQ	Datasheet	PFC212138A	Tray	Active	-	-	-	-	-	-	-	500µH @ 10kHz	-	-55°C ~ 130°C	-	-	Through Hole	2.106" L x 2.106" W (53.50mm x 53.50mm)	1.378" (35.00mm)	-	Toroidal
PFC212138A-681K XFMR 680UH TH ITG Electronics, Inc.	6	-	RFQ	Datasheet	PFC212138A	Tray	Active	-	-	-	-	-	-	-	680µH @ 10kHz	-	-55°C ~ 130°C	-	-	Through Hole	2.106" L x 2.106" W (53.50mm x 53.50mm)	1.378" (35.00mm)	-	Toroidal
PFC212138A-821K XFMR 820UH TH ITG Electronics, Inc.	6	-	RFQ	Datasheet	PFC212138A	Tray	Active	-	-	-	-	-	-	-	820µH @ 10kHz	-	-55°C ~ 130°C	-	-	Through Hole	2.106" L x 2.106" W (53.50mm x 53.50mm)	1.378" (35.00mm)	-	Toroidal
PFC212138A-251K XFMR 250UH TH ITG Electronics, Inc.	6	-	RFQ	Datasheet	PFC212138A	Tray	Active	-	-	-	-	-	-	-	250µH @ 10kHz	-	-55°C ~ 130°C	-	-	Through Hole	2.106" L x 2.106" W (53.50mm x 53.50mm)	1.378" (35.00mm)	-	Toroidal
PFC212138A-201K XFMR 205UH TH ITG Electronics, Inc.	6	-	RFQ	Datasheet	PFC212138A	Tray	Active	-	-	-	-	-	-	-	205µH @ 10kHz	-	-55°C ~ 130°C	-	-	Through Hole	2.106" L x 2.106" W (53.50mm x 53.50mm)	1.378" (35.00mm)	-	Toroidal
750315836 XFMR FLYBACK DC/DC CONV 40UH SMD Würth Elektronik	1	-	RFQ	Datasheet	WE-FB, MID-FLYLT	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT8304	Linear Technology	36 ~ 75V	-	1500Vrms	40µH @ 10kHz	50 ~ 200kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.500" (12.70mm)	0.530" L x 0.699" W (13.46mm x 17.75mm)	-

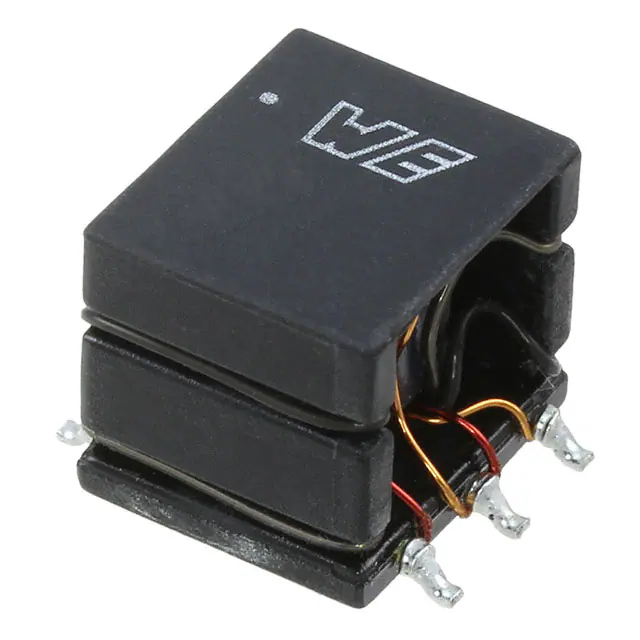

750315240 XFMR FWD P-P DC/DC CONV 110UH SM Würth Elektronik	0	-	RFQ	Datasheet	WE-PP, MID-PPTI	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	SN6505A	Texas Instruments	-	-	5000Vrms	110µH @ 100kHz	150kHz	-40°C ~ 125°C	-	-	Surface Mount	0.485" L x 0.410" W (12.32mm x 10.41mm)	0.440" (11.18mm)	0.485" L x 0.607" W (12.32mm x 15.41mm)	-
750313638 XFMR FWD P-P DC/DC CONV 340UH SM Würth Elektronik	0	-	RFQ	Datasheet	WE-PP, MID-PPTI	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	SN6501	Texas Instruments	-	-	5000Vrms	340µH @ 100kHz	-	-40°C ~ 125°C	-	-	Surface Mount	0.360" L x 0.315" W (9.14mm x 8.00mm)	0.305" (7.75mm)	0.360" L x 0.500" W (9.14mm x 12.70mm)	-
750316032 XFMR FWD P-P DC/DC CONV SMD Würth Elektronik	0	-	RFQ	Datasheet	WE-PP, MID-PPTI	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	Texas Instruments	3.3V	-	-	-	150kHz	-40°C ~ 85°C	-	-	Surface Mount	0.485" L x 0.410" W (12.32mm x 10.41mm)	-	-	-
750811248 XFMR LED DR AC/DC CONV 300UH TH Würth Elektronik	0	-	RFQ	Datasheet	WE-UNIT, MID-OLLT	Tray	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	120 ~ 375V	24V @ 20mA	4500Vrms	300µH @ 10kHz	60 ~ 400kHz	-	-	-	Through Hole	1.220" L x 1.220" W (31.00mm x 31.00mm)	0.989" (25.12mm)	1.220" L x 1.220" W (31.00mm x 31.00mm)	-
750319331 XFMR FLYBACK DC/DC CONV 50UH SMD Würth Elektronik	0	-	RFQ	Datasheet	WE-AGDT	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	UCC25800	Texas Instruments	13V	-	4000V	50µH	500kHz	-40°C ~ 130°C	-	-	Surface Mount	0.445" L x 0.431" W (11.30mm x 10.95mm)	0.470" (11.94mm)	-	Wirewound
VPH5-0155-R XFMR 22.3UH SMD Eaton - Electronics Division	0	-	RFQ	Datasheet	VERSA-PAC®	Bulk	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.827" L x 1.122" W (21.00mm x 28.50mm)	0.425" (10.80mm)	-	-

Total 1831 Record«Prev 1... 34 35 36 373839 40 41...92 Next»
