Switching Converter, SMPS Transformers

Switching Converter and SMPS Transformers are magnetic components used in switching power supplies to transfer energy, provide isolation and support voltage conversion. They are widely used in AC-DC power supplies, DC-DC converters, adapters, chargers, industrial power modules, LED drivers, communication equipment, consumer electronics and embedded systems.

This category includes flyback transformers, forward converter transformers, push-pull transformers, isolated DC-DC converter transformers, high-frequency SMPS transformers and related magnetic components. These products are commonly selected based on input voltage, output voltage, power rating, switching frequency, insulation rating, core material, mounting type, package style and application requirements.

TomatoElec supplies original Switching Converter and SMPS Transformers from recognized manufacturers such as Würth Elektronik, Pulse Electronics, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, Eaton and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Type	Applications	Intended Chipset	Chipset Manufacturer	Voltage - Primary	Voltage - Auxiliary	Voltage - Isolation	Inductance @ Frequency	Frequency	Operating Temperature	Grade	Qualification	Mounting Type	Size / Dimension	Height - Seated (Max)	Footprint	Style
ECO2230SEO-D04V016 XFMR FLYBACK AC/DC CONV TH TDK Corporation	39	-	RFQ	Datasheet	ECO	Bulk	Active	For AC/DC Converters	Flyback Converters	-	-	-	-	-	-	50kHz	-30°C ~ 120°C	-	-	Through Hole	-	1.417" (36.00mm)	-	-
750342779 XFMR FLYBACK DC/DC CONV 50UH SMD Würth Elektronik	53	-	RFQ	Datasheet	MID-IBMAX	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	17 ~ 36V	7V @ 100mA	1875Vrms	50µH @ 50kHz	-	-40°C ~ 125°C	-	-	Surface Mount	-	0.420" (10.67mm)	0.385" L x 0.374" W (9.78mm x 9.50mm)	-
7508112514 XFMR FLYBACK DC/DC CONV 460UH TH Würth Elektronik	27	-	RFQ	Datasheet	MID-OLEFD	Tray	Active	For DC/DC Converters	Flyback Converters	-	-	120 ~ 375V	20V	4500Vrms	460µH @ 10kHz	68 ~ 110kHz	-40°C ~ 125°C	-	-	Through Hole	-	0.551" (14.00mm)	-	-
PG1895NLT XFMR FLYBACK 48UH SMD Pulse Electronics	91	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	Flyback Converters	-	-	12 ~ 36V	23V @ 30mA	2420V	48µH @ 100kHz	100kHz	-40°C ~ 125°C	-	-	Surface Mount	1.004" L x 1.063" W (25.50mm x 27.00mm)	0.472" (12.00mm)	1.157" L x 1.004" W (29.40mm x 25.50mm)	Wirewound
7491195501 XFMR POE DC/DC CONV 21UH SMD Würth Elektronik	52	-	RFQ	Datasheet	WE-PoEH	Tape & Reel (TR)	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	-	9 ~ 57V	10V	1500Vrms	21µH @ 100kHz	200 ~ 400kHz	-40°C ~ 125°C	-	-	Surface Mount	0.551" L x 0.591" W (14.00mm x 15.00mm)	0.571" (14.50mm)	0.551" L x 0.591" W (14.00mm x 18.10mm)	-
PA0808NL XFMR DC/DC CONV SMD Pulse Electronics	39	-	RFQ	Datasheet	PA08XXNL	Tray	Active	For DC/DC Converters	-	-	-	18 ~ 76V	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	-	-	Surface Mount	0.850" L x 0.920" W (21.60mm x 23.37mm)	0.348" (8.85mm)	0.850" L x 0.920" W (21.60mm x 23.37mm)	Planar

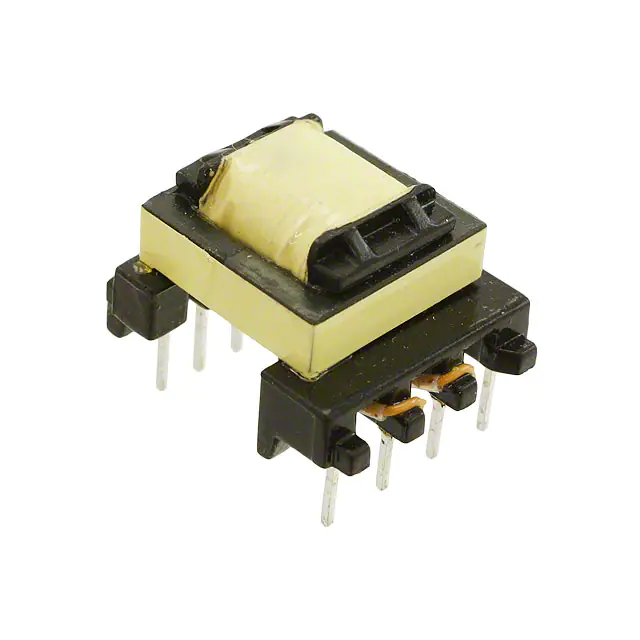

7491182124 XFMR LED DR AC/DC CONV 900UH TH Würth Elektronik	95	-	RFQ	Datasheet	WE-UNIT	Tray	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	NCP101x, NCP105x	On Semiconductor	120 ~ 385V	-	4000Vrms	900µH @ 10kHz	132kHz	-40°C ~ 125°C	-	-	Through Hole	0.795" L x 0.965" W (20.20mm x 24.50mm)	0.650" (16.50mm)	0.795" L x 0.965" W (20.20mm x 24.50mm)	-
PH0810CNL XFMR DC/DC CONV SMD Pulse Electronics	34	-	RFQ	Datasheet	PH08XXCNL	Tray	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	-	-	Surface Mount	0.850" L x 0.970" W (21.59mm x 24.65mm)	0.388" (9.85mm)	0.850" L x 0.970" W (21.59mm x 24.65mm)	Planar
749196541 XFMR FLEX CONFIG DC/DC 7.6UH SMD Würth Elektronik	73	-	RFQ	Datasheet	WE-FLEX	Tape & Reel (TR)	Active	Configurable (For DC/DC)	Flexible	-	-	-	-	500VDC	7.6µH @ 10kHz	-	-40°C ~ 125°C	-	-	Surface Mount	0.827" L x 0.827" W (21.00mm x 21.00mm)	0.425" (10.80mm)	0.827" L x 1.169" W (21.00mm x 29.70mm)	-
750343109 XFMR FLYBACK AC/DC CONV 490UH TH Würth Elektronik	34	-	RFQ	Datasheet	WE-FB, MID-OLDIA	Tray	Active	For AC/DC Converters	Flyback Converters	-	Dialog Semiconductor	90 ~ 264V	14V	3000Vrms	490µH @ 10kHz	70kHz	-40°C ~ 125°C	-	-	Through Hole	0.874" L x 1.024" W (22.20mm x 26.00mm)	0.635" (16.13mm)	0.874" L x 1.024" W (22.20mm x 26.00mm)	-
750315039 XFMR ISOL BUCK DC/DC CON 40UH SM Würth Elektronik	38	-	RFQ	Datasheet	MID-IBTI	Tape & Reel (TR)	Active	For DC/DC Converters	Isolated Buck Converters	-	Texas Instruments	-	-	1500Vrms	40µH @ 10kHz	250kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.955" (24.26mm)	0.910" L x 1.145" W (23.11mm x 29.08mm)	-
PE-68414NL XFMR FLYBACK DC/DC CONV SMD Pulse Electronics	39	-	RFQ	Datasheet	-	Tray	Active	For DC/DC Converters	Flyback Converters	LM2585, LM2586, LM2587, LM2588	National Semiconductor	18 ~ 36V	-	1500Vrms	-	-	-40°C ~ 130°C	-	-	Surface Mount	0.920" L x 1.040" W (23.37mm x 26.42mm)	0.480" (12.19mm)	0.920" L x 1.040" W (23.37mm x 26.42mm)	-
760871333 XFMR 250UH SMD Würth Elektronik	38	-	RFQ	Datasheet	WE-SLIM	Tray	Active	-	-	-	-	-	-	4000Vrms	250µH @ 50kHz	130kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.472" (12.00mm)	1.157" L x 1.870" W (29.40mm x 47.50mm)	-
MTPL-2516-S24V XFMR PLANAR TH Vishay Dale	19	-	RFQ	Datasheet	MTPL-2516	Tray	Active	-	-	-	-	-	-	-	-	-	-55°C ~ 130°C	-	-	Through Hole	1.181" L x 1.024" W (30.00mm x 26.00mm)	0.650" (16.51mm)	-	Planar
750313054 XFMR FLYBACK DC/DC CONV 500UH TH Würth Elektronik	13	-	RFQ	Datasheet	MID-OLON	Tray	Active	For DC/DC Converters	Flyback Converters	-	On Semiconductor	-	-	4000Vrms	500µH @ 10kHz	-	-40°C ~ 125°C	-	-	Through Hole	-	0.950" (24.13mm)	-	-
VPH5-0067-R XFMR 9.65UH SMD Eaton - Electronics Division	25	-	RFQ	Datasheet	VERSA-PAC®	Bulk	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.827" L x 1.122" W (21.00mm x 28.50mm)	0.425" (10.80mm)	-	-
VPH4-0140-R XFMR 23.7UH SMD Eaton - Electronics Division	7	-	RFQ	Datasheet	VERSA-PAC®	Bulk	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.709" L x 0.969" W (18.00mm x 24.60mm)	0.394" (10.00mm)	-	-
VGT22EPC-200S6A12 XFMR FLYBACK AC/DC CONV 2.5UH SM TDK Corporation	98	-	RFQ	Datasheet	VGT	Tape & Reel (TR)	Active	For AC/DC Converters	Flyback Converters	-	-	-	-	2600Vrms	2.5µH @ 100kHz	-	-40°C ~ 130°C	-	-	Surface Mount	1.299" L x 0.976" W (33.00mm x 24.80mm)	0.539" (13.70mm)	1.299" L x 1.055" W (33.00mm x 26.80mm)	Wirewound
VPH4-0060-R XFMR 10.1UH SMD Eaton - Electronics Division	42	-	RFQ	Datasheet	VERSA-PAC®	Bulk	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.709" L x 0.969" W (18.00mm x 24.60mm)	0.394" (10.00mm)	-	-

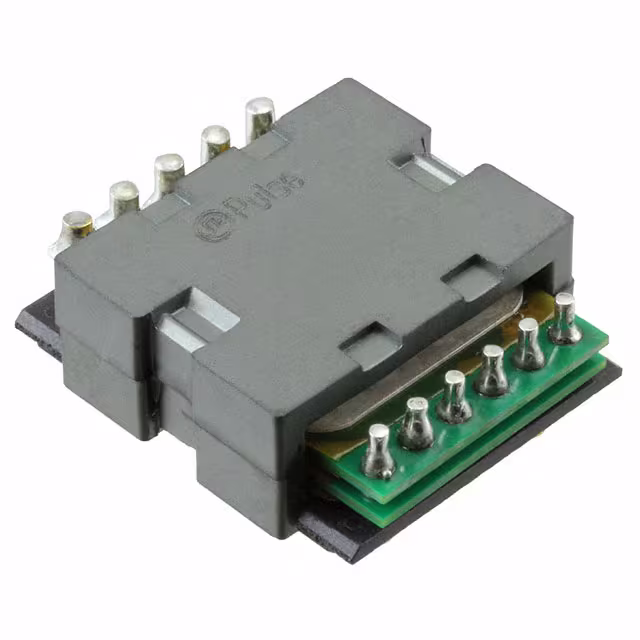

PA0907NL XFMR SMD Pulse Electronics	80	-	RFQ	Datasheet	-	Tray	Active	-	-	-	-	-	-	-	-	-	-	-	-	Surface Mount	1.160" L x 1.000" W (29.46mm x 25.40mm)	0.402" (10.20mm)	1.000" L x 1.160" W (25.40mm x 29.46mm)	-

Total 1831 Record«Prev 1... 30 31 32 333435 36 37...92 Next»
