Switching Converter, SMPS Transformers

Switching Converter and SMPS Transformers are magnetic components used in switching power supplies to transfer energy, provide isolation and support voltage conversion. They are widely used in AC-DC power supplies, DC-DC converters, adapters, chargers, industrial power modules, LED drivers, communication equipment, consumer electronics and embedded systems.

This category includes flyback transformers, forward converter transformers, push-pull transformers, isolated DC-DC converter transformers, high-frequency SMPS transformers and related magnetic components. These products are commonly selected based on input voltage, output voltage, power rating, switching frequency, insulation rating, core material, mounting type, package style and application requirements.

TomatoElec supplies original Switching Converter and SMPS Transformers from recognized manufacturers such as Würth Elektronik, Pulse Electronics, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, Eaton and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Type	Applications	Intended Chipset	Chipset Manufacturer	Voltage - Primary	Voltage - Auxiliary	Voltage - Isolation	Inductance @ Frequency	Frequency	Operating Temperature	Grade	Qualification	Mounting Type	Size / Dimension	Height - Seated (Max)	Footprint	Style

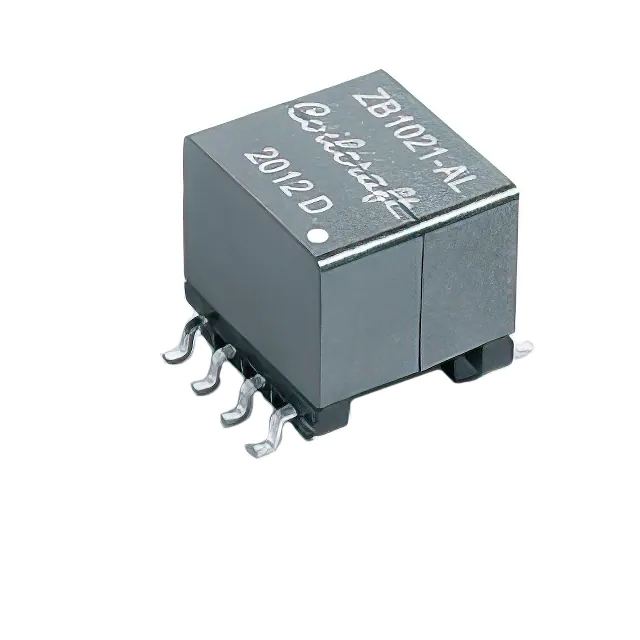

ZB1021-ALD XFMR 22UH SMD Coilcraft	498	-	RFQ	Datasheet	-	Strip	Active	-	-	-	-	17 ~ 36V	-	1500Vrms	22µH @ 150kHz	150kHz	-40°C ~ 85°C	-	-	Surface Mount	0.500" L x 0.413" W (12.70mm x 10.50mm)	0.433" (11.00mm)	0.600" L x 0.500" W (15.24mm x 12.70mm)	-
POL-45012 XFMR LED DR AC/DC CONV 950UH TH Premier Magnetics	526	-	RFQ	Datasheet	-	Tape & Box (TB)	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	TOP204YAI	Power Integrations	-	-	3000V	950µH @ 100kHz	-	-	-	-	Through Hole	1.122" L x 1.004" W (28.50mm x 25.50mm)	0.953" (24.20mm)	-	-
POL-INN042 XFMR FLYBACK AC/DC CONV 460UH Premier Magnetics	347	-	RFQ	Datasheet	-	Tape & Box (TB)	Active	For AC/DC Converters	Flyback Converters	-	-	-	-	-	460µH @ 100kHz	-	-	-	-	-	-	-	-	-
POL-INN044 XFMR FLYBACK AC/DC CONV Premier Magnetics	150	-	RFQ	Datasheet	-	Tape & Box (TB)	Active	For AC/DC Converters	Flyback Converters	-	-	90 ~ 265V	-	-	-	-	-	-	-	-	-	-	-	-
POL-28022 XFMR LED DR AC/DC CONV 548UH TH Premier Magnetics	167	-	RFQ	Datasheet	-	Tape & Box (TB)	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	TOP204Y	Power Integrations	-	-	3000V	548µH @ 100kHz	-	-	-	-	Through Hole	1.240" L x 1.043" W (31.50mm x 26.50mm)	1.299" (33.00mm)	-	-
POL-INN047 XFMR FLYBACK AC/DC CONV 469UH Premier Magnetics	494	-	RFQ	Datasheet	-	Tape & Box (TB)	Active	For AC/DC Converters	Flyback Converters	-	-	-	-	-	469µH @ 100kHz	-	-	-	-	-	-	-	-	-
750311604 XFMR FLYBACK DC/DC CONV 8UH SMD Würth Elektronik	57	-	RFQ	Datasheet	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	20 ~ 48V	-	1500Vrms	8µH @ 10kHz	-	-40°C ~ 125°C	-	-	Surface Mount	-	0.455" (11.56mm)	0.910" L x 1.150" W (23.11mm x 29.08mm)	-
VP4-0075-R XFMR 6.1UH SMD Eaton - Electronics Division	84	-	RFQ	Datasheet	VERSA-PAC®	Bulk	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.709" L x 0.969" W (18.00mm x 24.60mm)	0.394" (10.00mm)	-	-
750315213 XFMR FWD P-P DC/DC CONV 563UH SM Würth Elektronik	87	-	RFQ	Datasheet	WE-PPTI	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	Maxim Integrated	8 ~ 36V	-	3125Vrms	563µH @ 10kHz	150 ~ 500kHz	-40°C ~ 125°C	-	-	Surface Mount	0.385" L x 0.360" W (9.78mm x 9.14mm)	0.415" (10.54mm)	-	Laminated Core
750315828 XFMR FLYBACK DC/DC CONV 150UH SM Würth Elektronik	60	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	Linear Technology	36 ~ 72V	-	1875Vrms	150µH @ 10kHz	50 ~ 200kHz	-40°C ~ 125°C	-	-	Surface Mount	-	-	-	-
750310349 XFMR CAP CHAR DC/DC CONV 5UH SMD Würth Elektronik	60	-	RFQ	Datasheet	WE-FB	Tray	Active	For DC/DC Converters	Capacitor Charger	LT3751	Linear Technology	18 ~ 30V	-	1000Vrms	5µH @ 50kHz	-	-40°C ~ 125°C	-	-	Surface Mount	-	0.910" (23.11mm)	1.437" L x 1.653" W (36.50mm x 42.00mm)	-
750342104 XFMR FLYBACK AC/DC CONV 1.3MH TH Würth Elektronik	42	-	RFQ	Datasheet	WE-FB, MID-OLTI	Tray	Active	For AC/DC Converters	Flyback Converters	UCC287xx, UCC289xx	Texas Instruments	85 ~ 264V	12V @ 60mA	3750Vrms	1.3mH @ 50kHz	80kHz	-40°C ~ 125°C	-	-	Through Hole	0.689" L x 0.740" W (17.50mm x 18.80mm)	0.524" (13.31mm)	0.665" L x 0.740" W (16.90mm x 18.80mm)	-
750370024 XFMR FLYBACK AC/DC CONV 1.6MH TH Würth Elektronik	47	-	RFQ	Datasheet	WE-UNIT, MID-OLSTM	Tray	Active	For AC/DC Converters	Flyback Converters	VIPER17H	STMicroelectronics	85 ~ 424V	16V @ 50mA	4000Vrms	1.6mH @ 10kHz	115kHz	-40°C ~ 125°C	-	-	Through Hole	0.540" L x 0.805" W (13.72mm x 20.45mm)	0.430" (10.92mm)	0.540" L x 0.805" W (13.72mm x 20.45mm)	-
750318131 XFMR FLYBACK DC/DC CONV 7UH SMD Würth Elektronik	30	-	RFQ	Datasheet	WE-AGDT	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	9 ~ 18V	-	4000Vrms	7µH @ 100kHz	350kHz	-40°C ~ 130°C	-	-	Surface Mount	0.445" L x 0.431" W (11.30mm x 10.95mm)	0.470" (11.94mm)	0.445" L x 0.431" W (11.30mm x 10.95mm)	-
750311889 XFMR FLYBACK DC/DC CONV 37UH SMD Würth Elektronik	87	-	RFQ	Datasheet	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	28V	-	500Vrms	37µH @ 100kHz, 928µH @ 100kHz	100 ~ 300kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.544" (13.82mm)	1.064" L x 1.272" W (27.03mm x 32.31mm)	-
750311590 XFMR FLYBACK DC/DC CONV 8UH SMD Würth Elektronik	74	-	RFQ	Datasheet	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	20 ~ 48V	10V	1500Vrms	8µH @ 150kHz	150kHz	-40°C ~ 85°C	-	-	Surface Mount	-	0.544" (13.82mm)	1.064" L x 1.272" W (27.03mm x 32.31mm)	-
7508112341 XFMR FLYBACK AC/DC CONV 380UH TH Würth Elektronik	40	-	RFQ	Datasheet	MID-OLTI	Tray	Active	For AC/DC Converters	Flyback Converters	-	Texas Instruments	120 ~ 375V	12V @ 10mA	4500Vrms	380µH @ 10kHz	60 ~ 120kHz	-40°C ~ 125°C	-	-	Through Hole	1.299" L x 1.035" W (33.00mm x 26.30mm)	0.581" (14.76mm)	-	Laminated Core
750317464 XFMR FLYBACK DC/DC CONV 440UH TH Würth Elektronik	62	-	RFQ	Datasheet	MID-OLLT	Tray	Active	For DC/DC Converters	Flyback Converters	-	Linear Technology	80 ~ 600V	12V @ 20mA	3000V	440µH @ 1kHz	100kHz	-40°C ~ 125°C	-	-	Through Hole	1.240" L x 1.240" W (31.50mm x 31.50mm)	0.807" (20.50mm)	-	Laminated Core
750343068 XFMR FLYBACK AC/DC CONV TH Würth Elektronik	24	-	RFQ	Datasheet	MID-OLTI	Tray	Active	For AC/DC Converters	Flyback Converters	-	Texas Instruments	-	-	3750Vrms	-	65kHz	-40°C ~ 125°C	-	-	Through Hole	-	1.154" (29.30mm)	-	-
VPH5-0053-R XFMR 7.63UH SMD Eaton - Electronics Division	50	-	RFQ	Datasheet	VERSA-PAC®	Bulk	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.827" L x 1.122" W (21.00mm x 28.50mm)	0.425" (10.80mm)	-	-

Total 1831 Record«Prev 1... 27 28 29 303132 33 34...92 Next»
