Switching Converter, SMPS Transformers

Switching Converter and SMPS Transformers are magnetic components used in switching power supplies to transfer energy, provide isolation and support voltage conversion. They are widely used in AC-DC power supplies, DC-DC converters, adapters, chargers, industrial power modules, LED drivers, communication equipment, consumer electronics and embedded systems.

This category includes flyback transformers, forward converter transformers, push-pull transformers, isolated DC-DC converter transformers, high-frequency SMPS transformers and related magnetic components. These products are commonly selected based on input voltage, output voltage, power rating, switching frequency, insulation rating, core material, mounting type, package style and application requirements.

TomatoElec supplies original Switching Converter and SMPS Transformers from recognized manufacturers such as Würth Elektronik, Pulse Electronics, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, Eaton and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Type	Applications	Intended Chipset	Chipset Manufacturer	Voltage - Primary	Voltage - Auxiliary	Voltage - Isolation	Inductance @ Frequency	Frequency	Operating Temperature	Grade	Qualification	Mounting Type	Size / Dimension	Height - Seated (Max)	Footprint	Style
PA5100.005NLT XFMR FWD P-P DC/DC CONV SMD Pulse Electronics	861	-	RFQ	Datasheet	PA5100XXXNL	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	9 ~ 57V	-	2250V	-	200kHz	-40°C ~ 125°C	-	-	Surface Mount	0.535" L x 0.433" W (13.60mm x 11.00mm)	0.610" (15.50mm)	0.535" L x 0.433" W (13.60mm x 11.00mm)	Wirewound
PA5099.003NLT XFMR FLYBACK DC/DC CONV SMD Pulse Electronics	1,701	-	RFQ	Datasheet	PA5099.XXXNLT	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	33 ~ 57V	-	2250VDC	-	200kHz	-40°C ~ 125°C	-	-	Surface Mount	0.535" L x 0.433" W (13.60mm x 11.00mm)	0.610" (15.50mm)	0.535" L x 0.433" W (13.60mm x 11.00mm)	Wirewound
PA5100.006NLT XFMR FWD P-P DC/DC CONV SMD Pulse Electronics	865	-	RFQ	Datasheet	PA5100XXXNL	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	9 ~ 57V	-	2250V	-	200kHz	-40°C ~ 125°C	-	-	Surface Mount	0.535" L x 0.433" W (13.60mm x 11.00mm)	0.610" (15.50mm)	0.535" L x 0.433" W (13.60mm x 11.00mm)	Wirewound
PA5100.004NLT XFMR FWD P-P DC/DC CONV SMD Pulse Electronics	865	-	RFQ	Datasheet	PA5100XXXNL	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	9 ~ 57V	-	2250V	-	200kHz	-40°C ~ 125°C	-	-	Surface Mount	0.535" L x 0.433" W (13.60mm x 11.00mm)	0.610" (15.50mm)	0.535" L x 0.433" W (13.60mm x 11.00mm)	Wirewound
PA5100.002NLT XFMR FWD P-P DC/DC CONV SMD Pulse Electronics	855	-	RFQ	Datasheet	PA5100XXXNL	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	33 ~ 57V	-	2250V	-	200kHz	-40°C ~ 125°C	-	-	Surface Mount	0.535" L x 0.433" W (13.60mm x 11.00mm)	0.610" (15.50mm)	0.535" L x 0.433" W (13.60mm x 11.00mm)	Wirewound
PA5100.001NLT XFMR FWD P-P DC/DC CONV SMD Pulse Electronics	113	-	RFQ	Datasheet	PA5100XXXNL	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	33 ~ 57V	-	2250V	-	200kHz	-40°C ~ 125°C	-	-	Surface Mount	0.535" L x 0.433" W (13.60mm x 11.00mm)	0.610" (15.50mm)	0.535" L x 0.433" W (13.60mm x 11.00mm)	Wirewound
PA3856.004NLT XFMR FWD P-P DC/DC CONV SMD Pulse Electronics	900	-	RFQ	Datasheet	EP13Plus	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	9 ~ 57V	10V @ 50mA	2250VDC	-	200kHz	-40°C ~ 130°C	-	-	Surface Mount	0.571" L x 0.526" W (14.50mm x 13.36mm)	0.551" (14.00mm)	0.571" L x 0.695" W (14.50mm x 17.65mm)	-
PGT6465NLT XFMR FLYBACK 205UH SMD Pulse Electronics	138	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	-	-	-	70 ~ 820V	-	4000Vrms	205µH @ 100kHz	133kHz	-40°C ~ 130°C	-	-	Surface Mount	0.650" L x 0.642" W (16.50mm x 16.30mm)	0.433" (11.00mm)	0.862" L x 0.650" W (21.90mm x 16.50mm)	Wirewound
POE7W2X12-R XFMR POE CONFIG DC/DC 100UH SMD Eaton - Electronics Division	0	-	RFQ	Datasheet	PoE	Tape & Reel (TR)	Active	Configurable (For DC/DC)	Power Over Ethernet (PoE)	-	-	-	-	1500Vrms	100µH @ 100kHz	250kHz	-40°C ~ 85°C	-	-	Surface Mount	0.673" L x 0.630" W (17.10mm x 16.00mm)	0.331" (8.40mm)	0.673" L x 0.878" W (17.10mm x 22.30mm)	-
POE030-PD13050S XFMR POE DC/DC CONV 70UH SMD Bourns Inc.	146	-	RFQ	Datasheet	POE-PD	Tape & Reel (TR)	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	-	33 ~ 57V	11.5V	1500Vrms	70µH @ 100kHz	200kHz	-40°C ~ 125°C	-	-	Surface Mount	0.638" L x 0.551" W (16.20mm x 14.00mm)	0.571" (14.50mm)	-	-
PA5000.001NL XFMR FWD P-P DC/DC CONV 100UH SM Pulse Electronics	600	-	RFQ	Datasheet	PA5000.XXXNL	Tray	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	33 ~ 75V	10V @ 50mA	3000Vrms	100µH	200kHz	-40°C ~ 130°C	-	-	Surface Mount	0.531" L x 0.520" W (13.50mm x 13.20mm)	0.650" (16.50mm)	0.697" L x 0.531" W (17.70mm x 13.50mm)	Wirewound
PA5000.002NL XFMR FWD P-P DC/DC CONV 100UH SM Pulse Electronics	595	-	RFQ	Datasheet	PA5000.XXXNL	Tray	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	33 ~ 75V	10V @ 50mA	3000Vrms	100µH	200kHz	-40°C ~ 130°C	-	-	Surface Mount	0.531" L x 0.520" W (13.50mm x 13.20mm)	0.650" (16.50mm)	0.697" L x 0.531" W (17.70mm x 13.50mm)	Wirewound
PA5111.001NLT XFMR FLYBACK DC/DC CONV 80UH SMD Pulse Electronics	244	-	RFQ	Datasheet	PA5111.XXXNL	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	33 ~ 75V	-	3000Vrms	80µH @ 200kHz	200kHz	-40°C ~ 130°C	-	-	Surface Mount	0.531" L x 0.520" W (13.50mm x 13.20mm)	0.650" (16.50mm)	0.689" L x 0.531" W (17.50mm x 13.50mm)	Wirewound
PA5000.003NLT XFMR FWD P-P DC/DC CONV 100UH SM Pulse Electronics	110	-	RFQ	Datasheet	PA5000.XXXNL	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	33 ~ 75V	-	5000Vrms	100µH @ 200kHz	200kHz	-40°C ~ 130°C	-	-	Surface Mount	0.531" L x 0.520" W (13.50mm x 13.20mm)	0.650" (16.50mm)	0.689" L x 0.531" W (17.50mm x 13.50mm)	Wirewound
PA5111.002NLT XFMR FLYBACK DC/DC CONV 80UH SMD Pulse Electronics	105	-	RFQ	Datasheet	PA5111.XXXNL	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	33 ~ 75V	-	3000Vrms	80µH @ 200kHz	200kHz	-40°C ~ 130°C	-	-	Surface Mount	0.531" L x 0.520" W (13.50mm x 13.20mm)	0.650" (16.50mm)	0.689" L x 0.531" W (17.50mm x 13.50mm)	Wirewound
PA4470.005NLT XFMR FLYBACK DC/DC CONV SMD Pulse Electronics	698	-	RFQ	Datasheet	PA4470	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	33 ~ 57V	10V @ 50mA	-	-	200kHz	-40°C ~ 130°C	-	-	Surface Mount	-	0.236" (6.00mm)	0.315" L x 0.374" W (8.00mm x 9.50mm)	-
PA4470.001NLT XFMR FLYBACK DC/DC CONV SMD Pulse Electronics	482	-	RFQ	Datasheet	PA4470	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	33 ~ 57V	10V @ 50mA	-	-	200kHz	-40°C ~ 130°C	-	-	Surface Mount	-	0.236" (6.00mm)	0.315" L x 0.374" W (8.00mm x 9.50mm)	-

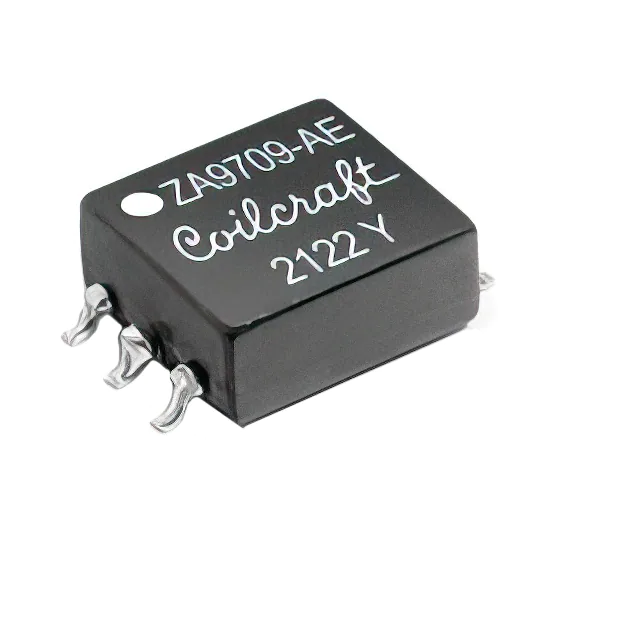

ZA9709-AED XFMR FWD P-P DC/DC CONV 145UH SM Coilcraft	2,264	-	RFQ	Datasheet	ZA9709	Strip	Active	For DC/DC Converters	Forward, Push-Pull Converters	SN6505B	Texas Instruments	3.3V	-	2500Vrms	145µH @ 100kHz	-	-40°C ~ 125°C	-	-	Surface Mount	-	0.171" (4.34mm)	0.512" L x 0.347" W (13.00mm x 8.82mm)	-
PAT6042NL XFMR FLYBACK Pulse Electronics	3,640	-	RFQ	Datasheet	*	Tray	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ZA9671-BED XFMR FLYBACK DC/DC CONV 9UH SMD Coilcraft	958	-	RFQ	Datasheet	-	Strip	Active	For DC/DC Converters	Flyback Converters	LM25184	Texas Instruments	4 ~ 42V	-	1500Vrms	9µH @ 300kHz	300kHz	-40°C ~ 85°C	-	-	Surface Mount	-	0.394" (10.00mm)	0.520" L x 0.430" W (13.21mm x 10.92mm)	-

Total 1831 Record«Prev 1... 25 26 27 282930 31 32...92 Next»
