Switching Converter, SMPS Transformers

Switching Converter and SMPS Transformers are magnetic components used in switching power supplies to transfer energy, provide isolation and support voltage conversion. They are widely used in AC-DC power supplies, DC-DC converters, adapters, chargers, industrial power modules, LED drivers, communication equipment, consumer electronics and embedded systems.

This category includes flyback transformers, forward converter transformers, push-pull transformers, isolated DC-DC converter transformers, high-frequency SMPS transformers and related magnetic components. These products are commonly selected based on input voltage, output voltage, power rating, switching frequency, insulation rating, core material, mounting type, package style and application requirements.

TomatoElec supplies original Switching Converter and SMPS Transformers from recognized manufacturers such as Würth Elektronik, Pulse Electronics, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, Eaton and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Type	Applications	Intended Chipset	Chipset Manufacturer	Voltage - Primary	Voltage - Auxiliary	Voltage - Isolation	Inductance @ Frequency	Frequency	Operating Temperature	Grade	Qualification	Mounting Type	Size / Dimension	Height - Seated (Max)	Footprint	Style
750311475 XFMR LED DR AC/DC CONV 1.72MH TH Würth Elektronik	17	-	RFQ	Datasheet	WE-UNIT, MID-OLON	Tray	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	NCL30000	On Semiconductor	127 ~ 431V	-	4500Vrms	1.72mH @ 10kHz	39kHz	-40°C ~ 125°C	-	-	Through Hole	1.060" L x 1.050" W (26.92mm x 26.67mm)	0.575" (14.60mm)	1.060" L x 1.050" W (26.92mm x 26.67mm)	-
VP4-0140TR-R XFMR 11.3UH SMD Eaton - Electronics Division	0	-	RFQ	Datasheet	VERSA-PAC®	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.709" L x 0.969" W (18.00mm x 24.60mm)	0.394" (10.00mm)	-	-
VP4-0860TR-R XFMR 87UH SMD Eaton - Electronics Division	0	-	RFQ	Datasheet	VERSA-PAC®	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.709" L x 0.969" W (18.00mm x 24.60mm)	0.394" (10.00mm)	-	-
760895451 XFMR RES CONV AC/DC 600UH TH Würth Elektronik	0	-	RFQ	Datasheet	WE-LLCR	Tray	Active	For AC/DC Converters	Resonant Converters	-	-	360 ~ 400V	-	4000Vrms	600µH @ 100kHz	70 ~ 120kHz	-40°C ~ 125°C	-	-	Through Hole	1.417" L x 1.417" W (36.00mm x 36.00mm)	1.024" (26.00mm)	1.417" L x 1.417" W (36.00mm x 36.00mm)	-
760895641 XFMR RES CONV AC/DC 500UH TH Würth Elektronik	1	-	RFQ	Datasheet	WE-LLCR	Tray	Active	For AC/DC Converters	Resonant Converters	-	-	360 ~ 400V	-	4000Vrms	500µH @ 100kHz	70 ~ 120kHz	-40°C ~ 125°C	-	-	Through Hole	1.692" L x 1.732" W (43.00mm x 44.00mm)	1.181" (30.00mm)	1.692" L x 1.732" W (43.00mm x 44.00mm)	-
PAD002-T764111S XFMR FWD P-P DC/DC CONV 475UH SM Bourns Inc.	9	-	RFQ	Datasheet	PAD00x-T764	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	3100Vrms	475µH @ 100kHz	-	-40°C ~ 125°C	-	-	Surface Mount	0.280" L x 0.258" W (7.10mm x 6.55mm)	0.157" (3.99mm)	0.388" L x 0.258" W (9.85mm x 6.55mm)	-
PAD002-T764113S XFMR FWD P-P DC/DC CONV 475UH SM Bourns Inc.	0	-	RFQ	Datasheet	PAD00x-T764	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	3100Vrms	475µH @ 100kHz	-	-40°C ~ 125°C	-	-	Surface Mount	0.280" L x 0.258" W (7.10mm x 6.55mm)	0.157" (3.99mm)	0.388" L x 0.258" W (9.85mm x 6.55mm)	-
7508110127 XFMR FLYBCK AC/DC CONV 1.05MH TH Würth Elektronik	0	-	RFQ	Datasheet	MID-OLTI	Tray	Active	For AC/DC Converters	Flyback Converters	-	Texas Instruments	82 ~ 375V	-	4000V	1.05mH @ 10kHz	120kHz	-40°C ~ 125°C	-	-	Through Hole	0.560" L x 0.560" W (14.22mm x 14.22mm)	0.500" (12.70mm)	-	Laminated Core
750317589 XFMR FLYBACK DC/DC CONV 670UH TH Würth Elektronik	5	-	RFQ	Datasheet	MID-OLTI	Tray	Active	For DC/DC Converters	Flyback Converters	-	Linear Technology	100 ~ 600V	12V @ 20mA	3000V	670µH @ 1kHz	140kHz	-40°C ~ 125°C	-	-	Through Hole	1.240" L x 1.240" W (31.50mm x 31.50mm)	0.807" (20.50mm)	-	Laminated Core
TGM-230NSLF ISO MOD DC MAX253 4C:3C 11VUS 6P HALO Electronics, Inc.	0	-	RFQ	Datasheet	-	Tube	Active	For DC/DC Converters	Isolated Buck Converters	MAX253, MAX845, MAX3535, MXL1535	Analog Devices, Inc	-	-	1500Vrms	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.320" L x 0.280" W (8.13mm x 7.11mm)	0.200" (5.08mm)	-	-
TGM-220NSLF ISO MOD DC MAX253 8C:3C 11VUS 6P HALO Electronics, Inc.	0	-	RFQ	Datasheet	-	Tube	Active	For DC/DC Converters	Isolated Buck Converters	MAX253, MAX845, MAX3535, MXL1535	Analog Devices, Inc	-	-	1500Vrms	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.320" L x 0.280" W (8.13mm x 7.11mm)	0.200" (5.08mm)	-	-
TGM-210NSLF ISO MOD DC MAX253 2C:1C 11VUS 6P HALO Electronics, Inc.	0	-	RFQ	Datasheet	-	Tube	Active	For DC/DC Converters	Isolated Buck Converters	MAX253, MAX845, MAX3535, MXL1535	Analog Devices, Inc	-	-	1500Vrms	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.320" L x 0.280" W (8.13mm x 7.11mm)	0.200" (5.08mm)	-	-

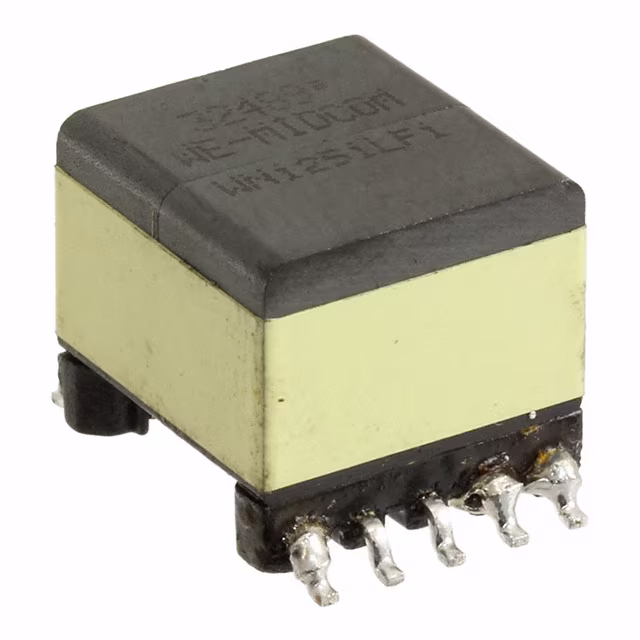

750032489 XFMR FLYBACK DC/DC CONV 5UH SMD Würth Elektronik	0	-	RFQ	Datasheet	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	15V	-	500Vrms	5µH @ 100kHz	-	-40°C ~ 125°C	-	-	Surface Mount	-	0.505" (12.83mm)	0.530" L x 0.699" W (13.46mm x 17.75mm)	-
TGM-230NSLFTR ISO MOD DC MAX253 4C:3C 11VUS 6P HALO Electronics, Inc.	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	For DC/DC Converters	Isolated Buck Converters	MAX253, MAX845, MAX3535, MXL1535	Analog Devices, Inc	-	-	1500Vrms	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.320" L x 0.280" W (8.13mm x 7.11mm)	0.200" (5.08mm)	-	-
TGM-220NSLFTR ISO MOD DC MAX253 8C:3C 11VUS 6P HALO Electronics, Inc.	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	For DC/DC Converters	Isolated Buck Converters	MAX253, MAX845, MAX3535, MXL1535	Analog Devices, Inc	-	-	1500Vrms	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.320" L x 0.280" W (8.13mm x 7.11mm)	0.200" (5.08mm)	-	-
TGM-210NSLFTR ISO MOD DC MAX253 2C:1C 11VUS 6P HALO Electronics, Inc.	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	For DC/DC Converters	Isolated Buck Converters	MAX253, MAX845, MAX3535, MXL1535	Analog Devices, Inc	-	-	1500Vrms	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.320" L x 0.280" W (8.13mm x 7.11mm)	0.200" (5.08mm)	-	-
C8102 XFMR FLYBACK Sumida America Components Inc.	0	-	RFQ	-	-	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	0.386" L x 0.343" W (9.80mm x 8.70mm)	0.270" (6.85mm)	0.386" L x 0.480" W (9.80mm x 12.20mm)	-
TDM-230NELF ISO MOD MAX845 4C:3C X-TEMP 6P T HALO Electronics, Inc.	0	-	RFQ	Datasheet	-	Tube	Active	For DC/DC Converters	Isolated Buck Converters	MAX253, MAX845, MAX3535, MXL1535	Analog Devices, Inc	-	-	1500Vrms	-	-	-40°C ~ 85°C	-	-	Through Hole	0.320" L x 0.280" W (8.13mm x 7.11mm)	0.210" (5.33mm)	-	-
TDM-210NELF ISO MOD MAX845 2C:1C X-TEMP 6P T HALO Electronics, Inc.	0	-	RFQ	Datasheet	-	Tube	Active	For DC/DC Converters	Isolated Buck Converters	MAX253, MAX845, MAX3535, MXL1535	Analog Devices, Inc	-	-	1500Vrms	-	-	-40°C ~ 85°C	-	-	Through Hole	0.320" L x 0.280" W (8.13mm x 7.11mm)	0.210" (5.33mm)	-	-
TDM-220NELF ISO MOD MAX845 8C:3C X-TEMP 6P T HALO Electronics, Inc.	0	-	RFQ	Datasheet	-	Tube	Active	For DC/DC Converters	Isolated Buck Converters	MAX253, MAX845, MAX3535, MXL1535	Analog Devices, Inc	-	-	1500Vrms	-	-	-40°C ~ 85°C	-	-	Through Hole	0.320" L x 0.280" W (8.13mm x 7.11mm)	0.210" (5.33mm)	-	-

Total 1831 Record«Prev 1... 37 38 39 404142 43 44...92 Next»
