Logic gates are among the most fundamental building blocks in digital electronics. Whether you are working on embedded systems, industrial control boards, consumer electronics, automotive modules, or communication equipment, basic logic functions appear everywhere. At the core of many digital circuits are four widely used gates: AND, OR, NAND, and NOR.

Although these gates are simple in concept, they play an essential role in real products. They are used to combine conditions, control signal flow, create enable functions, implement safety logic, and build more complex digital circuits. For engineers, purchasers, and electronics manufacturers, understanding these basic logic gates also makes it easier to evaluate logic ICs, compare alternatives, and choose suitable parts for different applications.

What Is a Logic Gate?

A logic gate is an electronic circuit that performs a Boolean operation on one or more input signals and produces a single output. In digital systems, signals are represented by two logic states: 0 and 1. Each gate follows a fixed rule that determines the output based on the input combination.

Even highly integrated processors and controllers are still built on basic digital logic principles. At the lowest level, many complex functions can be traced back to simple gate operations.

AND Gate

An AND gate outputs logic 1 only when all of its inputs are 1. In a standard two-input AND gate, the output stays low unless both input A and input B are high at the same time.

Boolean expression:
Y = A · B

In practical circuit design, AND gates are often used in enable paths and condition-checking logic. For example, a function may be activated only when both a control signal and a permission signal are present. This makes the AND gate especially useful in industrial control, interface logic, and embedded hardware.

OR Gate

An OR gate outputs logic 1 when at least one input is 1. If input A is high, input B is high, or both are high, the output becomes high.

Boolean expression:
Y = A + B

OR gates are commonly used when a system must react to one condition or another. Typical examples include alarm logic, fault aggregation, interrupt sources, and signal combining. In many designs, an OR gate is used when multiple events should be able to trigger the same response.

NAND Gate

The NAND gate is the inverse of the AND gate. It outputs logic 0 only when all inputs are 1. In all other input conditions, the output remains 1.

Boolean expression:
Y = (A · B)'

NAND is one of the most important gates in digital electronics because it is a universal gate. This means that other logic functions can be built using NAND gates alone. For that reason, NAND-based logic appears widely in digital IC design, computing hardware, industrial systems, and general-purpose logic circuits.

From a sourcing perspective, NAND gate ICs are also among the most common logic devices in standard families such as 74HC and 74LS.

NOR Gate

The NOR gate is the inverse of the OR gate. It outputs logic 1 only when all inputs are 0. If any input is 1, the output becomes 0.

Boolean expression:
Y = (A + B)'

Like NAND, NOR is also considered a universal gate. NOR gates are useful in reset logic, control paths, and circuits that require default-low behavior. They are often found in digital control logic, simple memory structures, and signal inversion-related applications.

Truth Table Comparison

The truth table below shows how these four basic gates respond to the same two-input combinations.

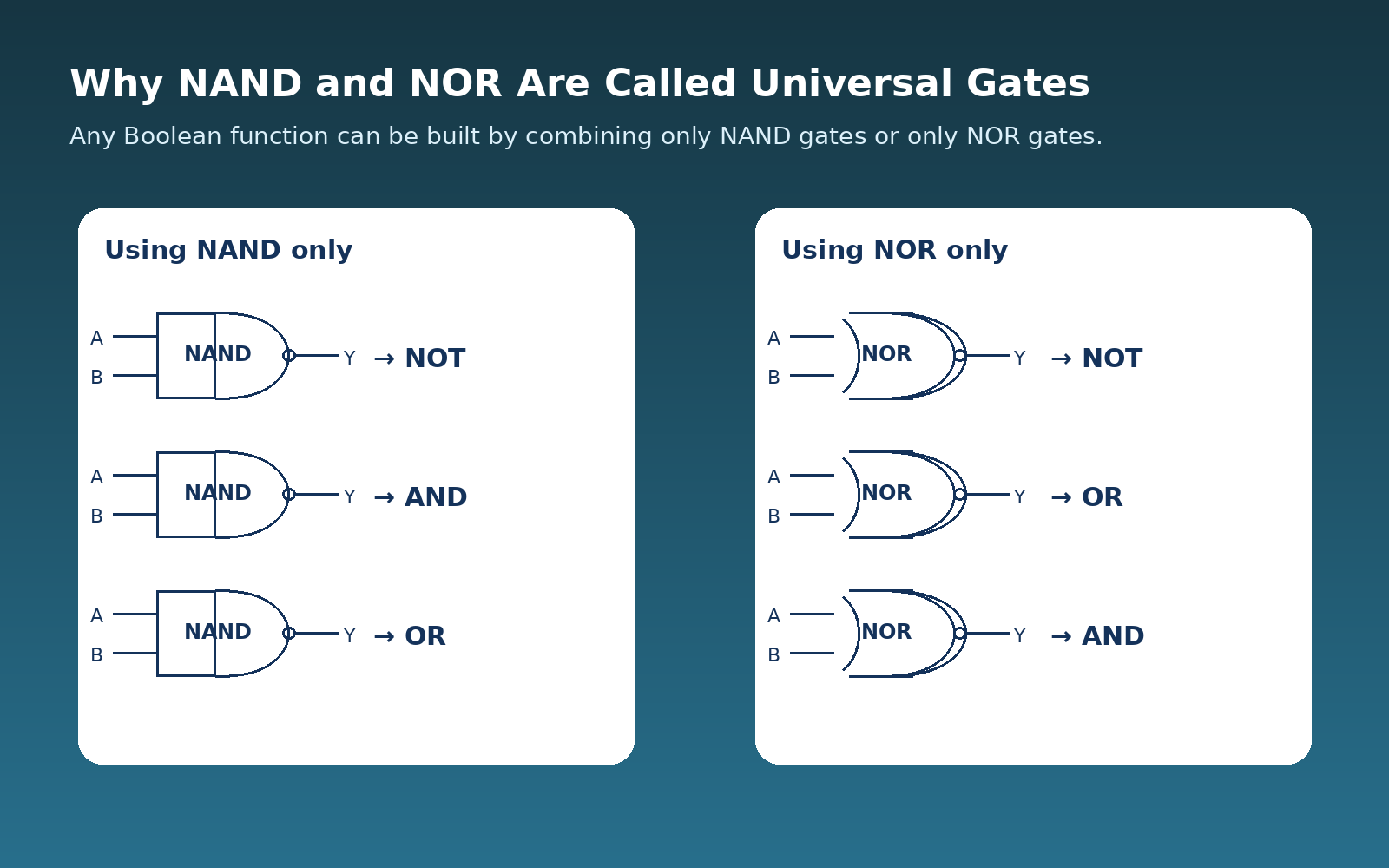

Why NAND and NOR Are Called Universal Gates

NAND and NOR are called universal gates because any Boolean logic function can be implemented using only NAND gates or only NOR gates. This gives designers greater flexibility when building digital logic networks and simplifies the understanding of basic logic synthesis.

For example, NOT, AND, and OR functions can all be recreated from NAND combinations. The same logic applies to NOR. This is one reason NAND and NOR are so important in digital design education and practical circuit implementation.

Common Applications of Basic Logic Gates

Basic logic gates are used across a wide range of electronic systems, including:

• Industrial automation and control boards
• Embedded systems and microcontroller support circuits
• Automotive electronics
• Consumer electronics products
• Communication and interface equipment
• Signal conditioning and timing logic
• Alarm, protection, and interlock circuits

In many practical designs, logic gates are not used in isolation. They are typically part of a larger logic chain that includes buffers, inverters, decoders, latches, and interface components.

Common Logic Gate ICs

Several standard logic IC families are widely used for implementing these functions. Common examples include:

• 74HC08 / 74LS08 – Quad 2-input AND gate
• 74HC32 / 74LS32 – Quad 2-input OR gate
• 74HC00 / 74LS00 – Quad 2-input NAND gate
• 74HC02 / 74LS02 – Quad 2-input NOR gate
• CD4011 – CMOS quad 2-input NAND gate
• CD4001 – CMOS quad 2-input NOR gate

When selecting logic ICs, engineers usually consider logic family, supply voltage, speed, power consumption, package type, and long-term availability. For procurement teams, cross-reference options and lifecycle stability are also important factors.

How to Choose the Right Logic Gate IC

Choosing the right logic gate device depends on more than just the gate function itself. In real projects, several practical factors should be reviewed before final selection:

• Logic family: such as 74HC, 74LS, or CMOS-based series
• Operating voltage: make sure the IC matches the system supply range
• Speed requirements: propagation delay can matter in higher-speed logic paths
• Power consumption: especially important in battery-powered or compact devices
• Package type: choose based on PCB layout, assembly method, and production needs
• Supply chain availability: verify stock, alternate parts, and long-term sourcing stability

For many buyers and design teams, availability and replacement flexibility can be just as important as the logic function itself.

Conclusion

AND, OR, NAND, and NOR gates are simple, but they remain essential to digital electronics. They are used to make binary decisions, combine control conditions, support logic paths, and build more advanced circuit functions. Understanding these gates is useful not only for circuit design, but also for component selection, sourcing, and technical communication across engineering and purchasing teams.

As digital systems continue to evolve, basic logic gates still remain an important foundation in both education and real-world electronic products.

FAQ

What is the difference between AND and NAND?
AND outputs 1 only when both inputs are 1, while NAND is the inverse and outputs 0 only when both inputs are 1.

What is the difference between OR and NOR?
OR outputs 1 when at least one input is 1, while NOR outputs 1 only when all inputs are 0.

Why are NAND and NOR called universal gates?
Because other logic functions can be implemented using only NAND gates or only NOR gates.

Which ICs are commonly used for these logic functions?
Typical parts include 74HC00, 74HC02, 74HC08, 74HC32, CD4011, and CD4001.

What should buyers pay attention to when sourcing logic gate ICs?
Besides the logic function, buyers should also check voltage compatibility, package type, logic family, stock availability, and alternative part options.
