Switching Converter, SMPS Transformers

Switching Converter and SMPS Transformers are magnetic components used in switching power supplies to transfer energy, provide isolation and support voltage conversion. They are widely used in AC-DC power supplies, DC-DC converters, adapters, chargers, industrial power modules, LED drivers, communication equipment, consumer electronics and embedded systems.

This category includes flyback transformers, forward converter transformers, push-pull transformers, isolated DC-DC converter transformers, high-frequency SMPS transformers and related magnetic components. These products are commonly selected based on input voltage, output voltage, power rating, switching frequency, insulation rating, core material, mounting type, package style and application requirements.

TomatoElec supplies original Switching Converter and SMPS Transformers from recognized manufacturers such as Würth Elektronik, Pulse Electronics, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, Eaton and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Price	Quantity	Datasheet	Series	Packaging	Product Status	Type	Applications	Intended Chipset	Chipset Manufacturer	Voltage - Primary	Voltage - Auxiliary	Voltage - Isolation	Inductance @ Frequency	Frequency	Operating Temperature	Grade	Qualification	Mounting Type	Size / Dimension	Height - Seated (Max)	Footprint	Style
750871830 XFMR LED DR AC/DC CONV 900UH TH Würth Elektronik	-	RFQ	Datasheet	WE-UNIT, MID-OLNXP	Tray	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	TEA1523P	NXP Semiconductors	120 ~ 385V	15V @ 30mA	4000Vrms	900µH @ 10kHz	100kHz	-40°C ~ 125°C	-	-	Through Hole	-	0.635" (16.13mm)	0.800" L x 0.960" W (20.32mm x 24.38mm)	-
POE4W3X3.3-R XFMR POE CONFIG DC/DC 200UH SMD Eaton - Electronics Division	-	RFQ	Datasheet	PoE	Tape & Reel (TR)	Active	Configurable (For DC/DC)	Power Over Ethernet (PoE)	-	-	-	-	1500Vrms	200µH @ 100kHz	250kHz	-40°C ~ 85°C	-	-	Surface Mount	0.673" L x 0.630" W (17.10mm x 16.00mm)	0.341" (8.65mm)	0.673" L x 0.935" W (17.10mm x 23.74mm)	-
750311589 XFMR FLYBACK DC/DC CONV 6UH SMD Würth Elektronik	-	RFQ	Datasheet	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	20 ~ 48V	10V	1500Vrms	6µH @ 150kHz	150kHz	-40°C ~ 85°C	-	-	Surface Mount	-	0.544" (13.82mm)	1.064" L x 1.272" W (27.03mm x 32.31mm)	-

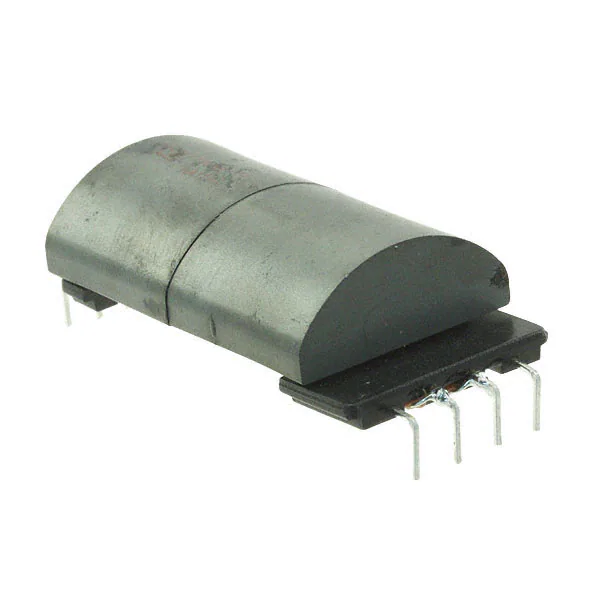

750841243 XFMR LED DR 270UH TH Würth Elektronik	-	RFQ	Datasheet	WE-FB, MID-OLT8	Tray	Active	-	LED Drivers, AC/DC SMPS	-	-	85 ~ 265V	20V @ 50mA	3000Vrms	270µH @ 10kHz	85kHz	-40°C ~ 125°C	-	-	Through Hole	-	0.477" (12.12mm)	0.886" L x 1.850" W (22.50mm x 47.00mm)	-
750811041 XFMR FLYBACK AC/DC CONV 1.8MH TH Würth Elektronik	-	RFQ	Datasheet	MID-ALIT	Tray	Obsolete	For AC/DC Converters	Flyback Converters	NCP1014	On Semiconductor	-	-	-	1.8mH @ 10kHz	-	-	-	-	Through Hole	-	0.568" (14.43mm)	0.707" L x 0.799" W (17.96mm x 20.30mm)	-
749196507 XFMR FLEX DC/DC CONV 87.1UH SMD Würth Elektronik	-	RFQ	Datasheet	WE-FLEX	Tape & Reel (TR)	Active	For DC/DC Converters	Flexible	-	-	-	-	1500Vrms	87.1µH @ 100kHz	-	-40°C ~ 125°C	-	-	Surface Mount	0.827" L x 0.846" W (21.01mm x 21.49mm)	0.472" (11.99mm)	1.161" L x 0.846" W (29.49mm x 21.49mm)	-
749196508 XFMR FLEX DC/DC CONV 196UH SMD Würth Elektronik	-	RFQ	Datasheet	WE-FLEX	Tape & Reel (TR)	Active	For DC/DC Converters	Flexible	-	-	-	-	1500Vrms	196µH @ 100kHz	-	-40°C ~ 125°C	-	-	Surface Mount	0.827" L x 0.846" W (21.01mm x 21.49mm)	0.472" (11.99mm)	1.161" L x 0.846" W (29.49mm x 21.49mm)	-
749196517 XFMR FLEX DC/DC CONV 9.9UH SMD Würth Elektronik	-	RFQ	Datasheet	WE-FLEX	Tape & Reel (TR)	Active	For DC/DC Converters	Flexible	-	-	-	-	1500Vrms	9.9µH @ 100kHz	-	-40°C ~ 125°C	-	-	Surface Mount	0.827" L x 0.846" W (21.01mm x 21.49mm)	0.472" (11.99mm)	1.161" L x 0.846" W (29.49mm x 21.49mm)	-
749196528 XFMR FLEXIBLE DC/DC CONV 12UH SM Würth Elektronik	-	RFQ	Datasheet	WE-FLEX	Tape & Reel (TR)	Active	For DC/DC Converters	Flexible	-	-	-	-	1500Vrms	12µH @ 100kHz	-	-40°C ~ 125°C	-	-	Surface Mount	0.827" L x 0.846" W (21.01mm x 21.49mm)	0.472" (11.99mm)	1.161" L x 0.846" W (29.49mm x 21.49mm)	-
749196537 XFMR FLEX DC/DC CONV 4.3UH SMD Würth Elektronik	-	RFQ	Datasheet	WE-FLEX	Tape & Reel (TR)	Active	For DC/DC Converters	Flexible	-	-	-	-	1500Vrms	4.3µH @ 100kHz	-	-40°C ~ 125°C	-	-	Surface Mount	0.827" L x 0.846" W (21.01mm x 21.49mm)	0.472" (11.99mm)	1.161" L x 0.846" W (29.49mm x 21.49mm)	-
749196538 XFMR FLEX DC/DC CONV 9.7UH SMD Würth Elektronik	-	RFQ	Datasheet	WE-FLEX	Tape & Reel (TR)	Active	For DC/DC Converters	Flexible	-	-	-	-	1500Vrms	9.7µH @ 100kHz	-	-40°C ~ 125°C	-	-	Surface Mount	0.827" L x 0.846" W (21.01mm x 21.49mm)	0.472" (11.99mm)	1.161" L x 0.846" W (29.49mm x 21.49mm)	-
749196547 XFMR FLEX DC/DC CONV 3.4UH SMD Würth Elektronik	-	RFQ	Datasheet	WE-FLEX	Tape & Reel (TR)	Active	For DC/DC Converters	Flexible	-	-	-	-	1500Vrms	3.4µH @ 100kHz	-	-40°C ~ 125°C	-	-	Surface Mount	0.827" L x 0.846" W (21.01mm x 21.49mm)	0.472" (11.99mm)	1.161" L x 0.846" W (29.49mm x 21.49mm)	-
749196548 XFMR FLEX DC/DC CONV 7.6UH SMD Würth Elektronik	-	RFQ	Datasheet	WE-FLEX	Tape & Reel (TR)	Active	For DC/DC Converters	Flexible	-	-	-	-	1500Vrms	7.6µH @ 100kHz	-	-40°C ~ 125°C	-	-	Surface Mount	0.827" L x 0.846" W (21.01mm x 21.49mm)	0.472" (11.99mm)	1.161" L x 0.846" W (29.49mm x 21.49mm)	-
B82802A0055A225 XFMR FLYBACK DC/DC CONV 22UH SMD EPCOS - TDK Electronics	-	RFQ	Datasheet	B82802A	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	36 ~ 60V	-	1500Vrms	22µH @ 100kHz	100kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.583" (14.80mm)	1.063" L x 1.283" W (27.00mm x 32.60mm)	-
750311594 XFMR FLYBACK DC/DC CONV 15UH SMD Würth Elektronik	-	RFQ	Datasheet	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	30 ~ 75V	10V	1500Vrms	15µH @ 150kHz	150kHz	-40°C ~ 85°C	-	-	Surface Mount	-	0.544" (13.82mm)	1.064" L x 1.272" W (27.03mm x 32.31mm)	-
POE7W3X5.0-R XFMR POE CONFIG DC/DC 100UH SMD Eaton - Electronics Division	-	RFQ	Datasheet	PoE	Tape & Reel (TR)	Active	Configurable (For DC/DC)	Power Over Ethernet (PoE)	-	-	-	-	1500Vrms	100µH @ 100kHz	250kHz	-40°C ~ 85°C	-	-	Surface Mount	0.673" L x 0.630" W (17.10mm x 16.00mm)	0.341" (8.65mm)	0.673" L x 0.935" W (17.10mm x 23.74mm)	-
POE26W3.3VS10-R XFMR POE CONFIG DC/DC 160UH SMD Eaton - Electronics Division	-	RFQ	Datasheet	PoE	Tape & Reel (TR)	Active	Configurable (For DC/DC)	Power Over Ethernet (PoE)	-	-	-	-	1500Vrms	160µH @ 100kHz	300kHz	-40°C ~ 85°C	-	-	Surface Mount	0.846" L x 0.866" W (21.50mm x 22.00mm)	0.425" (10.80mm)	0.846" L x 1.161" W (21.50mm x 29.50mm)	-
POE26W5V-R XFMR POE CONFIG DC/DC 160UH SMD Eaton - Electronics Division	-	RFQ	Datasheet	PoE	Tape & Reel (TR)	Active	Configurable (For DC/DC)	Power Over Ethernet (PoE)	-	-	-	-	1500Vrms	160µH @ 100kHz	300kHz	-40°C ~ 85°C	-	-	Surface Mount	0.846" L x 0.866" W (21.50mm x 22.00mm)	0.425" (10.80mm)	0.846" L x 1.161" W (21.50mm x 29.50mm)	-
VP5-0067TR-R XFMR 4.3UH SMD Eaton - Electronics Division	-	RFQ	Datasheet	VERSA-PAC®	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.827" L x 1.122" W (21.00mm x 28.50mm)	0.425" (10.80mm)	-	-
VPH5-0067TR-R XFMR 9.65UH SMD Eaton - Electronics Division	-	RFQ	Datasheet	VERSA-PAC®	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.827" L x 1.122" W (21.00mm x 28.50mm)	0.425" (10.80mm)	-	-

Total 1831 Record«Prev 1... 62 63 64 656667 68 69...92 Next»
