Switching Converter, SMPS Transformers

Switching Converter and SMPS Transformers are magnetic components used in switching power supplies to transfer energy, provide isolation and support voltage conversion. They are widely used in AC-DC power supplies, DC-DC converters, adapters, chargers, industrial power modules, LED drivers, communication equipment, consumer electronics and embedded systems.

This category includes flyback transformers, forward converter transformers, push-pull transformers, isolated DC-DC converter transformers, high-frequency SMPS transformers and related magnetic components. These products are commonly selected based on input voltage, output voltage, power rating, switching frequency, insulation rating, core material, mounting type, package style and application requirements.

TomatoElec supplies original Switching Converter and SMPS Transformers from recognized manufacturers such as Würth Elektronik, Pulse Electronics, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, Eaton and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Price	Quantity	Datasheet	Series	Packaging	Product Status	Type	Applications	Intended Chipset	Chipset Manufacturer	Voltage - Primary	Voltage - Auxiliary	Voltage - Isolation	Inductance @ Frequency	Frequency	Operating Temperature	Grade	Qualification	Mounting Type	Size / Dimension	Height - Seated (Max)	Footprint	Style
749196248 XFMR FLEX DC/DC CONV 6.6UH SMD Würth Elektronik	-	RFQ	Datasheet	WE-FLEX	Tape & Reel (TR)	Active	For DC/DC Converters	Flexible	-	-	-	-	1500Vrms	6.6µH @ 100kHz	-	-40°C ~ 125°C	-	-	Surface Mount	0.472" L x 0.642" W (11.99mm x 16.31mm)	0.291" (7.40mm)	0.661" L x 0.642" W (16.79mm x 16.31mm)	-
VPH3-0055-R XFMR 9.3UH SMD Eaton - Electronics Division	-	RFQ	Datasheet	VERSA-PAC®	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.673" L x 0.878" W (17.10mm x 22.30mm)	0.331" (8.40mm)	-	-
VPH3-0780-R XFMR 132UH SMD Eaton - Electronics Division	-	RFQ	Datasheet	VERSA-PAC®	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.673" L x 0.878" W (17.10mm x 22.30mm)	0.331" (8.40mm)	-	-

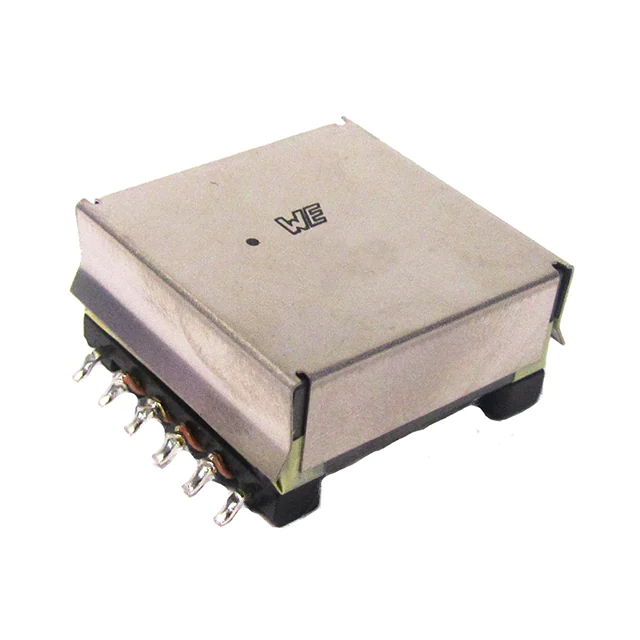

750316152 XFMR FLYBACK DC/DC CONV 12UH SMD Würth Elektronik	-	RFQ	Datasheet	WE-FB, MID-FLYLT	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LM3481	Texas Instruments	5 ~ 32V	-	-	12µH @ 10kHz	130kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.555" (14.10mm)	1.064" L x 1.278" W (27.03mm x 32.46mm)	-
750311620 XFMR LED DR AC/DC CONV 1.9MH SMD Würth Elektronik	-	RFQ	Datasheet	WE-UNIT, MID-OLON	Tray	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	NCL30000	On Semiconductor	30 ~ 190V	19V @ 5mA	4500Vrms	1.9mH @ 10kHz	53 ~ 120kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.435" (11.05mm)	0.910" L x 1.020" W (23.11mm x 25.91mm)	-
PA0491NLT XFMR FWD P-P DC/DC CONV 140UH SM Pulse Electronics	-	RFQ	Datasheet	Spyglass	Tape & Reel (TR)	Obsolete	For DC/DC Converters	Forward, Push-Pull Converters	LT1952	Linear Technology	36 ~ 72V	-	1500Vrms	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.790" L x 0.920" W (20.07mm x 23.37mm)	0.348" (8.85mm)	0.790" L x 0.920" W (20.07mm x 23.37mm)	Planar
750311593 XFMR FLYBACK DC/DC CONV 15UH SMD Würth Elektronik	-	RFQ	Datasheet	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	30 ~ 75V	10V	1500Vrms	15µH @ 150kHz	150kHz	-40°C ~ 85°C	-	-	Surface Mount	-	0.544" (13.82mm)	1.064" L x 1.272" W (27.03mm x 32.31mm)	-
ECO2420SEO-D01V019 XFMR FLYBCK AC/DC CONV 4.72MH TH TDK Corporation	-	RFQ	Datasheet	ECO	Bulk	Active	For AC/DC Converters	Flyback Converters	-	-	200 ~ 300V	5V @ 200mA, 12V @ 800mA, 17V @ 20mA, 17V @ 170mA	2000Vrms	4.72mH @ 10kHz	-	-30°C ~ 120°C	-	-	Through Hole	1.122" L x 0.945" W (28.50mm x 24.00mm)	1.043" (26.50mm)	1.122" L x 0.945" W (28.50mm x 24.00mm)	-
ECO2420SEO-D02V019 XFMR FLYBACK AC/DC CONV 278UH TH TDK Corporation	-	RFQ	Datasheet	ECO	Bulk	Active	For AC/DC Converters	Flyback Converters	-	-	85 ~ 138V	12.3V @ 3.3A	3000Vrms	278µH @ 10kHz	33kHz	-30°C ~ 120°C	-	-	Through Hole	1.122" L x 0.945" W (28.50mm x 24.00mm)	1.043" (26.50mm)	1.122" L x 0.945" W (28.50mm x 24.00mm)	-
ECO2425SEO-D02V016 XFMR FLYBACK AC/DC CONV 700UH TH TDK Corporation	-	RFQ	Datasheet	ECO	Bulk	Active	For AC/DC Converters	Flyback Converters	-	-	96 ~ 276V	3.3V @ 700mA, 18V @ 500mA, 20V @ 200mA	3000Vrms	700µH @ 10kHz	-	-30°C ~ 120°C	-	-	Through Hole	1.122" L x 0.945" W (28.50mm x 24.00mm)	1.240" (31.50mm)	1.122" L x 0.945" W (28.50mm x 24.00mm)	-
ECO2425SEO-D01V019 XFMR FLYBCK AC/DC CONV 1.06MH TH TDK Corporation	-	RFQ	Datasheet	ECO	Bulk	Active	For AC/DC Converters	Flyback Converters	-	-	264 ~ 373V	5V @ 140mA, 12.7V @ 1.18A, 20V @ 50mA, 20V @ 70mA	1250Vrms	1.06mH @ 10kHz	100kHz	-30°C ~ 120°C	-	-	Through Hole	1.400" L x 0.984" W (35.50mm x 25.00mm)	1.240" (31.50mm)	1.400" L x 0.984" W (35.50mm x 25.00mm)	-
ECO2425SEO-D04V017 XFMR FLYBACK AC/DC CONV 428UH TH TDK Corporation	-	RFQ	Datasheet	ECO	Bulk	Active	For AC/DC Converters	Flyback Converters	-	-	169 ~ 312V	22V @ 1.5A	3000Vrms	428µH @ 10kHz	65kHz	-30°C ~ 120°C	-	-	Through Hole	1.240" L x 0.984" W (31.50mm x 25.00mm)	1.240" (31.50mm)	1.240" L x 0.984" W (31.50mm x 25.00mm)	-
ECO2420SEO-D03V018 XFMR FLYBACK AC/DC CONV 750UH TH TDK Corporation	-	RFQ	Datasheet	ECO	Bulk	Active	For AC/DC Converters	Flyback Converters	-	-	169 ~ 312V	5V @ 200mA, 12V @ 2.5A	3000Vrms	750µH @ 100kHz	60kHz	-30°C ~ 120°C	-	-	Through Hole	1.240" L x 0.984" W (31.50mm x 25.00mm)	1.043" (26.50mm)	1.240" L x 0.984" W (31.50mm x 25.00mm)	-
750311303 XFMR FLYBACK DC/DC CONV 50UH SMD Würth Elektronik	-	RFQ	Datasheet	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	9 ~ 30V	10V @ 20mA	1500Vrms	50µH @ 10kHz	100kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.455" (11.56mm)	0.525" L x 0.600" W (13.34mm x 15.24mm)	-
750311304 XFMR FLYBACK DC/DC CONV 50UH SMD Würth Elektronik	-	RFQ	Datasheet	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	9 ~ 30V	10V @ 20mA	1500Vrms	50µH @ 10kHz	100kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.455" (11.56mm)	0.525" L x 0.600" W (13.34mm x 15.24mm)	-
750311456 XFMR FLYBACK DC/DC CONV 100UH SM Würth Elektronik	-	RFQ	Datasheet	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	36V	8V @ 20mA	2500Vrms	100µH @ 10kHz	100kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.505" (12.83mm)	0.530" L x 0.699" W (13.46mm x 17.75mm)	-
750311422 XFMR FLYBACK DC/DC CONV 50UH SMD Würth Elektronik	-	RFQ	Datasheet	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	36V	10V @ 20mA	1500Vrms	50µH @ 10kHz	100kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.505" (12.83mm)	0.530" L x 0.699" W (13.46mm x 17.75mm)	-
750311600 XFMR FLYBACK DC/DC CONV 12UH SMD Würth Elektronik	-	RFQ	Datasheet	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	30 ~ 75V	-	1500Vrms	12µH @ 10kHz	-	-40°C ~ 125°C	-	-	Surface Mount	-	0.455" (11.56mm)	0.910" L x 1.150" W (23.11mm x 29.08mm)	-
750311267 XFMR FLYBACK AC/DC CONV 625UH TH Würth Elektronik	-	RFQ	Datasheet	WE-FB, MID-OLON	Tray	Active	For AC/DC Converters	Flyback Converters	NCP1652	On Semiconductor	-	-	3000Vrms	625µH @ 10kHz	-	-	-	-	Through Hole	1.400" L x 1.470" W (35.56mm x 37.34mm)	1.355" (34.42mm)	1.400" L x 1.470" W (35.56mm x 37.34mm)	-
750811042 XFMR FLYBACK AC/DC CONV 1.8MH TH Würth Elektronik	-	RFQ	Datasheet	WE-UNIT, MID-OLON	Tray	Active	For AC/DC Converters	Flyback Converters	NCP1014	On Semiconductor	120 ~ 375V	-	4500Vrms	1.8mH @ 10kHz	100kHz	-40°C ~ 125°C	-	-	Through Hole	-	0.635" (16.13mm)	0.800" L x 0.960" W (20.32mm x 24.38mm)	-

Total 1831 Record«Prev 1... 60 61 62 636465 66 67...92 Next»
