Switching Converter, SMPS Transformers

Switching Converter and SMPS Transformers are magnetic components used in switching power supplies to transfer energy, provide isolation and support voltage conversion. They are widely used in AC-DC power supplies, DC-DC converters, adapters, chargers, industrial power modules, LED drivers, communication equipment, consumer electronics and embedded systems.

This category includes flyback transformers, forward converter transformers, push-pull transformers, isolated DC-DC converter transformers, high-frequency SMPS transformers and related magnetic components. These products are commonly selected based on input voltage, output voltage, power rating, switching frequency, insulation rating, core material, mounting type, package style and application requirements.

TomatoElec supplies original Switching Converter and SMPS Transformers from recognized manufacturers such as Würth Elektronik, Pulse Electronics, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, Eaton and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Price	Quantity	Datasheet	Series	Packaging	Product Status	Type	Applications	Intended Chipset	Chipset Manufacturer	Voltage - Primary	Voltage - Auxiliary	Voltage - Isolation	Inductance @ Frequency	Frequency	Operating Temperature	Grade	Qualification	Mounting Type	Size / Dimension	Height - Seated (Max)	Footprint	Style
TGM-330NARLTR ISO MOD DC MAX253 4C:3C 11VUS 3K HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tape & Reel (TR)	Not For New Designs	For DC/DC Converters	Isolated Buck Converters	MAX253, MAX845, MAX3535	Analog Devices, Inc	-	-	3000V	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.380" L x 0.350" W (9.65mm x 8.89mm)	0.250" (6.35mm)	-	Wirewound
TGM-320NARLTR ISO MOD DC MAX253 8C:3C 11VUS 3K HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tape & Reel (TR)	Not For New Designs	For DC/DC Converters	Isolated Buck Converters	MAX253, MAX845, MAX3535	Analog Devices, Inc	-	-	3000V	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.380" L x 0.350" W (9.65mm x 8.89mm)	0.250" (6.35mm)	-	Wirewound
TGM-350NARLTR ISO MOD DC MAX253 1C:1C 11VUS 3K HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tape & Reel (TR)	Not For New Designs	For DC/DC Converters	Isolated Buck Converters	MAX253, MAX845, MAX3535	Analog Devices, Inc	-	-	3000V	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.380" L x 0.350" W (9.65mm x 8.89mm)	0.250" (6.35mm)	-	Wirewound
750813046 XFMR LED DR AC/DC CONV 1.44MH TH Würth Elektronik	-	RFQ	Datasheet	WE-UNIT, MID-OLTI	Tray	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	120 ~ 200V	12V	4500Vrms	1.44mH @ 10kHz	72kHz	-	-	-	Through Hole	0.689" L x 0.740" W (17.50mm x 18.80mm)	0.524" (13.31mm)	0.665" L x 0.740" W (16.90mm x 18.80mm)	-
750310344 XFMR LED DR AC/DC CONV 10UH TH Würth Elektronik	-	RFQ	Datasheet	-	Tray	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	TPS92010DR	Texas Instruments	-	-	-	10µH @ 100kHz	-	-	-	-	Through Hole	1.000" Dia x 0.530" W (25.40mm x 13.46mm)	1.000" (25.40mm)	1.000" Dia x 0.530" W (25.40mm x 13.46mm)	-

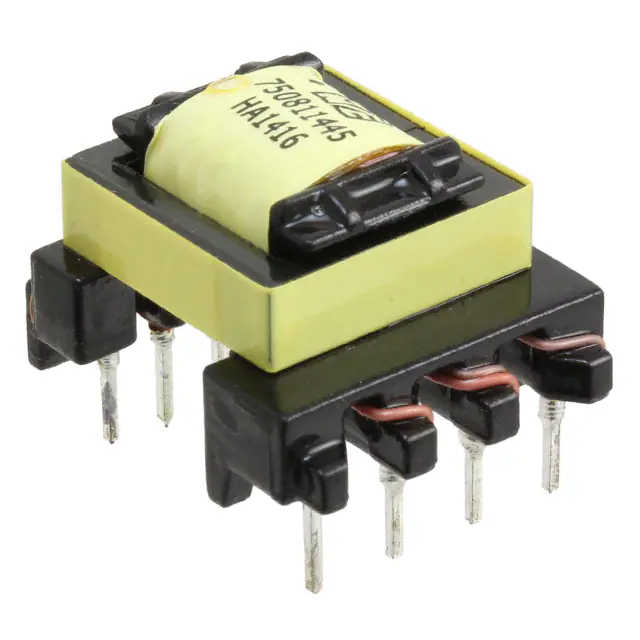

750811445 XFMR ISOL AC/DC CONV 1.5MH TH Würth Elektronik	-	RFQ	Datasheet	WE-UNIT, MID-OLTI	Tray	Active	For AC/DC Converters	Isolation	-	-	90 ~ 375V	18V @ 10mA	4500Vrms	1.5mH @ 100kHz	100kHz	-40°C ~ 125°C	-	-	Through Hole	-	0.635" (16.13mm)	0.800" L x 0.960" W (20.32mm x 24.38mm)	-
TGMR-370V6LF ISO MOD DC 1C:1.6C 22VUS 3KV 6P HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tube	Active	For DC/DC Converters	Isolated Buck Converters	MAX253, MAX845, MAX3535	Analog Devices, Inc	-	-	3000V	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.428" L x 0.372" W (10.87mm x 9.45mm)	0.395" (10.03mm)	-	Wirewound
TGMR-360V6LF ISO MOD DC 1C:2C 22VUS 3KV 6P SM HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tube	Active	For DC/DC Converters	Isolated Buck Converters	MAX253, MAX845, MAX3535	Analog Devices, Inc	-	-	3000V	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.428" L x 0.372" W (10.87mm x 9.45mm)	0.395" (10.03mm)	-	Wirewound
TGMR-380V6LF ISO MOD DC 1C:2.67C 22VUS 3KV 6P HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tube	Active	For DC/DC Converters	Isolated Buck Converters	MAX253, MAX845, MAX3535	Analog Devices, Inc	-	-	3000V	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.428" L x 0.372" W (10.87mm x 9.45mm)	0.395" (10.03mm)	-	Wirewound
TGMR-340V6LF ISO MOD DC 1C:1.33C 22VUS 3KV 6P HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tube	Active	For DC/DC Converters	Isolated Buck Converters	MAX253, MAX845, MAX3535	Analog Devices, Inc	-	-	3000V	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.428" L x 0.372" W (10.87mm x 9.45mm)	0.395" (10.03mm)	-	Wirewound
TGMR-355V6LF ISO MOD DC 1C:1.5C 22VUS 3KV 6P HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tube	Active	For DC/DC Converters	Isolated Buck Converters	MAX253, MAX845, MAX3535	Analog Devices, Inc	-	-	3000V	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.428" L x 0.372" W (10.87mm x 9.45mm)	0.395" (10.03mm)	-	Wirewound
TGMR-1440V6LFTR ISO MOD DC 1C:1.33C 15.7VUS 5KV HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	For DC/DC Converters	-	MAX14943, MAX14949	Analog Devices, Inc	-	-	5000V	-	-	-40°C ~ 105°C	-	-	Surface Mount	0.428" L x 0.372" W (10.87mm x 9.45mm)	0.395" (10.03mm)	-	Wirewound
TGMR-1455V6LFTR ISO MOD DC 1C:1.5C 15.7VUS 5KV HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	For DC/DC Converters	-	MAX14857, MAX14859	Analog Devices, Inc	-	-	5000V	-	-	-40°C ~ 105°C	-	-	Surface Mount	0.428" L x 0.372" W (10.87mm x 9.45mm)	0.395" (10.03mm)	-	Wirewound
TGMR-1464V6LFTR ISO MOD DC 1C:2.4C 15.7UV 5KV 6P HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	For DC/DC Converters	-	MAX14943, MAX14949	Analog Devices, Inc	-	-	5000V	-	-	-40°C ~ 105°C	-	-	Surface Mount	0.428" L x 0.372" W (10.87mm x 9.45mm)	0.395" (10.03mm)	-	Wirewound
TGM-H280V8LF ISO MOD DC 1:1:2.67:2.67 25VUS 1 HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tube	Active	For DC/DC Converters	Forward, Push-Pull Converters	MAX13253	Analog Devices, Inc	-	-	1500Vrms	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.590" L x 0.475" W (14.99mm x 12.07mm)	0.340" (8.64mm)	-	Wirewound
TGM-340NARL ISO MOD DC MAX253 3C:4C 11VUS 3K HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tube	Not For New Designs	For DC/DC Converters	Isolated Buck Converters	MAX253, MAX845, MAX3535	Analog Devices, Inc	-	-	3000V	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.380" L x 0.350" W (9.65mm x 8.89mm)	0.250" (6.35mm)	-	Wirewound
TGM-H240V8LFTR ISO MOD DC 1:1:1.3:1.3 25VUS 1A HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	MAX13253	Analog Devices, Inc	-	-	1500Vrms	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.590" L x 0.475" W (14.99mm x 12.07mm)	0.340" (8.64mm)	-	Wirewound
750314288 XFMR FLYBACK AC/DC CONV 2.5MH TH Würth Elektronik	-	RFQ	Datasheet	WE-UNIT, MID-OLSTM	Tray	Active	For AC/DC Converters	Flyback Converters	-	STMicroelectronics	120 ~ 375V	-	2500Vrms	2.5mH @ 10kHz	60kHz	-40°C ~ 125°C	-	-	Through Hole	-	0.740" (18.80mm)	-	-

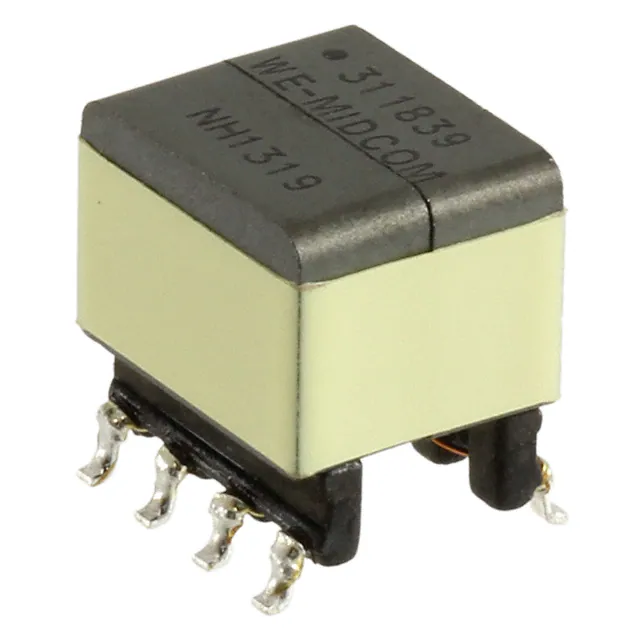

750311839 XFMR FLYBACK DC/DC CONV 200UH SM Würth Elektronik	-	RFQ	Datasheet	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3512	Linear Technology	36 ~ 72V	-	1500Vrms	200µH @ 100kHz	190kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.420" (10.69mm)	0.385" L x 0.360" W (9.78mm x 9.14mm)	-
750811050 XFMR FLYBACK DC/DC CONV 1.5MH TH Würth Elektronik	-	RFQ	Datasheet	WE-FB	Tray	Active	For DC/DC Converters	Flyback Converters	LT3748	Linear Technology	100 ~ 400V	15V	4500Vrms	1.5mH @ 10kHz	70 ~ 130kHz	-40°C ~ 125°C	-	-	Through Hole	-	0.635" (16.13mm)	0.800" L x 0.960" W (20.32mm x 24.38mm)	-

Total 1831 Record«Prev 1... 45 46 47 484950 51 52...92 Next»
