Switching Converter, SMPS Transformers

Switching Converter and SMPS Transformers are magnetic components used in switching power supplies to transfer energy, provide isolation and support voltage conversion. They are widely used in AC-DC power supplies, DC-DC converters, adapters, chargers, industrial power modules, LED drivers, communication equipment, consumer electronics and embedded systems.

This category includes flyback transformers, forward converter transformers, push-pull transformers, isolated DC-DC converter transformers, high-frequency SMPS transformers and related magnetic components. These products are commonly selected based on input voltage, output voltage, power rating, switching frequency, insulation rating, core material, mounting type, package style and application requirements.

TomatoElec supplies original Switching Converter and SMPS Transformers from recognized manufacturers such as Würth Elektronik, Pulse Electronics, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, Eaton and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Price	Quantity	Datasheet	Series	Packaging	Product Status	Type	Applications	Intended Chipset	Chipset Manufacturer	Voltage - Primary	Voltage - Auxiliary	Voltage - Isolation	Inductance @ Frequency	Frequency	Operating Temperature	Grade	Qualification	Mounting Type	Size / Dimension	Height - Seated (Max)	Footprint	Style
TGMS-1455V6LFTR ISO MOD DC 1C:1.5C 15.7VUS HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	For DC/DC Converters	-	MAX14853, MAX14855	Analog Devices, Inc	-	-	2750V	-	-	-40°C ~ 105°C	-	-	Surface Mount	0.428" L x 0.372" W (10.87mm x 9.45mm)	0.395" (10.03mm)	-	Wirewound
TGMS-1440V6LFTR ISO MOD DC 1C:1.33C 15.7VUS HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	For DC/DC Converters	-	MAX14940, MAX14946	Analog Devices, Inc	-	-	2750V	-	-	-40°C ~ 105°C	-	-	Surface Mount	0.428" L x 0.372" W (10.87mm x 9.45mm)	0.395" (10.03mm)	-	Wirewound
TGMS-1464V6LFTR ISO MOD DC 1C:2.4C 15.7VUS HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	For DC/DC Converters	-	MAX14940, MAX14946	Analog Devices, Inc	-	-	2750V	-	-	-40°C ~ 105°C	-	-	Surface Mount	0.428" L x 0.372" W (10.87mm x 9.45mm)	0.395" (10.03mm)	-	Wirewound
TGM-H251NFRL ISO MOD DC 1:1:1:1 18.5VUS 8P SM HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tube	Not For New Designs	For DC/DC Converters	-	MAX256	Analog Devices, Inc	-	-	1500Vrms	-	-	-	-	-	Surface Mount	0.475" L x 0.455" W (12.07mm x 11.56mm)	0.340" (8.64mm)	-	Wirewound
750318463 XFMR FLYBACK DC/DC CONV 470UH SM Würth Elektronik	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	ADP1032	Analog Devices, Inc	18 ~ 32V	-	1500Vrms	470µH @ 10kHz	250kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.384" (9.76mm)	0.526" L x 0.425" W (13.35mm x 10.80mm)	-
750341569 XFMR ISOL BUCK DC/DC 3.22MH TH Würth Elektronik	-	RFQ	Datasheet	MID-OLTI	Tray	Active	For DC/DC Converters	Isolated Buck Converters	TPS92314	Texas Instruments	196 ~ 265V	22V @ 10mA	-	3.22mH @ 10kHz	90kHz	-40°C ~ 125°C	-	-	Through Hole	0.585" L x 0.585" W (14.86mm x 14.86mm)	0.605" (15.37mm)	0.585" L x 0.585" W (14.86mm x 14.86mm)	-
TGMR-1450V6LF ISO MOD DC 1C:1C 15.7VUS 5KV 6P HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tube	Active	For DC/DC Converters	-	MAX14857, MAX14859	Analog Devices, Inc	-	-	5000V	-	-	-40°C ~ 105°C	-	-	Surface Mount	0.428" L x 0.372" W (10.87mm x 9.45mm)	0.395" (10.03mm)	-	Wirewound
TGM-H251NFLFTR ISO MOD DC 1:1:1:1 18.5VUS 8P SM HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	For DC/DC Converters	-	MAX256	Analog Devices, Inc	-	-	1500Vrms	-	-	-	-	-	Surface Mount	0.475" L x 0.455" W (12.07mm x 11.56mm)	0.340" (8.64mm)	-	Wirewound
TGP13-S011EP13LFTR ISO MOD POE FLYB XFMR 13W SMD T/ HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	-	-	-	1500Vrms	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.551" L x 0.530" W (14.00mm x 13.46mm)	0.485" (12.32mm)	-	Wirewound
TGP13-S003EP13LFTR ISO MOD POE FLYB XFMR 13W SMD T/ HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	-	-	-	1500Vrms	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.551" L x 0.530" W (14.00mm x 13.46mm)	0.485" (12.32mm)	-	Wirewound
TGP13-S007EP13LFTR ISO MOD POE FLYB XFMR 13W SMD T/ HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	-	-	-	1500Vrms	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.551" L x 0.530" W (14.00mm x 13.46mm)	0.485" (12.32mm)	-	Wirewound

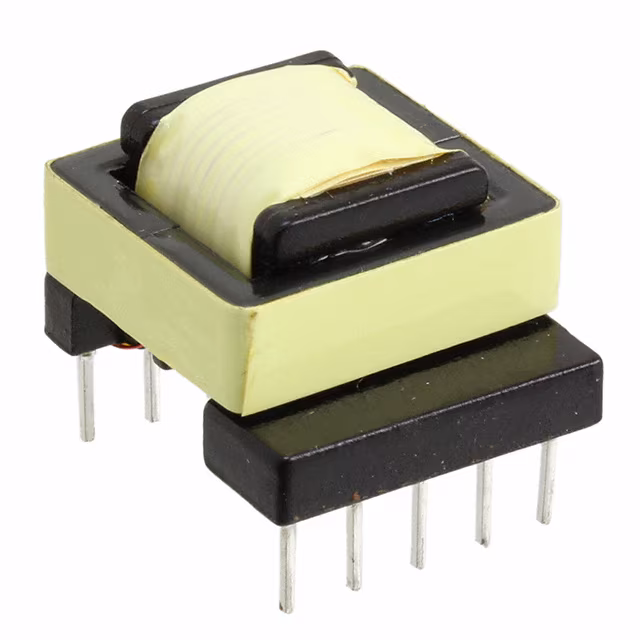

750341599 XFMR FLYBCK AC/DC CONV 2.18MH TH Würth Elektronik	-	RFQ	Datasheet	WE-FB, MID-OLTI	Tray	Active	For AC/DC Converters	Flyback Converters	LM3447	Texas Instruments	180 ~ 264V	14V @ 10mA	3750Vrms	2.18mH @ 70kHz	70kHz	-40°C ~ 125°C	-	-	Through Hole	0.665" L x 0.740" W (16.90mm x 18.80mm)	0.529" (13.44mm)	0.665" L x 0.740" W (16.90mm x 18.80mm)	-
TGMR-330V6LF ISO MOD DC 1C:0.75C 18VUS 3KV 6P HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tube	Active	For DC/DC Converters	Isolated Buck Converters	MAX253, MAX845, MAX3535	Analog Devices, Inc	-	-	3000V	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.428" L x 0.372" W (10.87mm x 9.45mm)	0.395" (10.03mm)	-	Wirewound
TGMR-350V6LF ISO MOD DC 1C:1C 22VUS 3KV 6P SM HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tube	Active	For DC/DC Converters	Isolated Buck Converters	MAX253, MAX845, MAX3535	Analog Devices, Inc	-	-	3000V	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.428" L x 0.372" W (10.87mm x 9.45mm)	0.250" (6.35mm)	-	Wirewound
TGMR-310V6LF ISO MOD DC 1C:0.5C 18VUS 3KV 6P HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tube	Active	For DC/DC Converters	Isolated Buck Converters	MAX253, MAX845, MAX3535	Analog Devices, Inc	-	-	3000V	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.428" L x 0.372" W (10.87mm x 9.45mm)	0.395" (10.03mm)	-	Wirewound
TGMR-320V6LF ISO MOD DC 1C:0.375C 18VUS 3KV 6 HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tube	Active	For DC/DC Converters	Isolated Buck Converters	MAX253, MAX845, MAX3535	Analog Devices, Inc	-	-	3000V	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.428" L x 0.372" W (10.87mm x 9.45mm)	0.395" (10.03mm)	-	Wirewound
TGRTI-320V6LF ISO MOD DC 1C:0.375C REINF 3KV S HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tube	Active	For DC/DC Converters	-	ISO721, ISO722	Texas Instruments	-	-	3000V	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.428" L x 0.372" W (10.87mm x 9.45mm)	0.395" (10.03mm)	-	Wirewound
TGRTI-310V6LF ISO MOD DC 1C:0.5C REINF 3KV SMD HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tube	Active	For DC/DC Converters	-	ISO721, ISO722	Texas Instruments	-	-	3000V	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.428" L x 0.372" W (10.87mm x 9.45mm)	0.395" (10.03mm)	-	Wirewound
TGM-310NARL ISO MOD DC MAX253 2C:1C 11VUS 3K HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tube	Not For New Designs	For DC/DC Converters	Isolated Buck Converters	MAX253, MAX845, MAX3535	Analog Devices, Inc	-	-	3000V	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.380" L x 0.350" W (9.65mm x 8.89mm)	0.250" (6.35mm)	-	Wirewound
TGM-330NARL ISO MOD DC MAX253 4C:3C 11VUS 3K HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tube	Not For New Designs	For DC/DC Converters	Isolated Buck Converters	MAX253, MAX845, MAX3535	Analog Devices, Inc	-	-	3000V	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.380" L x 0.350" W (9.65mm x 8.89mm)	0.250" (6.35mm)	-	Wirewound

Total 1831 Record«Prev 1... 43 44 45 464748 49 50...92 Next»
