Pulse Transformers

Pulse Transformers are magnetic components used to transfer pulse signals, provide galvanic isolation and support reliable signal coupling in electronic circuits. They are widely used in switching power supplies, gate drive circuits, communication equipment, industrial control systems, data transmission, instrumentation, automotive electronics and embedded applications.

This category includes signal pulse transformers, gate drive transformers, isolation pulse transformers, LAN pulse transformers, trigger transformers and related high-frequency magnetic components. These products are commonly selected based on turns ratio, isolation voltage, pulse width, frequency range, impedance, package style, mounting type and application requirements.

TomatoElec supplies original Pulse Transformers from recognized manufacturers such as Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification
HMU2102NL XFMR CMC MODULE AECQ BATT MNGT Pulse Electronics	20	-	RFQ	Datasheet	-	Tube	Obsolete	-	150µH	-	-	Surface Mount	0.583" L x 0.461" W (14.81mm x 11.70mm)	0.192" (4.88mm)	-	-	-
GU4229R LF MDL 1G DIP QUAD PORTS N/A Pulse Electronics	0	-	RFQ	Datasheet	-	Tube	Active	LAN 1000 Base-T	350µH	-	1:1CT Transmitter, 1:1CT Receiver	Through Hole	1.319" L x 1.142" W (33.50mm x 29.00mm)	0.098" (2.50mm)	0°C ~ 70°C	-	-
R4009NLT XFRMR ETHERNET MOD IND 10/100B-T iNRCORE, LLC	0	-	RFQ	-	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	-	Surface Mount	1.080" L x 0.480" W (27.43mm x 12.19mm)	0.226" (5.74mm)	-40°C ~ 85°C	-	-
HDX8006NLT MDL SIN HDBT 1:1 POEPP SMT TR Pulse Electronics	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	HDBase-T	120µH	-	1:1	Surface Mount	0.715" L x 0.480" W (18.16mm x 12.20mm)	0.260" (6.60mm)	-40°C ~ 85°C	-	-
H1062T PULSE XFMR 1CT: 1CT TX 1:1 RX Pulse Electronics	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Obsolete	LAN 10/100 Base-T	-	-	1CT: 1CT Transmitter, 1:1 Receiver	Surface Mount	1.125" L x 0.480" W (28.58mm x 12.19mm)	0.280" (7.11mm)	0°C ~ 70°C	-	-
749020111 TRANSFORMER LAN 10/100/1000 SMD Würth Elektronik	1	-	RFQ	-	WE-LAN	Tape & Reel (TR)	Obsolete	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.655" L x 0.354" W (16.64mm x 8.99mm)	0.090" (2.29mm)	-	-	-
G502 TRANSFORMER 0.50MH 1:1:1 PULSE Tamura	0	-	RFQ	Datasheet	G5	Tube	Active	Isolation and Data Interface (Encapsulated)	500µH	8.5VµS	1:1:1 Ter	Through Hole	0.350" L x 0.500" W (8.90mm x 12.70mm)	0.250" (6.35mm)	0°C ~ 70°C	-	-
G516 TRANSFORMER 0.50MH 1:1.3 PULSE Tamura	0	-	RFQ	Datasheet	G5	Tube	Active	Isolation and Data Interface (Encapsulated)	500µH	8.5VµS	1:1.3	Through Hole	0.350" L x 0.500" W (8.90mm x 12.70mm)	0.250" (6.35mm)	0°C ~ 70°C	-	-
PL1241 XFMR TOROID CS SLIC COM PBC iNRCORE, LLC	0	-	RFQ	Datasheet	-	Tube	Active	-	760µH	-	-	Surface Mount	0.670" L x 0.770" W (17.02mm x 19.56mm)	0.400" (10.16mm)	-	-	-
ISRA-0239-D502 ISRA PULSE TRANSFORMER SMD 0.5A SCHURTER Inc.	0	-	RFQ	Datasheet	IS	Tape & Reel (TR)	Active	SCR and Triac Trigger (Encapsulated)	2.2mH	400VµS	1:1	Surface Mount	0.878" L x 0.894" W (22.30mm x 22.70mm)	0.551" (14.00mm)	-25°C ~ 100°C	-	-

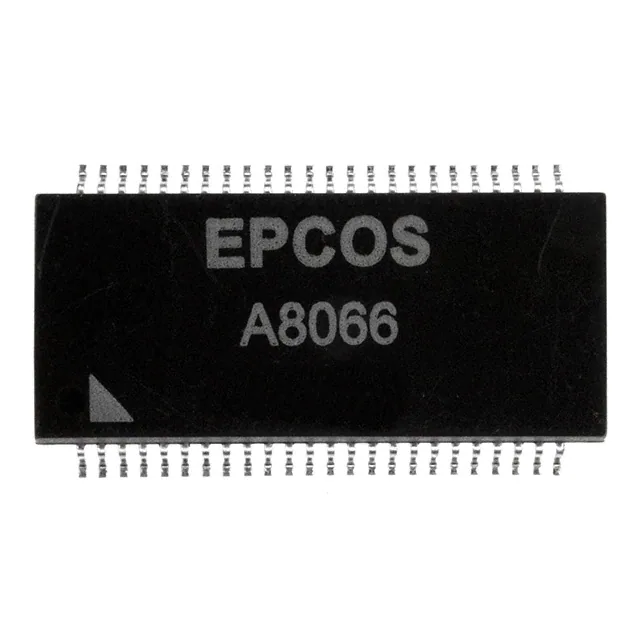

B78476A8066A003 PULSE XFMR 1CT:1CT 350UH EPCOS - TDK Electronics	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	1.095" L x 0.480" W (27.81mm x 12.19mm)	0.285" (7.24mm)	0°C ~ 70°C	-	-
T60403D4615X053 4615X053 VACUUMSCHMELZE	0	-	RFQ	-	-	Box	Active	General Purpose	1µH	250VµS	1:1:1	Through Hole	0.886" L x 0.886" W (22.50mm x 22.50mm)	0.650" (16.50mm)	-40°C ~ 85°C	-	-
T60403D4615X054 4615X054 VACUUMSCHMELZE	0	-	RFQ	-	-	Box	Active	Gate Drive	1.7mH	250VµS	1:1.2:1.2	Through Hole	0.886" L x 0.886" W (22.50mm x 22.50mm)	0.650" (16.50mm)	-40°C ~ 85°C	-	-
T60403D4215X030 4215X030 VACUUMSCHMELZE	0	-	RFQ	-	-	Box	Active	General Purpose	6mH	500VµS	1:1:1	Through Hole	0.827" L x 0.803" W (21.00mm x 20.40mm)	0.650" (16.50mm)	-40°C ~ 85°C	-	-
ISRB-0239-D502 ISRB PULSE TRANSFORMER SMD 0.5A SCHURTER Inc.	0	-	RFQ	Datasheet	IS	Tape & Reel (TR)	Active	SCR and Triac Trigger (Encapsulated)	1.8mH	350VµS	2:1	Surface Mount	0.878" L x 0.894" W (22.30mm x 22.70mm)	0.551" (14.00mm)	-25°C ~ 100°C	-	-
T2SD02R MDL 10G DUAL PORT N/A Pulse Electronics	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10 Base-T	100µH	-	1:1CT Transmitter, 1:1CT Receiver	Surface Mount	1.291" L x 0.543" W (32.80mm x 13.80mm)	0.287" (7.30mm)	-40°C ~ 90°C	-	-
T2SD02RT MDL 10G DUAL PORT 4PAIR POE 60W Pulse Electronics	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10 Base-T	100µH	-	1:1CT Transmitter, 1:1CT Receiver	Surface Mount	1.291" L x 0.543" W (32.80mm x 13.80mm)	0.287" (7.30mm)	-40°C ~ 90°C	-	-
T2SD02RV MDL 10G DUAL PORT 4PAIR POE 90W Pulse Electronics	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10 Base-T	120µH	-	1:1CT Transmitter, 1:1CT Receiver	Surface Mount	1.291" L x 0.543" W (32.80mm x 13.80mm)	0.287" (7.30mm)	-40°C ~ 105°C	-	-
T60404E4629X503 4629X503 VACUUMSCHMELZE	0	-	RFQ	-	-	Box	Active	General Purpose	-	-	1:1500	Through Hole	1.417" L x 1.102" W (36.00mm x 28.00mm)	0.787" (20.00mm)	-40°C ~ 70°C	-	-
T60404M4645X100 4645X100 VACUUMSCHMELZE	0	-	RFQ	-	-	Box	Active	-	-	-	-	-	-	-	-	-	-

Total 5221 Record«Prev 1... 176 177 178 179180181 182 183...262 Next»
