Pulse Transformers

Pulse Transformers are magnetic components used to transfer pulse signals, provide galvanic isolation and support reliable signal coupling in electronic circuits. They are widely used in switching power supplies, gate drive circuits, communication equipment, industrial control systems, data transmission, instrumentation, automotive electronics and embedded applications.

This category includes signal pulse transformers, gate drive transformers, isolation pulse transformers, LAN pulse transformers, trigger transformers and related high-frequency magnetic components. These products are commonly selected based on turns ratio, isolation voltage, pulse width, frequency range, impedance, package style, mounting type and application requirements.

TomatoElec supplies original Pulse Transformers from recognized manufacturers such as Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification
PE-68025QNLT MODULE INTERFACE 10BASE-T SMD Pulse Electronics	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	0.920" L x 0.385" W (23.37mm x 9.78mm)	0.230" (5.84mm)	0°C ~ 70°C	-	-
H5009NL MODULE XFORMR GIGABIT SINGLE LAN Pulse Electronics	0	-	RFQ	Datasheet	-	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	0.537" L x 0.600" W (13.64mm x 15.24mm)	0.235" (5.97mm)	0°C ~ 70°C	-	-
GH5608RSY LF MDL 1G DIP QUAD PORTS POE+ 30W Pulse Electronics	0	-	RFQ	Datasheet	-	Tube	Active	-	-	-	-	-	-	-	-	-	-
HX1332CNLT MDL,SIN,100D,1:1,4KV,SMT,T NPB Pulse Electronics	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-
T60404M4645X601 4645X601 VACUUMSCHMELZE	0	-	RFQ	-	-	Box	Active	-	-	-	-	-	-	-	-	-	-
77209C PULSE XFMR 2:1:1 16.3MH Murata Power Solutions Inc.	0	-	RFQ	Datasheet	-	Tube	Active	SCR and Triac Trigger (Encapsulated)	16.3mH	482VµS	2:1:1	Through Hole	1.000" L x 0.799" W (25.40mm x 20.30mm)	0.484" (12.30mm)	0°C ~ 70°C	-	-
ALANS10002-6NA1DT XFRMR LAN 1CT:1CT 350UH SMD Abracon LLC	0	-	RFQ	Datasheet	ALANS10002	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.095" L x 0.480" W (27.81mm x 12.19mm)	0.285" (7.24mm)	-40°C ~ 85°C	-	-

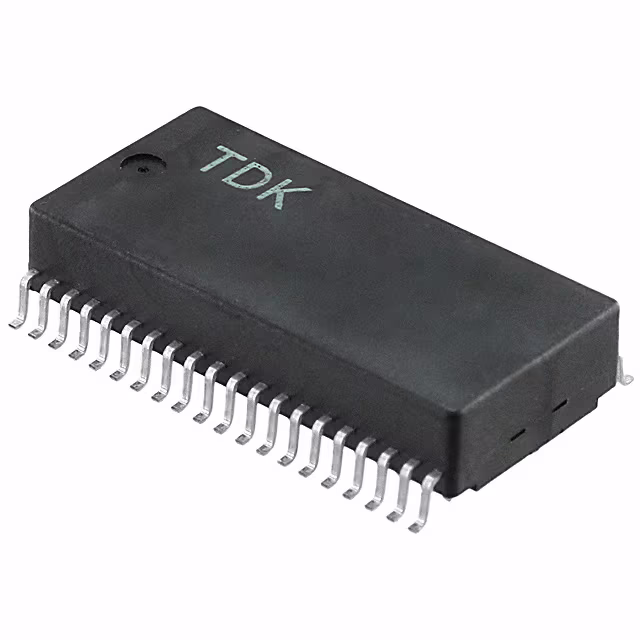

TLA-6T406-T TRANSFORMER LAN 10/100 TX TDK Corporation	5	-	RFQ	Datasheet	TLA	Tape & Reel (TR)	Obsolete	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	1.020" L x 0.480" W (25.90mm x 12.20mm)	0.228" (5.80mm)	0°C ~ 70°C	-	-
TLA-7T101LF-T TRANSFORMER LAN 10/100/1000 T TDK Corporation	0	-	RFQ	Datasheet	TLA	Tape & Reel (TR)	Obsolete	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	0.623" L x 0.265" W (15.82mm x 6.74mm)	0.232" (5.90mm)	-40°C ~ 85°C	-	-
H7028FNLT 10GBASE-T DISCRETE 4CH BCM PHY Pulse Electronics	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10G Base-T	120µH	-	1:1	Surface Mount	0.539" L x 0.591" W (13.70mm x 15.00mm)	0.230" (5.85mm)	0°C ~ 70°C	-	-
PL1170NLT XFMR TOROID CS SLIC COM PBC iNRCORE, LLC	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	-	-	1:1:100	Surface Mount	0.495" L x 0.490" W (12.57mm x 12.45mm)	0.280" (7.11mm)	-	-	-
ALANS100X1-1E10LT LAN SGL 100B XFMR&CMC 12PIN Abracon LLC	0	-	RFQ	Datasheet	ALANS100X1-1	Tape & Reel (TR)	Active	-	350µH	-	1CT:1CT	Surface Mount	0.583" L x 0.460" W (14.81mm x 11.68mm)	0.197" (5.00mm)	-55°C ~ 125°C	-	-
ALANS100X1-1E30LT LAN SGL 100B XFMR&SRDCMC 12PIN Abracon LLC	0	-	RFQ	Datasheet	ALANS100X1-1	Cut Tape (CT)	Active	-	350µH	-	1CT:1CT	Surface Mount	0.583" L x 0.460" W (14.81mm x 11.68mm)	0.197" (5.00mm)	-55°C ~ 125°C	-	-
749053013 TRANSFORMER LAN Würth Elektronik	0	-	RFQ	Datasheet	WE-LAN	Tape & Reel (TR)	Active	LAN	120µH	-	1:1	Surface Mount	0.550" L x 0.532" W (13.97mm x 13.50mm)	0.260" (6.60mm)	-40°C ~ 85°C	-	-
ISNA-0239-D202 ISNA PULSE TRANSFORMER SMD 0.17A SCHURTER Inc.	0	-	RFQ	Datasheet	IS	Tape & Reel (TR)	Active	SCR and Triac Trigger (Encapsulated)	2.2mH	400VµS	1:1	Surface Mount	0.878" L x 0.894" W (22.30mm x 22.70mm)	0.551" (14.00mm)	-25°C ~ 100°C	-	-
TG110-RPE17NV6LF ISO MOD 10/100 QUAD POE 0.35A 48 HALO Electronics, Inc.	0	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100 Base-TX	-	-	-	Surface Mount	1.100" L x 0.480" W (27.94mm x 12.19mm)	0.280" (7.11mm)	-40°C ~ 85°C	-	-
H1200NLT XFRMR MODULE 2PORT 1:1 10/100 Pulse Electronics	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	1.125" L x 0.485" W (28.58mm x 12.32mm)	0.230" (5.84mm)	0°C ~ 70°C	-	-

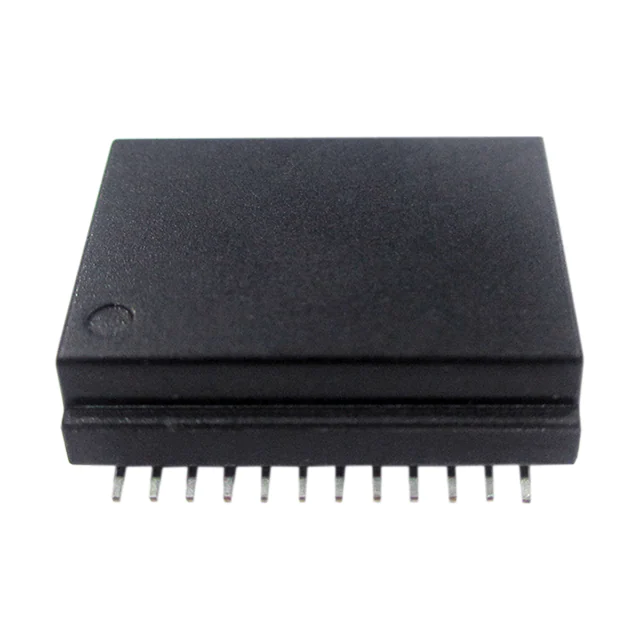

ALAN-1002 PULSE XFMR 1CT:1 350UH Abracon LLC	0	-	RFQ	Datasheet	ALAN-1002	Strip	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1	Surface Mount	0.689" L x 0.559" W (17.50mm x 14.20mm)	0.219" (5.55mm)	-40°C ~ 85°C	-	-
H1174NLT XFRMR MODULE 2PORT 1:1 10/100 Pulse Electronics	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.512" L x 0.500" W (13.08mm x 12.70mm)	0.155" (3.93mm)	0°C ~ 70°C	-	-
PE-68056NLT PULSE XFMR 1:1 Pulse Electronics	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Obsolete	LAN 10G Base-T	-	-	1:1	Surface Mount	0.920" L x 0.385" W (23.37mm x 9.78mm)	0.230" (5.84mm)	0°C ~ 70°C	-	-

Total 5221 Record«Prev 1... 172 173 174 175176177 178 179...262 Next»
