Pulse Transformers

Pulse Transformers are magnetic components used to transfer pulse signals, provide galvanic isolation and support reliable signal coupling in electronic circuits. They are widely used in switching power supplies, gate drive circuits, communication equipment, industrial control systems, data transmission, instrumentation, automotive electronics and embedded applications.

This category includes signal pulse transformers, gate drive transformers, isolation pulse transformers, LAN pulse transformers, trigger transformers and related high-frequency magnetic components. These products are commonly selected based on turns ratio, isolation voltage, pulse width, frequency range, impedance, package style, mounting type and application requirements.

TomatoElec supplies original Pulse Transformers from recognized manufacturers such as Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification
T60404N4646X761 4646X761 VACUUMSCHMELZE	-	RFQ	-	-	Box	Active	-	-	-	-	-	-	-	-	-	-
T60404N4646X762 4646X762 VACUUMSCHMELZE	-	RFQ	-	-	Box	Active	-	-	-	-	-	-	-	-	-	-
T60404N4646X763 4646X763 VACUUMSCHMELZE	-	RFQ	-	-	Box	Active	-	-	-	-	-	-	-	-	-	-
T60404N4646X620 4646X620 VACUUMSCHMELZE	-	RFQ	-	-	Box	Active	-	-	-	-	-	-	-	-	-	-
T60403D4215X014 4215X014 VACUUMSCHMELZE	-	RFQ	-	-	Box	Active	General Purpose	-	170VµS	1:1:1	Through Hole	0.787" L x 0.787" W (20.00mm x 20.00mm)	0.571" (14.50mm)	-	-	-
T60404N4646X663 4646X663 VACUUMSCHMELZE	-	RFQ	-	-	Box	Active	-	-	-	-	-	-	-	-	-	-
T60404N4646X661 4646X661 VACUUMSCHMELZE	-	RFQ	-	-	Box	Active	-	-	-	-	-	-	-	-	-	-
T60404M4645X410 4645X410 VACUUMSCHMELZE	-	RFQ	-	-	Box	Active	General Purpose	-	-	1:1000	Through Hole	-	0.827" (21.00mm)	-40°C ~ 85°C	-	-
T60404M4645X400 4645X400 VACUUMSCHMELZE	-	RFQ	-	-	Box	Active	-	-	-	-	-	-	-	-	-	-
TG1G-E212NV6LF ISO MOD 1G POE 0.35A DUAL X-TEMP HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100 Base-T	-	-	-	Surface Mount	1.100" L x 0.625" W (27.94mm x 15.88mm)	0.280" (7.11mm)	-40°C ~ 85°C	-	-
TG110-RPE17NV6RLTR ISO MOD 10/100 QUAD POE 0.35A HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tape & Reel (TR)	Not For New Designs	LAN 10/100 Base-TX	-	-	-	Surface Mount	1.100" L x 0.480" W (27.94mm x 12.19mm)	0.280" (7.11mm)	-40°C ~ 85°C	-	-
TG1G-E201NV6RL ISO MOD 1G DUAL X-TEMP 48P SMD HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tube	Not For New Designs	LAN 10/100 Base-T	-	-	-	Surface Mount	1.100" L x 0.625" W (27.94mm x 15.88mm)	0.280" (7.11mm)	-40°C ~ 85°C	-	-
T60404N4646X654 4646X654 VACUUMSCHMELZE	-	RFQ	-	-	Box	Active	-	-	-	-	-	-	-	-	-	-
1009C PULSE XFMR 1:1:1 22MH Murata Power Solutions Inc.	-	RFQ	Datasheet	1000	Tube	Not For New Designs	General Purpose	22mH	550VµS	1:1:1	Through Hole	0.593" L x 0.593" W (15.06mm x 15.06mm)	0.640" (16.25mm)	0°C ~ 70°C	-	-
1082C PULSE XFMR 100:1 6.1MH Murata Power Solutions Inc.	-	RFQ	Datasheet	1000	Tube	Not For New Designs	General Purpose	6.1mH	280VµS	100:1	Through Hole	0.593" L x 0.593" W (15.06mm x 15.06mm)	0.640" (16.25mm)	0°C ~ 70°C	-	-
1024C PULSE XFMR 1.2CT:1CT 8.8MH Murata Power Solutions Inc.	-	RFQ	Datasheet	1000	Bulk	Not For New Designs	-	8.8mH	340VµS	-	Through Hole	0.593" L x 0.593" W (15.06mm x 15.06mm)	0.640" (16.26mm)	-40°C ~ 130°C	-	-
T60404N4646X665 4646X665 VACUUMSCHMELZE	-	RFQ	-	-	Box	Active	-	-	-	-	-	-	-	-	-	-
T60404E6100X231 6100X231 VACUUMSCHMELZE	-	RFQ	-	-	Box	Active	-	-	-	-	-	-	-	-	-	-
PL1241NL XFMR TOROID CS SLIC COM NPB iNRCORE, LLC	-	RFQ	Datasheet	-	Tube	Active	-	760µH	-	-	Surface Mount	0.670" L x 0.770" W (17.02mm x 19.56mm)	0.400" (10.16mm)	-	-	-

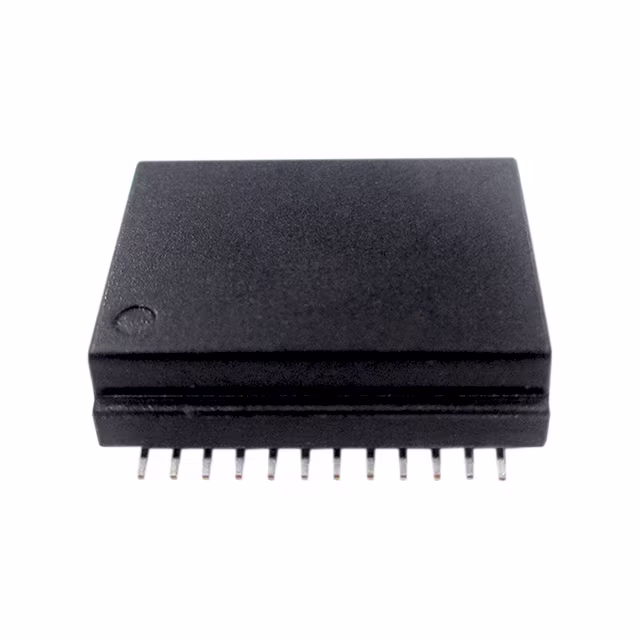

ALAN-2401-T PULSE XFMR 1CT:1CT 120UH Abracon LLC	-	RFQ	Datasheet	ALAN-2401	Tape & Reel (TR)	Active	LAN 10G Base-T	120µH	-	1CT:1CT	Surface Mount	0.689" L x 0.559" W (17.50mm x 14.20mm)	0.219" (5.55mm)	0°C ~ 70°C	-	-

Total 5221 Record«Prev 1... 174 175 176 177178179 180 181...262 Next»
