Pulse Transformers

Pulse Transformers are magnetic components used to transfer pulse signals, provide galvanic isolation and support reliable signal coupling in electronic circuits. They are widely used in switching power supplies, gate drive circuits, communication equipment, industrial control systems, data transmission, instrumentation, automotive electronics and embedded applications.

This category includes signal pulse transformers, gate drive transformers, isolation pulse transformers, LAN pulse transformers, trigger transformers and related high-frequency magnetic components. These products are commonly selected based on turns ratio, isolation voltage, pulse width, frequency range, impedance, package style, mounting type and application requirements.

TomatoElec supplies original Pulse Transformers from recognized manufacturers such as Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification
TG1G-S212NV6LFTR ISO MOD 1G POE 0.35A DUAL 48P SM HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	-	-	-	Surface Mount	1.100" L x 0.625" W (27.94mm x 15.88mm)	0.280" (7.11mm)	0°C ~ 70°C	-	-

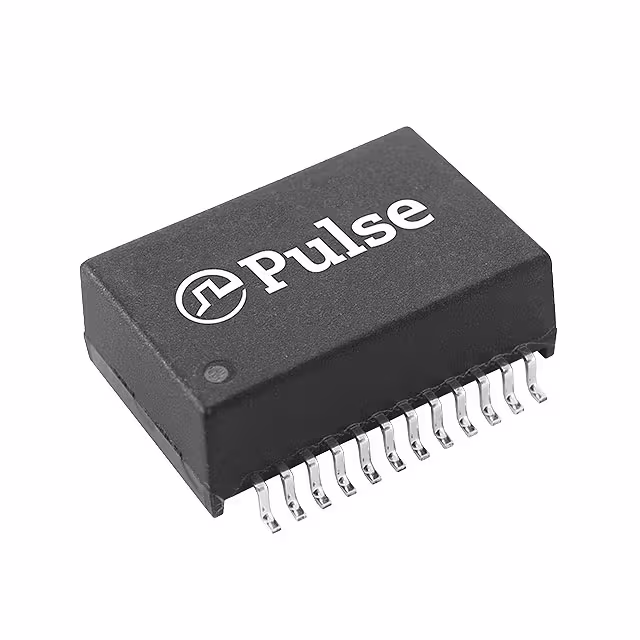

HU4009NLT MDL, SIN 2.5G, 1:1, SMT Pulse Electronics	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	150µH	-	-	Surface Mount	0.715" L x 0.630" W (18.16mm x 16.01mm)	0.260" (6.60mm)	0°C ~ 70°C	-	-
GS9015RM LF MDL 1G DUAL PORT 4PAIR POE 90W Pulse Electronics	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 1000 Base-T	350µH	-	1:1CT Transmitter, 1:1CT Receiver	Surface Mount	1.291" L x 0.543" W (32.80mm x 13.80mm)	0.287" (7.30mm)	-40°C ~ 85°C	-	-
TG1G-S202NV6LF ISO MOD 1G DUAL 48P SMD HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100 Base-T	-	-	-	Surface Mount	1.100" L x 0.480" W (27.94mm x 12.19mm)	0.280" (7.11mm)	0°C ~ 70°C	-	-
TG110-RPE14NVRLTR ISO MOD 10/100 QUAD POE 0.35A HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tape & Reel (TR)	Not For New Designs	LAN 10/100 Base-TX	-	-	-	Surface Mount	1.090" L x 0.740" W (27.69mm x 18.80mm)	0.300" (7.62mm)	-40°C ~ 85°C	-	-
TG111-E212NWRLTR ISO MOD 1G DUAL POE 0.35A X-TEMP HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tape & Reel (TR)	Not For New Designs	Isolation and Data Interface (Encapsulated)	350µH	-	-	Surface Mount	1.100" L x 0.300" W (27.94mm x 7.62mm)	0.340" (8.64mm)	-40°C ~ 85°C	-	-
T1231NLT XFRMR T1/E1/CEPT/ESDN-PRI 1:2.4 Pulse Electronics	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	T1/E1 (Quad)	1mH, 1mH	-	1:2.4 Transmitter, 1:1 Receiver	Surface Mount	1.125" L x 0.485" W (28.58mm x 12.32mm)	0.230" (5.84mm)	-40°C ~ 85°C	-	-
TG5G-HPE10NZ5LF ISO MOD 5G POE 1A X-TEMP 24P SMD HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tube	Active	LAN 5G Base-T, Power over Ethernet (PoE)	-	-	1:1	Surface Mount	0.722" L x 0.485" W (18.33mm x 12.32mm)	0.255" (6.48mm)	-40°C ~ 85°C	-	-
S558-10GB-15 TRANSFORMER PULSE Bel Fuse Inc.	-	RFQ	Datasheet	-	Tube	Active	LAN 10G Base-T	120µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	-	0.290" (7.37mm)	-	-	-
IT155 XFRMR PULSE 1:1 SINGLE 5MH 0.1A Schaffner EMC Inc.	-	RFQ	Datasheet	IT	Tray	Active	Data/Voice Coupling	5mH	-	1:1	Through Hole	1.063" L x 0.886" W (27.00mm x 22.50mm)	-	-25°C ~ 70°C	-	-
S558-5999-AF-F MODULE XFRMR LAN 10/100B-TX SMD Bel Fuse Inc.	-	RFQ	-	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.100" L x 0.476" W (27.94mm x 12.09mm)	0.236" (5.99mm)	-40°C ~ 85°C	-	-
TG1G-S232NVLFTR ISO MOD 1G DUAL 48P SMD T/R HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	-	-	-	Surface Mount	1.090" L x 0.600" W (27.69mm x 15.24mm)	0.300" (7.62mm)	0°C ~ 70°C	-	-
TG111-HP3NV6LFTR ISO MOD 1G DUAL POE 0.6A 48P SMD HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-TX	-	-	-	Surface Mount	1.100" L x 0.625" W (27.94mm x 15.88mm)	0.280" (7.11mm)	0°C ~ 70°C	-	-
HU4006NLT MDL, SIN 2.5G, 1:1, SMT Pulse Electronics	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	150µH	-	-	Surface Mount	0.540" L x 0.600" W (13.72mm x 15.24mm)	0.225" (5.72mm)	0°C ~ 70°C	-	-
T1114NL XFRMR T1/E1/CEPT/ISDN-PRI 1:2CT Pulse Electronics	-	RFQ	Datasheet	-	Tube	Active	T1/E1 (Quad)	1.2mH, 1.2mH	-	1:2CT Transmitter, 1CT:2 Receiver	Surface Mount	1.125" L x 0.485" W (28.58mm x 12.32mm)	0.230" (5.84mm)	-40°C ~ 85°C	-	-
TX1473NL XFRMR OCTAL 1:2/1:1 1.2MH SMD Pulse Electronics	-	RFQ	Datasheet	-	Tube	Active	T1/E1 (Octal)	1.2mH	-	1:2, 1:1	Surface Mount	1.000" L x 0.310" W (25.40mm x 7.87mm)	0.295" (7.49mm)	-40°C ~ 85°C	-	-
TX1471NLT XFRMR OCTAL 1:1 1.2MH SMD Pulse Electronics	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	T1/E1 (Octal)	1.2mH	-	1:1	Surface Mount	1.000" L x 0.310" W (25.40mm x 7.87mm)	0.295" (7.49mm)	-40°C ~ 85°C	-	-
TX1475NLT XFRMR OCTAL 1:2/1:1 1.2MH SMD Pulse Electronics	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	T1/E1 (Octal)	1.2mH	-	1:2, 1:1	Surface Mount	1.000" L x 0.310" W (25.40mm x 7.87mm)	0.295" (7.49mm)	-40°C ~ 85°C	-	-
HX7260NLT MDL SIN 10GPP 1:1 SM TR Pulse Electronics	-	RFQ	-	-	Tape & Reel (TR)	Active	LAN 10G Base-T	-	-	-	Surface Mount	-	-	-40°C ~ 85°C	-	-
HX7260NL MDL SIN 10GPP 1:1 GEN2 SM Pulse Electronics	-	RFQ	-	-	Tube	Active	LAN 10G Base-T	-	-	-	Surface Mount	-	-	-40°C ~ 85°C	-	-

Total 5221 Record«Prev 1... 169 170 171 172173174 175 176...262 Next»
