Pulse Transformers

Pulse Transformers are magnetic components used to transfer pulse signals, provide galvanic isolation and support reliable signal coupling in electronic circuits. They are widely used in switching power supplies, gate drive circuits, communication equipment, industrial control systems, data transmission, instrumentation, automotive electronics and embedded applications.

This category includes signal pulse transformers, gate drive transformers, isolation pulse transformers, LAN pulse transformers, trigger transformers and related high-frequency magnetic components. These products are commonly selected based on turns ratio, isolation voltage, pulse width, frequency range, impedance, package style, mounting type and application requirements.

TomatoElec supplies original Pulse Transformers from recognized manufacturers such as Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification
HX1332NL XFMR SIN 100D 1:1 4KV SMT T Pulse Electronics	-	RFQ	Datasheet	-	Tube	Active	LAN 100 Base-T	-	-	-	Surface Mount	-	-	-40°C ~ 85°C	-	-
HX1332NLT XFMR SIN 100D 1:1 4KV SMT T Pulse Electronics	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 100 Base-T	-	-	-	Surface Mount	-	-	-40°C ~ 85°C	-	-
TG1G-S201NV6LF ISO MOD 1G DUAL 48P SMD HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100 Base-T	-	-	-	Surface Mount	1.100" L x 0.480" W (27.94mm x 12.19mm)	0.280" (7.11mm)	0°C ~ 70°C	-	-
TG110-S222NXRL ISO MOD 10/100 DUAL 2C:1C 40P SM HALO Electronics, Inc.	-	RFQ	-	-	Tube	Not For New Designs	LAN 10/100 Base-T	350µH	-	2CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.100" L x 0.625" W (27.94mm x 15.88mm)	0.230" (5.84mm)	-	-	-
TG111-S212NWLFTR ISO MOD 1G DUAL POE 0.35A 50P SM HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	350µH	-	-	Surface Mount	1.100" L x 0.300" W (27.94mm x 7.62mm)	0.340" (8.64mm)	0°C ~ 70°C	-	-
TG1G-RPE33NV6LF ISO MOD 1G DUAL POE 0.35A X-TEMP HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100 Base-TX	-	-	-	Surface Mount	1.100" L x 0.625" W (27.94mm x 15.88mm)	0.280" (7.11mm)	-40°C ~ 85°C	-	-

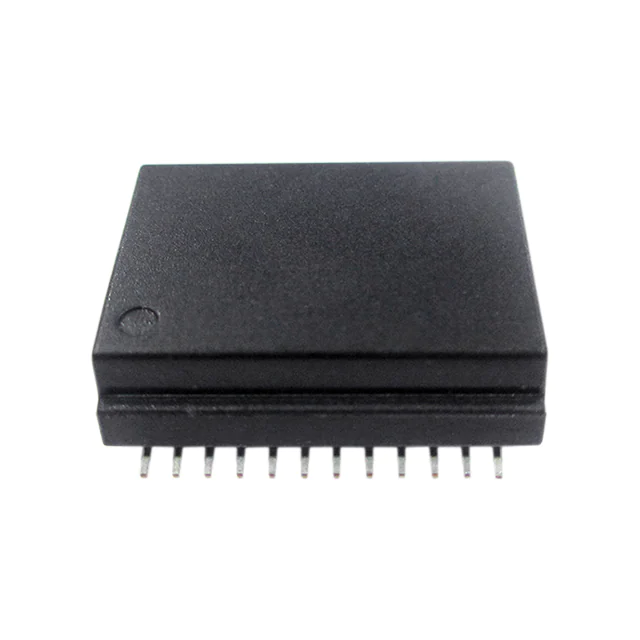

ALAN-2302 PULSE XFMR 1CT:1CT 350UH Abracon LLC	-	RFQ	Datasheet	ALAN-2302	Strip	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	0.689" L x 0.559" W (17.50mm x 14.20mm)	0.219" (5.55mm)	-40°C ~ 85°C	-	-
HX6621NLT MDL SIN 1GPP 1:1 SMT TR Pulse Electronics	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-
H1270NL MODULE XFRMR DUAL ETHER LAN 24P Pulse Electronics	-	RFQ	Datasheet	-	Tube	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	0.515" L x 0.500" W (13.08mm x 12.70mm)	0.155" (3.93mm)	0°C ~ 70°C	-	-
TG110-S035NXRLTR ISO MOD 10/100 DUAL 40P SMD T/R HALO Electronics, Inc.	-	RFQ	-	-	Tape & Reel (TR)	Not For New Designs	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.100" L x 0.625" W (27.94mm x 15.88mm)	0.230" (5.84mm)	-	-	-
TG2G-HPE10NZ5LFTR ISO MOD 2.5G POE 1A X-TEMP 24P S HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 2.5G Base-T, Power over Ethernet (PoE)	-	-	1:1	Surface Mount	0.722" L x 0.485" W (18.33mm x 12.32mm)	0.255" (6.48mm)	-40°C ~ 85°C	-	-
QGS6014RM MDL 5G DUAL PORT 4PAIR POE 60W Pulse Electronics	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 2.5/5G Base-T, Power over Ethernet (PoE)	180µH	-	1:1CT	Surface Mount	1.094" L x 0.480" W (27.80mm x 12.20mm)	0.283" (7.20mm)	-40°C ~ 85°C	-	-
QGS6014R MDL 5G DUAL PORT 4PAIR POE 60W Pulse Electronics	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 2.5/5G Base-T, Power over Ethernet (PoE)	180µH	-	1:1CT Transmitter, 1:1CT Receiver	Surface Mount	1.094" L x 0.480" W (27.80mm x 12.20mm)	0.283" (7.20mm)	0°C ~ 70°C	-	-
QGS2014R MDL 5G DUAL PORT N/A Pulse Electronics	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 2.5/5G Base-T	180µH	-	1:1CT Transmitter, 1:1CT Receiver	Surface Mount	1.094" L x 0.480" W (27.80mm x 12.20mm)	0.283" (7.20mm)	0°C ~ 70°C	-	-
H7137NLT 10GBASE-T DISCRETE 5CH Pulse Electronics	-	RFQ	Datasheet	-	Tape & Reel (TR)	Obsolete	LAN 10G Base-T	-	-	1:1	Surface Mount	0.698" L x 0.480" W (17.73mm x 12.19mm)	0.295" (7.49mm)	0°C ~ 70°C	-	-
H7037NLT 10GBASE-T DISCRETE TERANETIC/PLX Pulse Electronics	-	RFQ	Datasheet	-	Tape & Reel (TR)	Obsolete	LAN 10G Base-T	-	-	1:1	Surface Mount	0.698" L x 0.480" W (17.73mm x 12.19mm)	0.295" (7.49mm)	0°C ~ 70°C	-	-
TG1G-S231NVLF ISO MOD 1G DUAL 48P SMD HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100 Base-T	-	-	-	Surface Mount	1.090" L x 0.600" W (27.69mm x 15.24mm)	0.300" (7.62mm)	0°C ~ 70°C	-	-
HX1305NL XFRMR MODULE 2PORT 1:1 10/100 Pulse Electronics	-	RFQ	Datasheet	Star Magnetics™	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	0.518" L x 0.595" W (13.16mm x 15.11mm)	0.251" (6.37mm)	-40°C ~ 85°C	-	-
HX1305NLT XFRMR MODULE 2PORT 1:1 10/100 Pulse Electronics	-	RFQ	Datasheet	Star Magnetics™	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	0.518" L x 0.595" W (13.16mm x 15.11mm)	0.251" (6.37mm)	-40°C ~ 85°C	-	-
TG1G-S201NV6LFTR ISO MOD 1G DUAL 48P SMD T/R HALO Electronics, Inc.	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	-	-	-	Surface Mount	1.100" L x 0.480" W (27.94mm x 12.19mm)	0.280" (7.11mm)	0°C ~ 70°C	-	-

Total 5221 Record«Prev 1... 165 166 167 168169170 171 172...262 Next»
