Electric Double Layer Capacitors (EDLC), Supercapacitors

Electric double layer capacitors (EDLC), also known as supercapacitors, are energy storage components that provide high capacitance, fast charge and discharge capability, and long cycle life. They are commonly used for backup power, peak current support, energy buffering, regenerative energy storage, memory backup, industrial controls, smart meters, automotive electronics, and renewable energy systems.

TomatoElec is an independent electronic components distributor supplying EDLC and supercapacitor products from mainstream manufacturers such as KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, and Maxwell Technologies. Customers can check inventory, price, package, specifications, parameters and PDF datasheets in the product list below, and submit a BOM or RFQ for supercapacitor sourcing support.

Mfr. Part #	Price	Quantity	Datasheet	Series	Packaging	Product Status	Capacitance	Tolerance	Voltage - Rated	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Termination	Mounting Type	Package / Case	Lead Spacing	Size / Dimension	Height - Seated (Max)	Operating Temperature
BZ01CA223ZSB CAP 22MF -20% +80% 12V SMD KYOCERA AVX	-	RFQ	-	BestCap® BZ	Tray	Obsolete	22 mF	-20%, +80%	12 V	350mOhm	1000 Hrs @ 70°C	SMD (SMT) Tabs	Surface Mount	BZ01, 3 Lead	-	1.102" L x 0.669" W (28.00mm x 17.00mm)	0.299" (7.60mm)	-20°C ~ 70°C
BZ025A404ZLB CAP 400MF -20% +80% 5.5V SMD KYOCERA AVX	-	RFQ	-	BestCap® BZ	Tray	Obsolete	400 mF	-20%, +80%	5.5 V	35mOhm	1000 Hrs @ 70°C	SMD (SMT) Tabs	Surface Mount	BZ02, 4 Lead	-	1.890" L x 1.181" W (48.00mm x 30.00mm)	0.272" (6.90mm)	-20°C ~ 70°C
BZ125A105ZLB CAP 1F -20% +80% 5.5V SMD KYOCERA AVX	-	RFQ	-	BestCap® BZ	Tray	Obsolete	1 F	-20%, +80%	5.5 V	35mOhm	1000 Hrs @ 70°C	SMD (SMT) Tabs	Surface Mount	BZ12, 4 Lead	-	1.890" L x 1.181" W (48.00mm x 30.00mm)	0.240" (6.10mm)	-20°C ~ 70°C
EEC-EP0E333A CAP 33MF -20% +80% 2.6V SMD Panasonic Electronic Components	-	RFQ	Datasheet	EP	Tape & Reel (TR)	Obsolete	33 mF	-20%, +80%	2.6 V	350Ohm @ 1kHz	500 Hrs @ 60°C	SMD (SMT) Tabs	Surface Mount	Coin, Wide and Thin Terminals - Opposite Sides	-	0.150" Dia (3.80mm)	0.059" (1.50mm)	-10°C ~ 60°C
A0820-2R5474-R CAP 470MF -20% +80% 2.5V T/H Eaton - Electronics Division	-	RFQ	Datasheet	A	Bulk	Obsolete	470 mF	-20%, +80%	2.5 V	150mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.138" (3.50mm)	0.335" Dia (8.50mm)	0.827" (21.00mm)	-25°C ~ 70°C
A1020-2R5105-R CAP 1F -20% +80% 2.5V T/H Eaton - Electronics Division	-	RFQ	Datasheet	A	Bulk	Obsolete	1 F	-20%, +80%	2.5 V	90mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.413" Dia (10.50mm)	0.878" (22.30mm)	-25°C ~ 70°C
A1030-2R5155-R CAP 1.5F -20% +80% 2.5V T/H Eaton - Electronics Division	-	RFQ	Datasheet	A	Bulk	Obsolete	1.5 F	-20%, +80%	2.5 V	60mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.413" Dia (10.50mm)	1.240" (31.50mm)	-25°C ~ 70°C
A1635-2R5475-R CAP 4.7F -20% +80% 2.5V T/H Eaton - Electronics Division	-	RFQ	Datasheet	A	Bulk	Obsolete	4.7 F	-20%, +80%	2.5 V	25mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.650" Dia (16.50mm)	1.496" (38.00mm)	-25°C ~ 70°C
PA-5R0V224-R CAP 220MF -20% +80% 5V T/H Eaton - Electronics Division	-	RFQ	Datasheet	PA	Bulk	Obsolete	220 mF	-20%, +80%	5 V	300mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.465" (11.80mm)	0.681" L x 0.354" W (17.30mm x 9.00mm)	0.866" (22.00mm)	-25°C ~ 70°C
PA-5R0H224-R CAP 220MF -20% +80% 5V T/H Eaton - Electronics Division	-	RFQ	Datasheet	PA	Bulk	Obsolete	220 mF	-20%, +80%	5 V	300mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.465" (11.80mm)	0.866" L x 0.681" W (22.00mm x 17.30mm)	0.354" (9.00mm)	-25°C ~ 70°C
PA-5R0H474-R CAP 470MF -20% +80% 5V T/H Eaton - Electronics Division	-	RFQ	Datasheet	PA	Bulk	Obsolete	470 mF	-20%, +80%	5 V	200mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.209" (5.30mm)	0.906" L x 0.839" W (23.00mm x 21.30mm)	0.433" (11.00mm)	-25°C ~ 70°C
BZ055B153ZSB CAP 15MF -20% +80% 5.5V SMD KYOCERA AVX	-	RFQ	-	BestCap® BZ	Tray	Obsolete	15 mF	-20%, +80%	5.5 V	250mOhm	1000 Hrs @ 70°C	SMD (SMT) Tabs	Surface Mount	BZ05, 3 Lead	-	0.787" L x 0.591" W (20.00mm x 15.00mm)	0.106" (2.70mm)	-20°C ~ 70°C
BZ055A333ZSB CAP 33MF -20% +80% 5.5V SMD KYOCERA AVX	-	RFQ	-	BestCap® BZ	Tray	Obsolete	33 mF	-20%, +80%	5.5 V	250mOhm	1000 Hrs @ 70°C	SMD (SMT) Tabs	Surface Mount	BZ05, 3 Lead	-	0.787" L x 0.591" W (20.00mm x 15.00mm)	0.138" (3.50mm)	-20°C ~ 70°C
BZ015A503ZLB CAP 50MF -20% +80% 5.5V T/H KYOCERA AVX	-	RFQ	-	BestCap® BZ	Bulk	Obsolete	50 mF	-20%, +80%	5.5 V	160mOhm	1000 Hrs @ 70°C	PC Pins	Through Hole	BZ01, 3 Lead	-	1.102" L x 0.669" W (28.00mm x 17.00mm)	0.138" (3.50mm)	-20°C ~ 70°C
XH414H-II06E CAP 70MF 3.3V SURFACE MNT Seiko Instruments	-	RFQ	Datasheet	XH	Tape & Reel (TR)	Obsolete	70 mF	-	3.3 V	-	-	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals - Opposite Sides	-	0.189" Dia (4.80mm)	0.067" (1.71mm)	-25°C ~ 70°C
XH414H-IV01E CAP 70MF 3.3V SURFACE MNT Seiko Instruments	-	RFQ	Datasheet	XH	Tape & Reel (TR)	Obsolete	70 mF	-	3.3 V	-	-	SMD (SMT) Tabs	Surface Mount	Coin, Wide and Corner Terminals	-	0.189" Dia (4.80mm)	0.066" (1.67mm)	-25°C ~ 70°C
BZ01CA223ZAB CAP SUPER 22000UF 12V BZ01 TH KYOCERA AVX	-	RFQ	-	-	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-

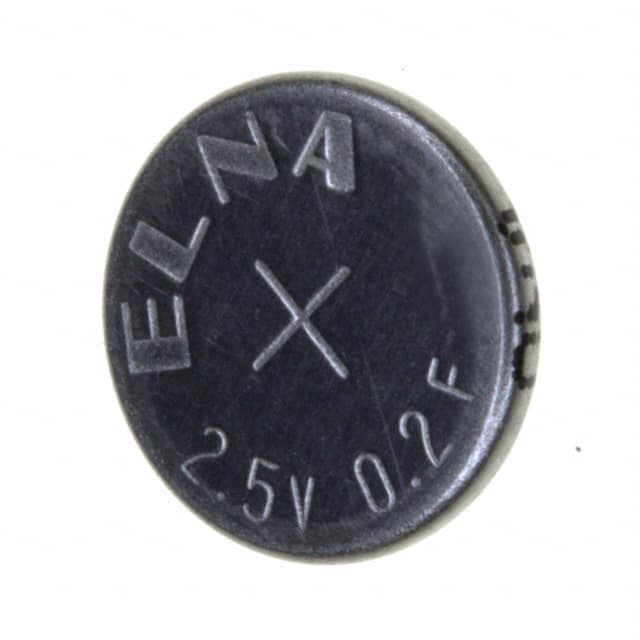

DC-2R5D204T614 CAP 200MF -20% +80% 2.5V HOLDER Elna America	-	RFQ	Datasheet	DC	Bulk	Obsolete	200 mF	-20%, +80%	2.5 V	100Ohm @ 1kHz	1000 Hrs @ 70°C	-	Requires Holder	Coin	-	0.268" Dia (6.80mm)	0.083" (2.10mm)	-25°C ~ 70°C
DC-2R5E204T614-E CAP 200MF -20% +80% 2.5V SMD Elna America	-	RFQ	Datasheet	DC	Bulk	Obsolete	200 mF	-20%, +80%	2.5 V	100Ohm @ 1kHz	1000 Hrs @ 70°C	SMD (SMT) Tabs	Surface Mount	Coin, Thin Terminals - Same Sides	-	0.268" Dia (6.80mm)	0.102" (2.60mm)	-25°C ~ 70°C
DCK-3R3D204T614 CAP 200MF -20% +80% 3.3V SMD Elna America	-	RFQ	Datasheet	DCK	Bulk	Obsolete	200 mF	-20%, +80%	3.3 V	200Ohm @ 1kHz	1000 Hrs @ 60°C	SMD (SMT) Tabs	Surface Mount	Coin, Thin Terminals - Same Sides	-	0.268" Dia (6.80mm)	0.083" (2.10mm)	-10°C ~ 60°C

Total 2853 Record«Prev 1... 111 112 113 114115116 117 118...143 Next»
