Electric Double Layer Capacitors (EDLC), Supercapacitors

Electric double layer capacitors (EDLC), also known as supercapacitors, are energy storage components that provide high capacitance, fast charge and discharge capability, and long cycle life. They are commonly used for backup power, peak current support, energy buffering, regenerative energy storage, memory backup, industrial controls, smart meters, automotive electronics, and renewable energy systems.

TomatoElec is an independent electronic components distributor supplying EDLC and supercapacitor products from mainstream manufacturers such as KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, and Maxwell Technologies. Customers can check inventory, price, package, specifications, parameters and PDF datasheets in the product list below, and submit a BOM or RFQ for supercapacitor sourcing support.

Mfr. Part #	Price	Quantity	Datasheet	Series	Packaging	Product Status	Capacitance	Tolerance	Voltage - Rated	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Termination	Mounting Type	Package / Case	Lead Spacing	Size / Dimension	Height - Seated (Max)	Operating Temperature
EDLSD334H5R5C CAP 330MF 5.5V T/H Cornell Dubilier Knowles	-	RFQ	Datasheet	SD	Bulk	Obsolete	330 mF	-	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Horizontal	0.394" (10.00mm)	0.453" Dia (11.50mm)	0.256" (6.50mm)	-25°C ~ 70°C
EDLSD334V5R5C CAP 330MF 5.5V T/H Cornell Dubilier Knowles	-	RFQ	Datasheet	SD	Bulk	Obsolete	330 mF	-	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.413" Dia (10.50mm)	0.453" (11.50mm)	-25°C ~ 70°C
EDLSG105H5R5C CAP 1F 5.5V THROUGH HOLE Cornell Dubilier Knowles	-	RFQ	Datasheet	SG	Bulk	Obsolete	1 F	-	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Horizontal	0.787" (20.00mm)	0.787" Dia (20.00mm)	0.256" (6.50mm)	-25°C ~ 70°C
EDLSG105V5R5C CAP 1F 5.5V THROUGH HOLE Cornell Dubilier Knowles	-	RFQ	Datasheet	SG	Bulk	Obsolete	1 F	-	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.748" Dia (19.00mm)	0.217" (5.50mm)	-25°C ~ 70°C
EDLSG155H5R5C CAP 1.5F 5.5V THROUGH HOLE Cornell Dubilier Knowles	-	RFQ	Datasheet	SG	Bulk	Obsolete	1.5 F	-	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Horizontal	0.787" (20.00mm)	0.787" Dia (20.00mm)	0.256" (6.50mm)	-25°C ~ 70°C
EDLSG474H5R5C CAP 470MF 5.5V T/H Cornell Dubilier Knowles	-	RFQ	Datasheet	SG	Bulk	Obsolete	470 mF	-	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Horizontal	0.787" (20.00mm)	0.787" Dia (20.00mm)	0.256" (6.50mm)	-25°C ~ 70°C

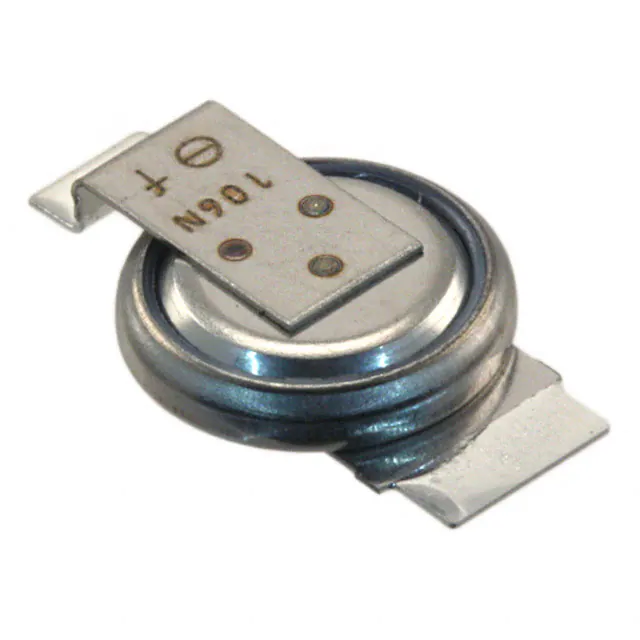

EEC-EN0F204AK CAP 200MF -20% +80% 3.3V SMD Panasonic Electronic Components	-	RFQ	Datasheet	EN	Tape & Reel (TR)	Obsolete	200 mF	-20%, +80%	3.3 V	200mOhm @ 1kHz	500 Hrs @ 60°C	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals - Opposite Sides	-	0.268" Dia (6.80mm)	0.071" (1.80mm)	-10°C ~ 60°C
EEC-EN0F204J2 CAP 200MF -20% +80% 3.3V SMD Panasonic Electronic Components	-	RFQ	Datasheet	EN	Tape & Reel (TR)	Obsolete	200 mF	-20%, +80%	3.3 V	200mOhm @ 1kHz	500 Hrs @ 60°C	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals - Opposite Sides	-	0.268" Dia (6.80mm)	0.073" (1.85mm)	-10°C ~ 60°C

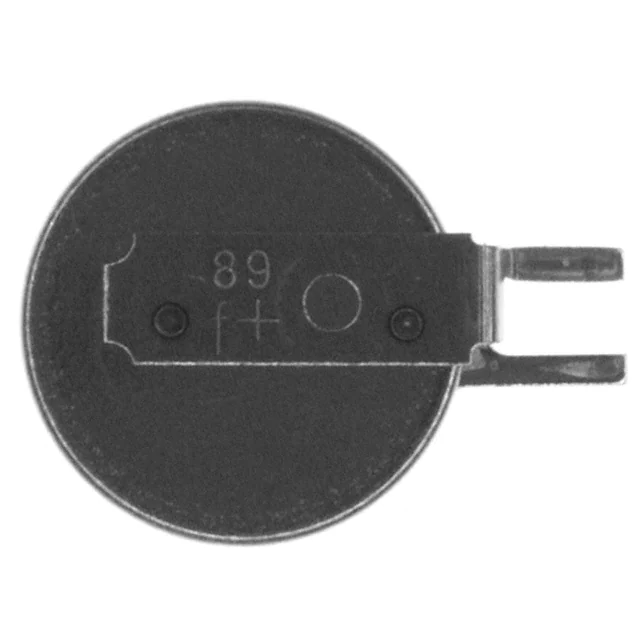

EEC-EN0F204RK CAP 200MF -20% +80% 3.3V SMD Panasonic Electronic Components	-	RFQ	Datasheet	EN	Tape & Reel (TR)	Obsolete	200 mF	-20%, +80%	3.3 V	200mOhm @ 1kHz	500 Hrs @ 60°C	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals - Opposite Sides	-	0.268" Dia (6.80mm)	0.071" (1.80mm)	-10°C ~ 60°C
PAS311SR-VA6R CAP 35MF 2.6V SURFACE MNT Taiyo Yuden	-	RFQ	Datasheet	SR	Tape & Reel (TR)	Discontinued at Digi-Key	35 mF	-	2.6 V	70Ohm	-	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals - Same Sides	-	0.150" Dia (3.80mm)	0.057" (1.45mm)	-20°C ~ 70°C
PAS311HR-VA6R CAP 30MF 3.3V SURFACE MNT Taiyo Yuden	-	RFQ	Datasheet	HR	Tape & Reel (TR)	Discontinued at Digi-Key	30 mF	-	3.3 V	120Ohm	-	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals - Opposite Sides	-	0.150" Dia (3.80mm)	0.057" (1.45mm)	-20°C ~ 60°C
PAS414HR-VG1 CAP 60MF 3.3V SURFACE MNT Taiyo Yuden	-	RFQ	Datasheet	HR	Tape & Reel (TR)	Obsolete	60 mF	-	3.3 V	80Ohm	-	SMD (SMT) Tabs	Surface Mount	Coin, Wide and Corner Terminals	-	0.189" Dia (4.80mm)	0.055" (1.40mm)	-20°C ~ 60°C
PAS414HR-VA5R CAP 60MF 3.3V SURFACE MNT Taiyo Yuden	-	RFQ	Datasheet	HR	Tape & Reel (TR)	Obsolete	60 mF	-	3.3 V	80Ohm	-	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals - Same Sides	-	0.189" Dia (4.80mm)	0.061" (1.55mm)	-20°C ~ 60°C
PAS414HR-VE5R CAP 60MF 3.3V SURFACE MNT Taiyo Yuden	-	RFQ	Datasheet	HR	Tape & Reel (TR)	Obsolete	60 mF	-	3.3 V	80Ohm	-	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals - Same Sides	-	0.189" Dia (4.80mm)	0.073" (1.85mm)	-20°C ~ 60°C
BZ05CA103ZSB CAP 10MF -20% +80% 12V SMD KYOCERA AVX	-	RFQ	-	BestCap® BZ	Bulk	Obsolete	10 mF	-20%, +80%	12 V	500mOhm	1000 Hrs @ 70°C	SMD (SMT) Tabs	Surface Mount	BZ05, 3 Lead	-	0.787" L x 0.591" W (20.00mm x 15.00mm)	0.256" (6.50mm)	-20°C ~ 70°C

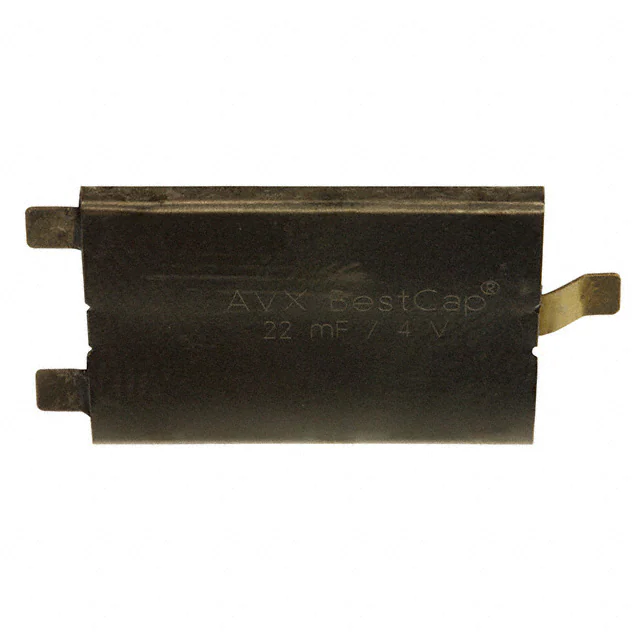

BZ254B223ZSBCE CAP 22MF -20% +80% 4V SMD KYOCERA AVX	-	RFQ	-	BestCap® BZ	Bulk	Obsolete	22 mF	-20%, +80%	4 V	140mOhm	1000 Hrs @ 70°C	SMD (SMT) Tabs	Surface Mount	BZ25, 3 Lead	-	0.787" L x 0.591" W (20.00mm x 15.00mm)	0.075" (1.90mm)	-20°C ~ 70°C
DDLA2R5LGN701KAA5S CAP 700F 10% 2.5V CHASSIS MOUNT Chemi-Con	-	RFQ	Datasheet	DLCAP™, DLA	Bulk	Obsolete	700 F	±10%	2.5 V	5.5mOhm	2000 Hrs @ 60°C	Screw Terminals	Chassis Mount	Radial, Can - Screw Terminals	0.500" (12.70mm)	1.378" Dia (35.00mm)	4.291" (109.00mm)	-25°C ~ 60°C
DDLC2R5LGN351KA65S CAP 350F 10% 2.5V CHASSIS MOUNT Chemi-Con	-	RFQ	Datasheet	DLCAP™, DLC	Bulk	Obsolete	350 F	±10%	2.5 V	8mOhm	2000 Hrs @ 60°C	Screw Terminals	Chassis Mount	Radial, Can - Screw Terminals	0.500" (12.70mm)	1.378" Dia (35.00mm)	2.717" (69.00mm)	-25°C ~ 60°C
DDLC2R5LGN142KBF0S CAP 1400F 10% 2.5V CHASSIS MOUNT Chemi-Con	-	RFQ	Datasheet	DLCAP™, DLC	Bulk	Obsolete	1400 F	±10%	2.5 V	2.5mOhm	2000 Hrs @ 60°C	Screw Terminals	Chassis Mount	Radial, Can - Screw Terminals	0.669" (17.00mm)	1.575" Dia (40.00mm)	6.063" (154.00mm)	-25°C ~ 60°C
DDSC2R5LGN242K54BS CAP 2400F 10% 2.5V CHASSIS MOUNT Chemi-Con	-	RFQ	Datasheet	DLCAP™, DSC	Bulk	Obsolete	2400 F	±10%	2.5 V	0.7mOhm	2000 Hrs @ 60°C	Screw Terminals	Chassis Mount	Radial, Can - Screw Terminals	1.069" (27.15mm)	2.126" L x 2.126" W (54.00mm x 54.00mm)	5.079" (129.00mm)	-25°C ~ 60°C

Total 2853 Record«Prev 1... 114 115 116 117118119 120 121...143 Next»
