Electric Double Layer Capacitors (EDLC), Supercapacitors

Electric double layer capacitors (EDLC), also known as supercapacitors, are energy storage components that provide high capacitance, fast charge and discharge capability, and long cycle life. They are commonly used for backup power, peak current support, energy buffering, regenerative energy storage, memory backup, industrial controls, smart meters, automotive electronics, and renewable energy systems.

TomatoElec is an independent electronic components distributor supplying EDLC and supercapacitor products from mainstream manufacturers such as KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, and Maxwell Technologies. Customers can check inventory, price, package, specifications, parameters and PDF datasheets in the product list below, and submit a BOM or RFQ for supercapacitor sourcing support.

Mfr. Part #	Price	Quantity	Datasheet	Series	Packaging	Product Status	Capacitance	Tolerance	Voltage - Rated	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Termination	Mounting Type	Package / Case	Lead Spacing	Size / Dimension	Height - Seated (Max)	Operating Temperature
EEC-F5R5U105 CAP 1F -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	Datasheet	NF	Bulk	Obsolete	1 F	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.846" Dia (21.50mm)	0.315" (8.00mm)	-25°C ~ 70°C
EEC-F5R5U474 CAP 470MF -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	Datasheet	NF	Bulk	Obsolete	470 mF	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.846" Dia (21.50mm)	0.315" (8.00mm)	-25°C ~ 70°C
EEC-F5R5U104 CAP 100MF -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	Datasheet	NF	Bulk	Obsolete	100 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.531" Dia (13.50mm)	0.295" (7.50mm)	-25°C ~ 70°C
EEC-F5R5H684 CAP 680MF -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	Datasheet	F	Bulk	Obsolete	680 mF	-20%, +80%	5.5 V	50Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.846" Dia (21.50mm)	0.374" (9.50mm)	-25°C ~ 85°C
EEC-A0EL105 CAP 1F -20% +80% 2.5V T/H Panasonic Electronic Components	-	RFQ	Datasheet	AL	Bulk	Obsolete	1 F	-20%, +80%	2.5 V	1Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.138" (3.50mm)	0.315" Dia (8.00mm)	0.945" (24.00mm)	-25°C ~ 70°C
EEC-A0EL335 CAP 3.3F -20% +80% 2.5V T/H Panasonic Electronic Components	-	RFQ	Datasheet	AL	Bulk	Obsolete	3.3 F	-20%, +80%	2.5 V	300mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.492" Dia (12.50mm)	0.984" (25.00mm)	-25°C ~ 70°C
EEC-A0EL475 CAP 4.7F -20% +80% 2.5V T/H Panasonic Electronic Components	-	RFQ	Datasheet	AL	Bulk	Obsolete	4.7 F	-20%, +80%	2.5 V	200mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.492" Dia (12.50mm)	1.457" (37.00mm)	-25°C ~ 70°C
EEC-A0EL106 CAP 10F -20% +80% 2.5V T/H Panasonic Electronic Components	-	RFQ	Datasheet	AL	Bulk	Obsolete	10 F	-20%, +80%	2.5 V	100mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.496" (38.00mm)	-25°C ~ 70°C
EEC-S5R5V474 CAP 470MF -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	Datasheet	SG	Bulk	Obsolete	470 mF	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.748" Dia (19.00mm)	0.827" (21.00mm)	-25°C ~ 70°C
EEC-S5R5V105 CAP 1F -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	Datasheet	SG	Bulk	Obsolete	1 F	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.748" Dia (19.00mm)	0.827" (21.00mm)	-25°C ~ 70°C
EEC-S5R5H474 CAP 470MF -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	Datasheet	SG	Bulk	Obsolete	470 mF	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Horizontal	0.787" (20.00mm)	0.748" Dia (19.00mm)	0.256" (6.50mm)	-25°C ~ 70°C
EEC-S5R5H105 CAP 1F -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	Datasheet	SG	Bulk	Obsolete	1 F	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Horizontal	0.787" (20.00mm)	0.748" Dia (19.00mm)	0.256" (6.50mm)	-25°C ~ 70°C
EEC-F5R5H473 CAP 47MF -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	Datasheet	F	Bulk	Obsolete	47 mF	-20%, +80%	5.5 V	120Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.531" Dia (13.50mm)	0.374" (9.50mm)	-25°C ~ 85°C
EEC-F5R5H104 CAP 100MF -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	Datasheet	F	Bulk	Obsolete	100 mF	-20%, +80%	5.5 V	100Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.531" Dia (13.50mm)	0.374" (9.50mm)	-25°C ~ 85°C
EEC-F5R5H474 CAP 470MF -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	Datasheet	F	Bulk	Obsolete	470 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.846" Dia (21.50mm)	0.374" (9.50mm)	-25°C ~ 85°C
EEC-S0HD104V CAP 100MF -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	Datasheet	SD	Bulk	Obsolete	100 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.413" Dia (10.50mm)	0.453" (11.50mm)	-25°C ~ 70°C

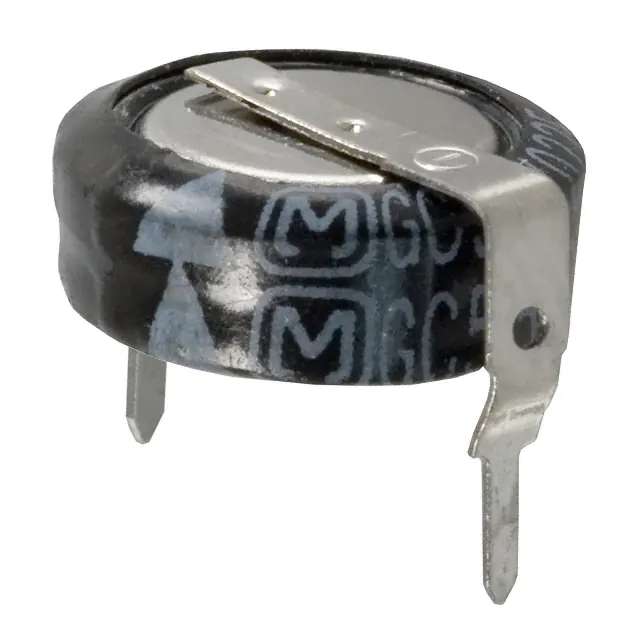

EEC-S0HD223H CAP 22MF -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	Datasheet	SD	Bulk	Obsolete	22 mF	-20%, +80%	5.5 V	150Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Horizontal	0.394" (10.00mm)	0.413" Dia (10.50mm)	0.217" (5.50mm)	-25°C ~ 70°C
EEC-S0HD473H CAP 47MF -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	Datasheet	SD	Bulk	Obsolete	47 mF	-20%, +80%	5.5 V	120Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Horizontal	0.394" (10.00mm)	0.413" Dia (10.50mm)	0.217" (5.50mm)	-25°C ~ 70°C
EEC-S0HD104H CAP 100MF -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	Datasheet	SD	Bulk	Obsolete	100 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Horizontal	0.394" (10.00mm)	0.413" Dia (10.50mm)	0.217" (5.50mm)	-25°C ~ 70°C
EEC-S0HD224H CAP 220MF -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	Datasheet	SD	Bulk	Obsolete	220 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Horizontal	0.394" (10.00mm)	0.413" Dia (10.50mm)	0.236" (6.00mm)	-25°C ~ 70°C

Total 2853 Record«Prev 1... 107 108 109 110111112 113 114...143 Next»
