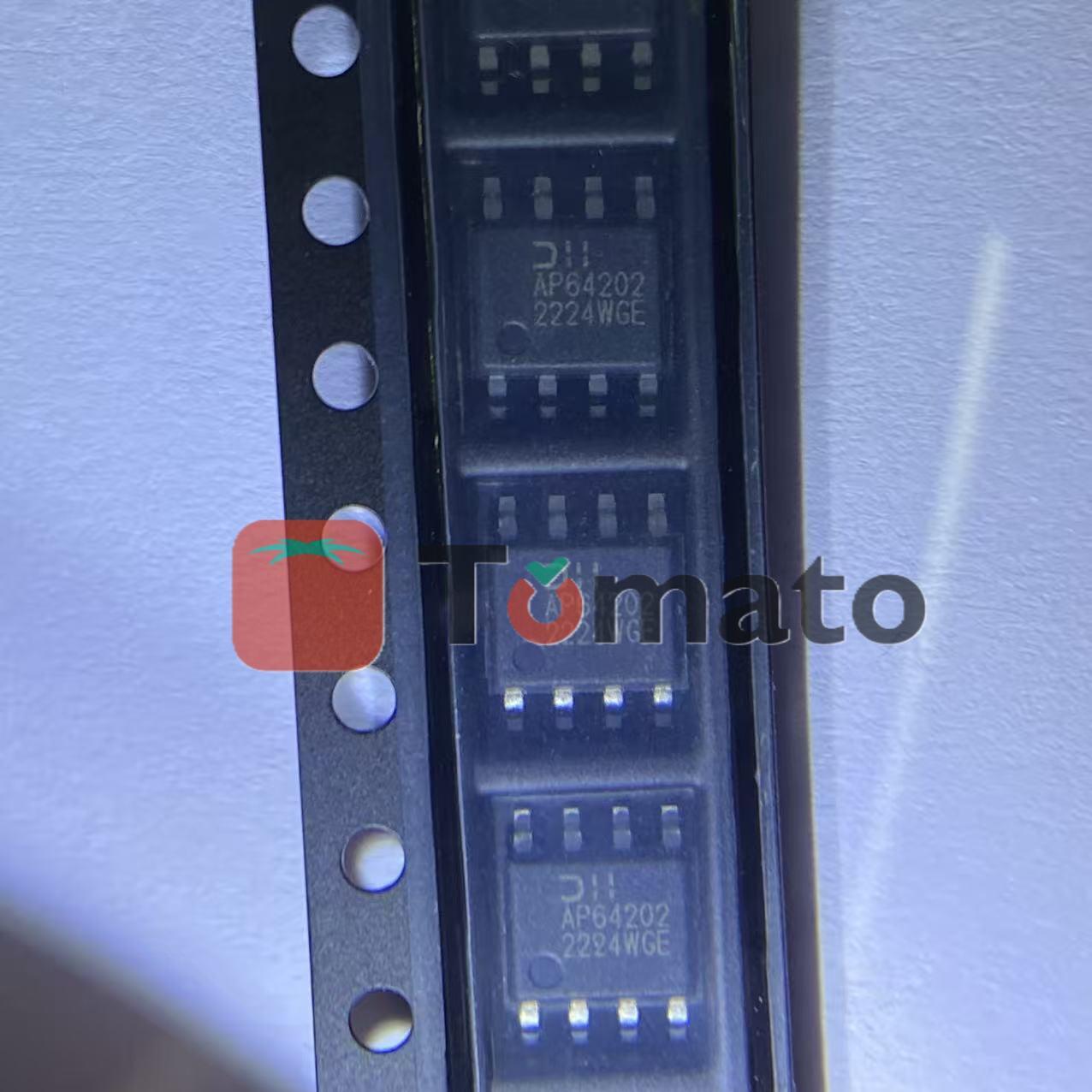

Diodes Incorporated AP64202SP-13
AP64202SP-13 Supplier & Distributor
AP64202SP-13 is an electronic component manufactured by Diodes Incorporated. We are a professional electronic components supplier providing original parts with large stock available in Shenzhen Huaqiangbei.
We supply AP64202SP-13 with competitive pricing, fast global delivery and reliable sourcing services for OEM, EMS and electronic trading companies.
- Original and genuine components
- Large stock inventory available
- Fast worldwide shipping
- Support for bulk orders
- Part No.:
- AP64202SP-13
- Manufacturer:
- Diodes Incorporated
- Category:
- In-Stock Discrete Semiconductors
- Package:
- 8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Datasheet:
-
AP64202SP-13.pdf
- Description:
- IC REG BUCK ADJ 2A 8SO
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Inventory:7,583
Send us your inquiry,we will respond immediately.
About AP64202SP-13
Looking for AP64202SP-13 supplier or distributor? Tomato Electronics provides high-quality electronic components including MLCC capacitors, tantalum capacitors, ICs, diodes and more.
Contact us now for quotation and availability of AP64202SP-13.
Product Details
AP64202SP-13 – Diodes Incorporated 3.8V to 40V, 2A Low-IQ Synchronous Buck Converter
AP64202SP-13 is a Diodes Incorporated synchronous step-down DC/DC converter designed for efficient point-of-load power conversion in industrial, consumer, networking and general electronic systems. With a 3.8V to 40V input range, 2A continuous output current, 0.8V to VIN adjustable output, 25µA low quiescent current, 100kHz to 2.2MHz adjustable switching frequency and SO-8EP exposed-pad package, it is suitable for compact power rails requiring high integration, low external component count and EMI-conscious layout.
Engineering note: Confirm input voltage range, output voltage target, switching frequency, inductor value, thermal pad layout, EMI margin, compensation behavior and the latest Diodes Incorporated datasheet before production approval.
Component Overview
AP64202SP-13 belongs to the Diodes Incorporated AP64202 family of low-IQ synchronous buck converters. The device integrates a high-side and low-side MOSFET, uses peak current mode control and includes an internal loop compensation network to simplify DC/DC converter design. It is commonly selected for 12V, 24V and wide-input distributed power systems that need an adjustable low-voltage output rail.
Circuit Function & Design Role
Converts higher input rails such as 12V or 24V down to lower system voltages.
Supports local power rails for MCUs, sensors, interface circuits and control boards.
25µA low quiescent current helps improve light-load efficiency in standby or always-on rails.
Frequency spread spectrum and proprietary gate-drive behavior support EMI reduction in compact layouts.
Key Electrical & Package Information
| Manufacturer | Diodes Incorporated |
|---|---|
| Part Number | AP64202SP-13 |
| Series | AP64202 Series |
| Device Type | Low-IQ synchronous buck converter |
| Topology | Step-down / Buck |
| Number of Outputs | 1 |
| Input Voltage Range | 3.8V to 40V |
| Output Voltage Range | 0.8V to VIN |
| Continuous Output Current | 2A |
| Quiescent Current | 25µA typical reference value |
| Shutdown Current | 1µA typical reference value |
| Switching Frequency | 100kHz to 2.2MHz adjustable / sync capable |
| High-Side MOSFET | 150mΩ integrated MOSFET |
| Low-Side MOSFET | 80mΩ integrated MOSFET |
| Control Mode | Peak current mode with internal loop compensation |
| Light-Load Mode | PFM support for light-load efficiency |
| Protection Features | UVLO, OVP, cycle-by-cycle peak current limit, thermal shutdown |
| Package / Case | SO-8EP / 8-SOIC exposed pad |
| Mounting Type | Surface Mount / SMD |
| Operating Ambient Temperature | -40°C to +85°C |
| Operating Junction Temperature | -40°C to +125°C |
| Packaging | Tape and reel / cut tape options |
Application Scenarios
Distributed Power Bus Supplies
Used to generate local regulated rails from 12V, 24V or other wide input bus voltages.
Industrial & Control Boards
Suitable for PLC, sensor, automation, instrumentation and embedded controller power rails.
Consumer & Home Appliances
Applicable to small appliances, home audio, control panels and always-on auxiliary power circuits.
Network & General Electronics
Useful where a BOM requires a 2A adjustable synchronous buck regulator in SO-8EP package.
TomatoElec Quality & Supply Notes
As an in-stock independent distributor and electronic components supplier, TomatoElec supports AP64202SP-13 sourcing for engineering samples, production replenishment, urgent replacement and BOM purchasing. For DC/DC converter ICs, correct manufacturer, orderable part number, package code, reel suffix, date code, moisture handling and original sourcing are important because the device directly affects power-rail efficiency, thermal margin, EMI behavior and long-term reliability.
- Original component sourcing: support sourcing of original Diodes Incorporated power management IC products.
- Inventory support: help confirm available stock, package condition, date code and shipment schedule.
- Package verification: confirm SO-8EP exposed-pad package and -13 tape-and-reel suffix before shipment.
- BOM matching: verify input voltage, output current, output voltage range, switching frequency, package and thermal requirement before approving any substitute.
Replacement & BOM Matching Guidance
AP64202SP-13 should not be replaced only by matching the 2A output rating. Engineers should compare input voltage range, minimum output voltage, MOSFET integration, switching frequency range, compensation method, package thermal resistance, pinout, EMI behavior and protection features.
FAQ
What is AP64202SP-13 used for?
Does AP64202SP-13 include internal MOSFETs?
What package is AP64202SP-13?
Can TomatoElec support AP64202SP-13 sourcing?
Final Selection Summary
AP64202SP-13 is a Diodes Incorporated 3.8V to 40V input, 2A low-IQ synchronous buck converter with integrated MOSFETs, internal compensation, adjustable frequency and SO-8EP package for compact DC/DC power designs.
