Switching Converter, SMPS Transformers

Switching Converter and SMPS Transformers are magnetic components used in switching power supplies to transfer energy, provide isolation and support voltage conversion. They are widely used in AC-DC power supplies, DC-DC converters, adapters, chargers, industrial power modules, LED drivers, communication equipment, consumer electronics and embedded systems.

This category includes flyback transformers, forward converter transformers, push-pull transformers, isolated DC-DC converter transformers, high-frequency SMPS transformers and related magnetic components. These products are commonly selected based on input voltage, output voltage, power rating, switching frequency, insulation rating, core material, mounting type, package style and application requirements.

TomatoElec supplies original Switching Converter and SMPS Transformers from recognized manufacturers such as Würth Elektronik, Pulse Electronics, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, Eaton and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Type	Applications	Intended Chipset	Chipset Manufacturer	Voltage - Primary	Voltage - Auxiliary	Voltage - Isolation	Inductance @ Frequency	Frequency	Operating Temperature	Grade	Qualification	Mounting Type	Size / Dimension	Height - Seated (Max)	Footprint	Style
750811116 XFMR LED DR AC/DC CONV 1.31MH SM Würth Elektronik	0	-	RFQ	Datasheet	WE-UNIT, MID-OLEE	Tape & Reel (TR)	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	85 ~ 265V	-	3000Vrms	1.31mH @ 10kHz	80 ~ 200kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.548" (13.92mm)	0.700" L x 1.028" W (17.78mm x 26.10mm)	-
750813551 XFMR LED DR AC/DC CONV 1.5MH SMD Würth Elektronik	0	-	RFQ	Datasheet	WE-UNIT, MID-OLEE	Tape & Reel (TR)	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	85 ~ 130V	-	3000Vrms	1.5mH @ 10kHz	80 ~ 200kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.548" (13.92mm)	0.700" L x 1.028" W (17.78mm x 26.10mm)	-
750815530 XFMR LED DR AC/DC CONV 8MH SMD Würth Elektronik	0	-	RFQ	Datasheet	WE-UNIT, MID-OLEE	Tape & Reel (TR)	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	195 ~ 265V	-	3000Vrms	8mH @ 10kHz	80 ~ 200kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.548" (13.92mm)	0.700" L x 1.028" W (17.78mm x 26.10mm)	-
749119533 XFMR POE DC/DC CONV 54UH SMD Würth Elektronik	0	-	RFQ	Datasheet	WE-PoEH	Tape & Reel (TR)	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	-	33 ~ 57V	10V	1500Vrms	54µH @ 100kHz	200 ~ 400kHz	-40°C ~ 125°C	-	-	Surface Mount	0.551" L x 0.591" W (14.00mm x 15.00mm)	0.571" (14.50mm)	0.551" L x 0.713" W (14.00mm x 18.10mm)	-
749119633 XFMR POE DC/DC CONV 100UH SMD Würth Elektronik	0	-	RFQ	Datasheet	WE-PoEH	Tape & Reel (TR)	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	-	33 ~ 57V	10V	1500Vrms	100µH @ 100kHz	200 ~ 400kHz	-40°C ~ 125°C	-	-	Surface Mount	0.551" L x 0.591" W (14.00mm x 15.00mm)	0.571" (14.50mm)	0.551" L x 0.713" W (14.00mm x 18.10mm)	-
749119650 XFMR POE DC/DC CONV 100UH SMD Würth Elektronik	0	-	RFQ	Datasheet	WE-PoEH	Tape & Reel (TR)	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	-	33 ~ 57V	10V	1500Vrms	100µH @ 100kHz	200 ~ 400kHz	-40°C ~ 125°C	-	-	Surface Mount	0.551" L x 0.591" W (14.00mm x 15.00mm)	0.571" (14.50mm)	0.551" L x 0.713" W (14.00mm x 18.10mm)	-
7491196212 XFMR POE DC/DC CONV 128UH SMD Würth Elektronik	0	-	RFQ	Datasheet	WE-PoEH	Tape & Reel (TR)	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	-	9 ~ 57V	10V	1500Vrms	128µH @ 100kHz	200 ~ 400kHz	-40°C ~ 125°C	-	-	Surface Mount	0.551" L x 0.591" W (14.00mm x 15.00mm)	0.571" (14.50mm)	0.551" L x 0.591" W (14.00mm x 18.10mm)	-
7491196501 XFMR POE DC/DC CONV 128UH SMD Würth Elektronik	0	-	RFQ	Datasheet	WE-PoEH	Tape & Reel (TR)	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	-	9 ~ 57V	10V	1500Vrms	128µH @ 100kHz	200 ~ 400kHz	-40°C ~ 125°C	-	-	Surface Mount	0.551" L x 0.591" W (14.00mm x 15.00mm)	0.571" (14.50mm)	0.551" L x 0.713" W (14.00mm x 18.10mm)	-
PA5181NL XFMR DC/DC CONV 3.4UH SMD Pulse Electronics	14	-	RFQ	Datasheet	PA5181NL	Tray	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	3.4µH	-	-40°C ~ 130°C	-	-	Surface Mount	-	0.500" (12.70mm)	0.697" L x 0.551" W (17.70mm x 14.00mm)	Wirewound
750311553 XFMR LED DR AC/DC 803.5UH TH Würth Elektronik	0	-	RFQ	Datasheet	WE-FB, MID-OLTI	Tray	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	LM3445	National Semiconductor	115V	-	4500Vrms	803.5µH @ 100kHz, 50.2µH @ 100kHz	100kHz	-40°C ~ 125°C	-	-	Through Hole	-	0.635" (16.13mm)	0.800" L x 0.960" W (20.32mm x 24.38mm)	-
7508110210 XFMR LED DR AC/DC CONV 2MH TH Würth Elektronik	0	-	RFQ	Datasheet	WE-UNIT, MID-OLLT	Tray	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	LT3799	Linear Technology	120 ~ 200V	15V @ 10mA	4500Vrms	2mH @ 10kHz	100kHz	-40°C ~ 125°C	-	-	Through Hole	0.591" L x 0.620" W (15.00mm x 15.75mm)	0.732" (18.59mm)	0.591" L x 0.620" W (15.00mm x 15.75mm)	-
750315669 XFMR FWD P-P DC/DC CONV SMD Würth Elektronik	0	-	RFQ	Datasheet	MID-FWD	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	10V @ 50mA	1500Vrms	-	250kHz	-40°C ~ 125°C	-	-	Surface Mount	-	-	-	-
TGMR-Q440V8LF ISO MOD DC 1C:1.33C 20VUS 4.5KV HALO Electronics, Inc.	0	-	RFQ	Datasheet	-	Tube	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PA5000.003NL XFMR FWD P-P DC/DC CONV 100UH SM Pulse Electronics	24	-	RFQ	Datasheet	PA5000.XXXNL	Tray	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	33 ~ 75V	10V @ 50mA	5000Vrms	100µH	200kHz	-40°C ~ 130°C	-	-	Surface Mount	0.531" L x 0.520" W (13.50mm x 13.20mm)	0.650" (16.50mm)	0.697" L x 0.531" W (17.70mm x 13.50mm)	Wirewound
PA5111.003NLT XFMR FLYBACK DC/DC CONV 80UH SMD Pulse Electronics	0	-	RFQ	Datasheet	PA5111.XXXNL	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	33 ~ 75V	-	3000Vrms	80µH @ 200kHz	200kHz	-40°C ~ 130°C	-	-	Surface Mount	0.531" L x 0.520" W (13.50mm x 13.20mm)	0.650" (16.50mm)	0.689" L x 0.531" W (17.50mm x 13.50mm)	Wirewound
TGMR-Q440V8LFTR ISO MOD DC 1C:1.33C 20VUS 4.5KV HALO Electronics, Inc.	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
750310002 XFMR POE DC/DC CONV 28UH SMD Würth Elektronik	0	-	RFQ	Datasheet	WE-PoE, MID-POE	Tape & Reel (TR)	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	-	-	15V	1875Vrms	28µH @ 100kHz	200kHz	-	-	-	Surface Mount	-	-	-	-
750311402 XFMR LED DR AC/DC CONV 1.48MH TH Würth Elektronik	0	-	RFQ	Datasheet	-	Tray	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	SSL2101, SSL2102	NXP Semiconductors	120 ~ 375V	-	4000Vrms	1.48mH @ 10kHz	60kHz	-40°C ~ 125°C	-	-	Through Hole	0.707" L x 0.799" W (17.96mm x 20.30mm)	0.568" (14.43mm)	0.707" L x 0.799" W (17.96mm x 20.30mm)	-

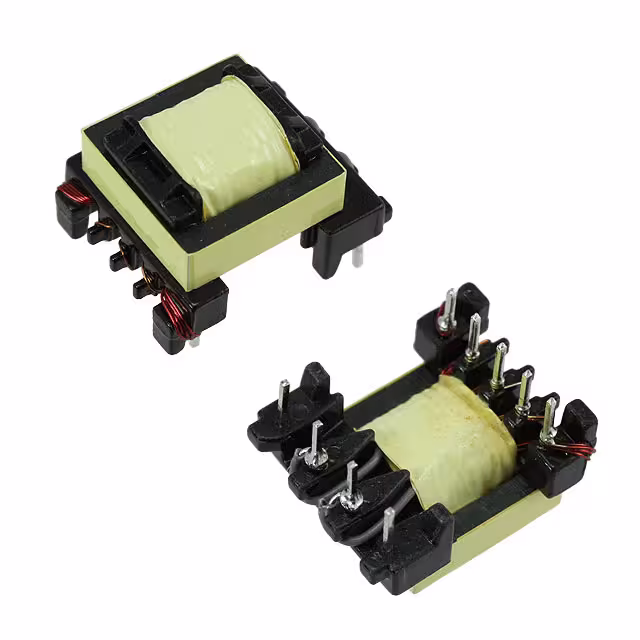

750871530 XFMR LED DR AC/DC CONV 1.6MH TH Würth Elektronik	0	-	RFQ	Datasheet	WE-UNIT, MID-OLNXP	Tray	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	TEA1522	NXP Semiconductors	120 ~ 385V	-	4000Vrms	1.6mH @ 10kHz	100kHz	-40°C ~ 125°C	-	-	Through Hole	-	0.635" (16.13mm)	0.800" L x 0.960" W (20.32mm x 24.38mm)	-
750871032 XFMR FLYBCK AC/DC CONV 1.55MH TH Würth Elektronik	0	-	RFQ	Datasheet	WE-UNIT, MID-OLPI	Tray	Active	For AC/DC Converters	Flyback Converters	LNK605	Power Integrations	120 ~ 375V	-	4000Vrms	1.55mH @ 66kHz	-	-40°C ~ 125°C	-	-	Through Hole	0.689" L x 0.740" W (17.50mm x 18.80mm)	0.524" (13.31mm)	0.665" L x 0.740" W (16.90mm x 18.80mm)	-

Total 1831 Record«Prev 1... 55 56 57 585960 61 62...92 Next»
