Switching Converter, SMPS Transformers

Switching Converter and SMPS Transformers are magnetic components used in switching power supplies to transfer energy, provide isolation and support voltage conversion. They are widely used in AC-DC power supplies, DC-DC converters, adapters, chargers, industrial power modules, LED drivers, communication equipment, consumer electronics and embedded systems.

This category includes flyback transformers, forward converter transformers, push-pull transformers, isolated DC-DC converter transformers, high-frequency SMPS transformers and related magnetic components. These products are commonly selected based on input voltage, output voltage, power rating, switching frequency, insulation rating, core material, mounting type, package style and application requirements.

TomatoElec supplies original Switching Converter and SMPS Transformers from recognized manufacturers such as Würth Elektronik, Pulse Electronics, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, Eaton and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Type	Applications	Intended Chipset	Chipset Manufacturer	Voltage - Primary	Voltage - Auxiliary	Voltage - Isolation	Inductance @ Frequency	Frequency	Operating Temperature	Grade	Qualification	Mounting Type	Size / Dimension	Height - Seated (Max)	Footprint	Style
POEB2FB1V40W1X5 XFMR POE 100UH SMD Eaton - Electronics Division	260	-	RFQ	Datasheet	POEB1FB	Tape & Reel (TR)	Active	-	Power Over Ethernet (PoE)	-	-	42 ~ 57V	12V	1500Vrms	100µH	250kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.472" (12.00mm)	-	-
POEB2FB1V24W2X12 XFMR POE 11.5UH SMD Eaton - Electronics Division	260	-	RFQ	Datasheet	POEB1FB	Tape & Reel (TR)	Active	-	Power Over Ethernet (PoE)	-	-	10 ~ 57V	12V	1500Vrms	11.5µH @ 100kHz	250kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.472" (12.00mm)	-	-
POEB3FB1V84W2X12 XFMR POE 37.5UH SMD Eaton - Electronics Division	210	-	RFQ	Datasheet	POEB3FB	Tape & Reel (TR)	Active	-	Power Over Ethernet (PoE)	-	-	44 ~ 57V	10V	1500Vrms	37.5µH @ 100KHz	200kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.583" (14.80mm)	-	-
SUOT-EE16H-12 UNIVERSAL OFFLINE TRANSFORMER Signal Transformer	630	-	RFQ	Datasheet	SUOT	Tray	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	125 ~ 375V	-	4000V	900µH @ 10kHz	132kHz	-40°C ~ 125°C	-	-	Through Hole	0.965" L x 0.795" W (24.50mm x 20.20mm)	0.650" (16.50mm)	-	Wirewound
SUOT-EE16V-5 UNIVERSAL OFFLINE TRANSFORMER Signal Transformer	625	-	RFQ	Datasheet	SUOT	Tray	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	125 ~ 375V	-	4000V	900µH @ 10kHz	132kHz	-40°C ~ 125°C	-	-	Through Hole	0.709" L x 0.650" W (18.00mm x 16.50mm)	0.709" (18.00mm)	-	Wirewound
SUOT-EE16V-12 UNIVERSAL OFFLINE TRANSFORMER Signal Transformer	624	-	RFQ	Datasheet	SUOT	Tray	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	125 ~ 375V	-	4000V	900µH @ 10kHz	132kHz	-40°C ~ 125°C	-	-	Through Hole	0.709" L x 0.650" W (18.00mm x 16.50mm)	0.709" (18.00mm)	-	Wirewound
POEA2FB1V27W1X3 XFMR POE 100UH SMD Eaton - Electronics Division	320	-	RFQ	Datasheet	POEA2FB	Tape & Reel (TR)	Active	-	Power Over Ethernet (PoE)	-	-	33 ~ 57V	10V	1500Vrms	100µH	-	-40°C ~ 125°C	-	-	Surface Mount	-	0.615" (15.62mm)	-	-
750310787 XFMR LED DR AC/DC CONV 2.8MH TH Würth Elektronik	104	-	RFQ	Datasheet	WE-UNIT, MID-OLTI	Tray	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	TPS92010DR	Texas Instruments	-	-	2000Vrms	2.8mH @ 10kHz	-	-	-	-	Through Hole	0.707" L x 0.799" W (17.96mm x 20.30mm)	0.568" (14.43mm)	0.707" L x 0.799" W (17.96mm x 20.30mm)	-
SUOT-EE13H-24 UNIVERSAL OFFLINE TRANSFORMER Signal Transformer	630	-	RFQ	Datasheet	SUOT	Tray	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	125 ~ 375V	-	4000V	2.8mH @ 10kHz	132kHz	-40°C ~ 125°C	-	-	Through Hole	0.846" L x 0.591" W (21.50mm x 15.00mm)	0.472" (12.00mm)	-	Wirewound
SUOT-EE13V-5 UNIVERSAL OFFLINE TRANSFORMER Signal Transformer	629	-	RFQ	Datasheet	SUOT	Tray	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	125 ~ 375V	-	4000V	2.8mH @ 10kHz	132kHz	-40°C ~ 125°C	-	-	Through Hole	0.591" L x 0.433" W (15.00mm x 11.00mm)	0.661" (16.80mm)	-	Wirewound
SUOT-EE13V-12 UNIVERSAL OFFLINE TRANSFORMER Signal Transformer	629	-	RFQ	Datasheet	SUOT	Tray	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	125 ~ 375V	-	4000V	2.8mH @ 10kHz	132kHz	-40°C ~ 125°C	-	-	Through Hole	0.591" L x 0.433" W (15.00mm x 11.00mm)	0.661" (16.80mm)	-	Wirewound
SUOT-EE13V-24 UNIVERSAL OFFLINE TRANSFORMER Signal Transformer	627	-	RFQ	Datasheet	SUOT	Tray	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	125 ~ 375V	-	4000V	2.8mH @ 10kHz	132kHz	-40°C ~ 125°C	-	-	Through Hole	0.591" L x 0.433" W (15.00mm x 11.00mm)	0.661" (16.80mm)	-	Wirewound
POEA1FB1V7W1X12 XFMR POE 155UH SMD Eaton - Electronics Division	199	-	RFQ	Datasheet	POEA1FB	Tape & Reel (TR)	Active	-	Power Over Ethernet (PoE)	-	-	36 ~ 72V	12V	1500Vrms	155µH	250kHz	-40°C ~ 125°C	-	-	Surface Mount	0.559" L x 0.492" W (14.20mm x 12.50mm)	0.457" (11.60mm)	-	-
TGM-010P3RLTR ISO MOD DC 1:1:1 5.5VUS 8P SMD HALO Electronics, Inc.	2,000	-	RFQ	Datasheet	-	Tape & Reel (TR)	Not For New Designs	For DC/DC Converters	-	MAX845	Analog Devices, Inc	-	-	500V	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.300" L x 0.280" W (7.62mm x 7.11mm)	0.088" (2.24mm)	-	Wirewound
TGM-280NSLFTR ISO MOD DC 1C:2.67C 11VUS 6P SMD HALO Electronics, Inc.	1,000	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	For DC/DC Converters	Isolated Buck Converters	MAX253, MAX845, MAX3535, MXL1535	Analog Devices, Inc	-	-	1500Vrms	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.320" L x 0.280" W (8.13mm x 7.11mm)	0.200" (5.08mm)	-	-
TGM-250NSLFTR ISO MOD DC MAX253 1C:1C 11VUS HALO Electronics, Inc.	1,000	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	For DC/DC Converters	Isolated Buck Converters	MAX253, MAX845, MAX3535, MXL1535	Analog Devices, Inc	-	-	1500Vrms	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.320" L x 0.280" W (8.13mm x 7.11mm)	0.200" (5.08mm)	-	-
TGM-240NSLFTR ISO MOD DC MAX253 3C:4C 11VUS HALO Electronics, Inc.	950	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	For DC/DC Converters	Isolated Buck Converters	MAX253, MAX845, MAX3535, MXL1535	Analog Devices, Inc	-	-	1500Vrms	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.320" L x 0.280" W (8.13mm x 7.11mm)	0.200" (5.08mm)	-	-
TGM-040P3RLTR ISO MOD DC 1:1:1.33:1.33 5.5VUS HALO Electronics, Inc.	1,850	-	RFQ	Datasheet	-	Tape & Reel (TR)	Not For New Designs	For DC/DC Converters	-	MAX845	Analog Devices, Inc	-	-	500V	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.300" L x 0.280" W (7.62mm x 7.11mm)	0.088" (2.24mm)	-	Wirewound
POEB2FB1V60W1X12 XFMR POE 70UH SMD Eaton - Electronics Division	254	-	RFQ	Datasheet	POEB1FB	Tape & Reel (TR)	Active	-	Power Over Ethernet (PoE)	-	-	42 ~ 57V	12V	1500Vrms	70µH @ 100kHz	250kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.472" (12.00mm)	-	-

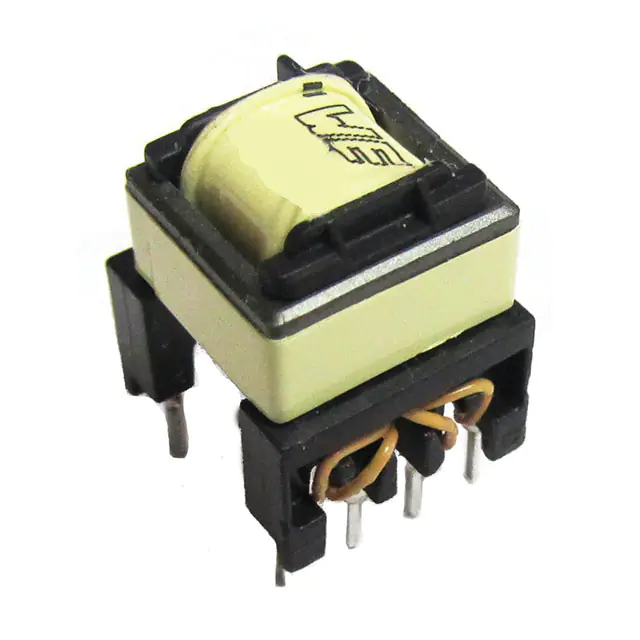

750810014 XFMR FLYBACK AC/DC CONV 2MH TH Würth Elektronik	202	-	RFQ	Datasheet	MID-OLSTM	Tray	Active	For AC/DC Converters	Flyback Converters	-	STMicroelectronics	120 ~ 375V	-	1875Vrms	2mH @ 10kHz	60kHz	-40°C ~ 125°C	-	-	Through Hole	0.620" L x 0.591" W (15.75mm x 15.00mm)	0.728" (18.50mm)	0.620" L x 0.591" W (15.75mm x 15.00mm)	-

Total 1831 Record«Prev 1... 17 18 19 202122 23 24...92 Next»
