Pulse Transformers

Pulse Transformers are magnetic components used to transfer pulse signals, provide galvanic isolation and support reliable signal coupling in electronic circuits. They are widely used in switching power supplies, gate drive circuits, communication equipment, industrial control systems, data transmission, instrumentation, automotive electronics and embedded applications.

This category includes signal pulse transformers, gate drive transformers, isolation pulse transformers, LAN pulse transformers, trigger transformers and related high-frequency magnetic components. These products are commonly selected based on turns ratio, isolation voltage, pulse width, frequency range, impedance, package style, mounting type and application requirements.

TomatoElec supplies original Pulse Transformers from recognized manufacturers such as Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification
ILR-11-0003 ILR3 IMPULSTRAFO KONVENTIONELL SCHURTER Inc.	60	-	RFQ	Datasheet	ILR	Bulk	Active	SCR and Triac Trigger (Encapsulated)	5mH	200VµS	3:1	Through Hole	0.689" L x 0.728" W (17.50mm x 18.50mm)	0.453" (11.50mm)	-25°C ~ 70°C	-	-
BX6158NL TRANSFORMER 20UH 1:1:1 3KV SMT Pulse Electronics	62	-	RFQ	Datasheet	-	Tube	Active	-	20µH	-	1:1:1	Surface Mount	0.445" L x 0.411" W (11.31mm x 10.43mm)	0.287" (7.30mm)	-40°C ~ 125°C	-	-
PA1297NL PULSE XFMR 380UH Pulse Electronics	23	-	RFQ	Datasheet	-	Tray	Active	-	380µH	-	-	Through Hole	1.100" L x 1.150" W (27.94mm x 29.21mm)	0.820" (20.82mm)	-40°C ~ 130°C	-	-
PA1837NLT PULSE XFMR 4.5UH Pulse Electronics	40	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	4.5µH	-	-	Surface Mount	0.860" L x 1.150" W (21.84mm x 29.21mm)	0.450" (11.43mm)	-40°C ~ 125°C	-	-
H5007EFNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	92	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.689" L x 0.600" W (17.50mm x 15.24mm)	0.225" (5.72mm)	0°C ~ 70°C	-	-
77203HVC PULSE XFMR 2:1:1 1MH Murata Power Solutions Inc.	50	-	RFQ	Datasheet	-	Tube	Active	SCR and Triac Trigger (Encapsulated)	1mH	120VµS	2:1:1	Through Hole	1.000" L x 0.799" W (25.40mm x 20.30mm)	0.484" (12.30mm)	0°C ~ 70°C	-	-
H6096FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	75	-	RFQ	Datasheet	-	Bulk	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.715" L x 0.595" W (18.16mm x 15.11mm)	0.260" (6.60mm)	0°C ~ 70°C	-	-
HX6062FNL PULSE XFMR 1CT:1CT TX/RX Pulse Electronics	70	-	RFQ	Datasheet	-	Bulk	Active	LAN 10/100/1000 Base-T	325µH, 350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.689" L x 0.600" W (17.50mm x 15.24mm)	0.225" (5.72mm)	-40°C ~ 85°C	-	-
IT143 XFRMR PULSE 1:1:1 DL 15MH .025A Schaffner EMC Inc.	91	-	RFQ	Datasheet	IT	Tray	Active	Data/Voice Coupling	15mH	-	1:1:1	Through Hole	1.063" L x 0.886" W (27.00mm x 22.50mm)	-	-25°C ~ 70°C	-	-
H5014NL MODULE DL GIGABIT ETHER LAN 48P Pulse Electronics	67	-	RFQ	Datasheet	-	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	1.095" L x 0.480" W (27.81mm x 12.19mm)	0.295" (7.49mm)	0°C ~ 70°C	-	-
IT237 XFRMR PULSE 1:1 SGL 25MH .25A Schaffner EMC Inc.	48	-	RFQ	Datasheet	IT	Tray	Active	Data/Voice Coupling	25mH	-	1:1	Through Hole	1.063" L x 0.886" W (27.00mm x 22.50mm)	-	-25°C ~ 70°C	-	-
H5020NL TRANSFORMER MODULE GIGABIT 2PORT Pulse Electronics	67	-	RFQ	Datasheet	-	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	1.100" L x 0.297" W (27.94mm x 7.54mm)	0.341" (8.66mm)	0°C ~ 70°C	-	-
GDE25-4 TRANSF .650 OHM DUAL GATE DRIVE Triad Magnetics	99	-	RFQ	Datasheet	GDE25	Bulk	Active	Gate Drive	1.5mH	840VµS	1.5:1:1	Through Hole	1.100" L x 1.040" W (27.94mm x 26.42mm)	1.200" (30.48mm)	-	-	-
MTBAUGDT125100 TRANSFORMER, MICRO GATE DRIVE, 1 Vishay Dale	47	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Gate Drive	330µH	63VµS	1:1:1	Surface Mount	-	0.220" (5.59mm)	-55°C ~ 130°C	-	-

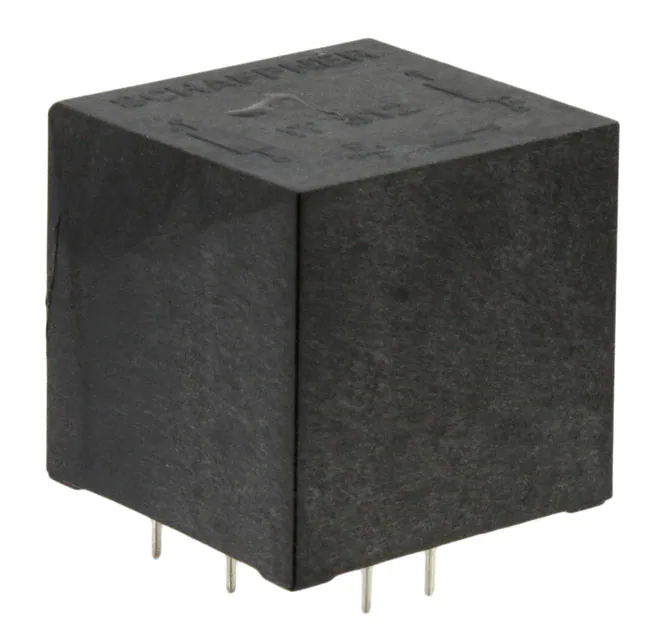

IT314 XFRMR PULSE 3:1:1 DUAL 35MH 1A Schaffner EMC Inc.	65	-	RFQ	Datasheet	IT	Tray	Active	Data/Voice Coupling	35mH	-	3:1:1	Through Hole	1.004" L x 1.004" W (25.50mm x 25.50mm)	0.992" (25.20mm)	-25°C ~ 70°C	-	-
IT312 XFRMR PULSE 1:1:1 DL 21MH .25A Schaffner EMC Inc.	23	-	RFQ	Datasheet	IT	Tray	Active	Data/Voice Coupling	21mH	-	1:1:1	Through Hole	1.004" L x 1.004" W (25.50mm x 25.50mm)	0.992" (25.20mm)	-25°C ~ 70°C	-	-
100B-1001 EXTMP XFMR 100BT SMG COM PBC iNRCORE, LLC	63	-	RFQ	Datasheet	-	Bulk	Active	LAN 10/100 Base-T	-	-	-	Surface Mount	-	-	-	-	-
1000B-5002FNL XFMR MODULE SNGL 1GB SMT PBC iNRCORE, LLC	70	-	RFQ	Datasheet	-	Bulk	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.690" L x 0.480" W (17.53mm x 12.19mm)	0.235" (5.97mm)	-40°C ~ 85°C	-	-
1000B-5002X XFMR MODULE SNGL 1GB SMT PBC iNRCORE, LLC	60	-	RFQ	Datasheet	-	Bulk	Active	LAN 10/100/1000 Base-T	-	-	1:1	Surface Mount	0.690" L x 0.480" W (17.53mm x 12.19mm)	0.235" (5.97mm)	-55°C ~ 125°C	-	-
T-1250SCT XFMR DUAL 1250M BAUD iNRCORE, LLC	85	-	RFQ	Datasheet	Copperhead™	Tube	Active	-	-	-	1CT:1CT	Surface Mount	0.500" L x 0.290" W (12.70mm x 7.37mm)	0.180" (4.57mm)	-55°C ~ 125°C	-	-

Total 5221 Record«Prev 1... 62 63 64 656667 68 69...262 Next»
