Pulse Transformers

Pulse Transformers are magnetic components used to transfer pulse signals, provide galvanic isolation and support reliable signal coupling in electronic circuits. They are widely used in switching power supplies, gate drive circuits, communication equipment, industrial control systems, data transmission, instrumentation, automotive electronics and embedded applications.

This category includes signal pulse transformers, gate drive transformers, isolation pulse transformers, LAN pulse transformers, trigger transformers and related high-frequency magnetic components. These products are commonly selected based on turns ratio, isolation voltage, pulse width, frequency range, impedance, package style, mounting type and application requirements.

TomatoElec supplies original Pulse Transformers from recognized manufacturers such as Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification
GJ2042Q LAN XFMR 10/100/1000 BASE-T Mentech Technology USA Inc.	400	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	0.733" L x 0.500" W (18.00mm x 12.70mm)	0.268" (6.80mm)	0°C ~ 70°C	-	-
XFBMC29-BA09-E XFMR BATT MGMT AEC-Q200 XFMRS	1,357	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.768" L x 0.392" W (19.50mm x 9.96mm)	0.197" (5.00mm)	-40°C ~ 125°C	-	-

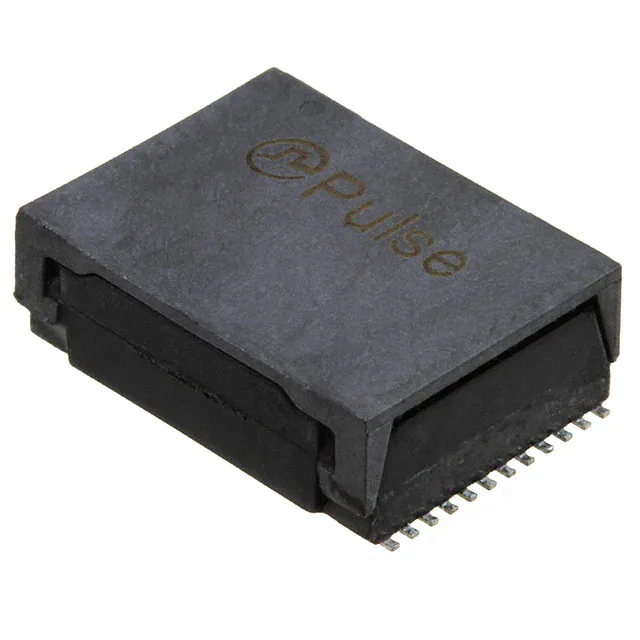

H2009FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	119	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10G Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.703" L x 0.518" W (17.86mm x 13.16mm)	0.241" (6.12mm)	0°C ~ 70°C	-	-

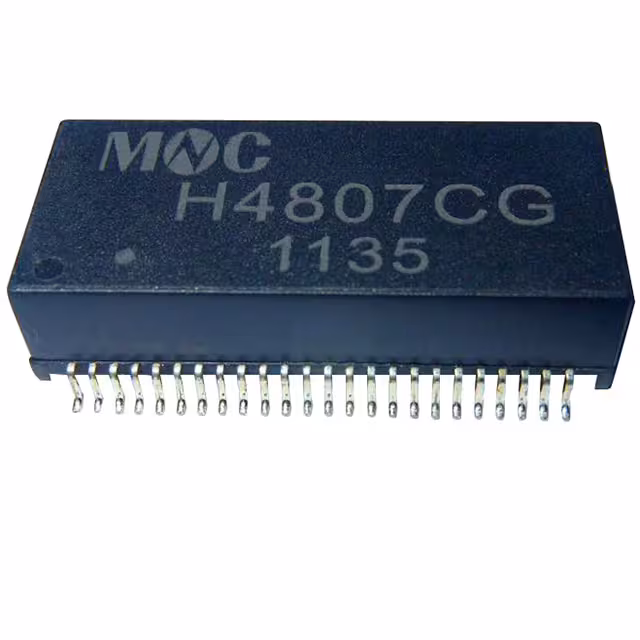

H4807CG QUAD LAN XFMR 10/100 BASE-T Mentech Technology USA Inc.	290	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	1.114" L x 0.508" W (28.30mm x 12.90mm)	0.295" (7.50mm)	0°C ~ 70°C	-	-
TOEP13-0284SG POE TRANSFORMER Mentech Technology USA Inc.	200	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Power over Ethernet (PoE)	240µH	-	-	-	0.705" L x 0.551" W (17.91mm x 14.00mm)	0.500" (12.70mm)	-40°C ~ 85°C	-	-
G4818CG DUAL LAN XFMR 1000 BASE-T Mentech Technology USA Inc.	180	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT	Surface Mount	1.201" L x 0.500" W (30.5mm x 12.70mm)	0.413" (10.50mm)	0°C ~ 70°C	-	-
HX1234T PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	214	-	RFQ	Datasheet	-	Tape & Reel (TR)	Obsolete	LAN 10/100 Base-T	-	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.125" L x 0.480" W (28.58mm x 12.19mm)	0.230" (5.84mm)	-40°C ~ 85°C	-	-
ETH1-460LD PULSE XFMR 1:1 350UH Coilcraft	803	-	RFQ	Datasheet	ETH1-460	Tape & Reel (TR)	Active	Power over Ethernet (PoE)	-	-	1:1	Surface Mount	0.732" L x 0.400" W (18.60mm x 10.16mm)	0.650" (16.50mm)	-40°C ~ 85°C	-	-
ZA9368-AED TRANSFORMER Coilcraft	2,580	-	RFQ	Datasheet	ZA9368-AE	Strip	Active	Isolation and Data Interface (Encapsulated)	256µH	16VµS	1:1.75	Surface Mount	-	0.220" (5.60mm)	-40°C ~ 125°C	-	-
HX7028NLT MDL SIN 10G 1:1 SM TR Pulse Electronics	170	-	RFQ	Datasheet	-	Tape & Reel (TR)	Obsolete	LAN 10G Base-T	-	-	-	Surface Mount	0.537" L x 0.480" W (13.64mm x 12.19mm)	0.250" (6.35mm)	0°C ~ 70°C	-	-
H6080NL XFRMR MODUL GIGABT 2PORT POE 1:1 Pulse Electronics	280	-	RFQ	Datasheet	Star Magnetics™	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	1.095" L x 0.480" W (27.81mm x 12.19mm)	0.295" (7.49mm)	0°C ~ 70°C	-	-
XFBMC45-01S-A XFMR BATT MGMT AEC-Q200 XFMRS	250	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.670" L x 0.492" W (17.02mm x 12.50mm)	0.425" (10.80mm)	-40°C ~ 125°C	-	-
XFBMC60-01S-A XFMR BATT MGMT AEC-Q200 XFMRS	250	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.670" L x 0.492" W (17.02mm x 12.50mm)	0.425" (10.80mm)	-40°C ~ 125°C	-	-
XFATM9B-LMCO-A Transformer, 10/100, Leaded XFMRS	500	-	RFQ	-	-	Tape & Reel (TR)	Active	10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.510" L x 0.370" W (12.95mm x 9.40mm)	0.245" (6.23mm)	-40°C ~ 85°C	-	-
XFBMC45NC-01S-A XFMR BATT MGMT AEC-Q200 XFMRS	250	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.670" L x 0.492" W (17.02mm x 12.50mm)	0.425" (10.80mm)	-40°C ~ 125°C	-	-

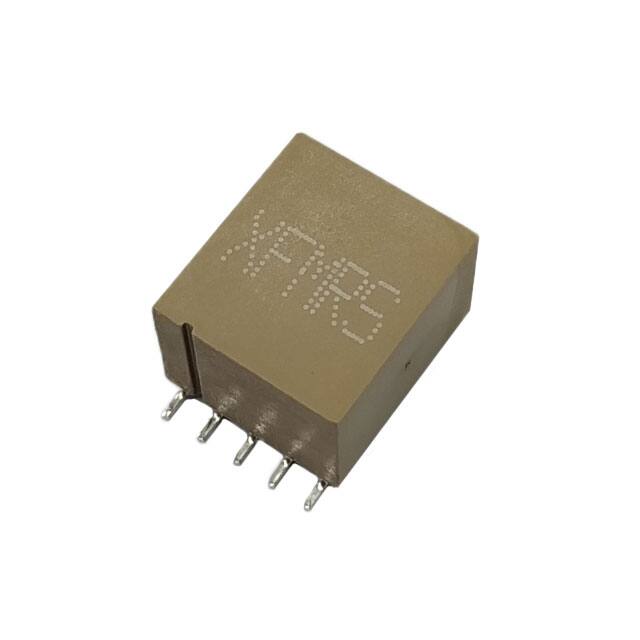

XFBMC60NC-01S-A XFMR BATT MGMT AEC-Q200 XFMRS	250	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.670" L x 0.492" W (17.02mm x 12.50mm)	0.425" (10.80mm)	-40°C ~ 125°C	-	-
XFGID10018 LAN, 10/100/1000 BASE-T, SMD XFMRS	300	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	300µH	-	1:1CT	Surface Mount	0.600" L x 0.430" W (15.24mm x 10.92mm)	0.330" (8.38mm)	-40°C ~ 85°C	-	-
PM-WT75 WIDEBAND RF PULSE COUPLING XFMR Premier Magnetics	1,217	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Data/Voice Coupling	7µH	-	1:1	Surface Mount	0.451" L x 0.346" W (11.45mm x 8.80mm)	0.189" (4.80mm)	-40°C ~ 85°C	-	-
AWLT45326P-181-2.5G LAN XFRMR 1CT:1CT 2.5G 180UH SMD AW Coil	300	-	RFQ	Datasheet	AWLT45326P	Tape & Reel (TR)	Active	LAN 1/2.5/5/10G Base-T	180µH	-	1CT:1CT	Surface Mount	0.181" L x 0.134" W (4.60mm x 3.40mm)	0.126" (3.20mm)	-40°C ~ 85°C	-	-
AWLT45326P-351-1G LAN XFRMR 1CT:1CT 1G 350UH SMD AW Coil	300	-	RFQ	Datasheet	AWLT45326P	Tape & Reel (TR)	Active	LAN 1/2.5/5/10G Base-T	350µH	-	1CT:1CT	Surface Mount	0.181" L x 0.134" W (4.60mm x 3.40mm)	0.126" (3.20mm)	-40°C ~ 85°C	-	-

Total 5221 Record«Prev 1... 58 59 60 616263 64 65...262 Next»
