Pulse Transformers

Pulse Transformers are magnetic components used to transfer pulse signals, provide galvanic isolation and support reliable signal coupling in electronic circuits. They are widely used in switching power supplies, gate drive circuits, communication equipment, industrial control systems, data transmission, instrumentation, automotive electronics and embedded applications.

This category includes signal pulse transformers, gate drive transformers, isolation pulse transformers, LAN pulse transformers, trigger transformers and related high-frequency magnetic components. These products are commonly selected based on turns ratio, isolation voltage, pulse width, frequency range, impedance, package style, mounting type and application requirements.

TomatoElec supplies original Pulse Transformers from recognized manufacturers such as Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification
H1260FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	379	-	RFQ	Datasheet	-	Bulk	Active	LAN 10G Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.110" L x 0.608" W (28.19mm x 15.44mm)	0.225" (5.72mm)	0°C ~ 70°C	-	-

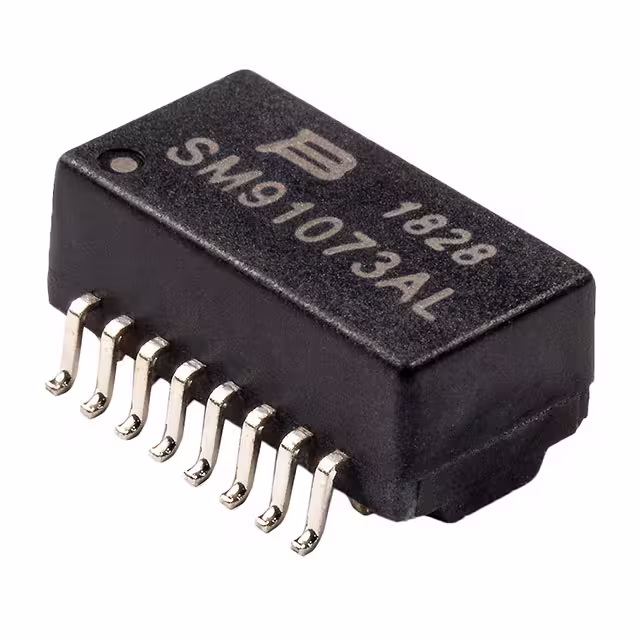

SM91073AL-E XFRMR PULSE 10 BASE-T Bourns Inc.	3,000	-	RFQ	Datasheet	-	Tape & Reel (TR)	Obsolete	-	-	-	-	-	-	-	-	-	-
PE-65848FNL PULSE XFMR 1CS:1CS TX/RX Pulse Electronics	0	-	RFQ	Datasheet	-	Tube	Active	Isolation and Data Interface (Encapsulated)	3.5mH	-	1CS:1CS Transmitter, 1CS:1CS Receiver	Surface Mount	0.475" L x 0.566" W (12.07mm x 14.37mm)	0.340" (8.64mm)	-40°C ~ 85°C	-	-
BA60951CS TRANSF FLYBACK 25UH 2.5W ISO SMD Bourns Inc.	531	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-
TX1287T PULSE XFMR 1CT:2.42CT TX/RX Pulse Electronics	600	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	-	-	1CT:2.42CT Transmitter, 1CT:2.42CT Receiver	Surface Mount	0.505" L x 0.280" W (12.83mm x 7.11mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-
PE-64995NL XFRMR ISDN 1CT:2CT 22MH T/H Pulse Electronics	0	-	RFQ	Datasheet	-	Bulk	Active	Isolation and Data Interface (Encapsulated)	22mH	-	1CT:2CT	Through Hole	0.559" L x 0.559" W (14.20mm x 14.20mm)	0.402" (10.20mm)	0°C ~ 70°C	-	-
XFBMC2103-2S-B XFMR BATT MGMT AEC-Q200 XFMRS	1,099	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Battery Management	-	-	1CT:1CT	Surface Mount	0.390" L x 0.330" W (9.90mm x 8.38mm)	0.266" (6.75mm)	-40°C ~ 125°C	-	-
HCTSM80308BAL-E1 XFMR 3.3-5V/3.3-15V,350MA PK TR Bourns Inc.	788	-	RFQ	Datasheet	HCT	Tape & Reel (TR)	Discontinued at Digi-Key	Isolation and Data Interface (Encapsulated)	300µH	11.0VµS	3:8	Surface Mount	0.484" L x 0.425" W (12.30mm x 10.80mm)	0.256" (6.50mm)	-40°C ~ 125°C	-	-
HCTSM81017CAL-E1 XFRMR POWER 10:17 350UH SMD Bourns Inc.	473	-	RFQ	Datasheet	HCT	Tape & Reel (TR)	Discontinued at Digi-Key	-	350µH	11.0VµS	10:17	Surface Mount	0.598" L x 0.425" W (15.20mm x 10.80mm)	0.256" (6.50mm)	-40°C ~ 125°C	-	-
HCTSM80101AAL-E1 XFMR 3.3-5V/3.3-15V,350MA PK TR Bourns Inc.	146	-	RFQ	Datasheet	HCT	Tape & Reel (TR)	Discontinued at Digi-Key	Isolation and Data Interface (Encapsulated)	250µH	11.0VµS	1:1	Surface Mount	0.484" L x 0.425" W (12.30mm x 10.80mm)	0.256" (6.50mm)	-40°C ~ 125°C	-	-
HX2260FNL PULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics	764	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.358" W (12.70mm x 9.09mm)	0.236" (5.99mm)	-40°C ~ 85°C	-	-
H1302FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	585	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.358" W (12.70mm x 9.09mm)	0.236" (5.99mm)	0°C ~ 70°C	-	-

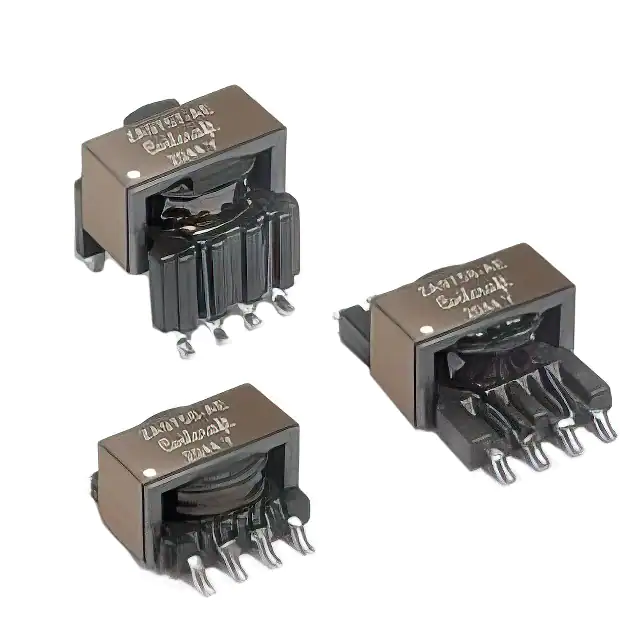

ZA9756-AED TRANSFORMER Coilcraft	1,403	-	RFQ	Datasheet	-	Strip	Active	Isolation and Data Interface (Encapsulated)	215µH	31VµS	1:1	Surface Mount	-	0.236" (6.00mm)	-40°C ~ 125°C	-	-
H1199FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	600	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.358" W (12.70mm x 9.09mm)	0.236" (5.99mm)	0°C ~ 70°C	-	-
TX1315NLT TRANSFORMER 1CT:1CT 1.2MH SMD Pulse Electronics	0	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	T1/E1 (Single)	1.2mH	-	1CT:1CT	Surface Mount	0.300" L x 0.276" W (7.62mm x 7.00mm)	0.250" (6.35mm)	-40°C ~ 85°C	-	-
H1263NLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	583	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.380" W (12.70mm x 9.65mm)	0.236" (5.99mm)	0°C ~ 70°C	-	-
H1199FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	335	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.358" W (12.70mm x 9.09mm)	0.236" (5.99mm)	0°C ~ 70°C	-	-
G4802CG DUAL LAN XFMR 1000 BASE-T Mentech Technology USA Inc.	900	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	1.114" L x 0.500" W (28.30mm x 12.70mm)	0.295" (7.50mm)	0°C ~ 70°C	-	-
XFGIC100POL LAN XFMR 100/1000 POE+ XFMRS	1,239	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT	Surface Mount	0.730" L x 0.600" W (18.54mm x 15.24mm)	0.240" (6.09mm)	-40°C ~ 85°C	-	-
ZA9757-AED TRANSFORMER Coilcraft	740	-	RFQ	Datasheet	-	Strip	Active	Isolation and Data Interface (Encapsulated)	225µH	31VµS	1:1	Surface Mount	-	0.394" (10.00mm)	-40°C ~ 125°C	-	-

Total 5221 Record«Prev 1... 56 57 58 596061 62 63...262 Next»
