Pulse Transformers

Pulse Transformers are magnetic components used to transfer pulse signals, provide galvanic isolation and support reliable signal coupling in electronic circuits. They are widely used in switching power supplies, gate drive circuits, communication equipment, industrial control systems, data transmission, instrumentation, automotive electronics and embedded applications.

This category includes signal pulse transformers, gate drive transformers, isolation pulse transformers, LAN pulse transformers, trigger transformers and related high-frequency magnetic components. These products are commonly selected based on turns ratio, isolation voltage, pulse width, frequency range, impedance, package style, mounting type and application requirements.

TomatoElec supplies original Pulse Transformers from recognized manufacturers such as Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification
PA2669NL PULSE XFMR 17.3UH Pulse Electronics	740	-	RFQ	Datasheet	-	Tray	Active	-	17.3µH	-	-	Surface Mount	0.551" L x 0.516" W (14.00mm x 13.11mm)	0.485" (12.32mm)	-40°C ~ 130°C	-	-
750082111 TRANS ANALOG MODEM PCB Würth Elektronik	164	-	RFQ	Datasheet	WE-AMT, MID-AMT	Tray	Active	-	-	-	1:1	Through Hole	0.945" L x 0.906" W (24.00mm x 23.00mm)	0.490" (12.45mm)	-40°C ~ 85°C	-	-
HB5609NL MOD DUAL 1GD 1:1 HF 36P Pulse Electronics	1,120	-	RFQ	Datasheet	HB5	Tube	Active	LAN 100/1000 Base-T	350µH	-	1CT:1CT	Through Hole	1.280" L x 0.335" W (32.50mm x 8.50mm)	0.457" (11.60mm)	0°C ~ 70°C	-	-
HB5608NL MOD DUAL 1GD 1:1 HF 36P Pulse Electronics	1,120	-	RFQ	Datasheet	HB5	Tube	Active	LAN 100/1000 Base-T	350µH	-	1CT:1CT	Through Hole	1.280" L x 0.335" W (32.50mm x 8.50mm)	0.457" (11.60mm)	0°C ~ 70°C	-	-
HB5605NL MOD DUAL 1GD 1:1 HF 48P Pulse Electronics	864	-	RFQ	Datasheet	HB5	Tube	Active	LAN 100/1000 Base-T	350µH	-	1CT:1CT	Through Hole	1.106" L x 0.437" W (28.10mm x 11.10mm)	0.433" (11.00mm)	0°C ~ 70°C	-	-
HB5606NL MOD DUAL 1GD 1:1 HF 48P Pulse Electronics	864	-	RFQ	Datasheet	HB5	Tube	Active	LAN 100/1000 Base-T	350µH	-	1CT:1CT	Through Hole	1.106" L x 0.437" W (28.10mm x 11.10mm)	0.433" (11.00mm)	0°C ~ 70°C	-	-
RL-9500-765 GATE DRIVE XFMR 1:1:1 765UH TH Renco Electronics, Inc.	600	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Gate Drive	765µH	108VµS	1:1:1	Through Hole	0.800" L x 0.450" W (20.32mm x 11.43mm)	0.710" (18.03mm)	-40°C ~ 130°C	-	-
TG110-RPE5N5LFTR ISO MOD 10/100 POE 0.35A X-TEMP HALO Electronics, Inc.	675	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	-	-	-	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.250" (6.35mm)	-40°C ~ 85°C	-	-
PA1309NLT PULSE XFMR 16.4UH Pulse Electronics	445	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	16.4µH	-	-	Surface Mount	0.551" L x 0.516" W (14.00mm x 13.11mm)	0.485" (12.32mm)	-40°C ~ 130°C	-	-
PA2456NL PULSE XFMR 24UH Pulse Electronics	313	-	RFQ	Datasheet	-	Tray	Active	-	24µH	-	-	Surface Mount	0.515" L x 0.600" W (13.08mm x 15.24mm)	0.451" (11.45mm)	-40°C ~ 130°C	-	-

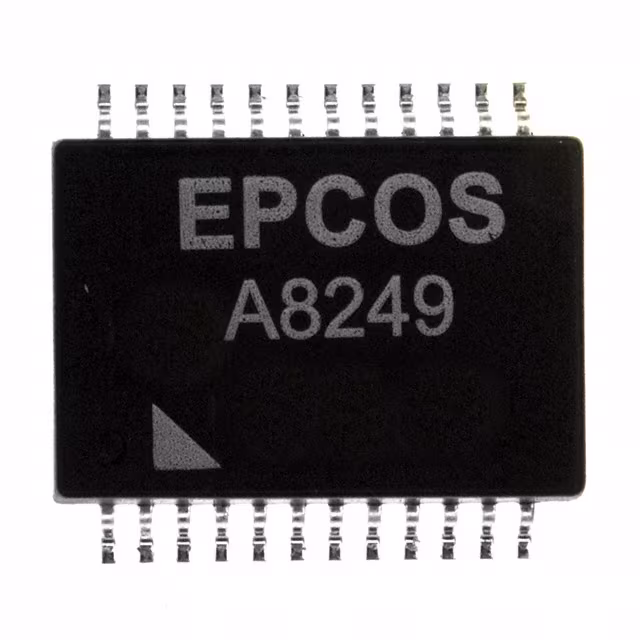

B78476A8249A003 PULSE XFMR 1CT:1CT 350UH EPCOS - TDK Electronics	153	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	0.693" L x 0.476" W (17.60mm x 12.10mm)	0.238" (6.05mm)	0°C ~ 70°C	-	-
PA1577NL PULSE XFMR 230.4UH Pulse Electronics	480	-	RFQ	Datasheet	-	Tray	Active	-	230.4µH	-	-	Surface Mount	0.551" L x 0.516" W (14.00mm x 13.11mm)	0.485" (12.32mm)	-40°C ~ 130°C	-	-
B78541A2467A003 TRANSFORMER EPCOS - TDK Electronics	524	-	RFQ	Datasheet	B78541A	Tape & Reel (TR)	Active	Gate Drive	50µH	-	1:1.08	Surface Mount	-	0.365" (9.27mm)	-40°C ~ 150°C	-	-
PMT9085.047NLT XFMR GATE DRIVE 4CT:7CT SM NPB Pulse Electronics	500	-	RFQ	Datasheet	PMT9085.xxxNLT	Tape & Reel (TR)	Active	Gate Drive	650µH	48VµS	4CT:7CT	Surface Mount	-	0.260" (6.60mm)	-40°C ~ 125°C	-	-
PMT9085.311NLT XFMR GATE DRIVE 3CT:11CT SM NPB Pulse Electronics	500	-	RFQ	Datasheet	PMT9085.xxxNLT	Tape & Reel (TR)	Active	Gate Drive	200µH	27VµS	3CT:11CT	Surface Mount	-	0.260" (6.60mm)	-40°C ~ 125°C	-	-
PMT9085.038NLT XFMR GATE DRIVE 3CT:8CT SM NPB Pulse Electronics	500	-	RFQ	Datasheet	PMT9085.xxxNLT	Tape & Reel (TR)	Active	Gate Drive	200µH	27VµS	3CT:8CT	Surface Mount	-	0.260" (6.60mm)	-40°C ~ 125°C	-	-
PMT9085.089NLT XFMR GATE DRIVE 8CT:9CT SM NPB Pulse Electronics	500	-	RFQ	Datasheet	PMT9085.xxxNLT	Tape & Reel (TR)	Active	Gate Drive	650µH	48VµS	8CT:9CT	Surface Mount	-	0.260" (6.60mm)	-40°C ~ 125°C	-	-
PMT9085.015NLT XFMR GATE DRIVE 1CT:5CT SM NPB Pulse Electronics	493	-	RFQ	Datasheet	PMT9085.xxxNLT	Tape & Reel (TR)	Active	Gate Drive	160µH	24VµS	1CT:5CT	Surface Mount	-	0.260" (6.60mm)	-40°C ~ 125°C	-	-
PMT9085.027NLT XFMR GATE DRIVE 2CT:7CT SM NPB Pulse Electronics	490	-	RFQ	Datasheet	PMT9085.xxxNLT	Tape & Reel (TR)	Active	Gate Drive	160µH	24VµS	2CT:7CT	Surface Mount	-	0.260" (6.60mm)	-40°C ~ 125°C	-	-
PMT9085.012NLT XFMR GATE DRIVE 1CT:2CT SM NPB Pulse Electronics	488	-	RFQ	Datasheet	PMT9085.xxxNLT	Tape & Reel (TR)	Active	Gate Drive	560µH	45VµS	1CT:2CT	Surface Mount	-	0.260" (6.60mm)	-40°C ~ 125°C	-	-

Total 5221 Record«Prev 1... 41 42 43 444546 47 48...262 Next»
