Pulse Transformers

Pulse Transformers are magnetic components used to transfer pulse signals, provide galvanic isolation and support reliable signal coupling in electronic circuits. They are widely used in switching power supplies, gate drive circuits, communication equipment, industrial control systems, data transmission, instrumentation, automotive electronics and embedded applications.

This category includes signal pulse transformers, gate drive transformers, isolation pulse transformers, LAN pulse transformers, trigger transformers and related high-frequency magnetic components. These products are commonly selected based on turns ratio, isolation voltage, pulse width, frequency range, impedance, package style, mounting type and application requirements.

TomatoElec supplies original Pulse Transformers from recognized manufacturers such as Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification
TS21C HF MDL SMD 10/100 SINGLE PORT N/A Pulse Electronics	384	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1:1CT, 1:1CT	Surface Mount	0.504" L x 0.272" W (12.80mm x 6.90mm)	0.222" (5.65mm)	0°C ~ 70°C	-	-
PA1136NL PULSE XFMR 126.7UH Pulse Electronics	840	-	RFQ	Datasheet	-	Tray	Active	-	126.7µH	-	-	Surface Mount	0.551" L x 0.516" W (14.00mm x 13.11mm)	0.485" (12.32mm)	-40°C ~ 125°C	-	-
HXB5603NL MOD SIN 1GD 1:1 EXT HF 18P Pulse Electronics	2,169	-	RFQ	Datasheet	HXB	Tube	Active	LAN 1000 Base-T	350µH	-	1CT:1CT	Through Hole	0.661" L x 0.335" W (16.80mm x 8.50mm)	0.457" (11.60mm)	-40°C ~ 85°C	-	-
PM2190.043NLT XFMR PWR .1260 UH EP7 SM NPB Pulse Electronics	361	-	RFQ	Datasheet	PM2190.XXXNL	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	1.26mH	89VµS	4CT:3CT	Surface Mount	0.394" L x 0.394" W (10.00mm x 10.00mm)	0.492" (12.50mm)	-40°C ~ 125°C	-	-
PM2190.013NLT XFMR PWR .200 UH EP7 SM NPB Pulse Electronics	315	-	RFQ	Datasheet	PM2190.XXXNL	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	200µH	36VµS	1CT:3CT	Surface Mount	0.394" L x 0.394" W (10.00mm x 10.00mm)	0.492" (12.50mm)	-40°C ~ 125°C	-	-
PA1133NL PULSE XFMR 253.4UH Pulse Electronics	241	-	RFQ	Datasheet	-	Tray	Active	-	253.4µH	-	-	Surface Mount	0.515" L x 0.600" W (13.08mm x 15.24mm)	0.451" (11.45mm)	-40°C ~ 125°C	-	-
PM2190.038NLT XFMR PWR .310 UH EP7 SM NPB Pulse Electronics	208	-	RFQ	Datasheet	PM2190.XXXNL	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	310µH	44VµS	3CT:8CT	Surface Mount	0.394" L x 0.394" W (10.00mm x 10.00mm)	0.492" (12.50mm)	-40°C ~ 125°C	-	-
PM2190.021NLT XFMR PWR .1880 UH EP7 SM NPB Pulse Electronics	900	-	RFQ	Datasheet	PM2190.XXXNL	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	1.8mH	100VµS	2CT:1CT	Surface Mount	0.394" L x 0.394" W (10.00mm x 10.00mm)	0.492" (12.50mm)	-40°C ~ 125°C	-	-
HB3601NL MOD DUAL 100D 1:1 HF 20P Pulse Electronics	1,800	-	RFQ	Datasheet	HB3	Tube	Active	LAN 100/1000 Base-T	350µH	-	1CT:1CT	Through Hole	1.000" L x 0.394" W (25.40mm x 10.00mm)	0.260" (6.60mm)	0°C ~ 70°C	-	-
LAN5VSOS24121C2 MOD TRANS LAN 10GB-T 1 PORT Eaton - Electronics Division	790	-	RFQ	Datasheet	LAN	Tape & Reel (TR)	Active	LAN 10G Base-T	120µH	-	1CT:1CT	Surface Mount	0.535" L x 0.472" W (13.60mm x 12.00mm)	0.260" (6.60mm)	-40°C ~ 85°C	-	-
HB3004HLT MOD SIN 100D 1:1 HF SMD Pulse Electronics	590	-	RFQ	Datasheet	HB3	Tape & Reel (TR)	Active	LAN 100 Base-TX	350µH	-	1CT:1CT	Surface Mount	0.504" L x 0.272" W (12.80mm x 6.90mm)	0.222" (5.65mm)	-	-	-
PM2190.083NLT XFMR PWR .2350 UH EP7 SM NPB Pulse Electronics	446	-	RFQ	Datasheet	PM2190.XXXNL	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	2.35mH	110VµS	8CT:3CT	Surface Mount	0.394" L x 0.394" W (10.00mm x 10.00mm)	0.492" (12.50mm)	-40°C ~ 125°C	-	-
TG110-RP55N5LFTR ISO MOD 10/100 POE 0.35A SMD HALO Electronics, Inc.	700	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	-	-	-	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.250" (6.35mm)	0°C ~ 70°C	-	-
LAN2VSOPD48351C2 MOD TRANS LAN 1000B-T 2P POE Eaton - Electronics Division	385	-	RFQ	Datasheet	LAN	Tape & Reel (TR)	Active	LAN 1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT	Surface Mount	1.094" L x 0.480" W (27.80mm x 12.20mm)	0.295" (7.50mm)	-40°C ~ 85°C	-	-
PA1283NL PULSE XFMR 155UH Pulse Electronics	359	-	RFQ	Datasheet	-	Tray	Active	-	155µH	-	-	Surface Mount	0.515" L x 0.600" W (13.08mm x 15.24mm)	0.451" (11.45mm)	-40°C ~ 125°C	-	-

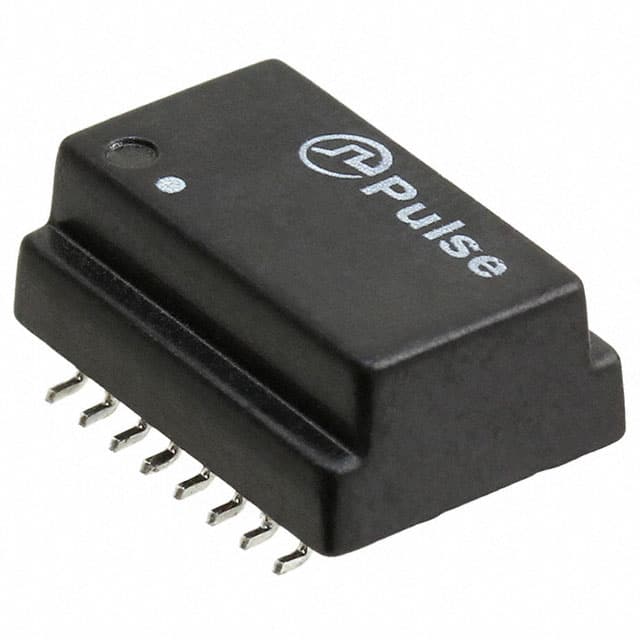

H1197FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	597	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100 Base-T	1.2mH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.358" W (12.70mm x 9.09mm)	0.236" (5.99mm)	0°C ~ 70°C	-	-
ITRA-0239-D502 ITRA PULSE TRANSFORMER THT 0.5A SCHURTER Inc.	133	-	RFQ	Datasheet	ITRA	Bulk	Active	Isolation and Data Interface (Encapsulated)	2.2mH	-	1:1	Through Hole	0.878" L x 0.894" W (22.30mm x 22.70mm)	0.535" (13.60mm)	-25°C ~ 100°C	-	-
ALAN1100X1-2F00DT XFRMR LAN 1CT:1CT 350UH Abracon LLC	696	-	RFQ	Datasheet	ALAN1100X1	Tape & Reel (TR)	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.504" L x 0.272" W (12.80mm x 6.90mm)	0.222" (5.65mm)	-40°C ~ 85°C	-	-
HB6601NL MOD DUAL 1GP 1:1 EXT HF 48P Pulse Electronics	864	-	RFQ	Datasheet	HB6	Tube	Active	LAN 100/1000 Base-T	350µH	-	1CT:1CT	Through Hole	1.106" L x 0.437" W (28.10mm x 11.10mm)	0.433" (11.00mm)	0°C ~ 70°C	-	-
SM43P01EL LAN TRANSFORMER Bourns Inc.	368	-	RFQ	Datasheet	SM	Tape & Reel (TR)	Active	LAN 10G Base-T, Power over Ethernet (PoE)	120µH	-	-	Surface Mount	0.650" L x 0.406" W (16.50mm x 10.30mm)	0.161" (4.10mm)	0°C ~ 85°C	-	-

Total 5221 Record«Prev 1... 40 41 42 434445 46 47...262 Next»
