Pulse Transformers

Pulse Transformers are magnetic components used to transfer pulse signals, provide galvanic isolation and support reliable signal coupling in electronic circuits. They are widely used in switching power supplies, gate drive circuits, communication equipment, industrial control systems, data transmission, instrumentation, automotive electronics and embedded applications.

This category includes signal pulse transformers, gate drive transformers, isolation pulse transformers, LAN pulse transformers, trigger transformers and related high-frequency magnetic components. These products are commonly selected based on turns ratio, isolation voltage, pulse width, frequency range, impedance, package style, mounting type and application requirements.

TomatoElec supplies original Pulse Transformers from recognized manufacturers such as Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification
H1200NL MODULE TRANSFRMR DUAL LAN 10/100 Pulse Electronics	-	RFQ	Datasheet	-	Tray	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	1.125" L x 0.485" W (28.58mm x 12.32mm)	0.230" (5.84mm)	0°C ~ 70°C	-	-

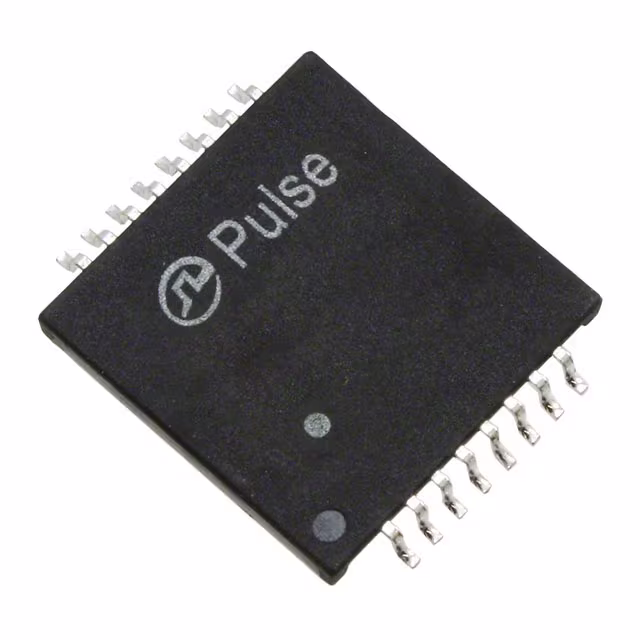

H0009NL MODULE PC CARD SNGL LAN 16PCMCIA Pulse Electronics	-	RFQ	Datasheet	-	Tube	Obsolete	-	-	-	1CT:1CT	Surface Mount	0.560" L x 0.560" W (14.22mm x 14.22mm)	0.082" (2.08mm)	0°C ~ 70°C	-	-
H0019NL MODULE PC CARD SNGL LAN 16PCMCIA Pulse Electronics	-	RFQ	Datasheet	-	Tube	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.078" (1.98mm)	0°C ~ 70°C	-	-

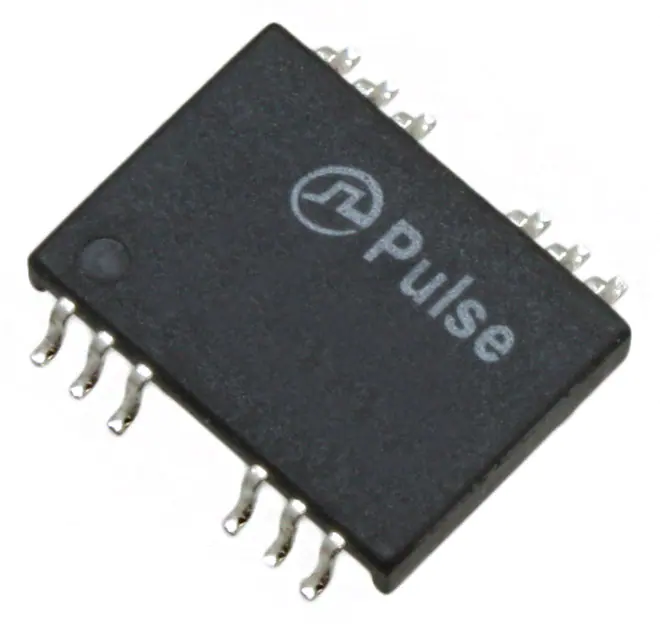

H0022NL MODULE PC CARD SNGL LAN 12PCMCIA Pulse Electronics	-	RFQ	Datasheet	-	Tube	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	0.465" L x 0.340" W (11.81mm x 8.63mm)	0.085" (2.16mm)	0°C ~ 70°C	-	-
H1060NL MODULE XFRMR QUAD ETHR LAN40SOIC Pulse Electronics	-	RFQ	Datasheet	-	Bulk	Active	LAN	-	-	1CT:1CT	Surface Mount	1.125" L x 0.480" W (28.58mm x 12.19mm)	0.230" (5.84mm)	0°C ~ 70°C	-	-

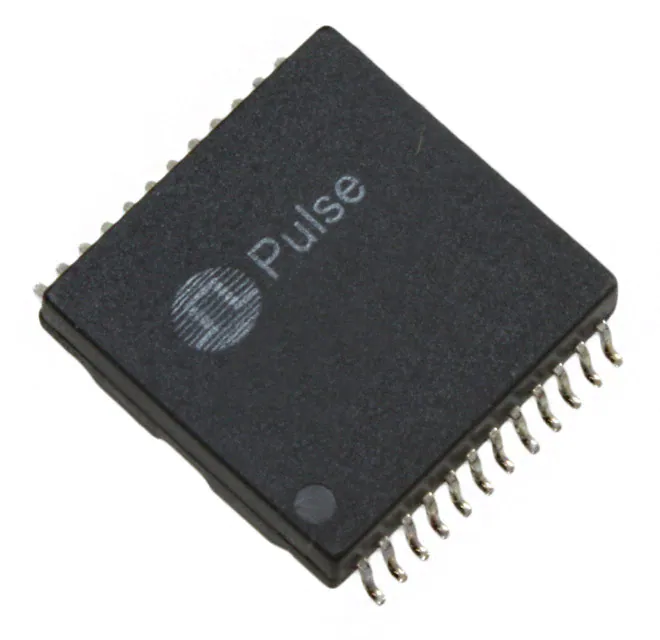

H1174NL MODULE XFRMR DUAL ETHER LAN 24P Pulse Electronics	-	RFQ	Datasheet	-	Tube	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	0.512" L x 0.500" W (13.08mm x 12.70mm)	0.155" (3.93mm)	0°C ~ 70°C	-	-

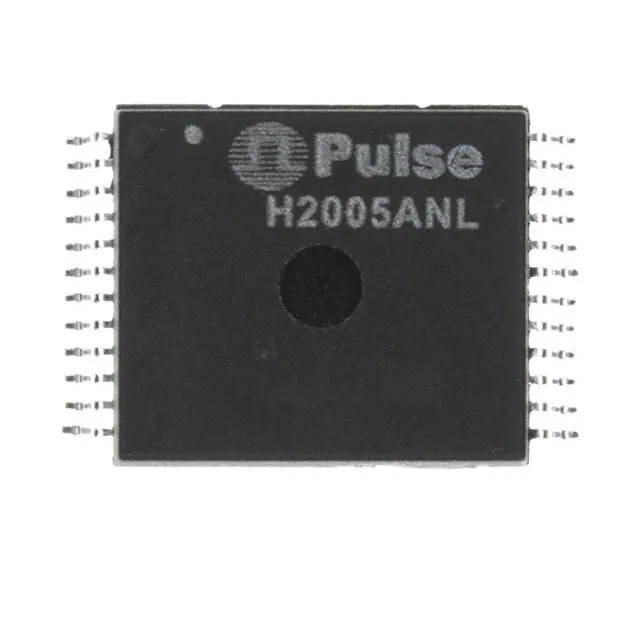

H2005ANL MODULE XFRMR VOIP DL LAN 24-SOIC Pulse Electronics	-	RFQ	Datasheet	-	Tube	Active	LAN	-	-	1CT:1CT	Surface Mount	0.510" L x 0.600" W (12.95mm x 15.24mm)	0.290" (7.36mm)	0°C ~ 70°C	-	-
H2008NL MODULE XFRMR VOIP DL LAN 24-SOIC Pulse Electronics	-	RFQ	Datasheet	-	Tube	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	0.537" L x 0.470" W (13.64mm x 11.94mm)	0.254" (6.45mm)	0°C ~ 70°C	-	-

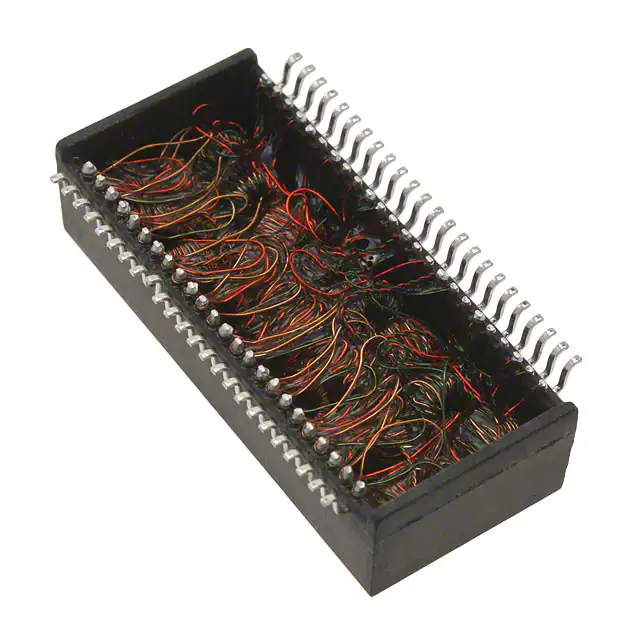

H5012NL MODULE DL GIGABIT ETHER LAN 48P Pulse Electronics	-	RFQ	Datasheet	-	Bulk	Active	LAN 1000 Base-T	-	-	1CT:1CT	Surface Mount	1.095" L x 0.480" W (27.81mm x 12.19mm)	0.295" (7.49mm)	0°C ~ 70°C	-	-
PA1672NL PULSE XFMR 1:4 7.75UH Pulse Electronics	-	RFQ	Datasheet	-	-	Obsolete	-	7.75µH	-	1:4	Surface Mount	0.930" L x 0.860" W (23.62mm x 21.84mm)	0.450" (11.43mm)	-40°C ~ 130°C	-	-
FL1012NL MODULE FILTER SNGL LAN 16PIN TH Pulse Electronics	-	RFQ	-	-	Tube	Obsolete	LAN	-	-	1CT:1CT	Through Hole	0.995" L x 0.395" W (25.28mmx 10.03mm)	0.338" (8.59mm)	-	-	-
PE-68017SNL MODULE FILTER SNGL LAN 10-SIL Pulse Electronics	-	RFQ	Datasheet	-	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Through Hole	1.000" L x 0.210" W (25.40mm x 5.33mm)	0.450" (11.43mm)	-	-	-
H1140NL MODULE XFRMR ETHERNET LAN 40SOIC Pulse Electronics	-	RFQ	Datasheet	-	Tube	Obsolete	-	-	-	1CT:1CT	Surface Mount	1.125" L x 0.480" W (28.58mm x 12.19mm)	0.290" (7.36mm)	0°C ~ 70°C	-	-
PE-65870NL TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics	-	RFQ	Datasheet	-	Tube	Active	T1/E1 (Dual)	1.2mH	-	1CT:1.15CT	Surface Mount	0.505" L x 0.280" W (12.83mm x 7.11mm)	0.245" (6.22mm)	0°C ~ 70°C	-	-
PE-68062LNL MODULE XFRMR/CHOKE QUAD 40-SOIC Pulse Electronics	-	RFQ	-	-	Tube	Obsolete	-	-	-	1CT:1.41CT	Surface Mount	1.125" L x 0.485" W (28.58mm x 12.32mm)	0.230" (5.84mm)	0°C ~ 70°C	-	-
T1091NL TRANSFORMER TELECOM DUAL T1/E2 Pulse Electronics	-	RFQ	Datasheet	-	Tube	Active	T1/E1 (Dual)	1.2mH	-	1CT:2CT, 1:1.36CT	Surface Mount	0.505" L x 0.280" W (12.83mm x 7.11mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-
HX5007NL MODULE SINGLE GIGABIT LAN 24SOIC Pulse Electronics	-	RFQ	Datasheet	-	Tube	Obsolete	LAN 1000 Base-T	-	-	1CT:1CT	Surface Mount	0.690" L x 0.480" W (17.53mm x 12.20mm)	0.227" (5.76mm)	-40°C ~ 85°C	-	-

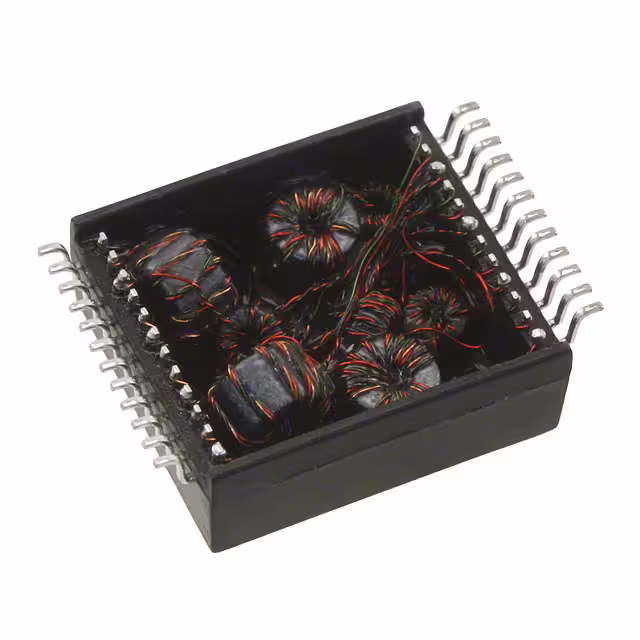

HX5009NL MODULE XFORMR GIGABIT SINGLE LAN Pulse Electronics	-	RFQ	Datasheet	-	Tube	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	0.537" L x 0.600" W (13.64mm x 15.24mm)	0.235" (5.97mm)	-40°C ~ 85°C	-	-
TX02-4400JI IC INTERFACE TRANSFORMER 8SMD GW IXYS	-	RFQ	-	TX02-4400	Tube	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	3:1	Surface Mount	0.378" L x 0.250" W (9.78mm x 6.35mm)	0.180" (4.57mm)	-55°C ~ 125°C	-	-
TX02-4400PI IC INTERFACE TRANSFORMER 8-DIP IXYS	-	RFQ	-	TX02-4400	Tube	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	3:1	Through Hole	0.378" L x 0.255" W (9.59mm x 6.48mm)	0.180" (4.57mm)	-55°C ~ 125°C	-	-

Total 5221 Record«Prev 1... 219 220 221 222223224 225 226...262 Next»
