Pulse Transformers

Pulse Transformers are magnetic components used to transfer pulse signals, provide galvanic isolation and support reliable signal coupling in electronic circuits. They are widely used in switching power supplies, gate drive circuits, communication equipment, industrial control systems, data transmission, instrumentation, automotive electronics and embedded applications.

This category includes signal pulse transformers, gate drive transformers, isolation pulse transformers, LAN pulse transformers, trigger transformers and related high-frequency magnetic components. These products are commonly selected based on turns ratio, isolation voltage, pulse width, frequency range, impedance, package style, mounting type and application requirements.

TomatoElec supplies original Pulse Transformers from recognized manufacturers such as Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity and other major brands. As an in-stock electronic components supplier and independent distributor, TomatoElec provides inventory support, original component sourcing and BOM sourcing services for global customers.

Mfr. Part #	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification
T1137 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics	-	RFQ	Datasheet	-	Bulk	Obsolete	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:2.42CT, 1CT:2.42CT	Surface Mount	0.505" L x 0.280" W (12.83mm x 7.11mm)	0.245" (6.22mm)	0°C ~ 70°C	-	-

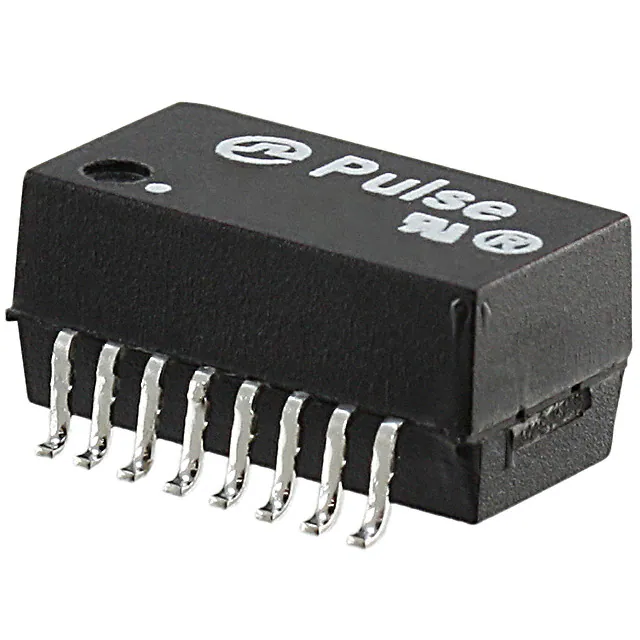

T1144 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics	-	RFQ	Datasheet	-	Bulk	Obsolete	T1/E1 (Dual)	1mH, 1mH	-	1CT:1CT, 1CT:2.4CT	Surface Mount	0.505" L x 0.280" W (12.83mm x 7.11mm)	0.245" (6.22mm)	-	-	-
T1093 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics	-	RFQ	Datasheet	-	Bulk	Obsolete	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:1.15CT, 1CT:1.15CT	Surface Mount	0.505" L x 0.280" W (12.83mm x 7.11mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-
T1091 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics	-	RFQ	Datasheet	-	Bulk	Obsolete	T1/E1 (Dual)	1.2mH	-	1CT:2CT, 1:1.36CT	Surface Mount	0.505" L x 0.280" W (12.83mm x 7.11mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-
T1090 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics	-	RFQ	Datasheet	-	Bulk	Obsolete	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:2CT, 1CT:2CT	Surface Mount	0.505" L x 0.280" W (12.83mm x 7.11mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-

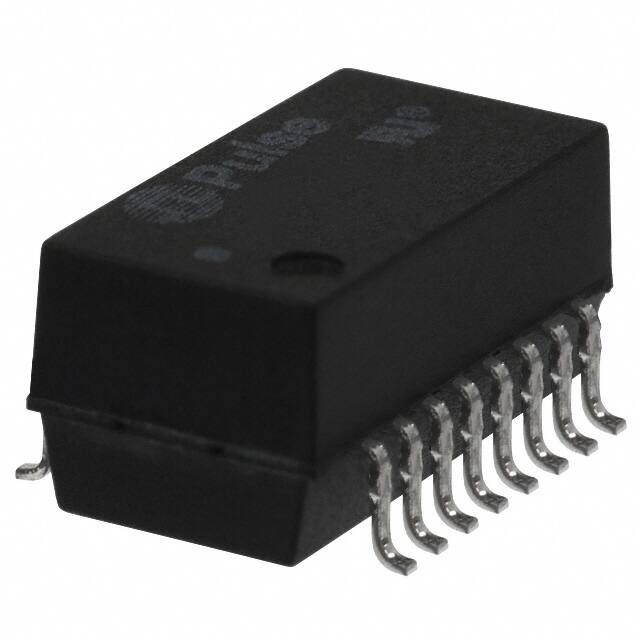

TX1287 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics	-	RFQ	Datasheet	-	Bulk	Active	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:2.42CT, 1CT:2.42CT	Surface Mount	0.505" L x 0.280" W (12.83mm x 7.11mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-
PE-65967 TRANSFORMER TELECOM SINGLE T3/E3 Pulse Electronics	-	RFQ	Datasheet	-	Bulk	Obsolete	T3/E3 (Single)	40µH	-	1:1	Surface Mount	0.300" L x 0.275" W (7.62mm x 7.00mm)	0.245" (6.23mm)	0°C ~ 70°C	-	-
PE-65968 TRANSFORMER TELECOM SINGLE T3/E3 Pulse Electronics	-	RFQ	Datasheet	-	Bulk	Obsolete	T3/E3 (Single)	19µH	-	1:2CT	Surface Mount	0.300" L x 0.275" W (7.62mm x 7.00mm)	0.245" (6.23mm)	0°C ~ 70°C	-	-
T3001 TRANSFORMER TELECOM SINGLE T3/E3 Pulse Electronics	-	RFQ	Datasheet	-	Bulk	Obsolete	T3/E3 (Single)	100µH	-	1:1	Surface Mount	0.300" L x 0.275" W (7.62mm x 7.00mm)	0.250" (6.35mm)	-40°C ~ 85°C	-	-
T3002 TRANSFORMER TELECOM SINGLE T3/E3 Pulse Electronics	-	RFQ	Datasheet	-	Bulk	Obsolete	T3/E3 (Single)	40µH	-	1:2CT	Surface Mount	0.300" L x 0.275" W (7.62mm x 7.00mm)	0.250" (6.35mm)	-40°C ~ 85°C	-	-
H5004 MODULE SINGLE GIGABIT LAN 24SOIC Pulse Electronics	-	RFQ	Datasheet	-	Tray	Obsolete	LAN 1000 Base-T	-	-	1CT:1CT	Surface Mount	0.690" L x 0.480" W (17.53mm x 12.20mm)	0.235" (5.97mm)	0°C ~ 70°C	-	-
H5007 MODULE SINGLE GIGABIT LAN 24SOIC Pulse Electronics	-	RFQ	Datasheet	-	Tube	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	0.690" L x 0.480" W (17.53mm x 12.20mm)	0.227" (5.76mm)	0°C ~ 70°C	-	-

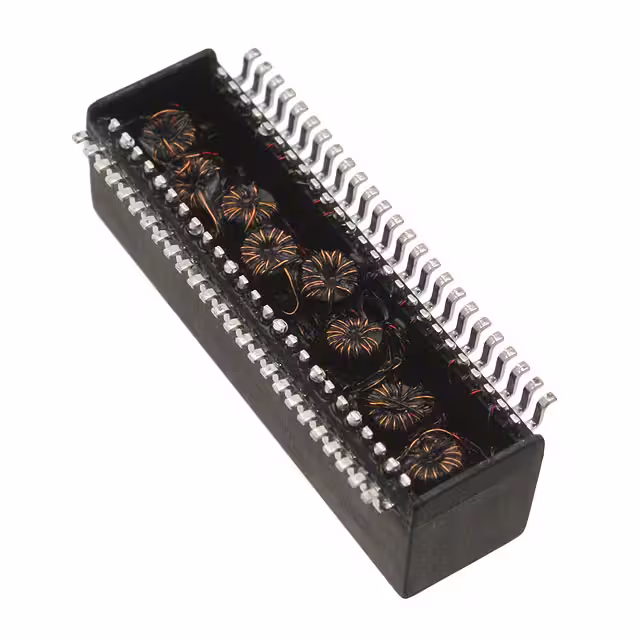

HX5020 MODULE DL GIGABIT ETHER LAN 48P Pulse Electronics	-	RFQ	Datasheet	-	Bulk	Obsolete	LAN 1000 Base-T	-	-	1CT:1CT	Surface Mount	1.100" L x 0.297" W (27.94mm x 7.54mm)	0.341" (8.66mm)	-40°C ~ 85°C	-	-
H0009 MODULE PC CARD SNGL LAN 16PCMCIA Pulse Electronics	-	RFQ	Datasheet	-	Tube	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	0.560" L x 0.560" W (14.22mm x 14.22mm)	0.082" (2.08mm)	0°C ~ 70°C	-	-
H1012 MODULE TRANSFMR SNGL LAN 16P SMD Pulse Electronics	-	RFQ	Datasheet	-	Bulk	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	1.000" L x 0.390" W (25.40mm x 9.91mm)	0.245" (6.22mm)	0°C ~ 70°C	-	-
H1102 MODULE XFRMR SGL ETHR LAN 16SOIC Pulse Electronics	-	RFQ	Datasheet	-	Bulk	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.245" (6.22mm)	0°C ~ 70°C	-	-
H1112 MODULE TRANSFMR SNGL LAN 12P SMD Pulse Electronics	-	RFQ	Datasheet	-	Bulk	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	0.583" L x 0.460" W (14.81mm x 11.68mm)	0.202" (5.13mm)	0°C ~ 70°C	-	-
HX1148 MODULE TRANSFMR SNGL LAN 16P SMD Pulse Electronics	-	RFQ	Datasheet	-	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1 Transmitter, 1CT:1CT Receiver	Surface Mount	1.000" L x 0.390" W (25.40mm x 9.91mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-
HX1188 MODULE XFRMR SGL ETHR LAN 16SOIC Pulse Electronics	-	RFQ	Datasheet	-	Bulk	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-
H1036L MODULE XFRMR QUAD ETHR LAN40SOIC Pulse Electronics	-	RFQ	Datasheet	-	Tray	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	1.125" L x 0.485" W (28.58mm x 12.32mm)	0.230" (5.84mm)	0°C ~ 70°C	-	-

Total 5221 Record«Prev 1... 217 218 219 220221222 223 224...262 Next»
