Electric Double Layer Capacitors (EDLC), Supercapacitors

Electric double layer capacitors (EDLC), also known as supercapacitors, are energy storage components that provide high capacitance, fast charge and discharge capability, and long cycle life. They are commonly used for backup power, peak current support, energy buffering, regenerative energy storage, memory backup, industrial controls, smart meters, automotive electronics, and renewable energy systems.

TomatoElec is an independent electronic components distributor supplying EDLC and supercapacitor products from mainstream manufacturers such as KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, and Maxwell Technologies. Customers can check inventory, price, package, specifications, parameters and PDF datasheets in the product list below, and submit a BOM or RFQ for supercapacitor sourcing support.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Capacitance	Tolerance	Voltage - Rated	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Termination	Mounting Type	Package / Case	Lead Spacing	Size / Dimension	Height - Seated (Max)	Operating Temperature
SCZ2R7306 CAP 30F -20% +80% 2.7V T/H Sruite Electronic Technology (US)	3,500	-	RFQ	Datasheet	SCZ	Bulk	Active	30 F	-20%, +80%	2.7 V	20mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	-	1.181" L x 0.630" W (30.00mm x 16.00mm)	1.181" (30.00mm)	-25°C ~ 70°C
DSF255Q6R0JBE CAPACITOR 2.5F -10%, +30% 6V TH Cornell Dubilier / Illinois Capacitor	107	-	RFQ	-	DSF	Bulk	Active	2.5 F	-10%, +30%	6 V	160mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.610" (15.50mm)	0.827" L x 0.433" W (21.00mm x 11.00mm)	0.945" (24.00mm)	-40°C ~ 85°C
DSF506Q3R0 CAPACITOR 50F -10%, +30% 3V TH Cornell Dubilier / Illinois Capacitor	658	-	RFQ	-	DSF	Bulk	Active	50 F	-10%, +30%	3 V	15mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.654" (42.00mm)	-40°C ~ 85°C
DGH256Q2R7 CAPACITOR 25F -10%, +30% 2.7V TH Cornell Dubilier / Illinois Capacitor	16,580	-	RFQ	-	DGH	Bulk	Active	25 F	-10%, +30%	2.7 V	25mOhm @ 1kHz	1500 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.630" Dia (16.00mm)	1.063" (27.00mm)	-40°C ~ 85°C
DRL107Q0TN45SZ CAP 100F 2.7V SNAP-IN ANGA POW	1,000	-	RFQ	Datasheet	DRL	Bulk	Active	100 F	-10%, +30%	2.7 V	10mOhm @ 1kHz	1000 Hrs @ 65°C	-	Through Hole	Radial, Can	0.394" (10.00mm)	0.866" Dia (22.00mm)	1.850" (47.00mm)	-40°C ~ 65°C
SCCU25B256MRB SCCU25B256MRB KYOCERA AVX	7,582	-	RFQ	-	SCC	Bulk	Active	25 F	-10%, +30%	2.7 V	27mOhm @ 1kHz	1000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.630" Dia (16.00mm)	1.063" (27.00mm)	-40°C ~ 65°C
DRL127Q0TO45SZ CAP 100F 2.7V SNAP-IN ANGA POW	1,000	-	RFQ	Datasheet	DRL	Bulk	Active	120 F	-10%, +30%	2.7 V	10mOhm @ 1kHz	1000 Hrs @ 65°C	-	Through Hole	Radial, Can	0.394" (10.00mm)	0.984" Dia (25.00mm)	1.850" (47.00mm)	-40°C ~ 65°C
SCZ2R7107 CAP 100F -20% +80% 2.7V T/H Sruite Electronic Technology (US)	2,000	-	RFQ	Datasheet	SCZ	Bulk	Active	100 F	-20%, +80%	2.7 V	8mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	-	1.772" L x 0.866" W (45.00mm x 22.00mm)	1.772" (45.00mm)	-25°C ~ 70°C
SCZ2R7367 CAP 360F -20% +80% 2.7V T/H Sruite Electronic Technology (US)	500	-	RFQ	Datasheet	SCZ	Bulk	Active	360 F	-20%, +80%	2.7 V	4Ohm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	-	1.378" Dia (35.00mm)	2.362" (60.00mm)	-25°C ~ 70°C

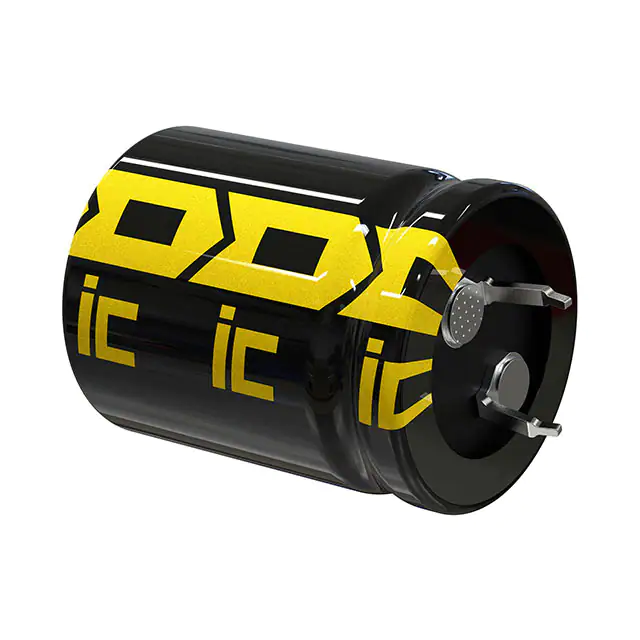

DSF207Q3R0 CAPACITOR 200F -10%, +30% 3V TH Cornell Dubilier / Illinois Capacitor	150	-	RFQ	-	DSF	Bulk	Active	200 F	-10%, +30%	3 V	6mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can - Snap-In	0.394" (10.00mm)	1.181" Dia (30.00mm)	2.047" (52.00mm)	-40°C ~ 85°C
SCZ2R7507 CAP 500F -20% +80% 2.7V T/H Sruite Electronic Technology (US)	500	-	RFQ	Datasheet	SCZ	Bulk	Active	500 F	-20%, +80%	2.7 V	3.5Ohm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	-	1.378" Dia (35.00mm)	2.598" (66.00mm)	-25°C ~ 70°C
ZCC507S0YL40RR Minimum discharge voltage 2.5V ANGA POW	1,000	-	RFQ	Datasheet	ZCC, Lithium Carbon Capacitor	Bulk	Active	500 F	-20%, +50%	3.8 V	35mOhm	1000 Hrs @ 65°C	-	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.575" (40.00mm)	-30°C ~ 65°C
FCS0H104ZFTBR24 CAP 100MF -20% +80% 5.5V SMD KEMET	46	-	RFQ	Datasheet	FC	Tape & Reel (TR)	Active	100 mF	-20%, +80%	5.5 V	50Ohm @ 1kHz	-	SMD (SMT) Tabs	Surface Mount	Radial, Can - SMD	-	0.421" Dia (10.70mm)	0.217" (5.50mm)	-25°C ~ 70°C
B0510-2R5224-R CAP 220MF -20% +80% 2.5V T/H Eaton - Electronics Division	0	-	RFQ	Datasheet	B	Bulk	Active	220 mF	-20%, +80%	2.5 V	2Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.079" (2.00mm)	0.217" Dia (5.50mm)	0.472" (12.00mm)	-25°C ~ 70°C
TV1625-3R0256-R CAP 25F -10% +30% 3V T/H Eaton - Electronics Division	68	-	RFQ	Datasheet	TV	Bulk	Active	25 F	-10%, +30%	3 V	18mOhm	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.650" Dia (16.50mm)	1.122" (28.50mm)	-40°C ~ 85°C
SCMT22F505PRBA0 CAP 5F 0% +100% 5.5V T/H KYOCERA AVX	28	-	RFQ	Datasheet	SCM	Bulk	Last Time Buy	5 F	0%, +100%	5.5 V	120mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.709" (18.00mm)	0.984" L x 0.492" W (25.00mm x 12.50mm)	0.945" (24.00mm)	-40°C ~ 65°C
FS0H105ZF CAP 1F -20% +80% 5.5V T/H KEMET	78	-	RFQ	Datasheet	FS	Bulk	Active	1 F	-20%, +80%	5.5 V	7Ohm @ 1kHz	-	PC Pins	Through Hole	Radial, Can	0.400" (10.16mm)	1.122" Dia (28.50mm)	0.551" (14.00mm)	-25°C ~ 70°C
SCMR22L105SSBB0 CAP 1F -10% +30% 9V T/H KYOCERA AVX	46	-	RFQ	Datasheet	SCM	Bulk	Active	1 F	-10%, +30%	9 V	350mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.531" (13.50mm)	1.047" L x 0.374" W (26.60mm x 9.50mm)	1.024" (26.00mm)	-40°C ~ 65°C
DSF117Q3R0 CAPACITOR 110F -10%, +30% 3V TH Cornell Dubilier Knowles	8	-	RFQ	Datasheet	DSF	Bulk	Active	110 F	-10%, +30%	3 V	10mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	2.441" (62.00mm)	-40°C ~ 85°C
SCAP,PBLS-1.66/16.2 CAP 1.66F -10% +20% 16.2V UCAP Tecate Group	81	-	RFQ	Datasheet	PBLS	Bulk	Active	1.66 F	-10%, +20%	16.2 V	420mOhm	1000 Hrs @ 65°C	Wire Leads with Connector	User Defined	Module, Wire Leads	-	2.520" L x 0.453" W (64.00mm x 11.50mm)	1.417" (36.00mm)	-40°C ~ 65°C

Total 2853 Record«Prev 1... 52 53 54 555657 58 59...143 Next»
