Electric Double Layer Capacitors (EDLC), Supercapacitors

Electric double layer capacitors (EDLC), also known as supercapacitors, are energy storage components that provide high capacitance, fast charge and discharge capability, and long cycle life. They are commonly used for backup power, peak current support, energy buffering, regenerative energy storage, memory backup, industrial controls, smart meters, automotive electronics, and renewable energy systems.

TomatoElec is an independent electronic components distributor supplying EDLC and supercapacitor products from mainstream manufacturers such as KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, and Maxwell Technologies. Customers can check inventory, price, package, specifications, parameters and PDF datasheets in the product list below, and submit a BOM or RFQ for supercapacitor sourcing support.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Capacitance	Tolerance	Voltage - Rated	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Termination	Mounting Type	Package / Case	Lead Spacing	Size / Dimension	Height - Seated (Max)	Operating Temperature
SCAP,PBLS-3.4/27 CAP 3.4F 27V UCAP PACK Tecate Group	91	-	RFQ	Datasheet	PBLS	Bulk	Active	3.4 F	-	27 V	260mOhm	1000 Hrs @ 65°C	Wire Leads with Connector	User Defined	Module, Wire Leads	-	2.047" L x 1.063" W (52.00mm x 27.00mm)	2.598" (66.00mm)	-40°C ~ 65°C
SCAP,PBLS-5.62/21.6 CAP 5.62F -10% +20% 21.6V UCAP Tecate Group	37	-	RFQ	Datasheet	PBLS	Bulk	Active	5.62 F	-10%, +20%	21.6 V	188mOhm	1000 Hrs @ 65°C	Wire Leads with Connector	User Defined	Module, Wire Leads	-	2.087" L x 1.083" W (53.00mm x 27.50mm)	2.402" (61.00mm)	-40°C ~ 65°C
XVM-16R2656-R CAP 65F 0% +20% 16.2V CHASSIS MT Eaton - Electronics Division	21	-	RFQ	Datasheet	XVM	Bulk	Active	65 F	0%, +20%	16.2 V	22mOhm	1500 Hrs @ 65°C	Screw Terminals	Chassis Mount	Module	0.846" (21.50mm)	9.291" L x 1.803" W (236.00mm x 45.80mm)	3.051" (77.50mm)	-40°C ~ 65°C
XTM-18R0626-R CAP 61.7F -5% +20% 18V CHAS MNT Eaton - Electronics Division	2	-	RFQ	Datasheet	XTM	Bulk	Active	61.7 F	-5%, +20%	18 V	22mOhm	1500 Hrs @ 65°C	Screw Terminals	Chassis Mount	Module	-	9.291" L x 1.803" W (236.00mm x 45.80mm)	3.051" (77.50mm)	-40°C ~ 65°C
SM0500-016-PT CAPACITOR 500F 0%/20% 16V CHAS LICAP Technologies, Inc.	15	-	RFQ	Datasheet	-	Box	Active	500 F	0%, +20%	16 V	1.8mOhm	1500 Hrs @ 65°C	Screw Terminals	Chassis Mount	Module	-	16.457" L x 2.677" W (418.00mm x 68.00mm)	7.008" (178.00mm)	-40°C ~ 65°C
XLR-18R0507B-R CAP MODULE 500F 18V Eaton - Electronics Division	3	-	RFQ	Datasheet	XLR	Box	Active	500 F	-5%, +20%	18 V	1.7mOhm	1000 Hrs @ 65°C	Cable with Connector	Chassis Mount	Module	-	16.417" L x 2.677" W (417.00mm x 68.00mm)	6.969" (177.00mm)	-40°C ~ 65°C
SM0165-054-ATH CAP 54V 165F TEMP MONITOR OV ALA LICAP Technologies, Inc.	2	-	RFQ	Datasheet	-	Box	Active	165 F	0%, +20%	54 V	6mOhm	1500 Hrs @ 65°C	Screw Terminals	Chassis Mount	Module	-	16.457" L x 7.795" W (418.00mm x 198.00mm)	7.126" (181.00mm)	-40°C ~ 65°C
XLM-62R1137A-R CAP 130F 0%, +20% 62.1V CHAS MNT Eaton - Electronics Division	18	-	RFQ	Datasheet	XLM	Bulk	Active	130 F	0%, +20%	62.1 V	6.7mOhm	1500 Hrs @ 65°C	Screw Terminals	Chassis Mount	Module	-	24.996" L x 6.937" W (634.90mm x 176.20mm)	6.862" (174.30mm)	-40°C ~ 65°C

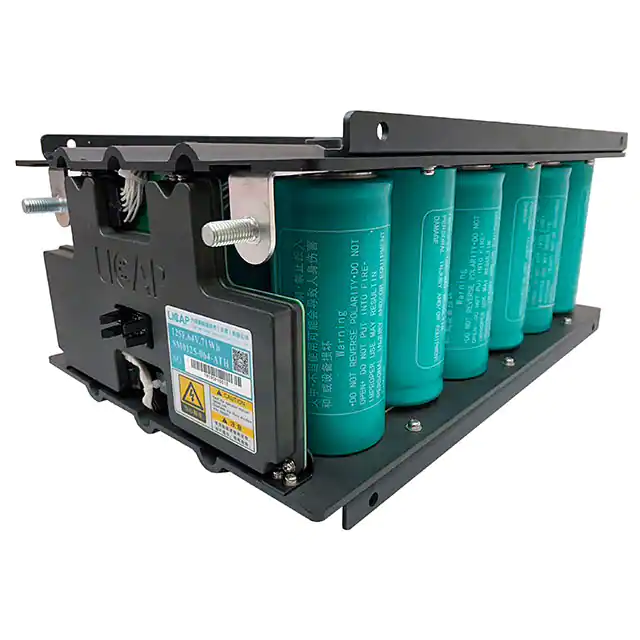

SM0125-064-ATH CAPACITOR 125F 0%/20% 64V CHAS LICAP Technologies, Inc.	5	-	RFQ	Datasheet	-	Box	Active	125 F	0%, +20%	64 V	8mOhm	1500 Hrs @ 65°C	Screw Terminals	Chassis Mount	Module	-	16.280" L x 10.866" W (413.50mm x 276.00mm)	7.126" (181.00mm)	-40°C ~ 65°C
SKELMOD 51V CAPACITOR 177F 51V CHASSIS MOUNT Skeleton Technologies GmbH	17	-	RFQ	Datasheet	-	Box	Active	177 F	-	51 V	4mOhm	1500 Hrs @ 65°C	Quick Connect, Disconnect	Chassis Mount	Module	-	16.457" L x 7.638" W (418.00mm x 194.00mm)	7.402" (188.00mm)	-40°C ~ 65°C
SKELMOD 102V CAPACITOR 88F 102V CHASSIS MOUNT Skeleton Technologies GmbH	2	-	RFQ	Datasheet	-	Box	Active	88 F	-	102 V	7.6mOhm	1500 Hrs @ 65°C	Quick Connect, Disconnect	Chassis Mount	Module	-	19.744" L x 18.898" W (501.50mm x 480.00mm)	0.689" (17.50mm)	-40°C ~ 65°C
FG0H223ZF CAP 22MF -20% +80% 5.5V T/H KEMET	31	-	RFQ	Datasheet	FG	Bulk	Active	22 mF	-20%, +80%	5.5 V	200Ohm @ 1kHz	-	PC Pins	Through Hole	Radial, Can	0.200" (5.08mm)	0.433" Dia (11.00mm)	0.217" (5.50mm)	-25°C ~ 70°C
HB0820-2R5305-R CAP 3F -10% +30% 2.5V T/H Eaton - Electronics Division	36	-	RFQ	Datasheet	HB	Bulk	Active	3 F	-10%, +30%	2.5 V	160mOhm @ 100Hz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.138" (3.50mm)	0.335" Dia (8.50mm)	0.827" (21.00mm)	-25°C ~ 70°C
ADCM-S05R5SA106RB CAPACITOR 10F 5.5V TH Abracon LLC	73	-	RFQ	Datasheet	ADCM-S05R5S	Bulk	Active	10 F	0%, +30%	5.5 V	80mOhm @ 1kHz	-	PC Pins	Through Hole	Radial	0.701" (17.80mm)	1.004" L x 0.512" W (25.50mm x 13.00mm)	1.457" (37.00mm)	-40°C ~ 70°C
ADCM-S06R0SA106RB CAPACITOR 10F 6V TH Abracon LLC	94	-	RFQ	Datasheet	ADCM-S06R0S	Bulk	Active	10 F	0%, +30%	6 V	90mOhm @ 1kHz	-	PC Pins	Through Hole	Radial	0.701" (17.80mm)	1.004" L x 0.512" W (25.50mm x 13.00mm)	1.457" (37.00mm)	-40°C ~ 65°C
SCMT32H755SRBB0 CAP 7.5F -10% +30% 6V T/H KYOCERA AVX	46	-	RFQ	Datasheet	SCM	Bulk	Active	7.5 F	-10%, +30%	6 V	90mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.709" (18.00mm)	0.984" L x 0.492" W (25.00mm x 12.50mm)	1.339" (34.00mm)	-40°C ~ 65°C
SCAP,PBLS-2.0/13.5 CAP 2F -10% +20% 13.5V UCAP PACK Tecate Group	97	-	RFQ	Datasheet	PBLS	Bulk	Active	2 F	-10%, +20%	13.5 V	360mOhm	1000 Hrs @ 65°C	Wire Leads with Connector	User Defined	Module, Wire Leads	-	2.106" L x 0.453" W (53.50mm x 11.50mm)	1.417" (36.00mm)	-40°C ~ 65°C
DSM255Q018W075PB 2.5F, 18V, 79X30X14MM, STD MOD Cornell Dubilier Knowles	55	-	RFQ	Datasheet	DSM	Bulk	Active	2.5 F	-10%, +30%	18 V	334mOhm	1000 Hrs @ 65°C	Cable with Connector	Chassis Mount	Module	-	3.110" L x 0.551" W (79.00mm x 14.00mm)	1.457" (37.00mm)	-40°C ~ 65°C
FS1B105ZF CAP 1F -20% +80% 12V T/H KEMET	81	-	RFQ	Datasheet	FS	Bulk	Active	1 F	-20%, +80%	12 V	7.5Ohm @ 1kHz	-	PC Pins	Through Hole	Radial, Can	0.400" (10.16mm)	1.122" Dia (28.50mm)	1.496" (38.00mm)	-25°C ~ 70°C
MAL219690118E3 CAPACITOR 90F -20% +80% 8.4V T/H Vishay Beyschlag/Draloric/BC Components	84	-	RFQ	Datasheet	ENYCAP™ 196HVC	Tray	Last Time Buy	90 F	-20%, +80%	8.4 V	90mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Coin, Stacked Horizontal	0.394" (10.00mm)	1.378" L x 0.787" W (35.00mm x 20.00mm)	0.787" (20.00mm)	-20°C ~ 85°C

Total 2853 Record«Prev 1... 53 54 55 565758 59 60...143 Next»
